VSYS VCM-CE1546SL Dual Side by Side Telescoping TV Ceiling Mount
Model
:
VCM-CE1546SL
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support

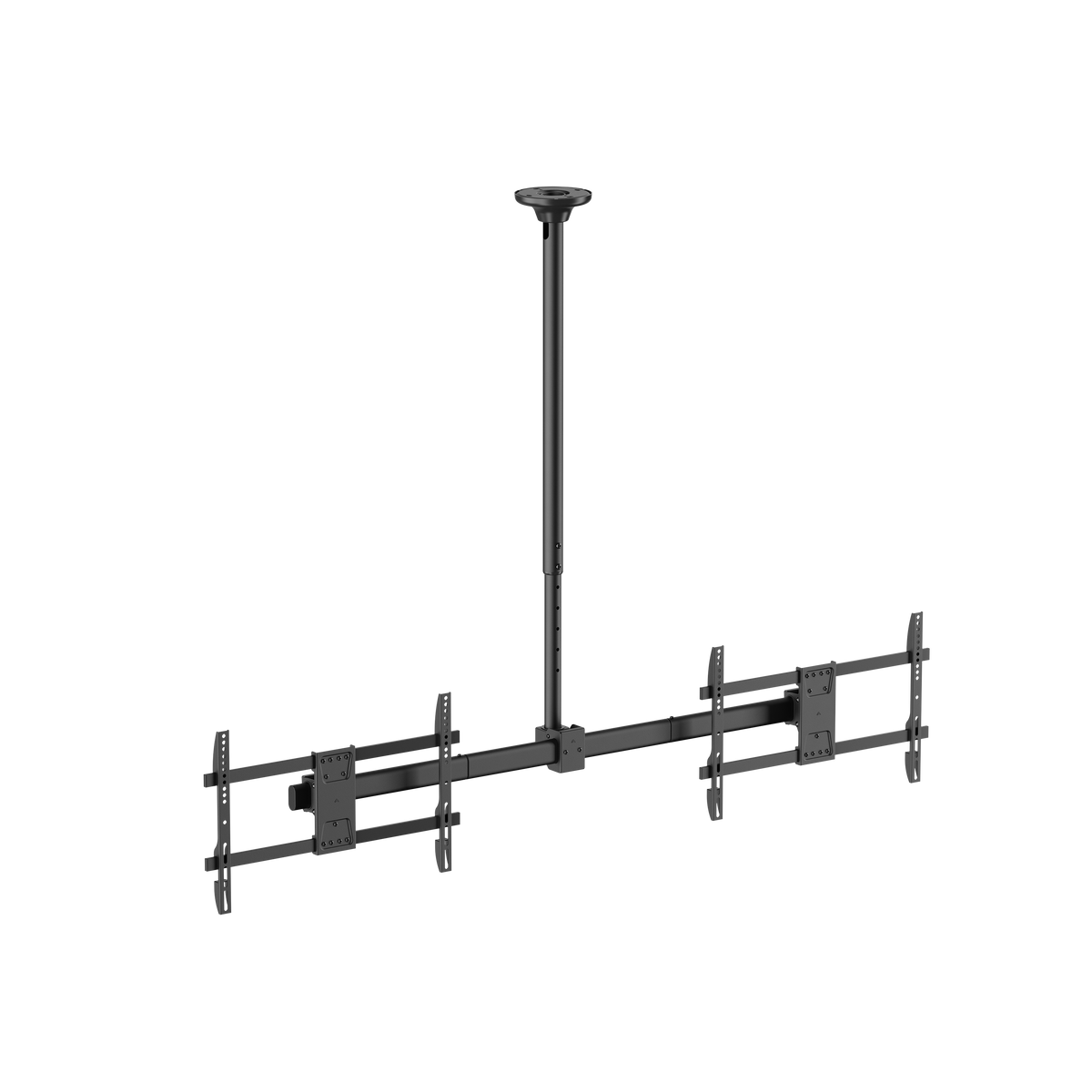

VSYS VCM-CE1546SL Dual Side by Side Telescoping TV Ceiling Mount
A heavy duty side by side dual screen ceiling mount built for digital menu boards, transit displays, and control rooms across Dubai, Abu Dhabi, and the UAE.
Key Features:
- Supports two displays up to 60 inches each with a weight capacity of 40kg per screen

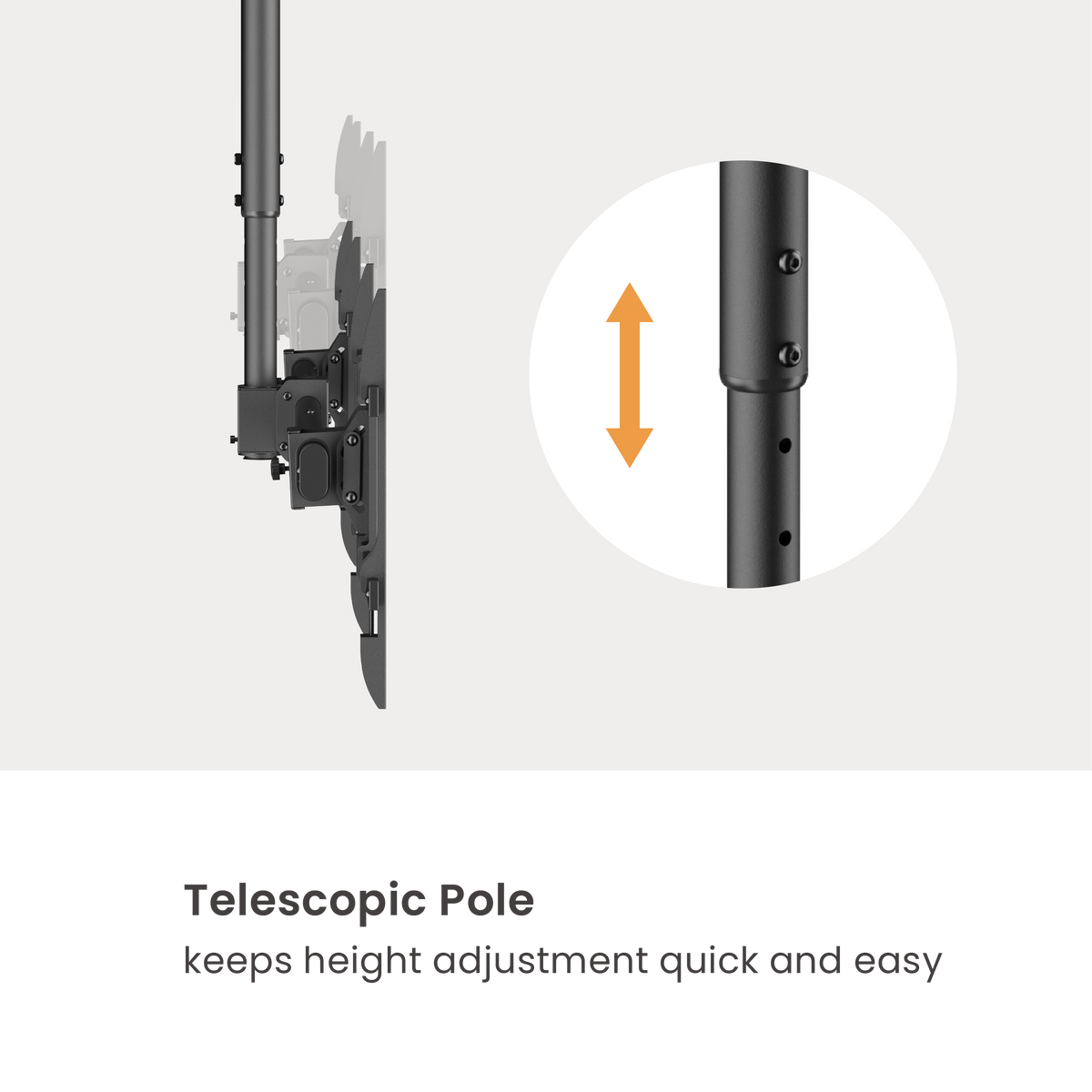

- Long reach telescoping pole extends from 1065mm to 1665mm for high ceiling installations
- Independent 0 to -25 degree tilt per screen reduces glare on each display separately
- 360 degree rotation around the pole keeps content visible from any direction
- Screen leveling of plus or minus 3 degrees ensures perfect alignment after hanging
Technical Specifications:
| Technical Parameter | Specification |
| Brand & Model | VSYS VCM-CE1546SL |
| Screen Size Compatibility | Up to 60 Inch per Screen (Dual) |
| Weight Capacity | 40 kg per Screen |
| Extension Range | 1065mm to 1665mm |
| Tilt Range | 0 Degrees / -25 Degrees (Independent per Screen) |
| Rotation | 360 Degrees |
| Screen Leveling | +/- 3 Degrees |
| Ceiling Plate | Adjustable, Flat or Pitched Roof Compatible |
| VESA Compatibility | Up to 600mm x 400mm per Screen |
| Certification | Strength Tested, 4 Times Approved |
Why Buy the VSYS VCM-CE1546SL from Trianze Tech?
- Genuine VSYS stock with manufacturer warranty support
- Fast delivery and installation across Dubai, Abu Dhabi, and the wider GCC
- Dedicated AV integration support for retail, hospitality, and control room projects
- Competitive pricing with flexible corporate and government quotes
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Yes, it offers tilt, swivel, or rotation adjustment so the display can be repositioned to reduce glare or change viewing direction after mounting.
It includes an adjustable plate designed to accommodate common ceiling and wall variations, with installation carried out by a qualified integrator.
Weight capacity varies by model in this range, supporting displays from 40kg up to 60kg depending on screen size and configuration.
Yes, it is strength tested and multiple times approved to confirm it can safely support the rated display weight.

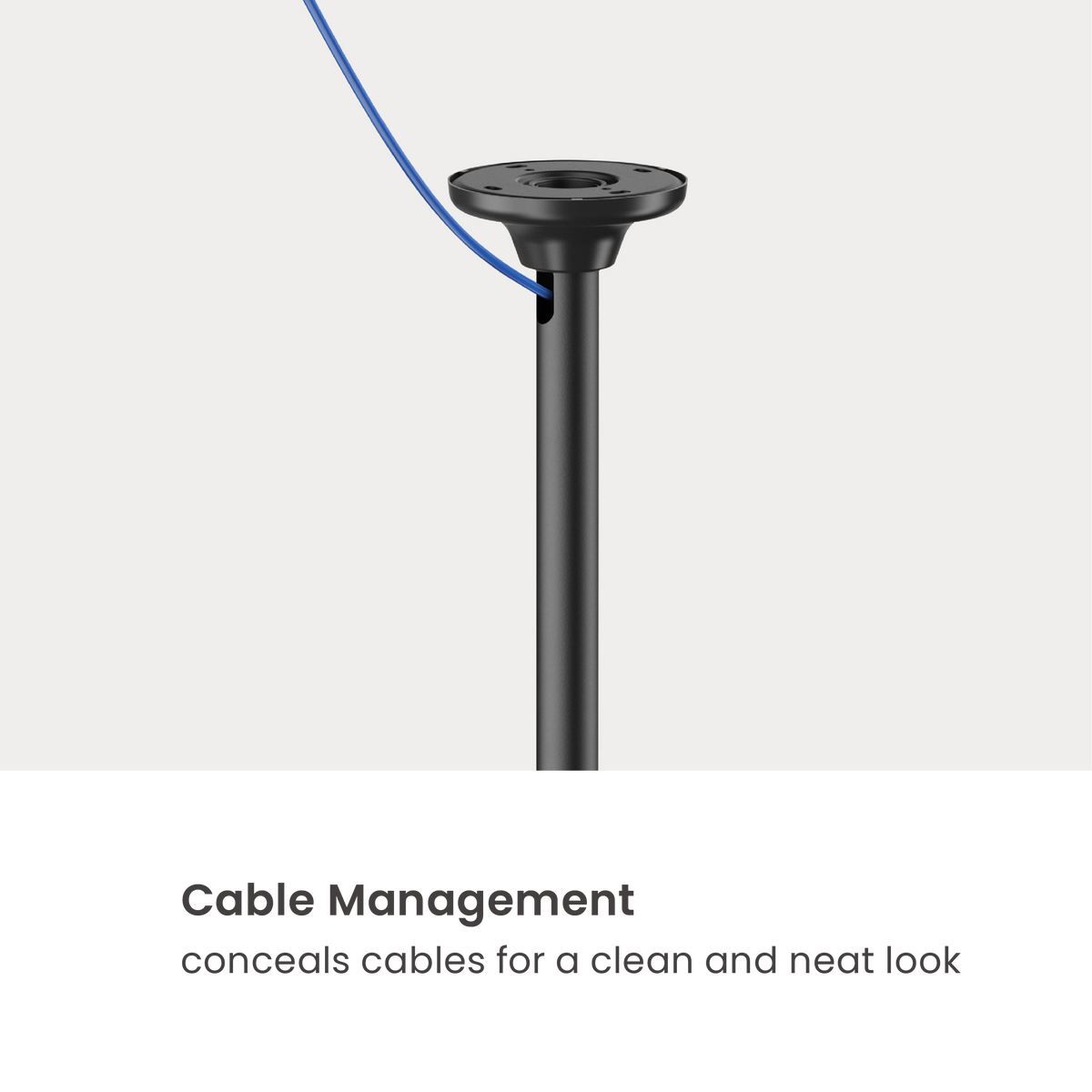

Yes, integrated cable management keeps wiring organized and out of sight for a clean, professional installation.
