Shure UR4D+ H4: Dual-Channel Diversity Receiver with RF Distribution Ports and Wireless Workbench, 518 to 578 MHz

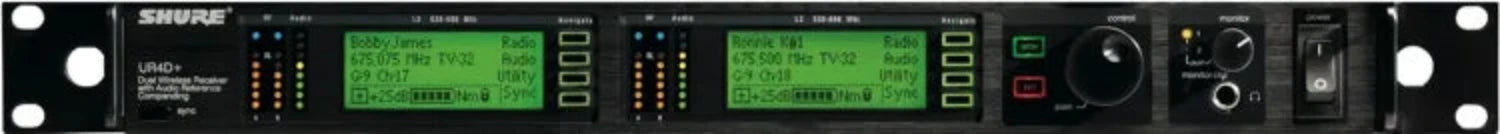

The Shure UR4D+ is a dual-channel diversity receiver in a durable single-space rack unit, designed to receive signals from two transmitters simultaneously. It adds rear-panel RF distribution ports that let up to 10 receivers share one antenna pair, and this listing is the H4 band (518 to 578 MHz). Its diversity design minimizes RF interference and noise, for venues, houses of worship and rental fleets across Dubai, Abu Dhabi and the wider UAE.
Key Features
- 2400 selectable frequencies across a 60 MHz bandwidth
- Track tuning filtering technology
- Up to 60 preset compatible systems per band (140 with multiple bands, region dependent)
- Networked automatic frequency selection and automatic transmitter setup
- Flash memory for six 60-channel custom frequency groups
- Dual backlit LCDs, USB and Ethernet, Wireless Workbench software included
- Rear-panel RF distribution for up to 10 receivers on one antenna pair
- Mic/line switchable balanced XLR output with ground lift, and 1/4 in outputs
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | UR4D+ H4 |
| Frequency Band | H4, 518 to 578 MHz |
| Channels | 2 (dual diversity receiver), 2400 selectable frequencies |
| Working Range | About 150 m (500 ft), typical conditions |
| Frequency Response | 40 Hz to 18 kHz, plus or minus 1 dB |
| Outputs | XLR mic/line switchable balanced, 1/4 in phone (200 ohms), USB, RJ-45 Ethernet |
| Headphone Monitoring | 1/4 in phone with level control |
| Power | 100 to 240 V AC, 50/60 Hz, 0.8 A maximum |
| Mounting | Rack mount hardware included |
| Antennas | Two band-dependent antennas |
| Dimensions (H x W x D) | 44 x 483 x 366 mm (1.72 x 19 x 14.39 in) |
| Weight | 5 kg (11 lb) |
Why Buy the Shure UR4D+ H4 from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for wireless systems.
- Genuine Shure stock sourced through authorized distribution channels
- Band matching against your UR transmitters before you order
- Wireless setup advice across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for venues and integrators
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure UR4D+ H4 offers 2400 selectable frequencies across a 60 MHz bandwidth in the H4 band (518 to 578 MHz), with track tuning filtering and up to 60 preset compatible systems per band. Wireless frequency use is subject to local regulation.
Yes. The UR4D+ has rear-panel RF distribution ports that let up to 10 receivers share an RF signal from a single antenna pair, so you do not need a separate splitter for small systems.
The UR4D+ has a mic/line switchable balanced XLR output with ground lift, 1/4 in phone outputs, a 1/4 in headphone monitor with level control, plus USB and RJ-45 Ethernet for PC and network control. Shure Wireless Workbench software is included.
The UR4D+ is a dual diversity receiver that receives signals from two transmitters simultaneously. Its microprocessor-controlled diversity design helps minimize RF interference and noise, with a typical working range of about 150 m (500 ft).
The UR4D+ is a single-space rack unit measuring 44 x 483 x 366 mm (1.72 x 19 x 14.39 in) and weighing 5 kg (11 lb). It runs on 100 to 240 V AC at 50/60 Hz, 0.8 A maximum, and rack mount hardware and two band-dependent antennas are included.
