Shure UR4D H4: UHF-R Dual Channel Diversity Wireless Receiver, H4 Band 518 to 578 MHz
Model
:
UR4D H4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

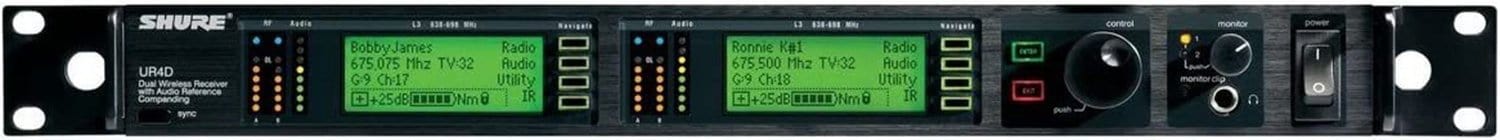

Shure UR4D H4 UHF-R Dual Diversity Receiver
The Shure UR4D H4 is a single rack space UHF-R dual channel diversity receiver that takes signals from two transmitters at once in the H4 band from 518 to 578 MHz. With 2400 selectable frequencies across 60 MHz, Track Tuning filtering, USB and Ethernet control through Wireless Workbench and a 150 m typical range, it serves touring, theatre and large venue systems across Dubai, Abu Dhabi and the UAE and GCC.
Key Features:
- Two channels in one rack space with diversity reception
- 2400 selectable frequencies across 60 MHz
- Track Tuning filtering and networked automatic frequency selection
- Automatic transmitter setup and six stored custom groups
- USB and Ethernet with Wireless Workbench control
Technical Specifications:
| Spec | Value |
|---|---|
| RF Band | H4, 518 to 578 MHz |
| Frequencies | 2400 across 60 MHz |
| Compatible Systems | Up to 60 per band (region dependent) |
| Range | About 150 m typical |
| Audio Response | 40 Hz to 18 kHz, plus or minus 1 dB |

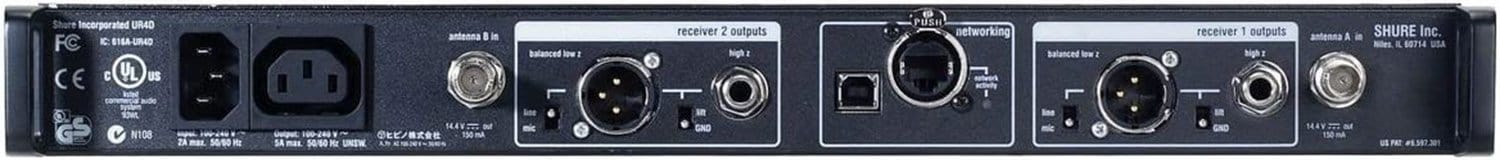

| Outputs | XLR mic/line switchable with ground lift, 1/4 inch (200 ohm), headphone |
| Control | USB and RJ-45 Ethernet |
| Power | 100 to 240 V AC, 50/60 Hz, 0.8 A max |
| Dimensions | 44 x 483 x 366 mm (1 RU) |
| Weight | 5 kg |
Why Buy the Shure UR4D H4 from Trianze Tech?
- Shure UHF-R receiver with local support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Frequency planning help
- Dedicated AV support team
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The UR4D is a dual receiver, so it receives two UHF-R transmitters at the same time, each on its own channel with its own XLR and 1/4 inch outputs.
The H4 version tunes 518 to 578 MHz, with 2400 selectable frequencies across that 60 MHz range.
Yes. The UR4D has USB and Ethernet ports and works with Shure Wireless Workbench software for monitoring, frequency coordination and setup.
Shure quotes a working range of about 150 m (500 ft) under typical conditions.
The UR4D runs on 100 to 240 V AC mains at 0.8 A max and fits a single 19 inch rack space with the included rack hardware.
Trianze Tech stocks the Shure UR4D H4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
