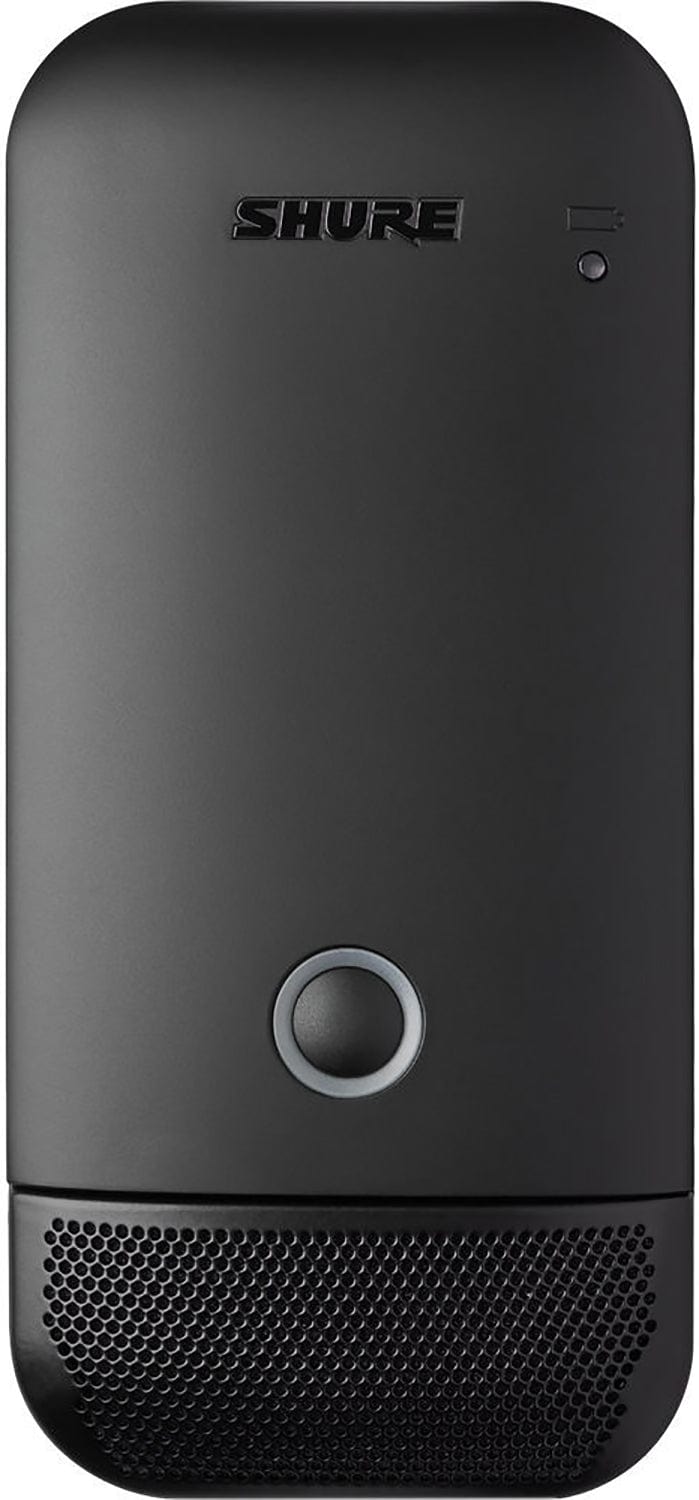

Shure ULXD6/O-H50: Omnidirectional Wireless Boundary Microphone Transmitter for ULXD and QLXD Systems, H50 Band, 534 to 598 MHz
Model
:
ULXD6-O-H50
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Shure ULXD6/O-H50: Omnidirectional Wireless Boundary Microphone Transmitter for ULXD and QLXD Systems, H50 Band, 534 to 598 MHz

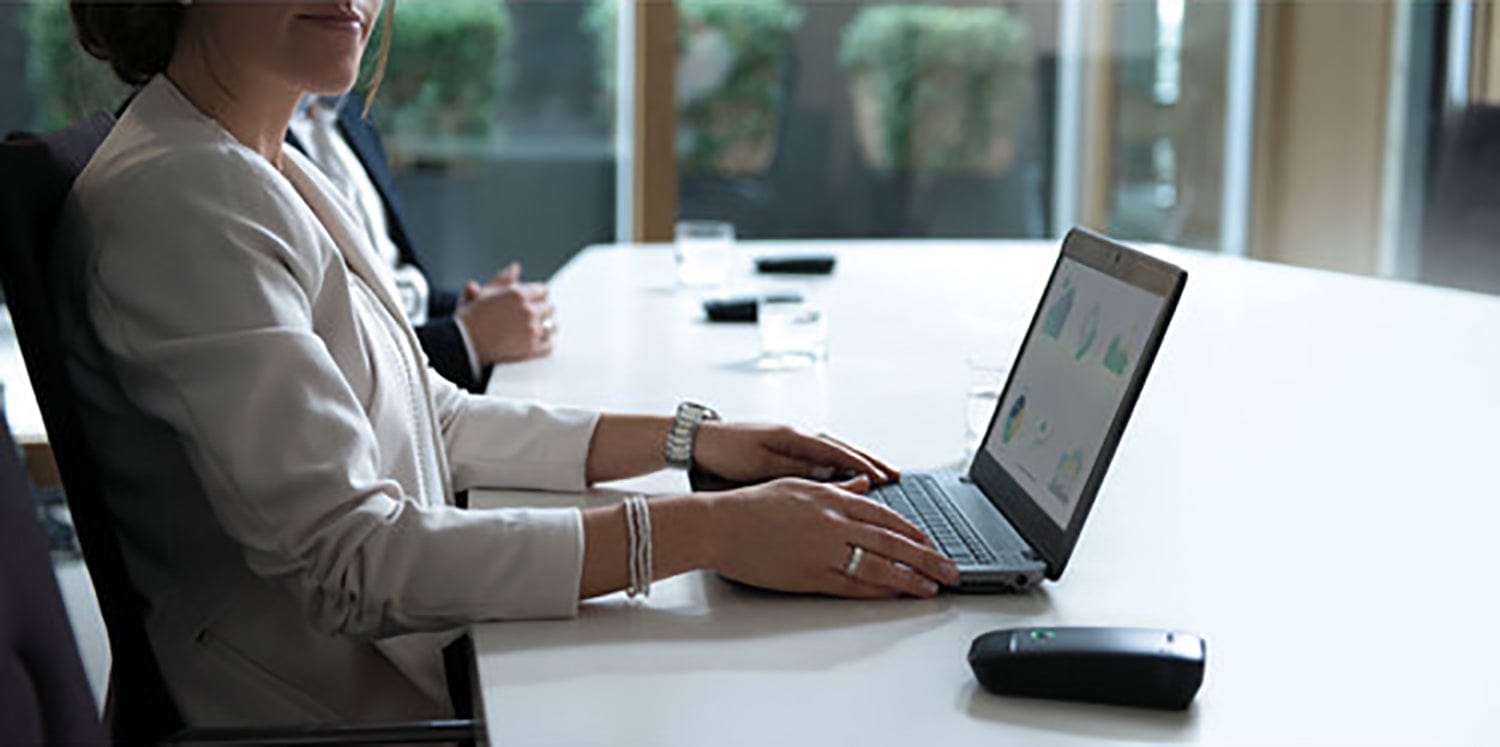

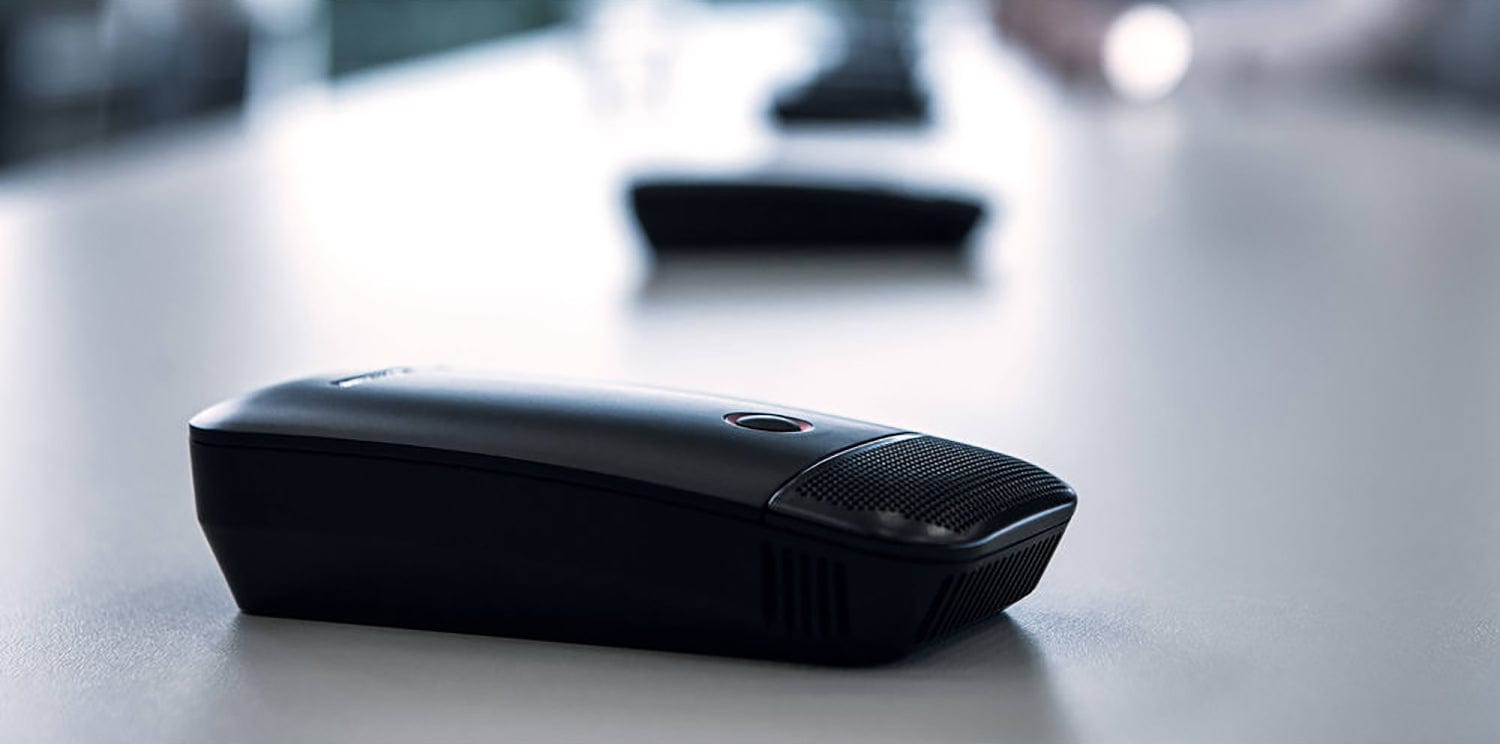

The Shure ULXD6 Boundary Microphone Transmitter has a low-profile design for tabletop use at meetings and events where wired microphones are impractical. Paired with a ULX-D or QLX-D digital receiver it forms a system with low latency, long transmission range and high channel count for large meeting venues requiring live sound reinforcement, across Dubai, Abu Dhabi and the UAE. This listing is the omnidirectional model in the H50 band, 534 to 598 MHz.
Key Features
- Omnidirectional low-profile boundary microphone transmitter
- Up to 9 hours 20 minutes on Shure rechargeable batteries and 8 hours 40 minutes on AA batteries at 10 mW

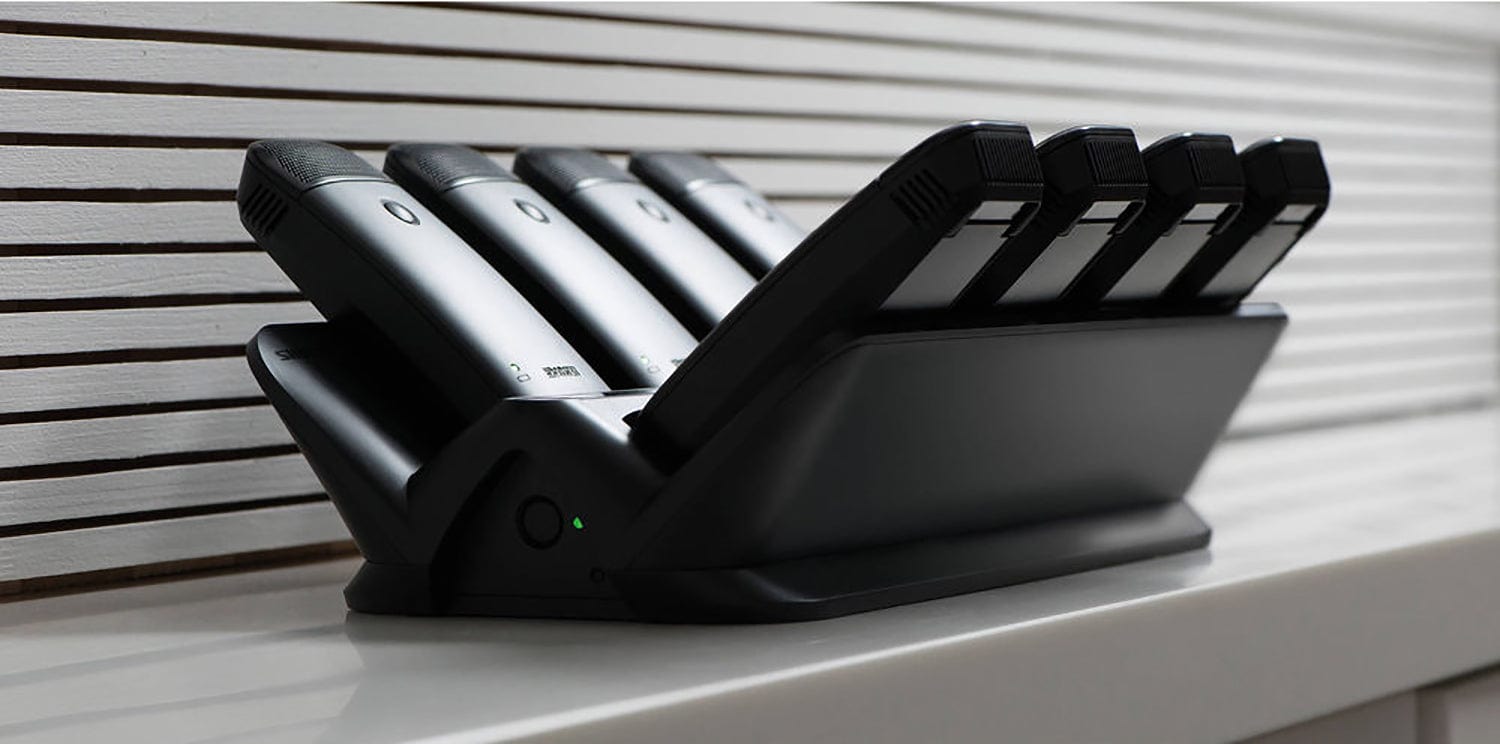

- Works with SBC450 (4-bay) and SBC850 (8-bay) networked charging stations
- Very low latency for live sound reinforcement
- Transmission range up to 300 feet (100 meters)
- Up to 200 ULXD6 transmitters with just one pair of receiving antennas
- Compatible with ULX-D and QLX-D digital receivers

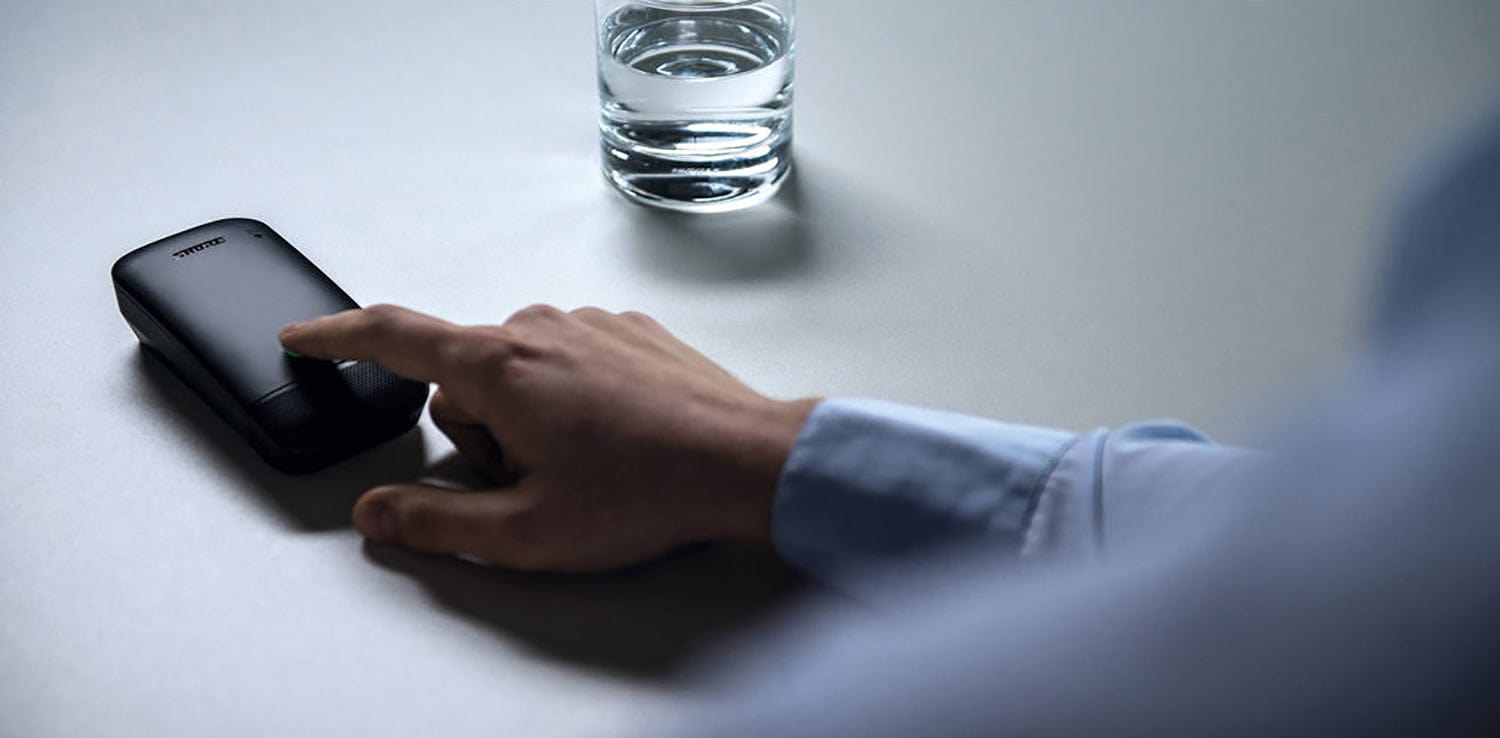

- Configurable mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and mute LED behavior
- Adjustable RF power, high-pass filter and power lock
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | ULXD6-O-H50 |
| Frequency Band | H50, 534 to 598 MHz |
| RF Power | 1, 10 or 20 mW (varies by region) |
| Modulation / Antenna | Shure proprietary digital / integrated PIFA, 50 ohms |
| Gain Adjustment | 0 to 21 dB in 3 dB steps |
| Battery Runtime at 10 mW | SB900 or SB900A: up to 9 hours 20 minutes; AA: up to 8 hours 40 minutes |
| Size / Weight | 113.94 x 61.83 x 34.28 mm (4.48 x 2.43 x 1.35 in) / 241 g with AA batteries |
| Operating Temperature | 0 to 45 C (32 to 113 F) |
| Housing | Molded plastic |
Why Buy the Shure ULXD6/O-H50 from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for professional wireless.
- Genuine Shure stock sourced through authorized distribution channels
- Meeting room wireless design and band planning across Dubai, Abu Dhabi and the GCC
- Band and receiver checking before you order
- Local UAE warranty backing and after-sales support
- Volume pricing available for integrators and venues
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure ULXD6/O in the H50 band is an omnidirectional wireless boundary microphone transmitter with a low-profile design for tabletop use at meetings and events. It pairs with a ULX-D or QLX-D digital receiver.
The H50 band covers 534 to 598 MHz. Use it with a ULX-D or QLX-D receiver in the H50 band, and confirm with Trianze Tech that the band suits local regulation for your project.
The ULXD6 is compatible with the full line of Shure antennas and distribution components, allowing up to 200 ULXD6 boundary microphone transmitters to be used with just one pair of receiving antennas.

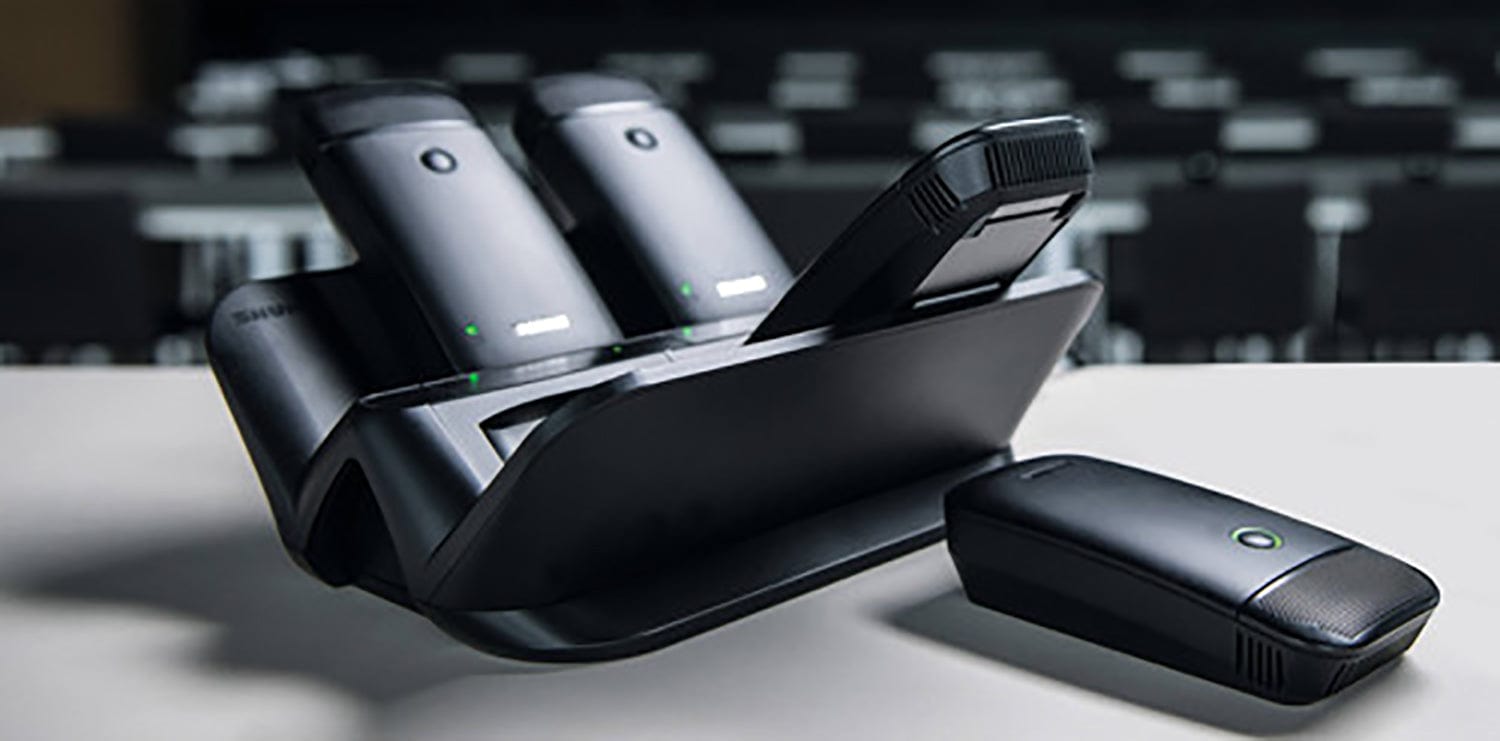

The ULXD6 works with the optional SBC450 (4-bay) and SBC850 (8-bay) networked charging stations, which allow docking and charging of the transmitters when they are not in use.
The ULXD6 uses an integrated PIFA antenna with 50 ohm impedance and Shure proprietary digital modulation, with selectable RF power of 1, 10 or 20 mW (varies by region).
Trianze Tech stocks the Shure ULXD6/O H50 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
