Shure ULXD4Q-H50: ULX-D Quad-Channel Digital Wireless Receiver with Dante and RF Cascade Ports, H50 Band
Model
:
ULXD4Q-H50
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure ULXD4Q-H50: ULX-D Quad-Channel Digital Wireless Receiver with Dante and RF Cascade Ports, H50 Band

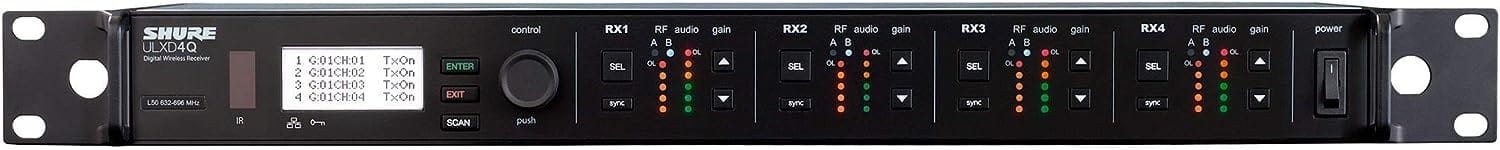

The Shure ULXD4Q houses four independent digital receivers in one rugged rack unit. Two Ethernet ports support Dante digital audio, RF cascade ports distribute the antenna signal to another receiver, and audio summing lets it work as a 4-channel mixer. It is built for large venues and AV installations across Dubai, Abu Dhabi and the wider UAE.
Key Features
- 4 independent digital audio channels in one rack space

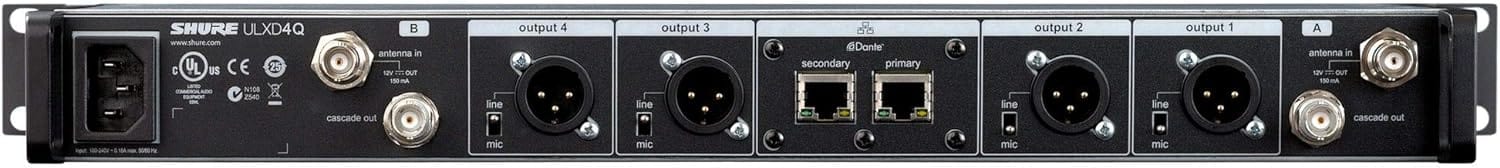

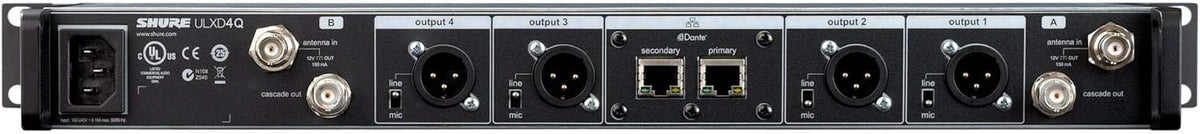

- 2 x Ethernet/Dante ports and 2 x RF cascade ports
- Audio summing for 4-channel mixer operation
- 64 MHz tuning range, expandable up to 60 channels
- AES 256-bit encryption and latency under 2.9 ms
- 4 balanced XLR outputs with phantom power protection
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | ULXD4Q-H50 |
| Frequency Band | H50, 534 to 598 MHz |
| RF Bandwidth / Step | 64 MHz / 25 kHz, 2560 frequencies |
| Audio Channels | 4 |
| Audio Outputs | 4 x XLR balanced |
| Gain Range | -18 to +42 dB in 1 dB steps, 30 dB pad |
| Network | 2 x RJ45 1 Gb/s, DHCP, Dante, manual IP |
| Max Transmitters per Band | 60 |
| Antenna Inputs | 2 x BNC, 12 to 13 VDC bias |
| Dimensions / Weight | 482 x 44 x 274 mm / 3.4 kg (7.6 lb) |
| Housing | Steel, rackmount |
Why Buy the Shure ULXD4Q from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for wireless microphone systems.
- Genuine Shure stock sourced through authorized distribution channels
- Band matching between receiver and transmitters before you order
- Dante and RF cascade planning support for venue installations across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for multi-receiver projects
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The ULXD4Q houses 4 independent digital receivers in one rack unit, with 4 balanced XLR outputs. Audio summing lets it act as a 4-channel mixer, and it can be expanded up to 60 channels.
Yes. The ULXD4Q has two 1 Gb/s Ethernet ports that support Dante digital audio, along with DHCP and manual IP, which makes it suited to networked installations.
The two RF cascade ports on the ULXD4Q pass the antenna signal on to another receiver unit, so several receivers can share one antenna system in large venues and installations.
This listing is the ULXD4Q-H50, in the H50 band of 534 to 598 MHz with a 64 MHz tuning range, and it only pairs with H50 transmitters. Gain runs -18 to +42 dB in 1 dB steps with a 30 dB pad.
The ULXD4Q measures 482 x 44 x 274 mm (19 x 1.7 x 10.8 in), weighs 3.4 kg (7.6 lb) and has a steel housing. It mounts in a standard 19 inch rack with the included hardware.
Trianze Tech stocks the Shure ULXD4Q Wireless Receiver in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
