Shure ULXD4-H50: ULX-D Half-Rack Networkable Digital Wireless Receiver with AES 256 Encryption, H50 Band
Model
:
ULXD4-H50
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure ULXD4-H50: ULX-D Half-Rack Networkable Digital Wireless Receiver with AES 256 Encryption, H50 Band

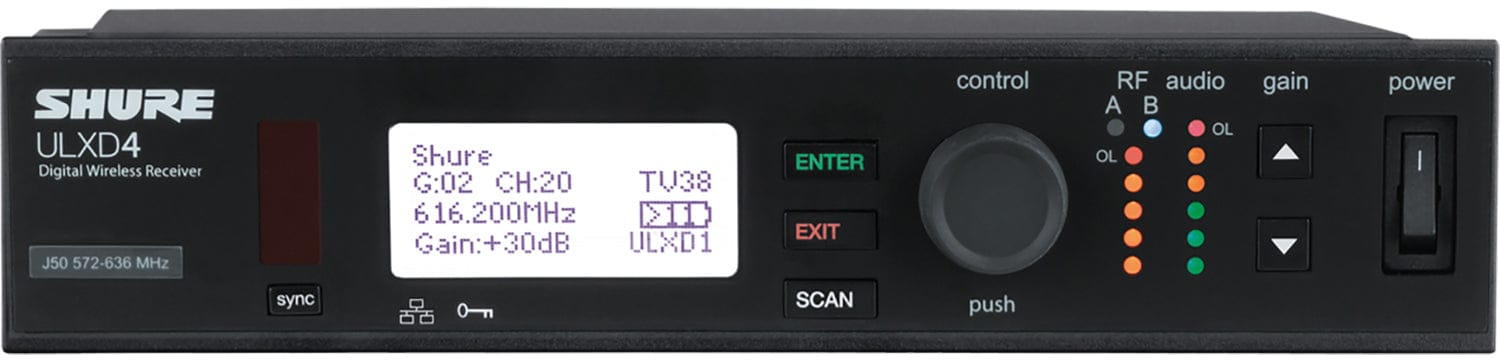

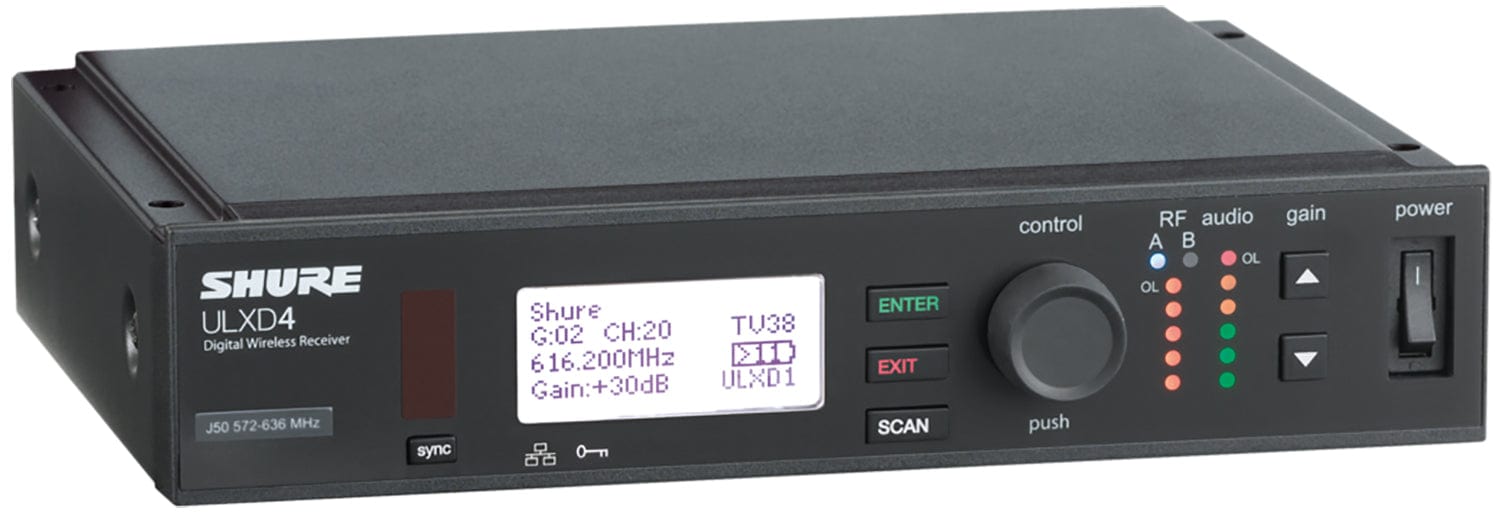

The Shure ULXD4 is a half-rack, networkable single-channel receiver for ULX-D digital wireless systems, delivering 24-bit / 48 kHz audio, efficient RF performance and AES 256-bit encryption for professional sound reinforcement. It is used by venues, houses of worship, broadcasters and integrators across Dubai, Abu Dhabi and the wider UAE, and can be rack mounted or used on a tabletop.
Key Features
- Digital predictive switching diversity with 24-bit / 48 kHz audio
- Optimized scanning finds and prioritizes the cleanest frequencies, deployed to transmitters over IR sync
- Bodypack Frequency Diversity for uninterrupted audio in mission critical applications
- Individual gain control, LED meters and XLR plus 1/4 inch outputs
- Ethernet networking with Wireless Workbench 6 support, compatible with AMX and Crestron control
- Interference detection and alerts, removable half-wave antennas
- Up to 22 active transmitters per 8 MHz TV channel, or 63 in High Density mode
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | ULXD4-H50 |
| Frequency Band | H50, 534 to 598 MHz |
| RF Bandwidth / Step | 64 MHz / 25 kHz, 2560 frequencies |
| Latency | Less than 2.9 ms |
| Audio Outputs | 1 x XLR balanced, 1 x 1/4 inch TRS balanced |
| Gain Range | -18 to +42 dB in 1 dB steps, 30 dB pad |
| Frequency Response | 30 Hz to 20 kHz, plus or minus 1 dB (microphone dependent) |
| Network | 1 x RJ45 10/100 Mb/s, DHCP or manual IP |
| Antenna Inputs | 2 x BNC, 12 to 13 VDC bias |
| Dimensions / Weight | 171 x 44 x 197 mm / 0.9 kg (2 lb) |
| Housing | Steel, 1 RU half rack or tabletop |
Why Buy the Shure ULXD4 from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for wireless microphone systems.
- Genuine Shure stock sourced through authorized distribution channels
- Band matching between receiver and transmitters before you order
- Frequency coordination advice for multi-channel rollouts across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for multi-receiver projects
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The ULXD4 is a half-rack, networkable single-channel digital wireless receiver for ULX-D systems, with 24-bit / 48 kHz audio, digital predictive switching diversity, latency below 2.9 ms and AES 256-bit encryption.

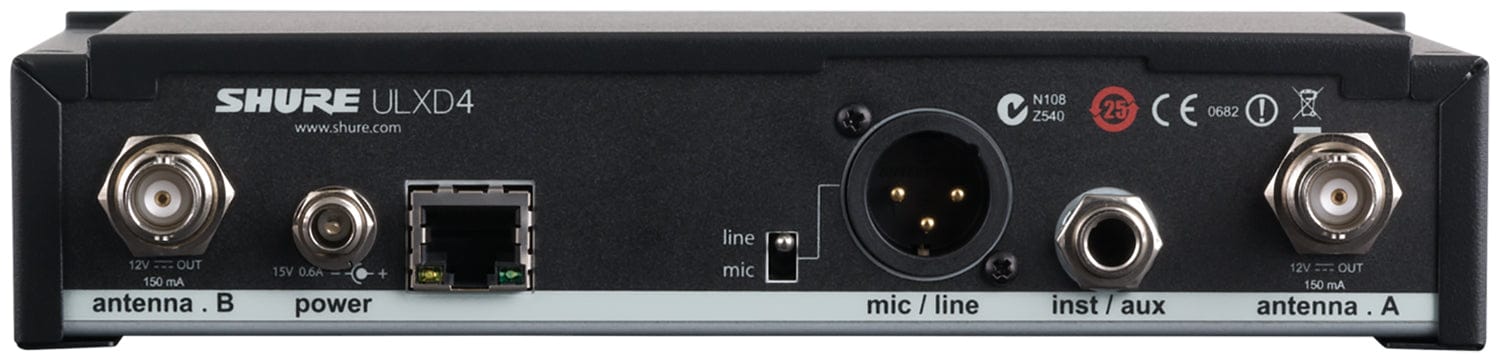

The ULXD4 has one balanced 3-pin XLR male output and one balanced 1/4 inch TRS output, with a gain range of -18 to +42 dB in 1 dB steps and a 30 dB pad. Both outputs have phantom power protection.
This listing is the ULXD4-H50, matching the H50 band of 534 to 598 MHz, and it only pairs with transmitters on the same band. It handles up to 22 active transmitters in one 8 MHz TV channel, or up to 63 in High Density mode.
The ULXD4 has a 10/100 Mb/s RJ45 Ethernet port with DHCP or manual IP, works with Wireless Workbench 6 software for coordination and monitoring, and is compatible with AMX and Crestron control systems.
The ULXD4 measures 171 x 44 x 197 mm, weighs 0.9 kg and has a steel housing. It has two rear BNC antenna inputs with 12 to 13 VDC bias, mounts in a rack (1 RU half rack) or on a tabletop, and includes a 15 VDC power adapter.
Trianze Tech stocks the Shure ULXD4 Wireless Receiver in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
