Shure ULXD4-J50A: ULX-D Half-Rack Digital Wireless Receiver with AES 256 Encryption, J50A Band
Model
:
ULXD4-J50A
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

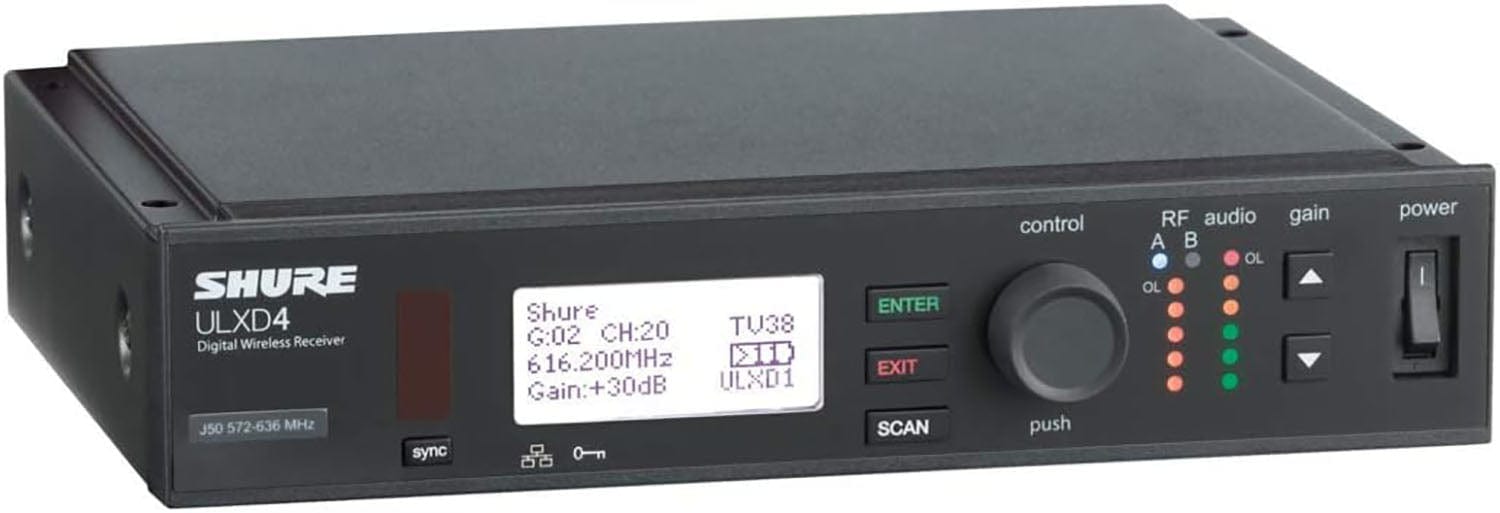

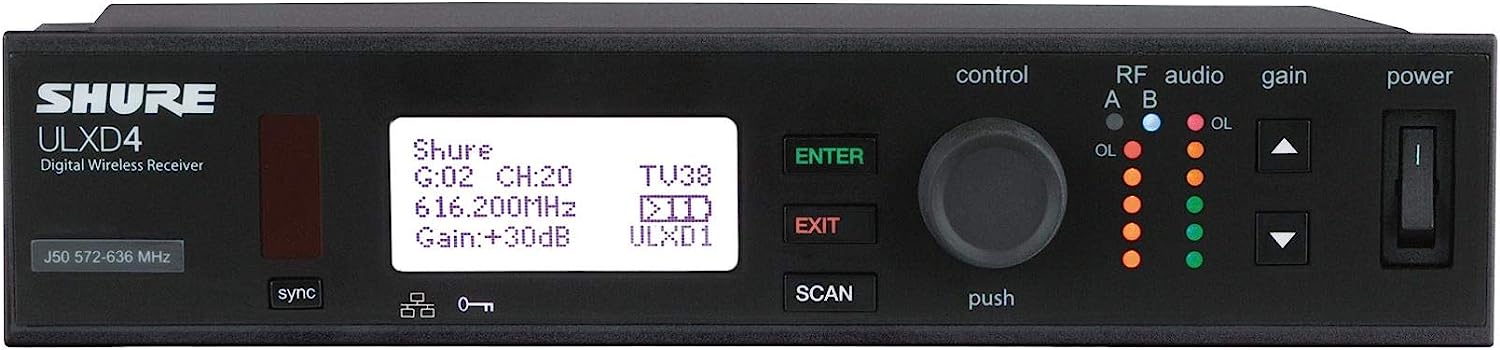

Shure ULXD4-J50A Half-Rack Digital Wireless Receiver
The Shure ULXD4-J50A is a half-rack, networkable single-channel receiver for ULX-D digital wireless systems, delivering 24-bit / 48 kHz audio and AES 256-bit encryption for venues, houses of worship, broadcasters and integrators across Dubai, Abu Dhabi and the wider UAE.
Key Features:
- Digital Predictive Switching Diversity with 24-bit / 48 kHz audio
- Optimized scanning finds and deploys the cleanest frequencies over IR sync
- Bodypack Frequency Diversity for mission critical applications
- Ethernet networking with Wireless Workbench 6, AMX and Crestron support
- Up to 22 active transmitters per 8 MHz TV channel, or 63 in High Density mode
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Band | J50A, 572 to 608 MHz plus 614 to 616 MHz (44 MHz, 1760 frequencies) |

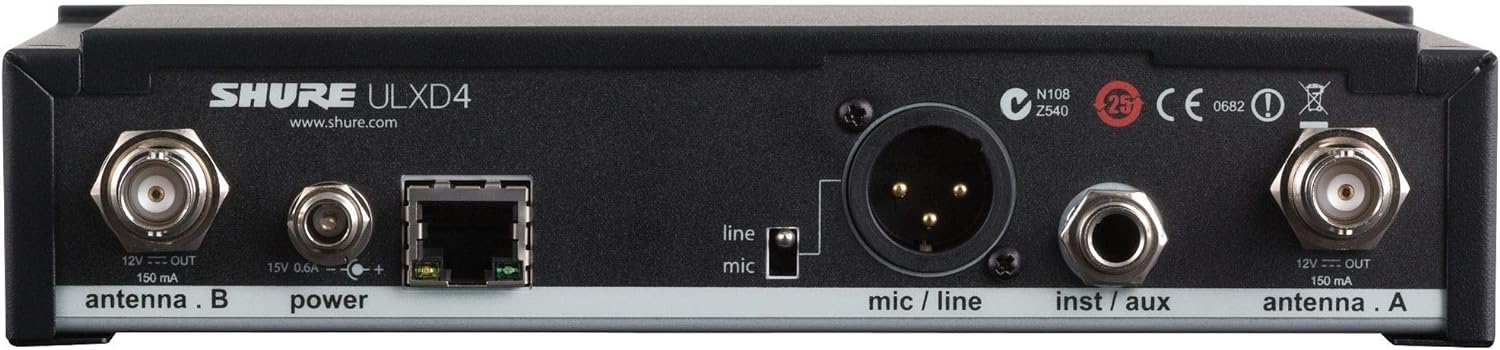

| Audio Outputs | 1 x XLR balanced, 1 x 1/4 inch TRS balanced |
| Gain Range | -18 to +42 dB in 1 dB steps, 30 dB pad |
| Network | 1 x RJ45 10/100 Mb/s, DHCP or manual IP |
| Dimensions / Weight | 171 x 44 x 197 mm / 0.9 kg |
| Housing | Steel, 1/2 RU half rack or tabletop |
Why Buy the Shure ULXD4-J50A from Trianze Tech?
- Genuine Shure stock sourced through authorized distribution channels
- Band matching between receiver and transmitters before you order
- Local UAE warranty backing and after-sales support
- Volume pricing available for multi-receiver projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure ULXD4-J50A operates on the J50A band, 572 to 608 MHz plus 614 to 616 MHz, with 44 MHz of bandwidth and 1760 selectable frequencies.
The ULXD4-J50A is a half-rack (1/2 RU) single-channel receiver usable on a tabletop or mounted in a rack with the included hardware.
The ULXD4-J50A provides one balanced XLR output and one balanced 1/4 inch TRS output, with gain adjustable from -18 to +42 dB in 1 dB steps and a 30 dB pad.
Yes. The ULXD4-J50A has a 10/100 Mbps Ethernet port supporting Shure Wireless Workbench 6 for coordination and monitoring, plus AMX and Crestron control compatibility.
The Shure ULXD4-J50A measures 171 x 44 x 197 mm (6.7 x 1.7 x 7.8 in) and weighs 0.9 kg (2 lb).
Trianze Tech stocks the Shure ULXD4-J50A in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
