Shure ULXD2/SM86-G50: ULX-D Digital Handheld Transmitter with SM86 Cardioid Condenser Capsule, G50 Band
Model
:
ULXD2-SM86-G50
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure ULXD2/SM86-G50: ULX-D Digital Handheld Transmitter with SM86 Cardioid Condenser Capsule, G50 Band

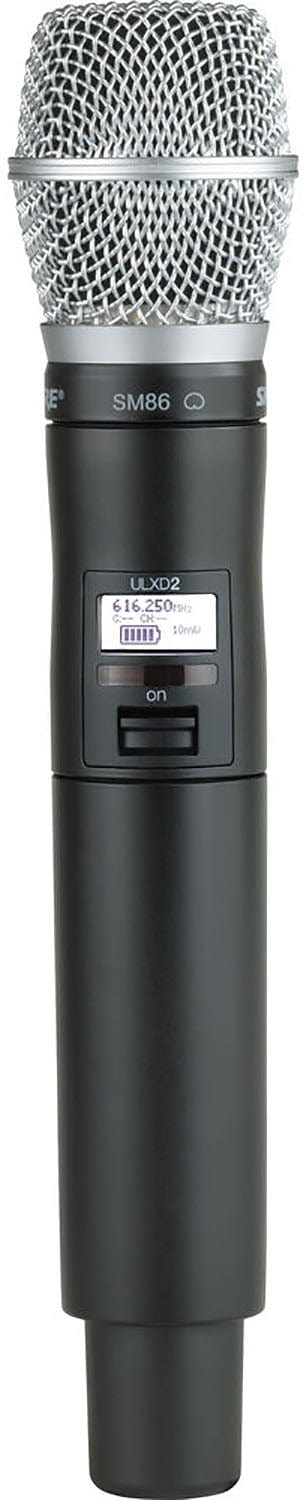

The Shure ULXD2/SM86 is a digital handheld wireless transmitter for ULX-D receivers, fitted with the SM86 cardioid condenser capsule. Its frequency response is tailored to reproduce vocals with clarity, and the cardioid pattern isolates the main sound source from background noise, which suits vocalists, presenters and worship teams across Dubai, Abu Dhabi and the wider UAE. This listing is the G50 band, 470 to 534 MHz.
Key Features
- SM86 cardioid electret condenser capsule tailored for vocal clarity
- AES 256-bit encryption, 48 kHz / 24-bit audio, latency under 2.9 ms
- Switchable 1, 10 or 20 mW RF output power
- Interchangeable capsule design, automatic gain adjustment
- 2 AA batteries included, up to 12 hours with the optional SB900A rechargeable battery
- Mute mode and backlit LCD with battery status
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | ULXD2-SM86-G50 |
| Frequency Band | G50, 470 to 534 MHz |
| Capsule | SM86, electret condenser, cardioid |
| Capsule Frequency Range | 50 Hz to 18 kHz |
| Sensitivity | -50 dBV/Pa |
| Signal-to-Noise Ratio | 71 dB |
| Maximum SPL | 147 dB SPL |
| Dynamic Range | 124 dB A-weighted |
| Dimensions / Weight | 256 x 51 mm / 340 g (12 oz) |
Why Buy the Shure ULXD2/SM86 from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for wireless microphone projects.
- Genuine Shure stock sourced through authorized distribution channels
- Band matching against your ULX-D receiver before you order
- 147 dB SPL capsule handles loud vocalists with wide dynamic range
- Local UAE warranty backing and after-sales support across Dubai, Abu Dhabi and the GCC
- Volume pricing available for multi-channel rollouts
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The ULXD2/SM86 carries the SM86 cardioid electret condenser capsule, whose frequency response is tailored to reproduce vocals with clarity while the cardioid pattern isolates the main sound source from background noise.
The SM86 covers 50 Hz to 18 kHz with a signal-to-noise ratio of 71 dB, a maximum SPL of 147 dB, a sensitivity of -50 dBV/Pa and a dynamic range of 124 dB A-weighted.
This listing is the G50 band, 470 to 534 MHz (ULXD2-SM86-G50), with a 64 MHz RF bandwidth and 25 kHz steps. It must be paired with a ULX-D receiver on the G50 band.
The included 2 AA batteries give about 11 hours, or about 12 hours on the optional SB900A rechargeable battery, which is sold separately.
It uses AES 256-bit encryption with 48 kHz / 24-bit audio and latency below 2.9 ms. The aluminum handheld measures 256 x 51 mm and weighs 340 g (12 oz).
Trianze Tech stocks the Shure ULXD2/SM86 Digital Handheld Transmitter in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
