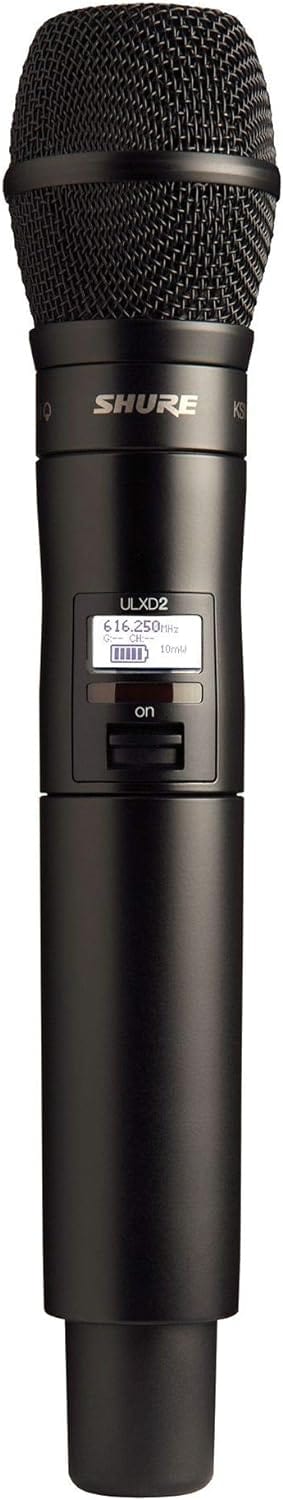

Shure ULXD2/KSM9-G50: ULX-D Digital Handheld Transmitter with KSM9 Switchable Condenser Capsule, G50 Band
Model
:
ULXD2-KSM9-G50
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure ULXD2/KSM9-G50: ULX-D Digital Handheld Transmitter with KSM9 Switchable Condenser Capsule, G50 Band
The Shure ULXD2/KSM9 is a digital handheld wireless transmitter for ULX-D receivers, fitted with the dual-diaphragm KSM9 condenser capsule. The capsule captures sonic nuances with superior detail and offers switchable cardioid and supercardioid patterns for high-end live vocal performance, used by touring artists, venues and worship teams across Dubai, Abu Dhabi and the wider UAE.
Key Features
- Dual-diaphragm KSM9 electret condenser capsule
- Switchable cardioid and supercardioid polar patterns
- AES 256-bit encryption, 48 kHz / 24-bit audio, latency under 2.9 ms
- Switchable 1, 10 or 20 mW RF output power
- Interchangeable capsule design, automatic gain adjustment
- 2 AA batteries included, up to 12 hours with the optional SB900A rechargeable battery
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | ULXD2-KSM9-G50 |
| Frequency Band | G50, 470 to 534 MHz |
| Capsule | KSM9, electret condenser, cardioid or supercardioid |
| Capsule Frequency Range | 50 Hz to 20 kHz |
| Sensitivity | -51 dBV/Pa at 1 kHz |
| Signal-to-Noise Ratio | 72 dB |
| Maximum SPL | 152 dB SPL |
| Gain Range | 0 to 21 dB in 3 dB steps |
| Operating Range | 100 m (328 ft) |
| Dimensions / Weight | 256 x 51 mm / 340 g (12 oz) |
Why Buy the Shure ULXD2/KSM9 from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for wireless microphone projects.
- Genuine Shure stock sourced through authorized distribution channels
- Band matching against your ULX-D receiver before you order
- Switchable pattern to suit each stage and monitor setup
- Local UAE warranty backing and after-sales support across Dubai, Abu Dhabi and the GCC
- Volume pricing available for multi-channel rollouts
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The KSM9 capsule offers switchable cardioid and supercardioid patterns, letting the user choose wider pickup or tighter off-axis rejection for the stage.
The KSM9 is a dual-diaphragm electret condenser with a 50 Hz to 20 kHz frequency response, a 72 dB signal-to-noise ratio, a maximum SPL of 152 dB and a sensitivity of -51 dBV/Pa at 1 kHz.
It is a condenser. The dual-diaphragm KSM9 electret condenser capsule captures sonic nuances with superior detail for precise vocal reproduction in high-end live performance.
This listing is the G50 band, 470 to 534 MHz (ULXD2-KSM9-G50). Two included AA batteries last about 11 hours, or about 12 hours with the optional SB900A rechargeable battery.
It measures 256 x 51 mm (10.1 x 2 in), weighs 340 g (12 oz) and has an aluminum housing. It uses AES 256-bit encryption, 48 kHz / 24-bit audio and latency below 2.9 ms.
Trianze Tech stocks the Shure ULXD2/KSM9 Digital Handheld Transmitter in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
