Shure ULXD2/B87A-V50: Digital Handheld Transmitter with Beta 87A Supercardioid Condenser Capsule, V50 Band
Model
:
ULXD2-B87A-V50
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

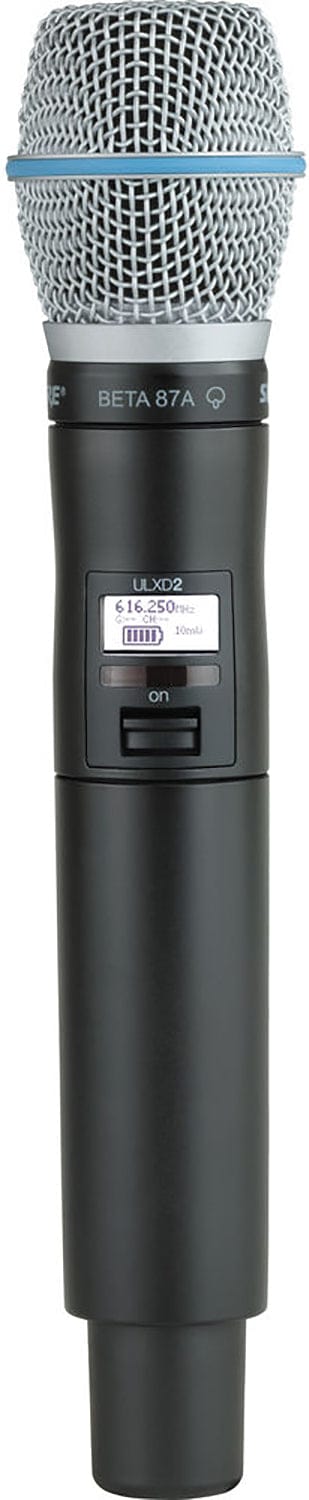

Shure ULXD2/B87A-V50 ULX-D Handheld Transmitter
The Shure ULXD2/B87A-V50 is a digital handheld wireless transmitter for ULX-D systems, built for touring engineers and AV integrators across Dubai, Abu Dhabi and the UAE and GCC who need a mic that withstands extreme sound pressure levels. It pairs the Beta 87A supercardioid condenser capsule with the V50 VHF band (174 to 216 MHz).
Key Features:
- Beta 87A supercardioid condenser capsule withstands extreme SPL with a smooth response
- Interchangeable capsule design for swapping in other ULX-D capsules
- Switchable 1/10/20 mW RF output power
- AES 256 encryption for secure transmission
- 48 kHz/24-bit sample rate with auto RF channel scanning
- Backlit LCD with battery, channel, group and mute status
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Band | V50 (174 to 216 MHz), 42 MHz bandwidth |
| RF Output Power | 1/10/20 mW switchable |
| Encryption | AES 256 |
| Max Operating Range | 328 ft (100 m) |
| Capsule | Beta 87A electret condenser, supercardioid |
| Capsule Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 140.5 dB SPL at 1% THD |
| Sensitivity / Impedance | -52.5 dBV/Pa, 150 ohms |
| Battery Life | 11 h (2x AA), 12 h (optional SB900A) |
| Weight | 340 g (12 oz) |
Why Buy the Shure ULXD2/B87A-V50 from Trianze Tech?
- Genuine Shure ULX-D transmitter backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on matching transmitter and receiver bands
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure ULXD2/B87A-V50 operates on the V50 VHF band, covering 174 to 216 MHz (42 MHz of tunable bandwidth). It must be paired with a ULX-D receiver tuned to the same V50 band.
The ULXD2/B87A-V50 uses the Shure Beta 87A supercardioid electret condenser capsule, built to withstand extreme sound pressure levels while delivering a remarkably smooth frequency response from 20 Hz to 20 kHz.
The Beta 87A capsule on the ULXD2/B87A-V50 handles up to 140.5 dB SPL at 1 percent THD, with a 150 ohm impedance and -52.5 dBV/Pa sensitivity, giving it strong headroom for loud stage vocals.
The V50 band (174 to 216 MHz) sits in VHF spectrum, an alternative to the more congested UHF TV-band frequencies used by G50/H50/J50A/X52 variants, suiting venues or regions where VHF coordination is preferable, subject to local wireless regulation.
Yes. The ULXD2 handheld transmitter body uses an interchangeable capsule design, so the Beta 87A capsule can be swapped for another ULX-D compatible capsule such as an SM86 or KSM9 as your needs change.
Trianze Tech stocks the Shure ULXD2/B87A-V50 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
