Shure ULXD2/B87A-J50A: Digital Handheld Transmitter with Beta 87A Supercardioid Condenser Capsule, J50A Band
Model
:
ULXD2-B87A-J50A
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

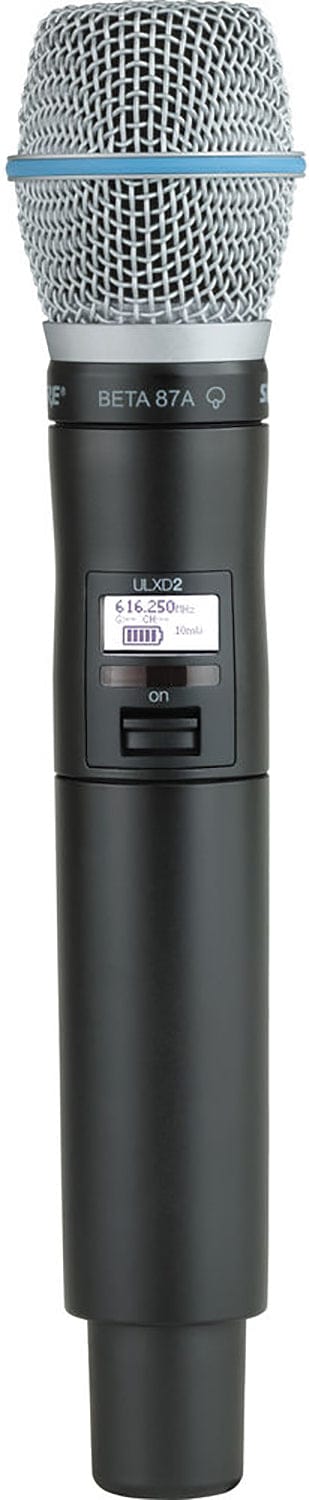

Shure ULXD2/B87A-J50A ULX-D Handheld Transmitter
The Shure ULXD2/B87A-J50A is a digital handheld wireless transmitter for ULX-D systems, built for touring engineers and AV integrators across Dubai, Abu Dhabi and the UAE and GCC who need a mic that withstands extreme sound pressure levels. It pairs the Beta 87A supercardioid condenser capsule with the J50A band (572 to 608 MHz plus 614 to 616 MHz).
Key Features:
- Beta 87A supercardioid condenser capsule withstands extreme SPL with a smooth response
- Interchangeable capsule design for swapping in other ULX-D capsules
- Switchable 1/10/20 mW RF output power
- AES 256 encryption for secure transmission
- 48 kHz/24-bit sample rate with auto RF channel scanning
- Backlit LCD with battery, channel, group and mute status
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Band | J50A (572 to 608 MHz, 614 to 616 MHz), 44 MHz bandwidth |
| RF Output Power | 1/10/20 mW switchable |
| Encryption | AES 256 |
| Max Operating Range | 328 ft (100 m) |
| Capsule | Beta 87A electret condenser, supercardioid |
| Capsule Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 140.5 dB SPL at 1% THD |
| Sensitivity / Impedance | -52.5 dBV/Pa, 150 ohms |
| Battery Life | 11 h (2x AA), 12 h (optional SB900A) |
| Weight | 340 g (12 oz) |
Why Buy the Shure ULXD2/B87A-J50A from Trianze Tech?
- Genuine Shure ULX-D transmitter backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on matching transmitter and receiver bands
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure ULXD2/B87A-J50A operates on the J50A band, covering 572 to 608 MHz plus 614 to 616 MHz (44 MHz of tunable bandwidth). It must be paired with a ULX-D receiver tuned to the same J50A band.
The ULXD2/B87A-J50A uses the Shure Beta 87A supercardioid electret condenser capsule, built to withstand extreme sound pressure levels while delivering a remarkably smooth frequency response from 20 Hz to 20 kHz.
The Beta 87A capsule on the ULXD2/B87A-J50A handles up to 140.5 dB SPL at 1 percent THD, with a 150 ohm impedance and -52.5 dBV/Pa sensitivity, giving it strong headroom for loud stage vocals.
On 2 included AA alkaline batteries the ULXD2/B87A-J50A runs for approximately 11 hours. Using the optional Shure SB900A rechargeable lithium-ion battery extends runtime to approximately 12 hours.
Yes. The ULXD2 handheld transmitter body uses an interchangeable capsule design, so the Beta 87A capsule can be swapped for another ULX-D compatible capsule such as an SM86 or KSM9 as your needs change.
Trianze Tech stocks the Shure ULXD2/B87A-J50A in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
