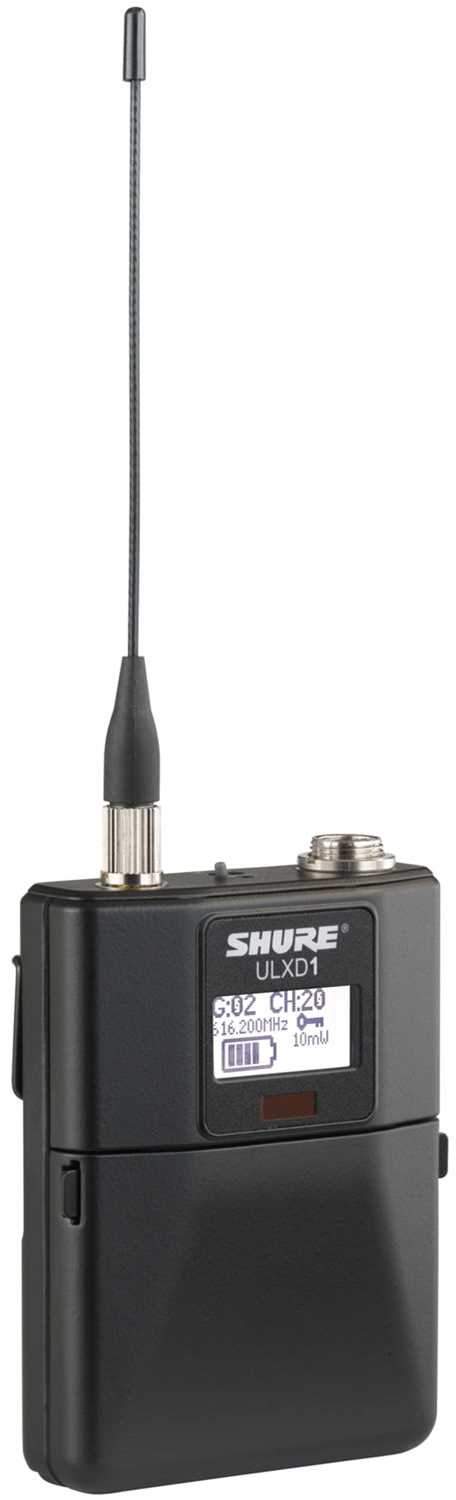

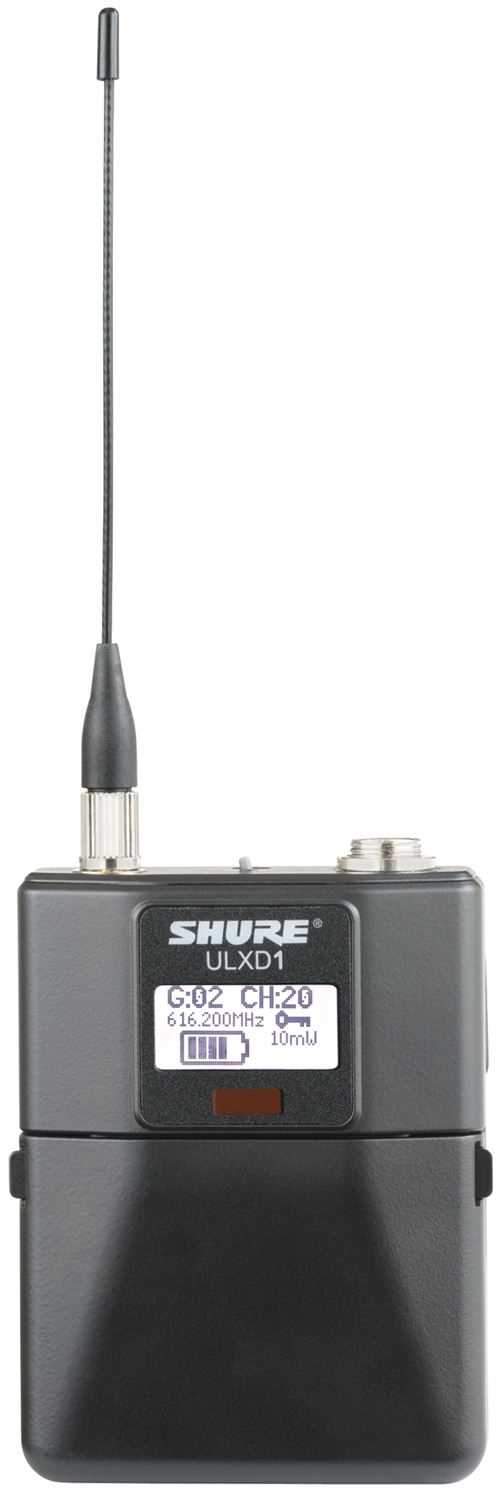

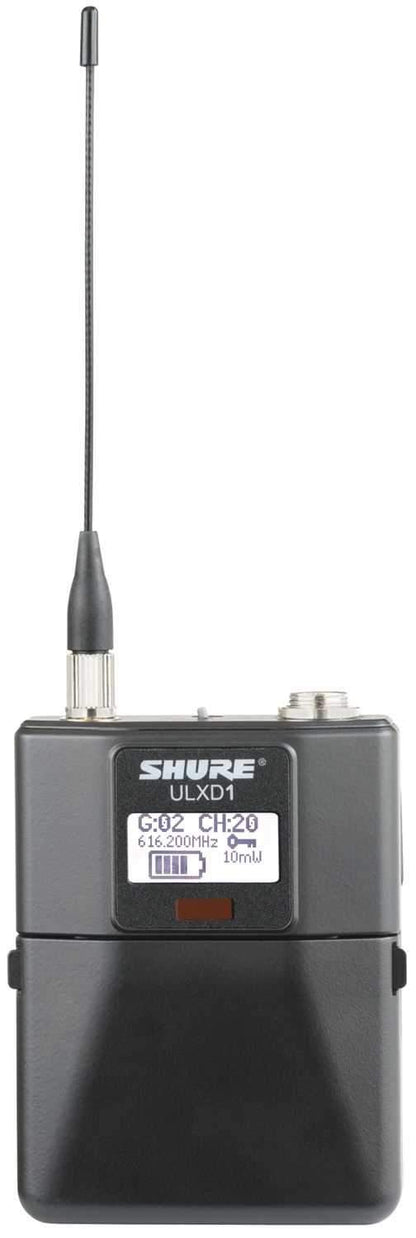

Shure ULXD1 Digital Wireless Bodypack Transmitter

The ULXD1 is a wireless bodypack transmitter compatible with ULX-D Digital Wireless Systems.

With a rugged yet lightweight aluminum case, the ULXD1 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

• AES 256-bit encryption for applications for which secure transmission is needed
• Proprietary Shure Gain Ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
• Shure SB900 Lithium-Ion rechargeable battery provides up to 12 hours of battery life, precision metering with 5 segment battery fuel gauge, and zero memory effect

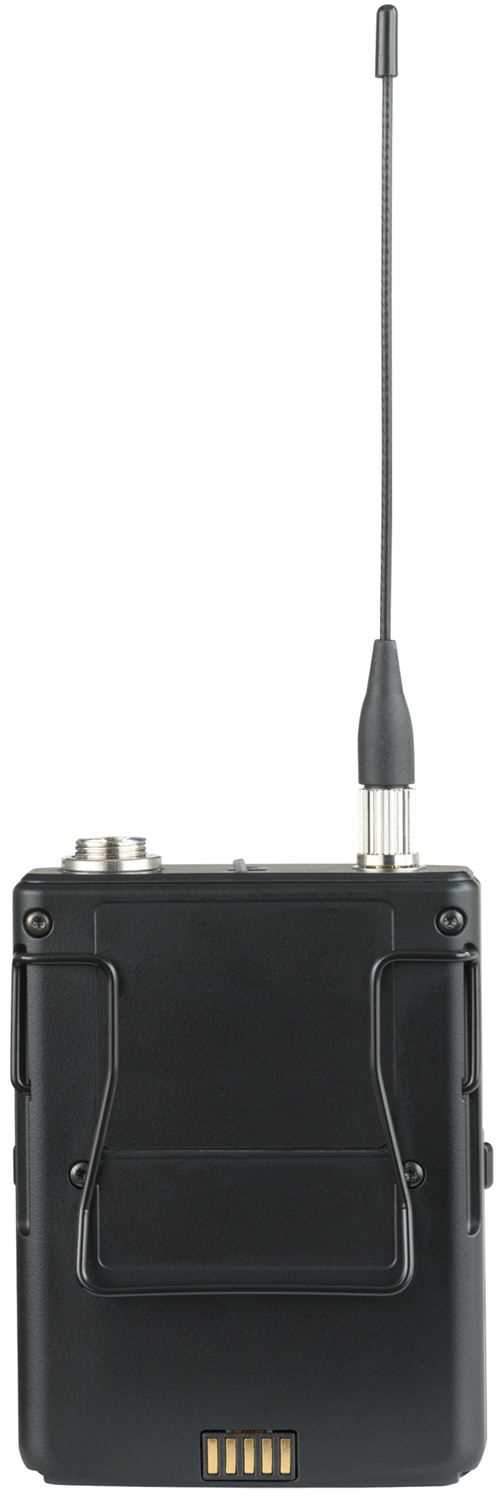

• External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Detachable 1/4 wave antenna
• Frequency and power lockout

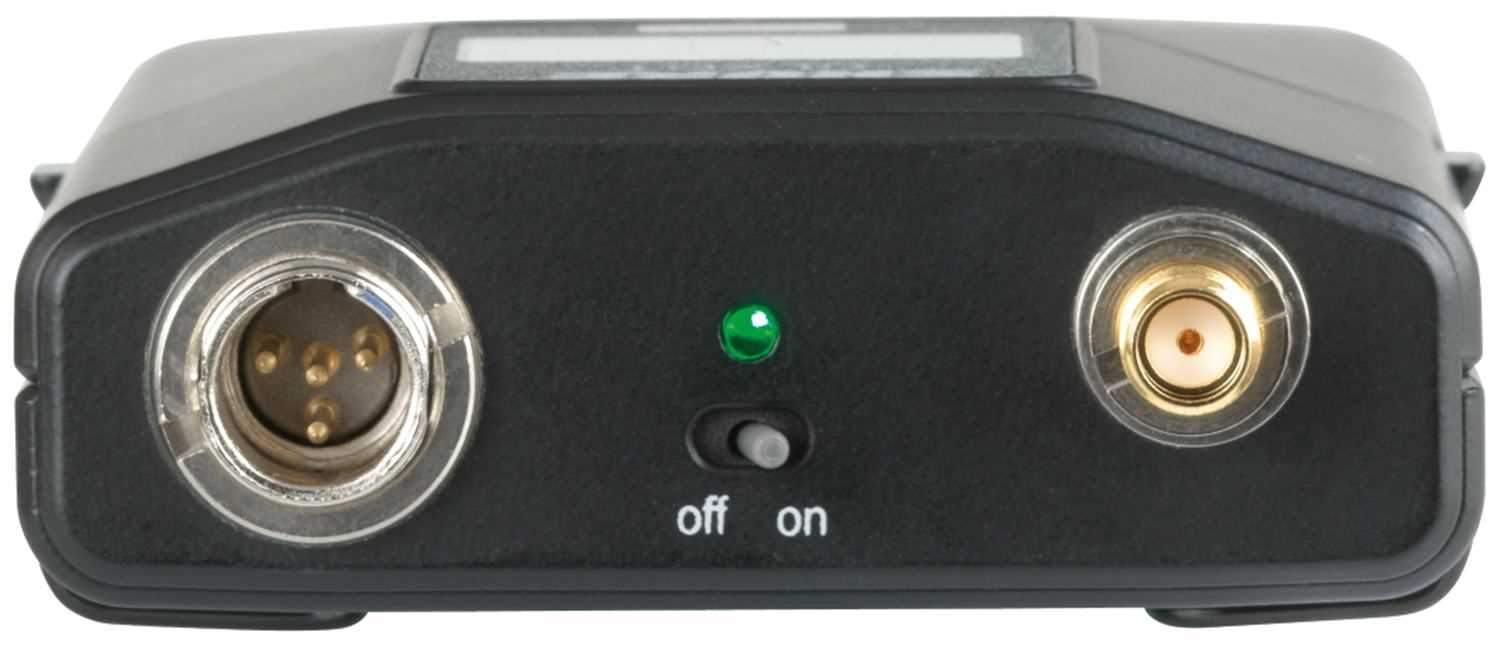

• Connector: 4-Pin male mini connector (TA4M)
• Configuration: Unbalanced
• Impedance: 1 Megaohm
• Maximum Input Level, 1 kHz at 1% THD: Pad Off: 8.5 dBV (7.5 Vpp); Pad On: 20.5 dBV (30 Vpp)
• Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20: 120 dBV, A-weighted, typical
• Connector: SMA
• Antenna Type: 1/4 wave
• Impedance: 50 Ohms
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure Proprietary Digital
• Power: 1 mW, 10 mW, 20 mW
• Audio Frequency Response: 20 Hz to 20 kHz (±1 dB), flat (Note: Dependent on microphone type)
• Operating Range: 300 ft (100 m)
• Connector: 3-pin TQG
• Gain Offset Range: 0 to 21 dB (in 3 dB steps)
• Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries
• Battery Runtime @ 10 mW: Shure SB900: >12 hours; Alkaline: 11 hours
• Dimensions: 3.4" x 2.6" x 0.9" (86 mm x 66 mm x 23 mm), H x W x D
• Weight: 142 g (5.0 oz.), without batteries
• Housing: Cast aluminum
