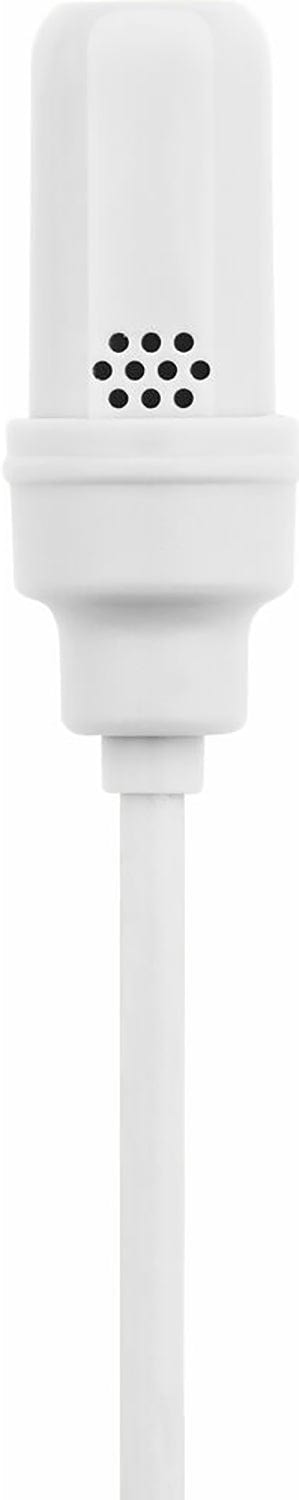

Shure UL4W/C-LM3-A: UniPlex Cardioid Subminiature MEMS Lavalier Microphone with LEMO Connector, White
Model
:
UL4W-C-LM3-A
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure UL4W/C-LM3-A: UniPlex Cardioid Subminiature MEMS Lavalier Microphone with LEMO Connector, White
The Shure UniPlex UL4 is a professional MEMS lavalier microphone for speech and performance in broadcast, corporate and conference environments. Its 5 mm subminiature cardioid element allows discreet placement and better gain before feedback, and the white finish blends with light clothing. It is supplied with a storage case, single tie clip and snap-fit windscreen, and is available in Dubai, Abu Dhabi and across the UAE. This listing is the LEMO connector version.
Key Features
- 5 mm cardioid subminiature design for discreet placement and improved gain before feedback
- Professional sound quality for speech and presentation applications
- 1.6 mm Shure Plex cable with dual redundant ground that doubles as a secondary shield
- Cable is immune to memory effect and kinks, and is fully paintable
- LEMO connector
- Kit includes a case, snap-fit windscreen and single tie clip
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | UL4W-C-LM3-A |
| Capsule | MEMS |
| Polar Pattern | Cardioid |
| Frequency Response | 40 Hz to 20 kHz |
| Sensitivity | -42.5 dBV/Pa (94 dB SPL reference) |
| Self Noise / SNR | 32 dB SPL-A / 62 dB-A |
| Maximum SPL | 130 dB SPL at 1 kHz, 1% THD, typical |
| Dynamic Range | 98 dB typical |
| Bias Voltage | 3.5 to 5 VDC recommended (5.5 VDC maximum) |
| Current Draw | 530 microamps maximum |
| Connector | LEMO |
| Cable | 1.6 mm diameter, 66 in (1.67 m) |
| Capsule Size / Weight | 17 x 5 mm (L x D) / 12.5 g |
| Housing / Colour | Molded ABS / White |
Why Buy the Shure UL4W/C-LM3-A from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for lavalier microphones.
- Genuine Shure stock sourced through authorized distribution channels
- Connector matching against your transmitter before you order
- Lavalier and wireless advice across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for integrators and broadcasters
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
It is a Shure UniPlex UL4 MEMS lavalier microphone with a cardioid polar pattern in a 5 mm subminiature design. The capsule measures 17 x 5 mm, weighs 12.5 g and has a molded ABS housing in white. It suits speech and presentation use in broadcast, corporate and conference settings.
It has a LEMO connector (the LM3 in the part number). Before ordering, check that your Shure transmitter accepts a LEMO input, since the UL4 is also offered with a TA4F (mTQG) connector for other transmitters.

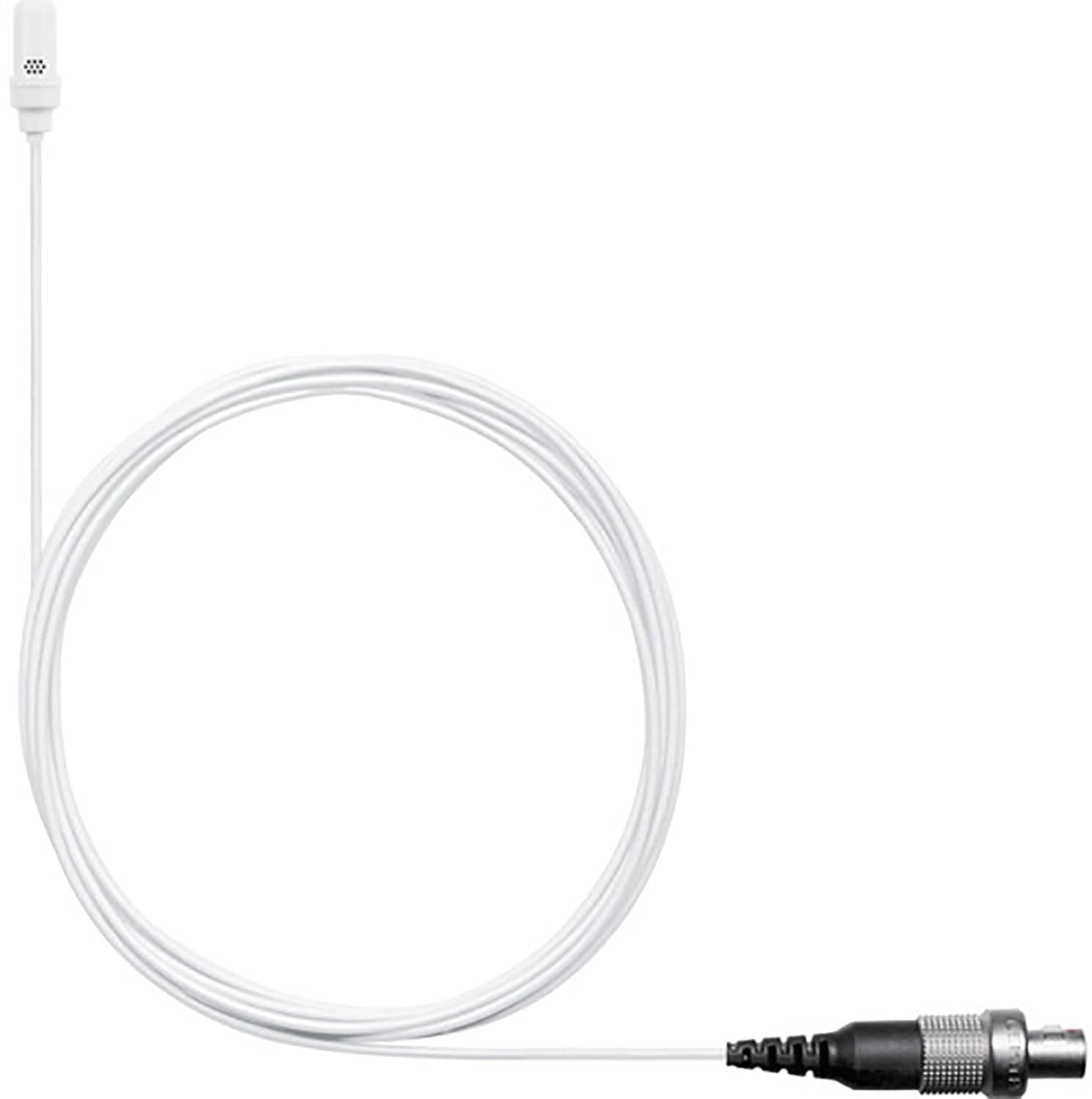

Yes. The 1.6 mm Shure Plex cable, 66 in (1.67 m) long, has a dual redundant ground that acts as a secondary shield, virtually zero memory effect, does not kink and can be painted with typical theater paints, pens and polishes to blend with wardrobe or set.

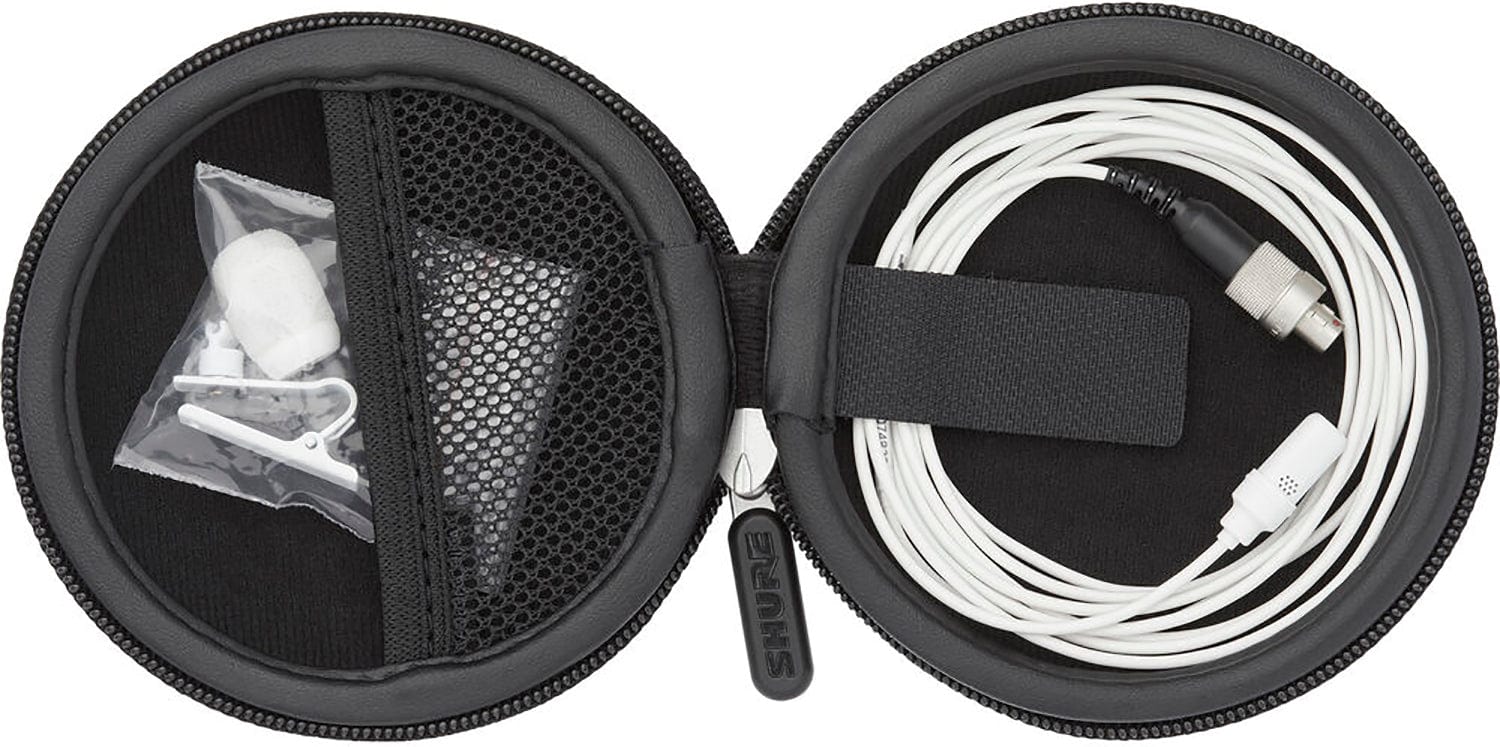

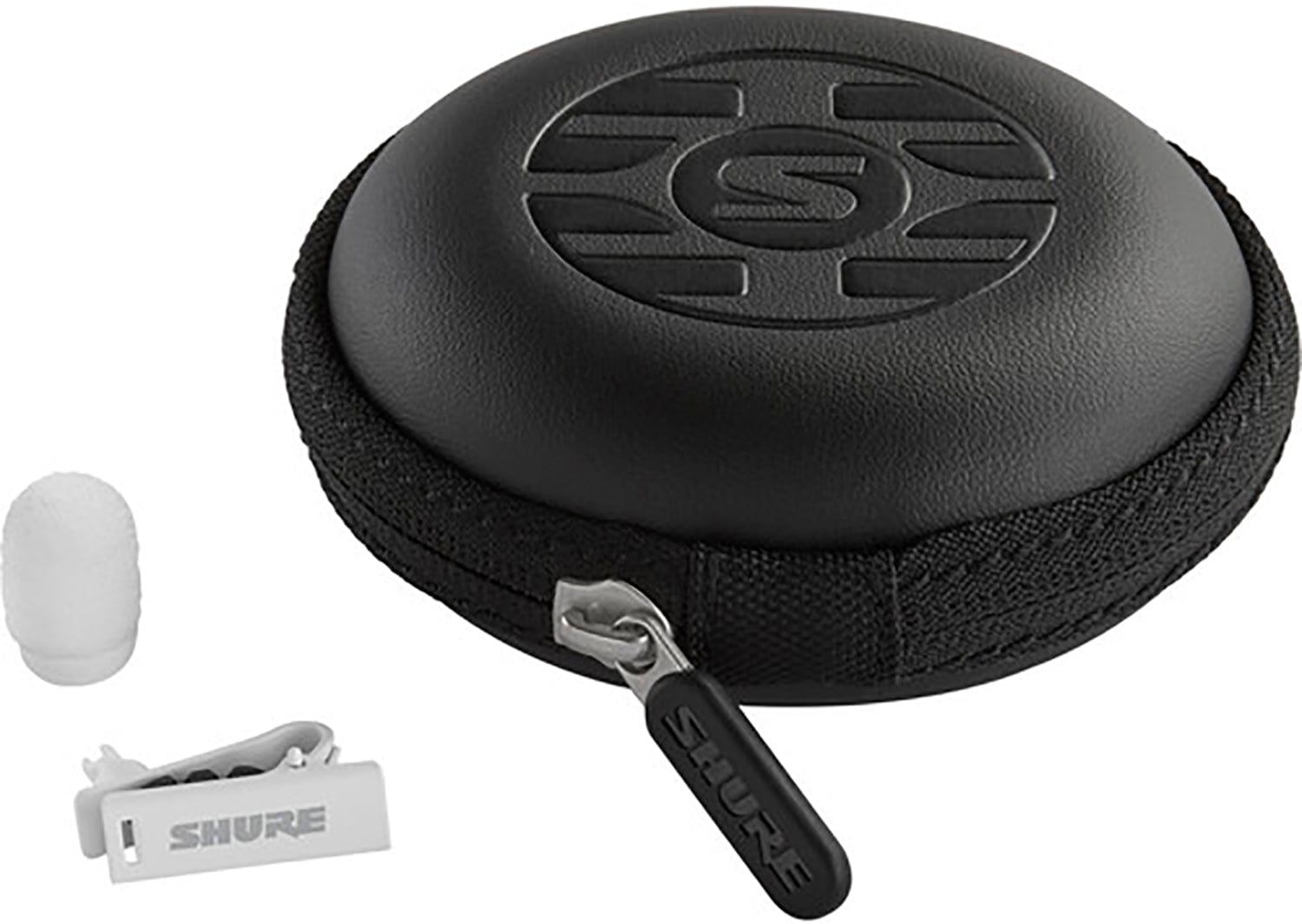

The kit includes a storage case (pouch), a snap-fit windscreen and a single tie clip, along with the white UL4 lavalier microphone itself.
Maximum SPL is 130 dB at 1 kHz and 1% THD (typical), with a dynamic range of 98 dB typical, sensitivity of -42.5 dBV/Pa and frequency response of 40 Hz to 20 kHz. Recommended bias voltage is 3.5 to 5 VDC.
Trianze Tech stocks the Shure UL4W/C-LM3-A in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
