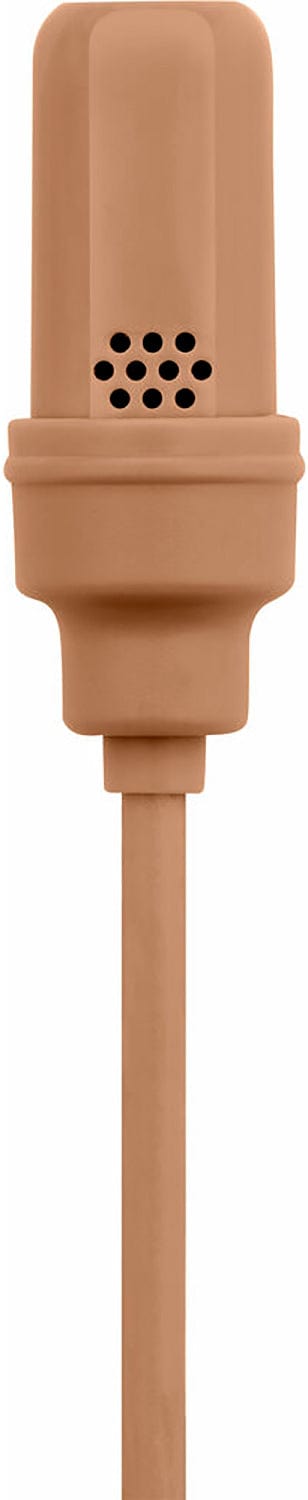

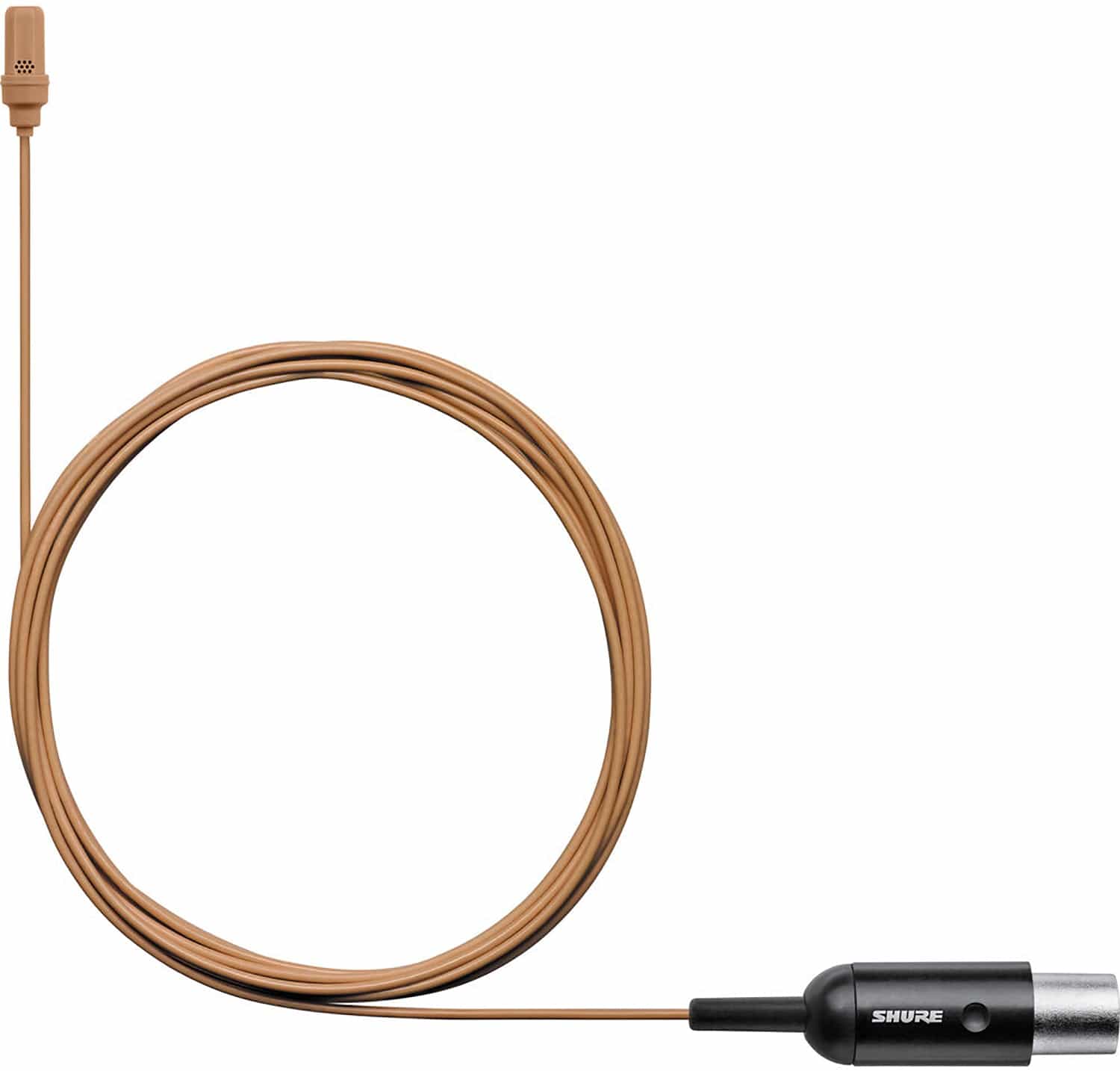

Shure UL4C/C-MTQG-A: UniPlex Cardioid Subminiature MEMS Lavalier Microphone with mTQG (TA4F) Connector, Cocoa
The Shure UniPlex UL4 is a professional MEMS lavalier microphone for speech and performance in broadcast, corporate and conference environments. Its 5 mm subminiature cardioid element allows discreet placement and better gain before feedback, and the cocoa finish blends with darker skin tones and hair. It is supplied with a storage case, single tie clip and snap-fit windscreen, and is available in Dubai, Abu Dhabi and across the UAE. This listing is the TA4F (mTQG) connector version.
Key Features
- 5 mm cardioid subminiature design for discreet placement and improved gain before feedback
- Professional sound quality for speech and presentation applications
- 1.6 mm Shure Plex cable with dual redundant ground that doubles as a secondary shield
- Cable is immune to memory effect and kinks, and is fully paintable
- TA4F (mTQG) connector

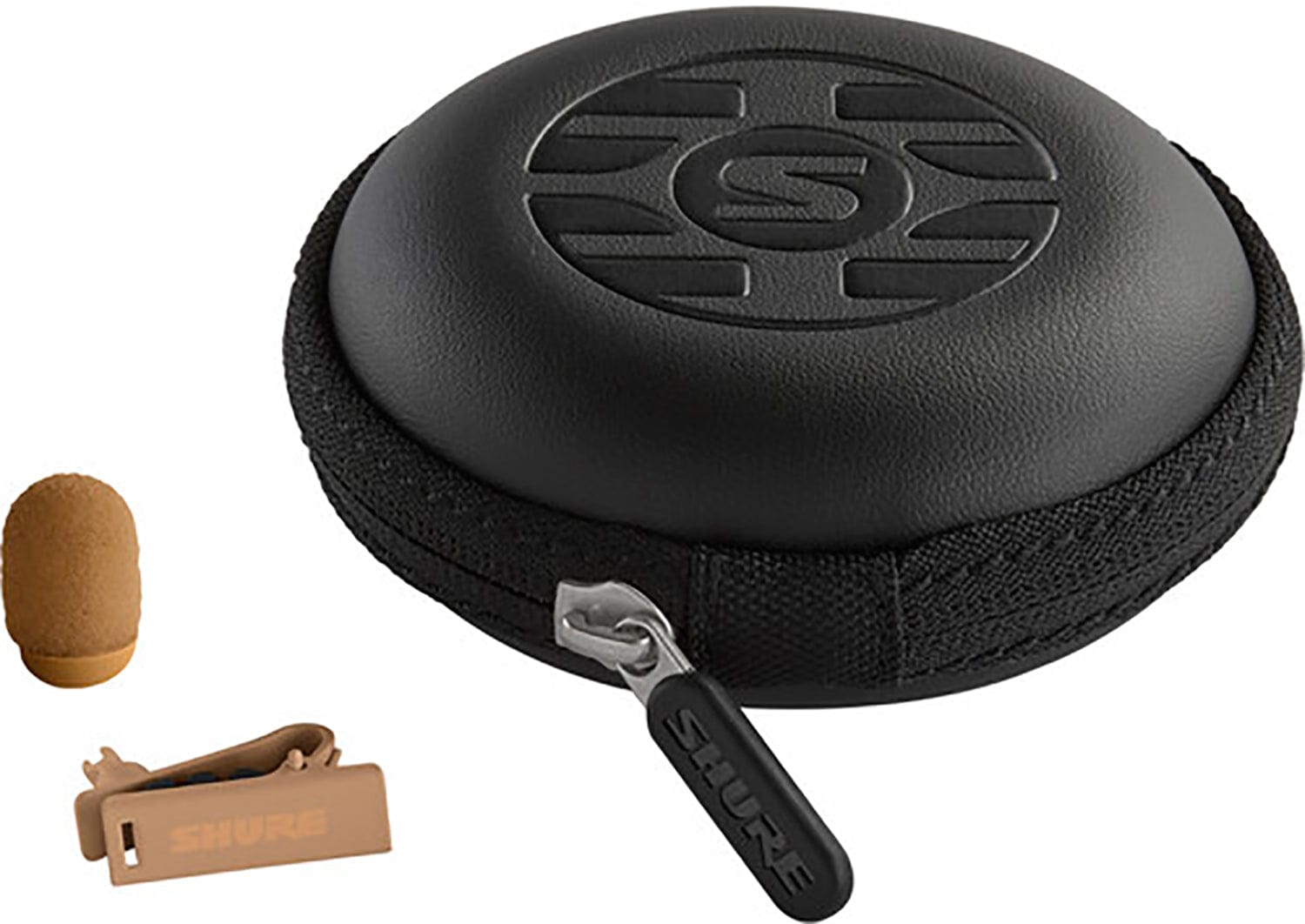

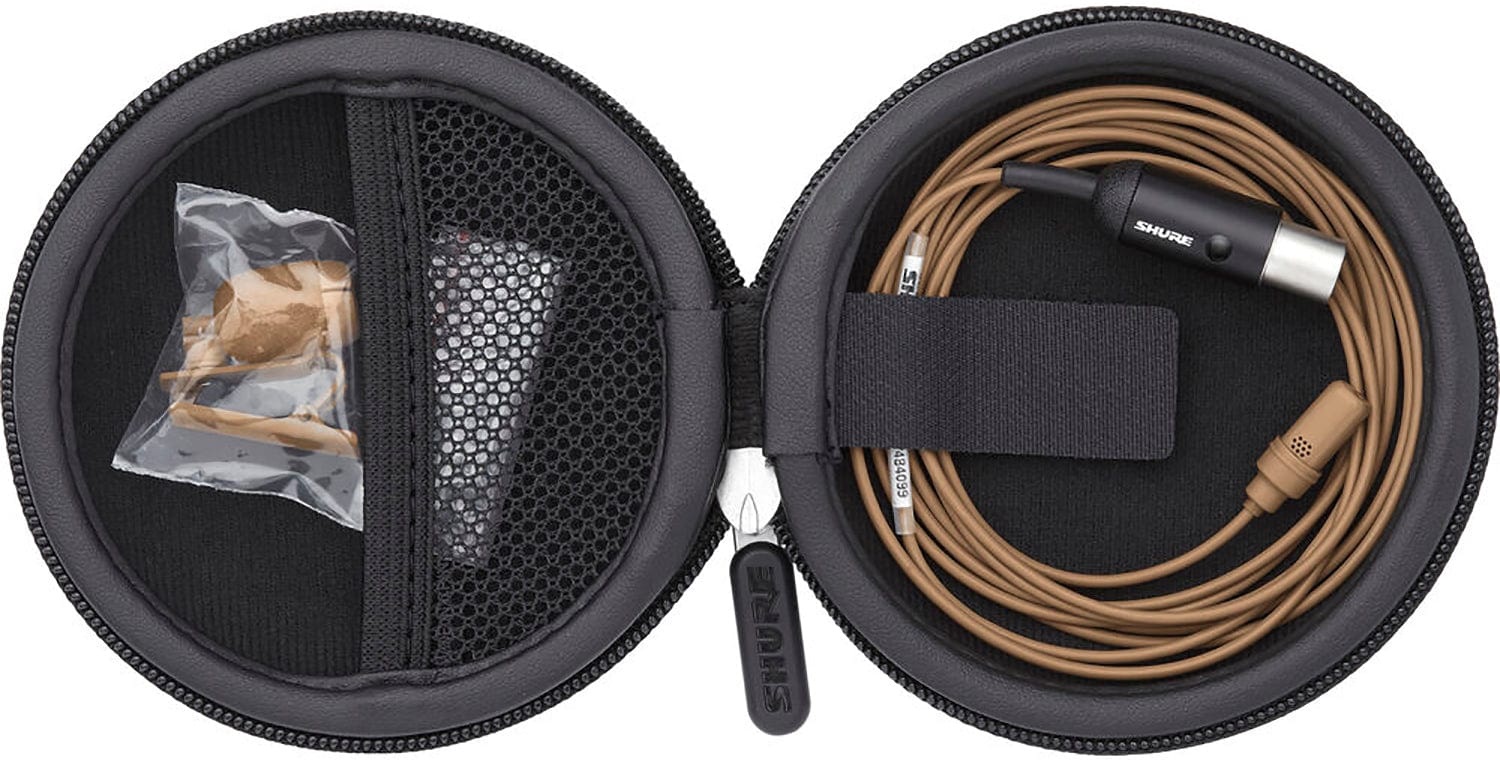

- Kit includes a case, snap-fit windscreen and single tie clip
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | UL4C-C-MTQG-A |
| Capsule | MEMS |
| Polar Pattern | Cardioid |
| Frequency Response | 40 Hz to 20 kHz |
| Sensitivity | -42.5 dBV/Pa (94 dB SPL reference) |
| Self Noise / SNR | 32 dB SPL-A / 62 dB-A |
| Maximum SPL | 130 dB SPL at 1 kHz, 1% THD, typical |
| Dynamic Range | 98 dB typical |
| Bias Voltage | 3.5 to 5 VDC recommended (5.5 VDC maximum) |
| Current Draw | 530 microamps maximum |
| Connector | TA4F (mTQG) |
| Cable | 1.6 mm diameter, 66 in (1.67 m) |
| Capsule Size / Weight | 17 x 5 mm (L x D) / 12.5 g |
| Housing / Colour | Molded ABS / Cocoa |
