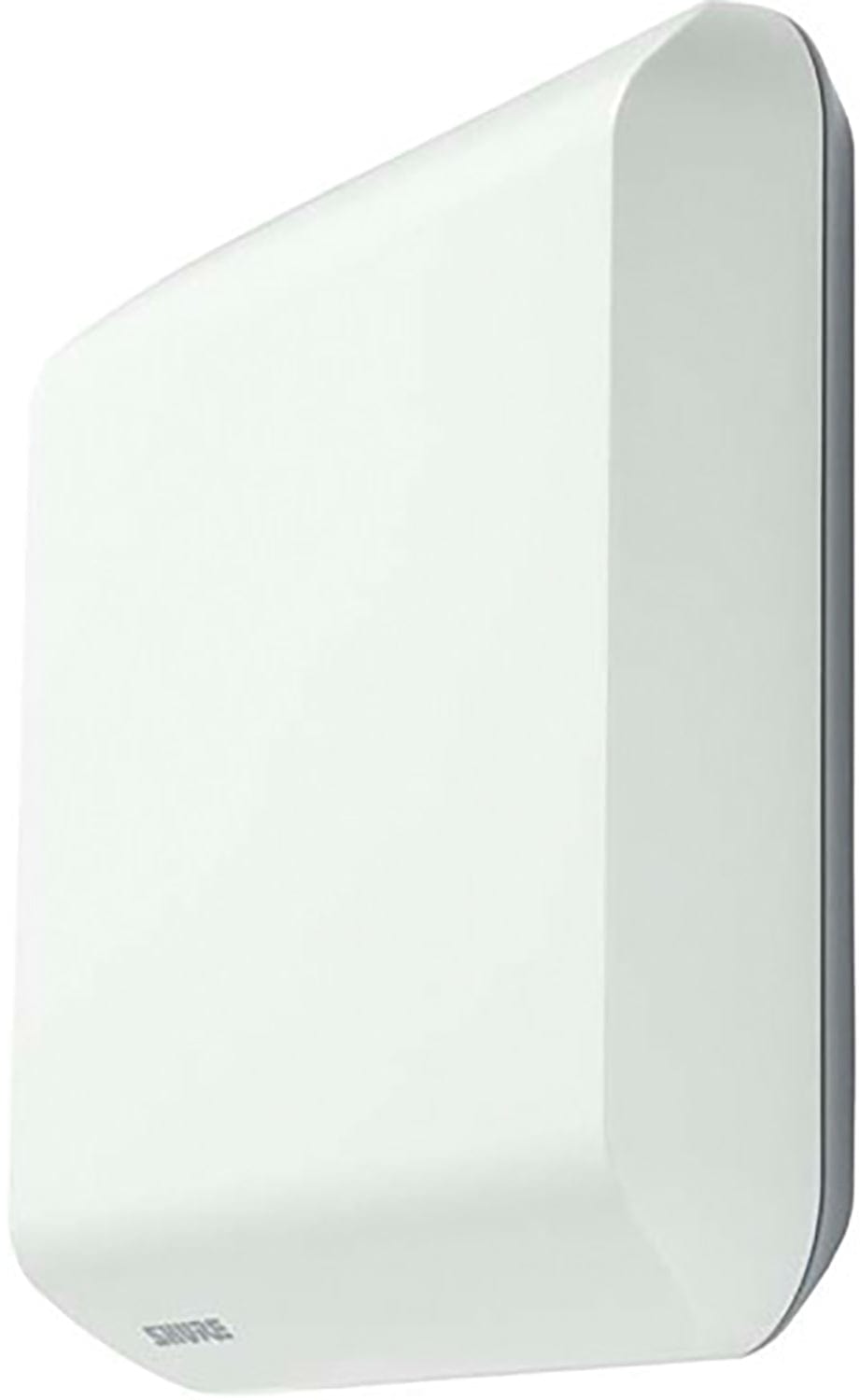

  • Shure UA864 wall-mounted wideband antenna, main product view
  • Shure UA864 wall-mounted wideband antenna, additional product photo 2
  • Shure UA864 wall-mounted wideband antenna, additional product photo 3
  • Shure UA864 wall-mounted wideband antenna, additional product photo 4
  • Shure UA864 wall-mounted wideband antenna, additional product photo 5
  • Shure UA864 wall-mounted wideband antenna, additional product photo 6
1 6

Shure UA864: Wall-Mounted Wideband Antenna with Four-Position Gain Switch and up to 100 Degree Coverage

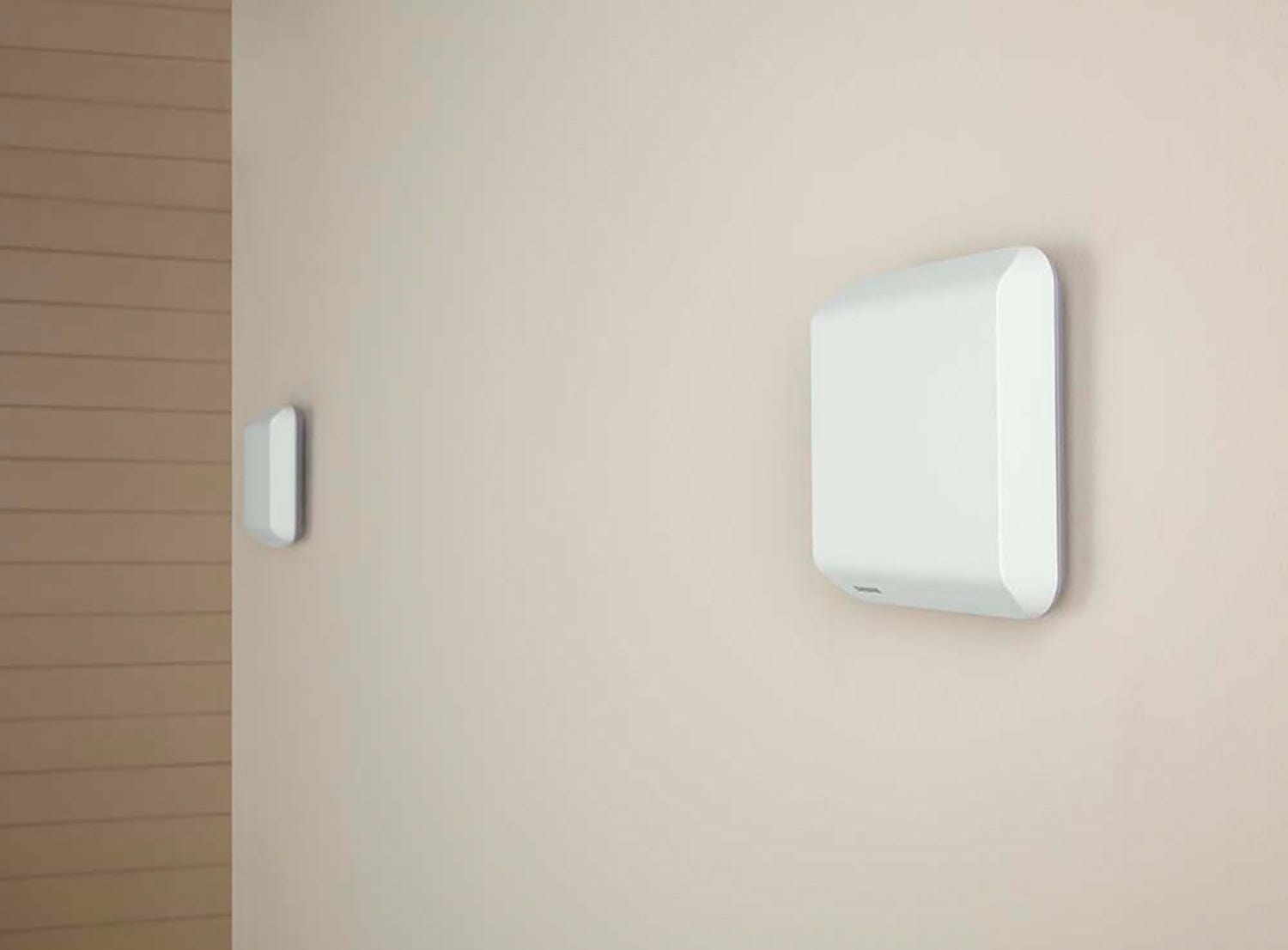

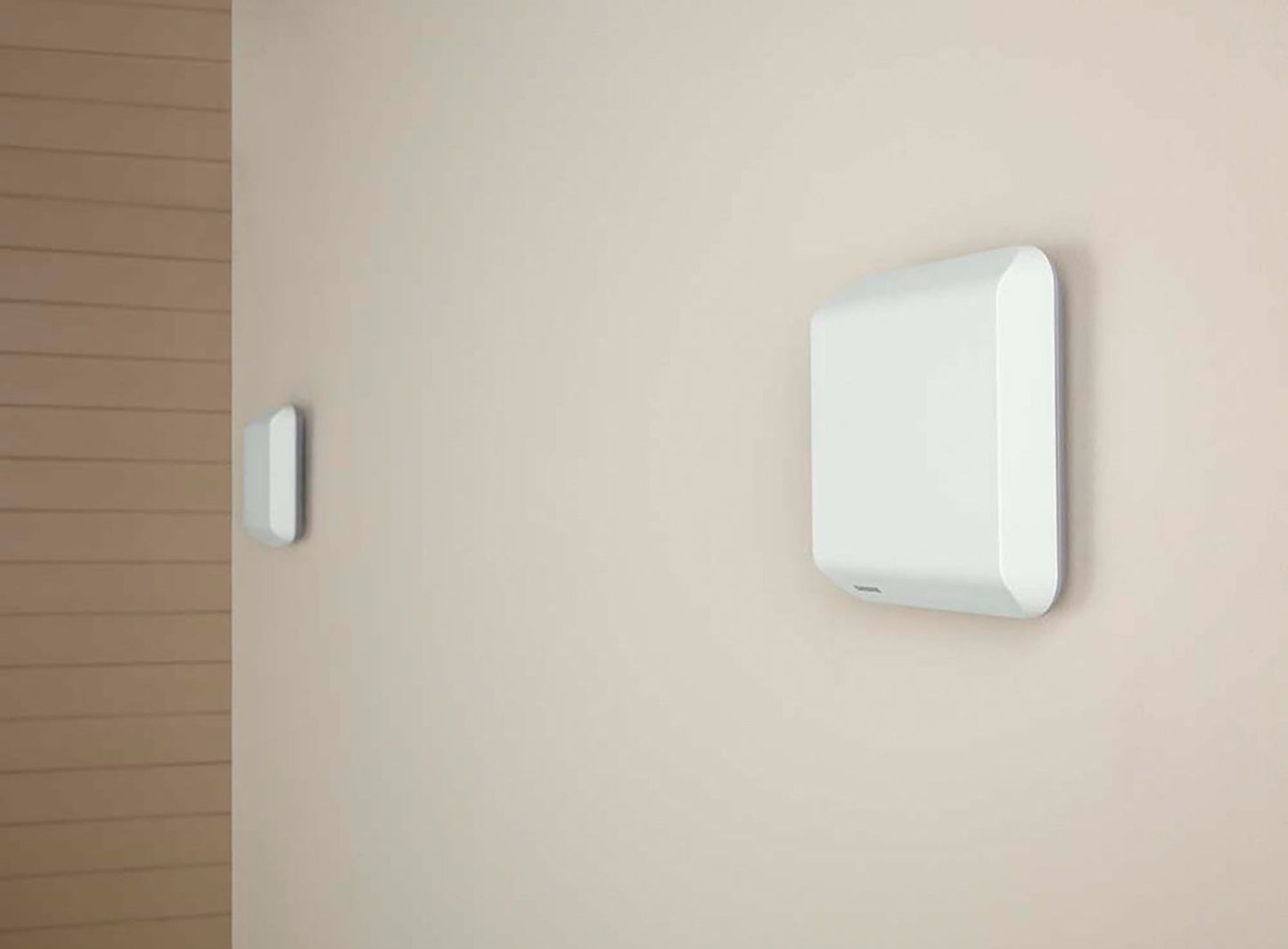

  • Wall or ceiling mount wideband antenna
  • Up to 100 degree coverage, 2.5 dBi gain
  • Four-position gain: -20 to +10 dB
  • Paintable white housing, 487 g
Brand :Shure
Model : UA864US

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Applications & Use Cases

  • Classrooms: low-profile antenna that blends into the room
  • Corporate Meeting Rooms: paintable to match interiors
  • Long Cable Runs: boost or pad the signal with the gain switch
  • Fixed Installations: wall, ceiling or metal surface mounting
Shure UA864 wall-mounted wideband antenna, additional product photo 2
Shure UA864US
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Shure UA864: Wall-Mounted Wideband Antenna with Four-Position Gain Switch and up to 100 Degree Coverage

The Shure UA864 provides wideband RF coverage in a low-profile enclosure that mounts easily on a wall or ceiling. Its neutral white housing blends into corporate or classroom settings and can be painted to match interiors. A four-position gain switch provides attenuation and boost settings to optimize performance for different transmitter distances and cable run lengths, which suits meeting rooms, classrooms and lecture halls across Dubai, Abu Dhabi and the wider UAE.

Key Features

  • Up to 100 degree coverage pattern (3 dB beam width, region dependent)

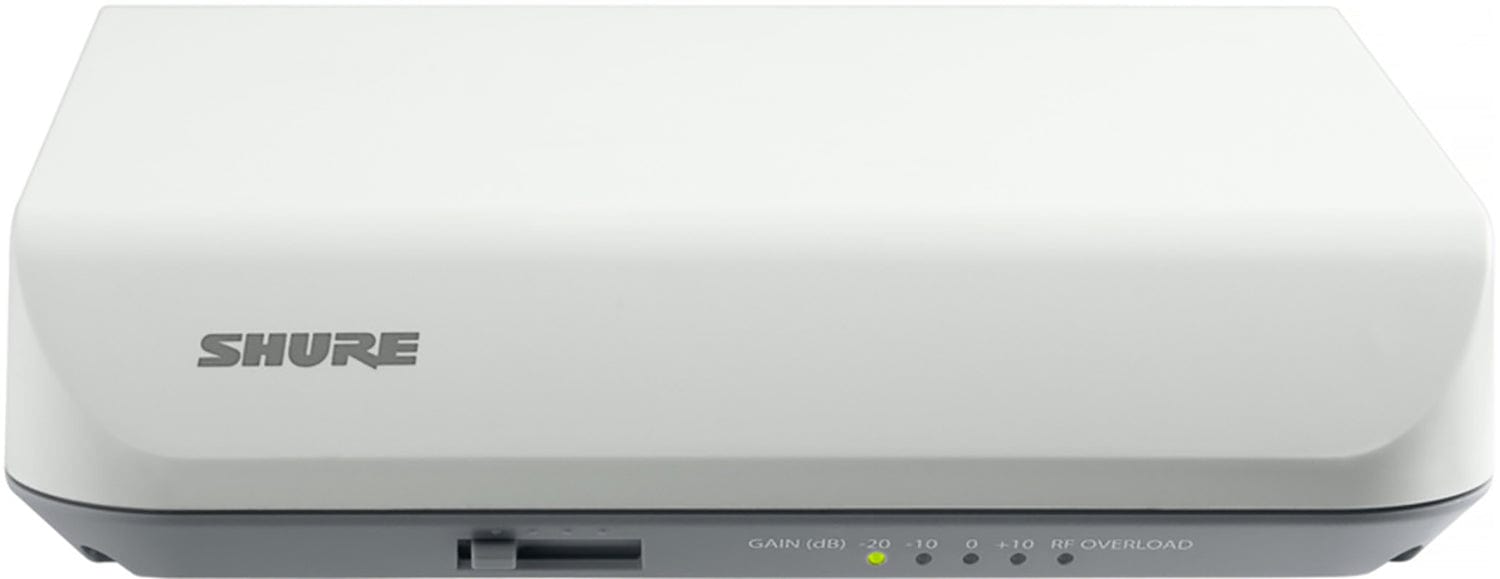

  • Four-position RF gain switch with pad and boost: -20, -10, 0 and +10 dB

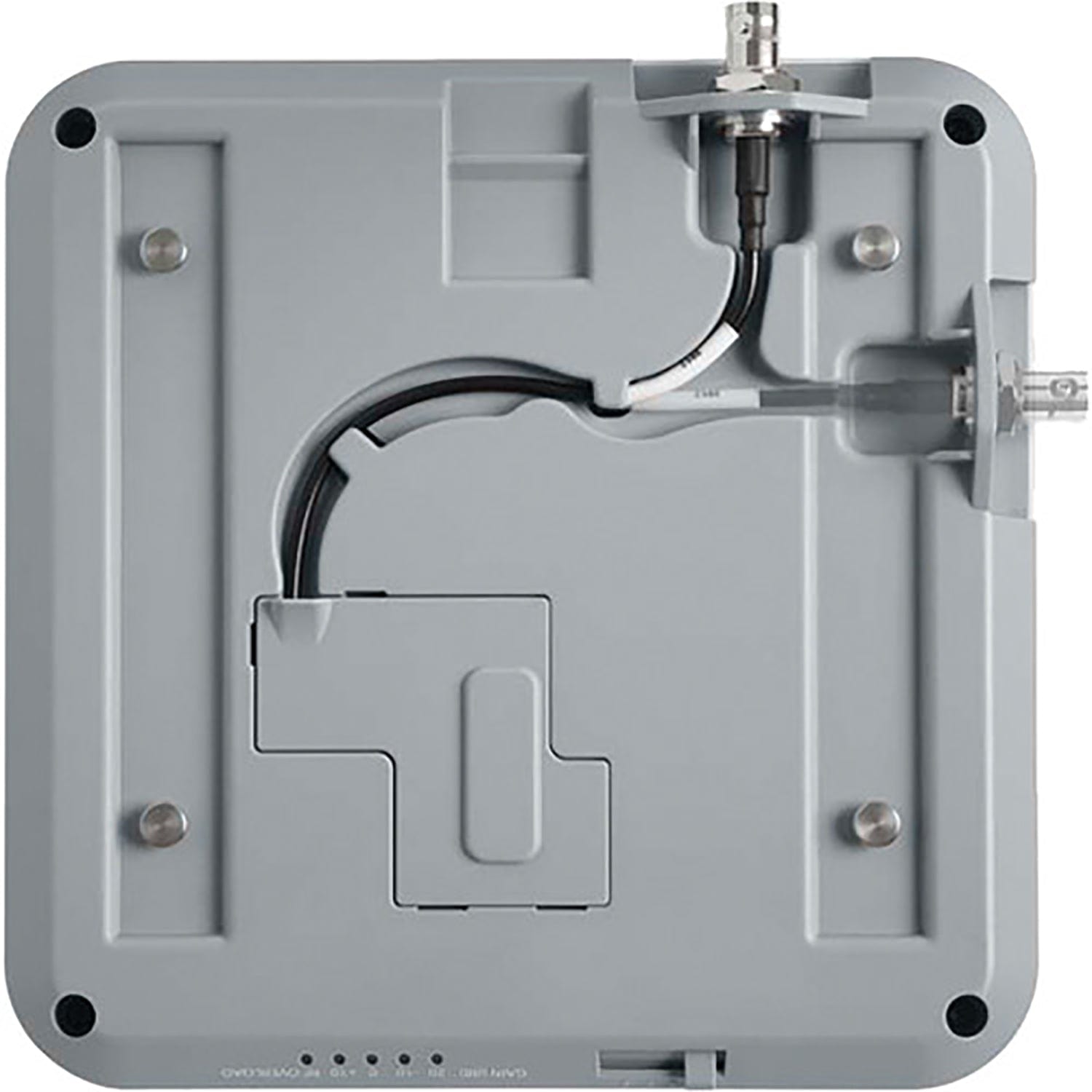

  • Attached BNC cable for surface or through-wall cable routing

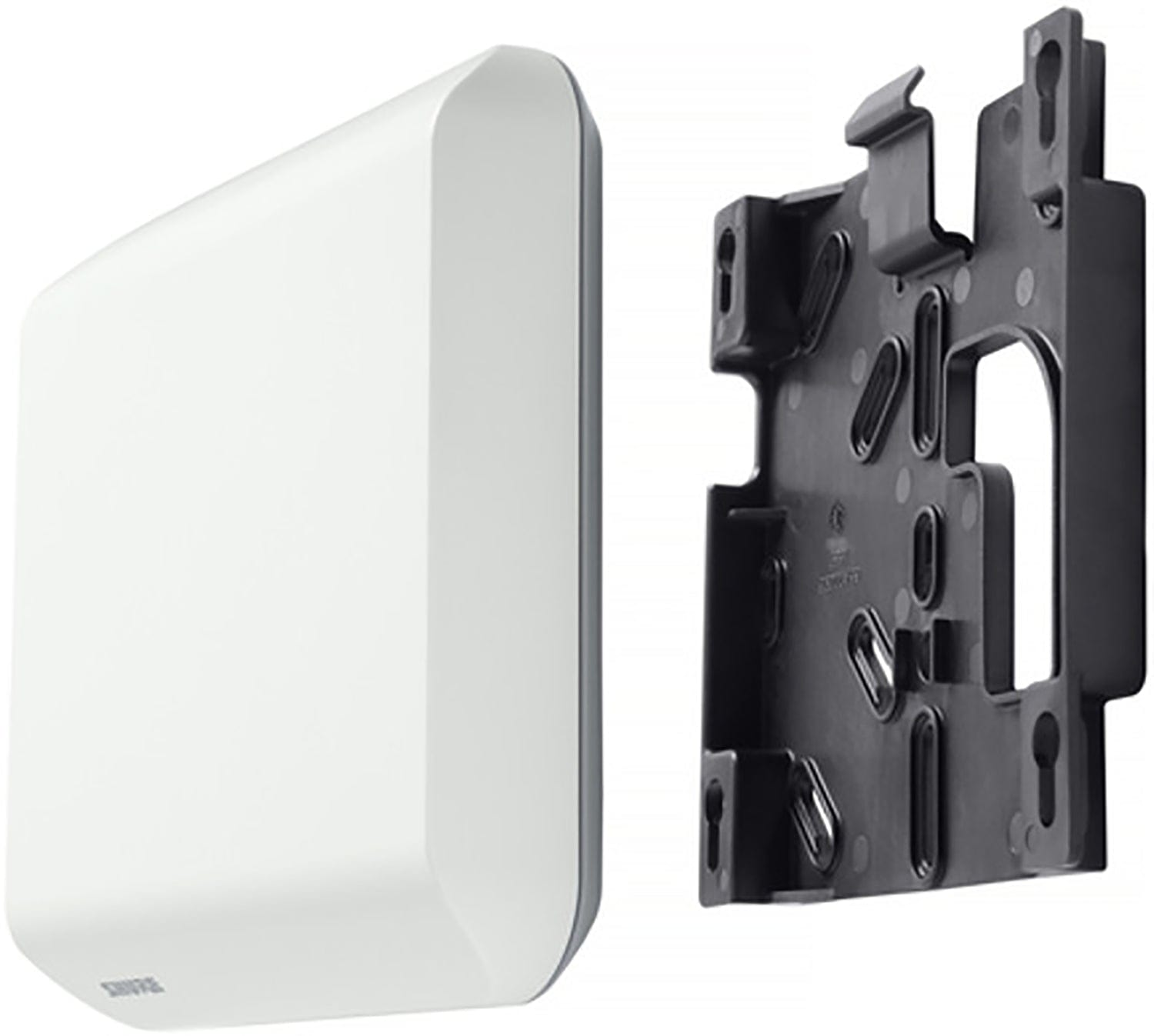

  • Low-profile design with metal surface mounting capability

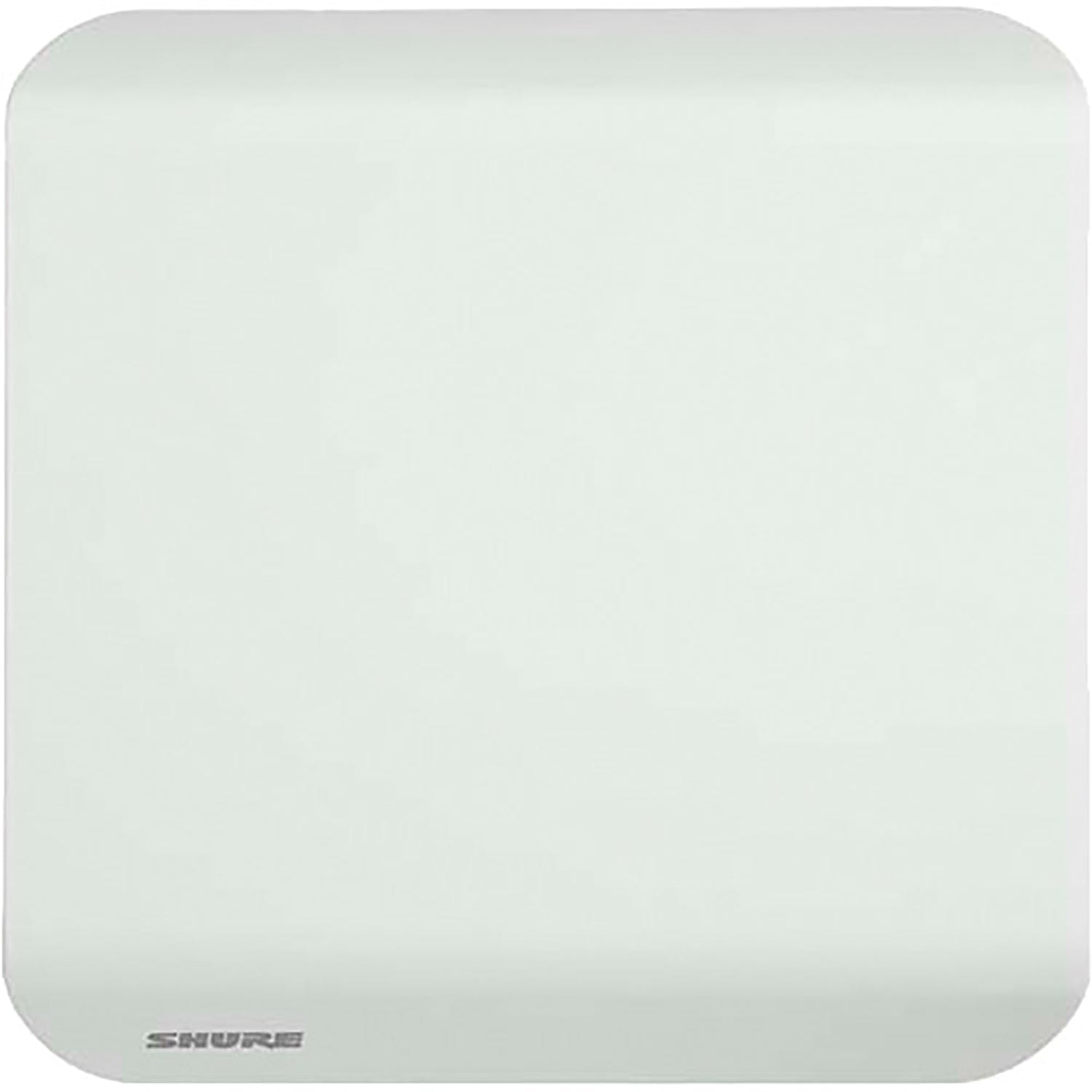

  • Neutral white, paintable housing

Technical Specifications

Spec Detail
Model / Part Number UA864US
Connector BNC, female
Impedance 50 ohms
Reception Pattern 100 degrees (3 dB beam width at center frequency)
Antenna Gain 2.5 dBi on axis at 0 dB setting
Signal Gain Switchable +10, 0, -10, -20 dB (plus or minus 1 dB)
Power 10 to 15 V DC bias over coax, 75 mA (the -20, -10 and 0 dB settings need no power)
OIP3 Above 30 dBm
RF Overload LED Threshold -15 dBm
Dimensions 6.29 x 6.29 x 2 in (H x W x D)
Weight 487 g (17.2 oz)
Operating Temperature -7 to 49 degrees C (20 to 120 degrees F)

Why Buy the Shure UA864 from Trianze Tech?

Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for wireless accessories.

  • Genuine Shure stock sourced through authorized distribution channels
  • Band and region variant check before you order
  • Wireless coverage advice across Dubai, Abu Dhabi and the GCC
  • Local UAE warranty backing and after-sales support
  • Volume pricing available for integrators

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

  • 1x Shure UA864 wall-mounted wideband antenna with attached BNC cable
  • Mounting hardware: confirm inclusion with Trianze Tech at time of order

Warranty

  • Standard Shure manufacturer warranty, honoured in the UAE through Trianze Tech

Sustainability

  • The 0, -10 and -20 dB settings run without bias power, and the low-profile fixed design supports long installation life

Expandability

  • Four-position gain switch adapts the antenna to different transmitter distances and cable runs

Distribution

  • Stocked and distributed in the UAE by Trianze Tech; wireless frequency use is subject to local regulation, so Trianze Tech confirms the correct band for your project across Dubai, Abu Dhabi and the GCC

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure UA864 has a reception pattern of up to 100 degrees (3 dB beam width, region dependent) and an on-axis antenna gain of 2.5 dBi at the 0 dB gain setting.
The Shure UA864 has a four-position RF gain switch with pad and boost settings of -20, -10, 0 and +10 dB (plus or minus 1 dB), so you can tune it to your transmitter distance and cable run length.
The +10 dB setting needs 10 to 15 V DC bias from the coaxial connection at 75 mA. The -20, -10 and 0 dB settings do not require power.
The low-profile Shure UA864 mounts on a wall or ceiling, and can also be mounted on metal surfaces. Its attached BNC cable supports surface or through-wall routing, and the neutral white housing is paintable to match interiors.
The Shure UA864 measures 6.29 x 6.29 x 2 in (H x W x D) and weighs 487 g (17.2 oz). It has a female BNC connector with 50 ohm impedance and operates from -7 to 49 degrees C.
