Shure UA845WB: Wideband UHF Antenna Distribution System for Four Receivers, 470 to 952 MHz
Model
:
UA845WB
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

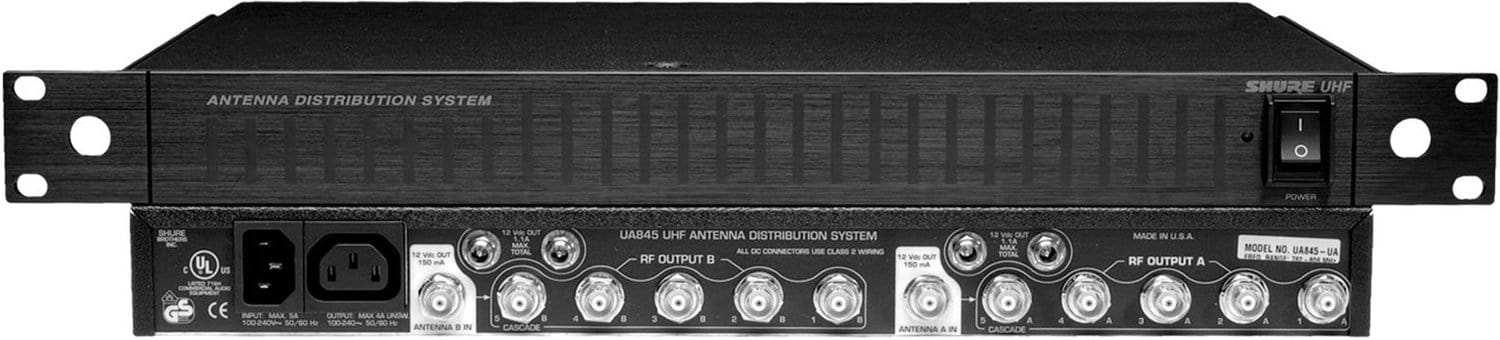

Shure UA845WB Wideband Antenna Distribution System
The Shure UA845WB is a wideband active UHF antenna distribution system covering 470 to 952 MHz. It feeds a boosted RF signal from one antenna pair to four Shure wireless receivers, with cascade ports for a fifth receiver or a second unit and daisy-chained receiver power, for large wireless systems across Dubai, Abu Dhabi and the UAE and GCC.
Key Features:
- Feeds four receivers from one antenna pair
- Five selectable frequency ranges to avoid intermodulation
- Cascade ports for a fifth receiver or second unit
- Power outputs daisy-chain receivers
- Front antenna mounting hardware included
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Range | 470 to 952 MHz wideband |
| Outputs | 4 BNC plus cascade ports |
| Gain | 3 dB typical to outputs 1 to 4; 1 dB typical to cascade |
| Impedance | 50 ohm |
| Power Consumption | 15 W typical per unit |
| Dimensions | 44.5 x 482.6 x 295.3 mm |
| Weight | 3.32 kg |
Why Buy the Shure UA845WB from Trianze Tech?
- Shure RF accessory with local support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- RF and antenna planning help
- Dedicated AV support team
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The UA845WB takes the signal from one pair of antennas, boosts it to compensate for splitting loss and distributes it to four Shure wireless receivers.
The UA845WB is wideband, covering 470 to 952 MHz, with five selectable ranges to help avoid intermodulation.
Yes. Two 50 ohm BNC cascade ports connect a fifth receiver or a second UA845WB, so large systems can run from one antenna pair.
Yes. Its power output connectors let multiple receivers be daisy-chained and powered from a single source.
It is a 1 RU unit measuring about 44.5 x 482.6 x 295.3 mm and weighing 3.32 kg.
Trianze Tech stocks the Shure UA845WB in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
