Shure UA845UWB: Five-Band Antenna and Power Distribution System for up to Four Receivers, 174 to 1805 MHz

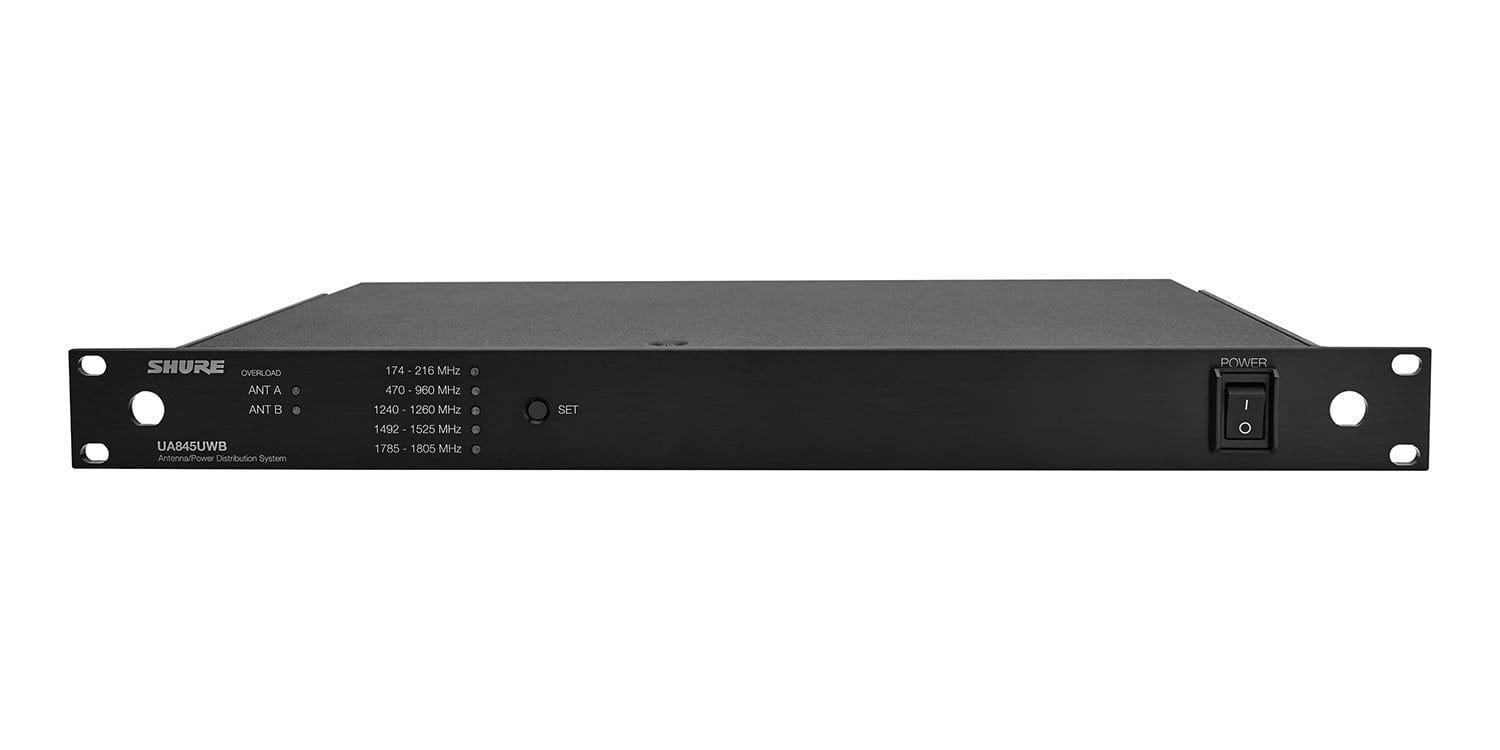

The Shure UA845UWB lets four receivers share the same set of antennas, with cascade connectors for a fifth receiver or a second UA845UWB. It also distributes power to each receiver, and RF amplification compensates for the insertion loss of splitting the antenna input. A front panel button switches between five frequency bands from 174 to 1805 MHz, which suits venues, broadcasters and touring rigs across Dubai, Abu Dhabi and the wider UAE.
Key Features
- Five selectable frequency ranges from 174 to 1805 MHz
- Four receivers on one antenna set, with cascade connectors for a fifth receiver or second unit

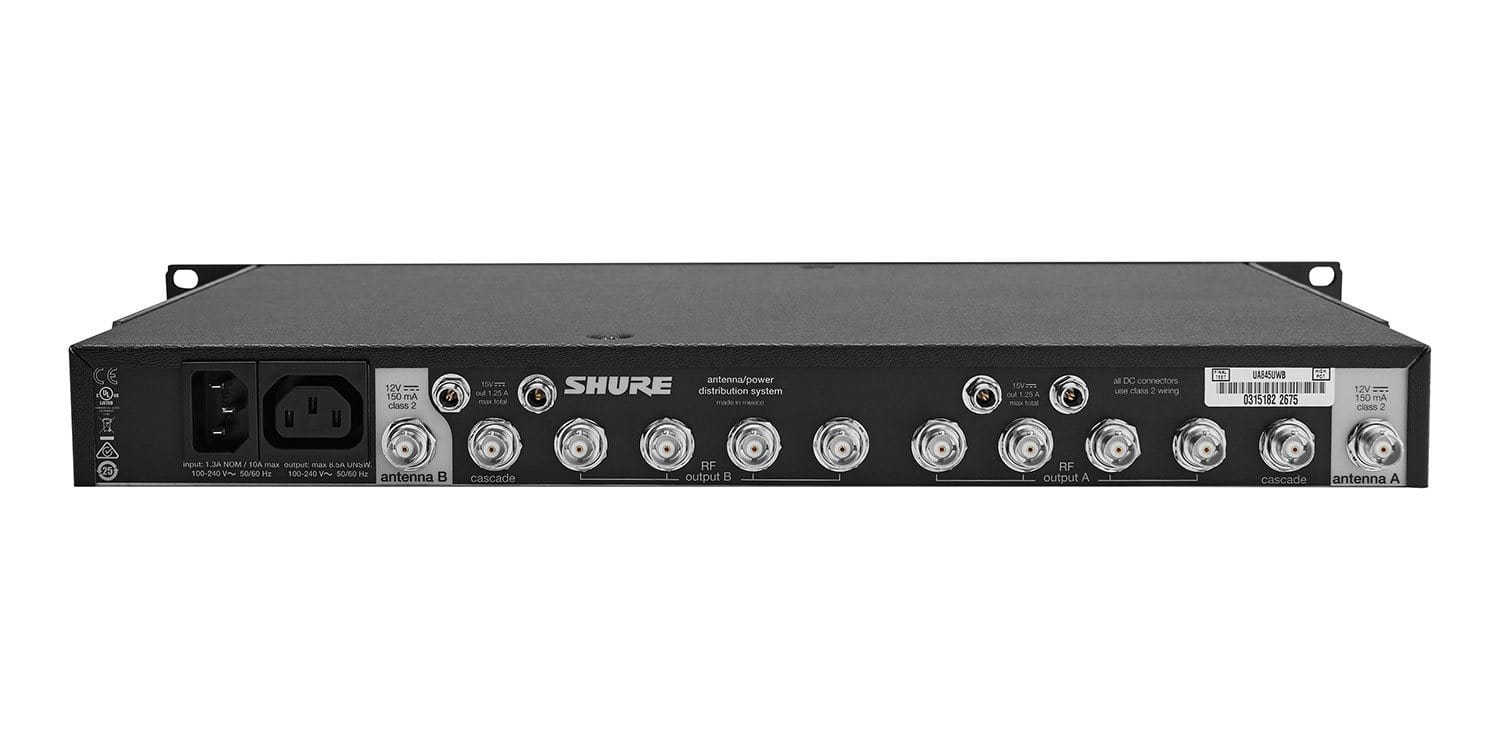

- Five-way RF signal output
- Antenna A and B input overload LEDs
- Internal power supply with four DC receiver feeds (15 V, 2.5 A maximum) and antenna bias outputs (12 V, 300 mA maximum)
- Supports QLX-D, ULX, ULX-D, SLX and BLX (BLX4R only) receivers
- Front-mounting antenna and rack-mounting hardware
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | UA845UWB |
| Frequency Bands | 174 to 216, 470 to 960, 1240 to 1260, 1492 to 1525, 1785 to 1805 MHz |
| Receivers per Unit | 4, plus cascade to a fifth receiver or second unit |
| RF Outputs | Five-way |
| Receiver DC Feeds | 4 x 15 V, 2.5 A maximum |
| Antenna Bias Output | 12 V, 300 mA maximum |
| Power Supply | Internal |
| Included Cables | 4 locking and 4 non-locking DC cables, ten 22 in and two 6 ft BNC cables, IEC AC cable, pig-tail AC cable |
Why Buy the Shure UA845UWB from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for wireless accessories.
- Genuine Shure stock sourced through authorized distribution channels
- Receiver and band compatibility check before you order
- Wireless rack and RF advice across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for integrators
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
A front panel button on the Shure UA845UWB selects one of five bands: 174 to 216 MHz, 470 to 960 MHz, 1240 to 1260 MHz, 1492 to 1525 MHz and 1785 to 1805 MHz.
The Shure UA845UWB lets four receivers share the same set of antennas, and its cascade connectors add a fifth receiver or a second UA845UWB. It has a five-way RF signal output and overload LEDs for the antenna A and B inputs.
The Shure UA845UWB has an internal power supply with four DC feeds for receivers at 15 V and 2.5 A maximum, plus DC outputs for antenna bias at 12 V and 300 mA maximum.
The Shure UA845UWB supports QLX-D, ULX, ULX-D, SLX and BLX (BLX4R only) receivers. Its included DC cables cover UR4, ULXD4 and ULXP4 (locking) and QLXD4, SLX4 and BLX4R (non-locking).
The full UA845UWB kit includes 4 locking and 4 non-locking DC power cables, ten 22 in BNC cables, two 6 ft BNC cables, 2 bulkhead adaptors, an IEC AC cable, a pig-tail AC cable and a rack mount hardware kit. A less-cable UA845UWB/LC version exists, so confirm the kit with Trianze Tech.
