Shure UA834WB: In-Line Antenna Amplifier with Switchable +6 dB and +12 dB Gain, 470 to 902 MHz
Model
:
UA834WB
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure UA834WB: In-Line Antenna Amplifier with Switchable +6 dB and +12 dB Gain, 470 to 902 MHz

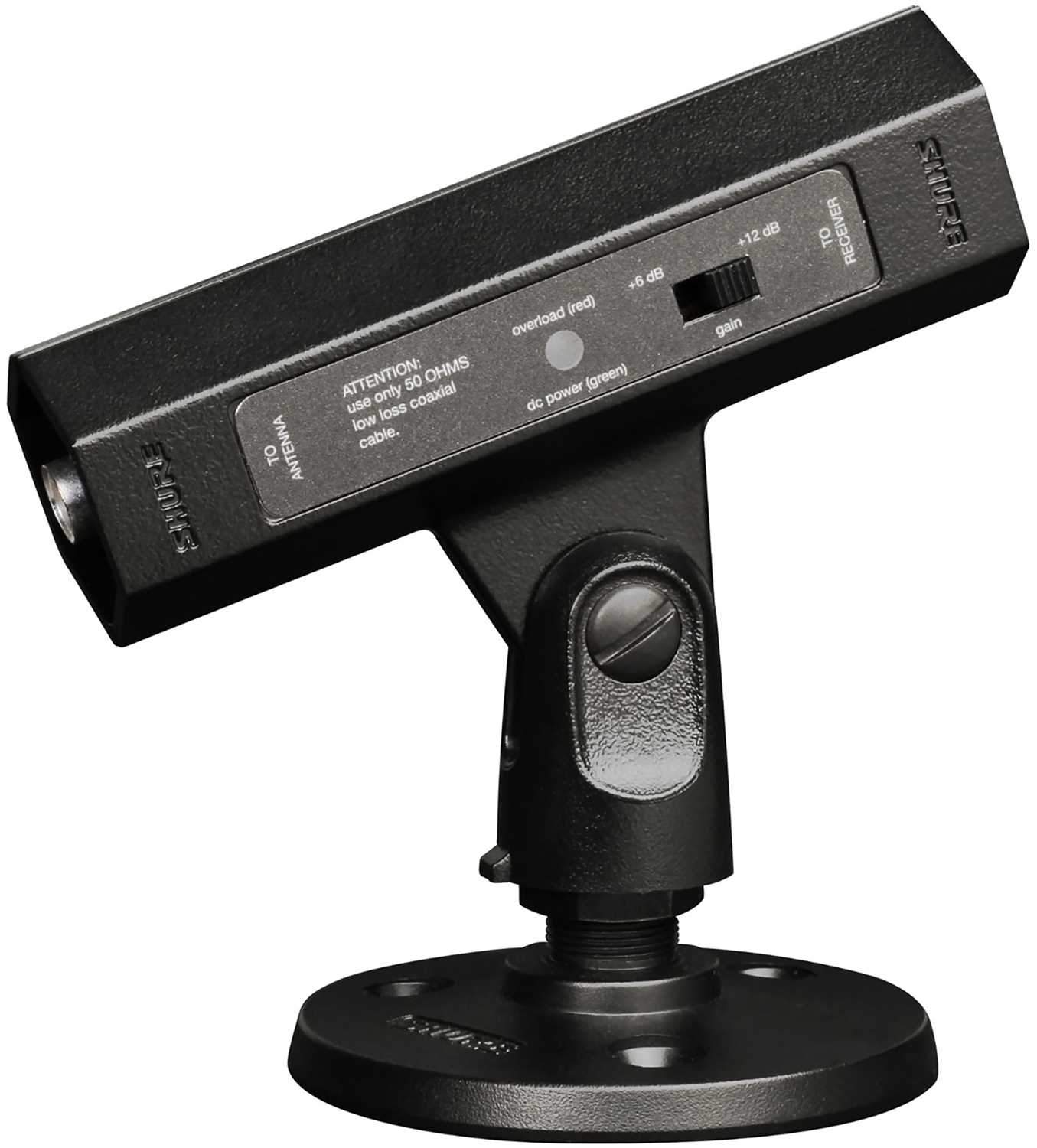

The Shure UA834WB is an in-line antenna amplifier for remote mounting. It increases the allowable length of cable runs between a wireless receiver and its antenna, so antennas can sit closer to the stage or on ceilings and walls that keep a better line of sight to the transmitter. It suits installed wireless systems in venues, houses of worship and conference centers across Dubai, Abu Dhabi and the wider UAE.
Key Features
- Two-position gain selector switch: +6 dB and +12 dB
- Overload LED indication
- Low-noise amplifier compensates for insertion loss in coaxial cable
- Compatible with Shure wireless systems, and with the UA845 and UA844 antenna distribution systems
- Integrated threaded adapter mounts to microphone stands or the supplied surface-mount bracket
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | UA834WB |
| Type | In-line antenna amplifier |
| Frequency Range | 470 to 902 MHz |
| Gain | Selectable +6 dB or +12 dB |
| Indicators | Overload LED |
| Mounting | Threaded adapter for mic stands, or surface-mount bracket |
Why Buy the Shure UA834WB from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for wireless accessories.
- Genuine Shure stock sourced through authorized distribution channels
- RF cable run and gain advice for your installation
- Wireless setup guidance across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for integrators
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure UA834WB is an in-line antenna amplifier that increases the allowable cable run between a wireless receiver and its antenna, so antennas can sit closer to the stage or on ceilings and walls with a better line of sight to the transmitter.
The Shure UA834WB has a two-position gain selector switch for +6 dB or +12 dB. Its low-noise amplifier compensates for insertion loss in the coaxial cable, and an overload LED warns of excess input.
The Shure UA834WB covers 470 to 902 MHz. Wireless frequency use is subject to local regulation, so confirm the band for your project with Trianze Tech.
The Shure UA834WB is compatible with Shure wireless systems and can also be used with the Shure UA845 and UA844 antenna distribution systems.
The Shure UA834WB has an integrated threaded adapter that mounts to a microphone stand or to the supplied surface-mount bracket.
Trianze Tech stocks the Shure UA834WB in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
