Shure UA830USTV: In-Line UHF Antenna Amplifier for Remote Antennas, 470 to 698 MHz
Model
:
UA830USTV
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

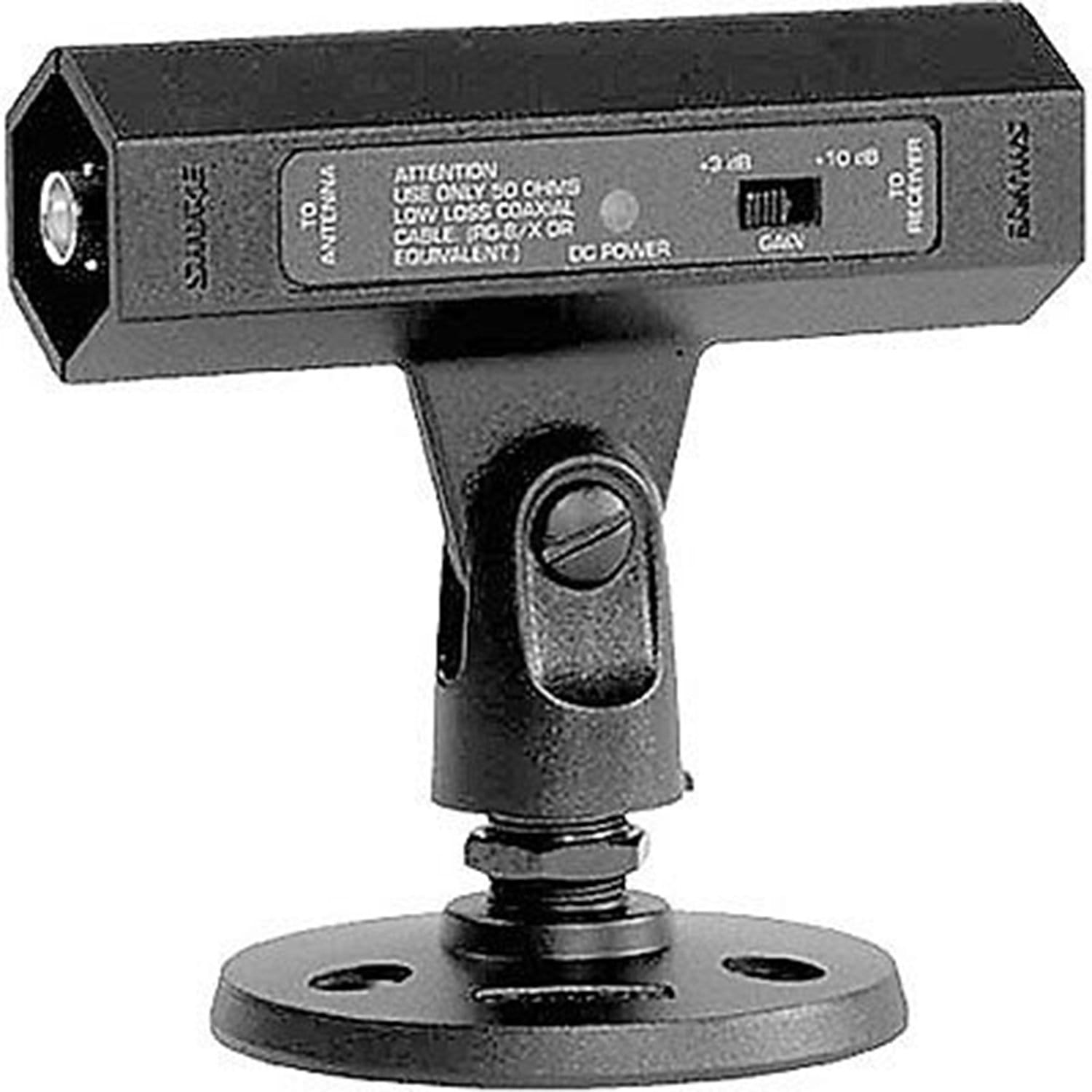

Shure UA830USTV In-Line Antenna Amplifier
The Shure UA830USTV is a low-noise in-line antenna amplifier for remote-mounting antennas to Shure U4 or ULX receivers or to UA845 and UA844 distribution systems. Powered through its output port, it makes up for coaxial cable loss with a 3 dB or 10 dB gain switch across 470 to 698 MHz, for larger installations across Dubai, Abu Dhabi and the UAE and GCC.
Key Features:
- Compensates for coaxial cable loss on remote antennas
- Two-position gain: 3 dB under 7.5 m, 10 dB over 7.5 m
- Powered through the output port by the receiver or distribution amp
- Desk, wall or mic stand mounting
- Isolates antennas from cable interactions
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Range | 470 to 698 MHz |
| Gain | 3 dB or 10 dB switchable |
| Power | Supplied via output port from Shure receiver or distribution amplifier |
| Mounting | Desk, wall or microphone stand |
| Compatibility | Shure U4, ULX, UA845, UA844 |
Why Buy the Shure UA830USTV from Trianze Tech?
- Shure RF accessory with local support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Antenna placement advice
- Dedicated AV support team
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The UA830USTV is an in-line amplifier that boosts the signal from a remote-mounted antenna to compensate for loss in long coaxial cable runs.
Use the 3 dB setting for cable runs under 7.5 m (25 ft) and the 10 dB setting for runs over 7.5 m.
No. It is powered through its output port by the connected Shure receiver or distribution amplifier.
Shure lists the U4 and ULX receivers and the UA845 and UA844 antenna distribution systems.
The UA830USTV covers 470 to 698 MHz.
