Shure TL48W/O-NC-A: TwinPlex Omnidirectional Lavalier Microphone with Bare Wire Connector and Accessories, Tailored for Dialogue, White
Model
:
TL48W-O-NC-A
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

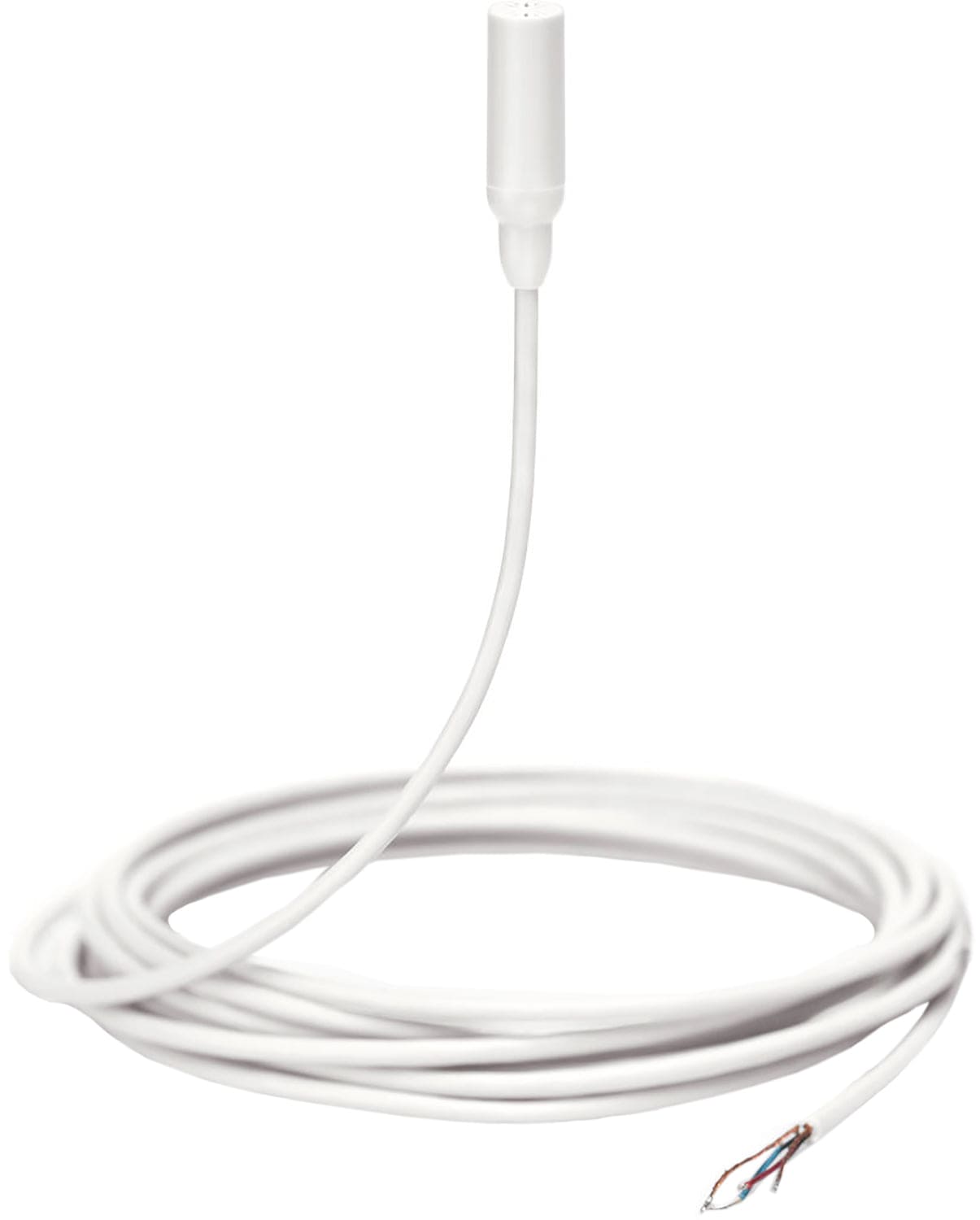

Shure TL48W/O-NC-A: TwinPlex Omnidirectional Lavalier Microphone with Bare Wire Connector and Accessories, Tailored for Dialogue, White
The Shure TwinPlex TL48 offers a tailored response with a mid-range rise that is ideal for speech and dialogue applications such as film and TV. It is easily concealed in a costume or directly against the skin under wardrobe, and offers extensive accessories for quick, easy and secure mounting with no impact on sound quality, for production crews across Dubai, Abu Dhabi and the UAE. This listing is the white version with a bare wire (NC) connector and accessories.
Key Features
- Paintable fixed frequency cap and mid-band boost that accentuates dialogue
- Dual-diaphragm design for improved off-axis consistency
- Best-in-class low self-noise and dynamic range
- Fixed frequency cap with internal hydrophobic woven lining resists sweat and moisture
- Paintable 1.6 mm cable immune to memory effect and kinks
- Dual redundant ground in the cable serves as a secondary shield
- Sound signature tailored for dialogue: 6 dB mid-band boost at about 7 kHz

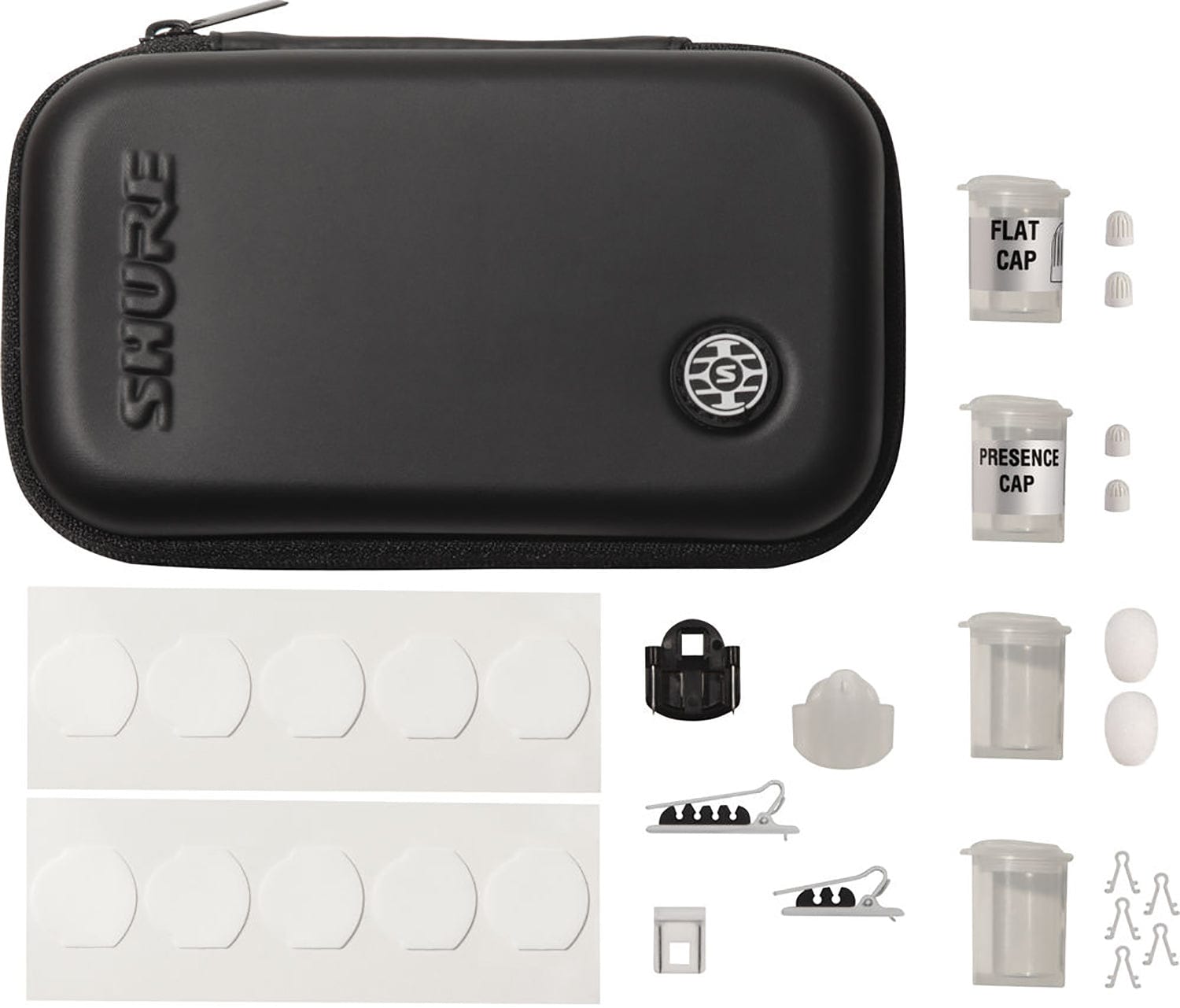

- Low sensitivity, white finish, NC (bare wire) connector, available with accessories
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | TL48W-O-NC-A |
| Capsule / Pattern | Dual-diaphragm prepolarized condenser / omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | -45.0 dBV (5.62 mV) at 1 kHz |
| Self-Noise / SNR | 24.5 dB SPL-A / 69.5 dB |
| Max SPL / Dynamic Range | 142.0 dB SPL at 1 kHz, 1% THD / 117.5 dB typical |
| Output Clipping Level | 3.0 dBV at 1 kHz, 1% THD, typical |
| Bias Voltage / Current Draw | 5 VDC recommended / 120 to 240 microamps typical |
| Housing / Cable | Molded ABS / 1.6 mm diameter |
| Connector / Finish | NC (bare wire) / white |
Why Buy the Shure TL48W/O-NC-A from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for professional audio.
- Genuine Shure stock sourced through authorized distribution channels
- Lavalier and wireless transmitter matching advice across Dubai, Abu Dhabi and the GCC
- Connector and termination checking before you order
- Local UAE warranty backing and after-sales support
- Volume pricing available for production and broadcast teams
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure TL48W/O-NC-A is a white TwinPlex omnidirectional lavalier microphone with a bare wire (NC) connector, supplied with accessories. Its tailored response with a mid-range rise suits speech and dialogue for film and TV.

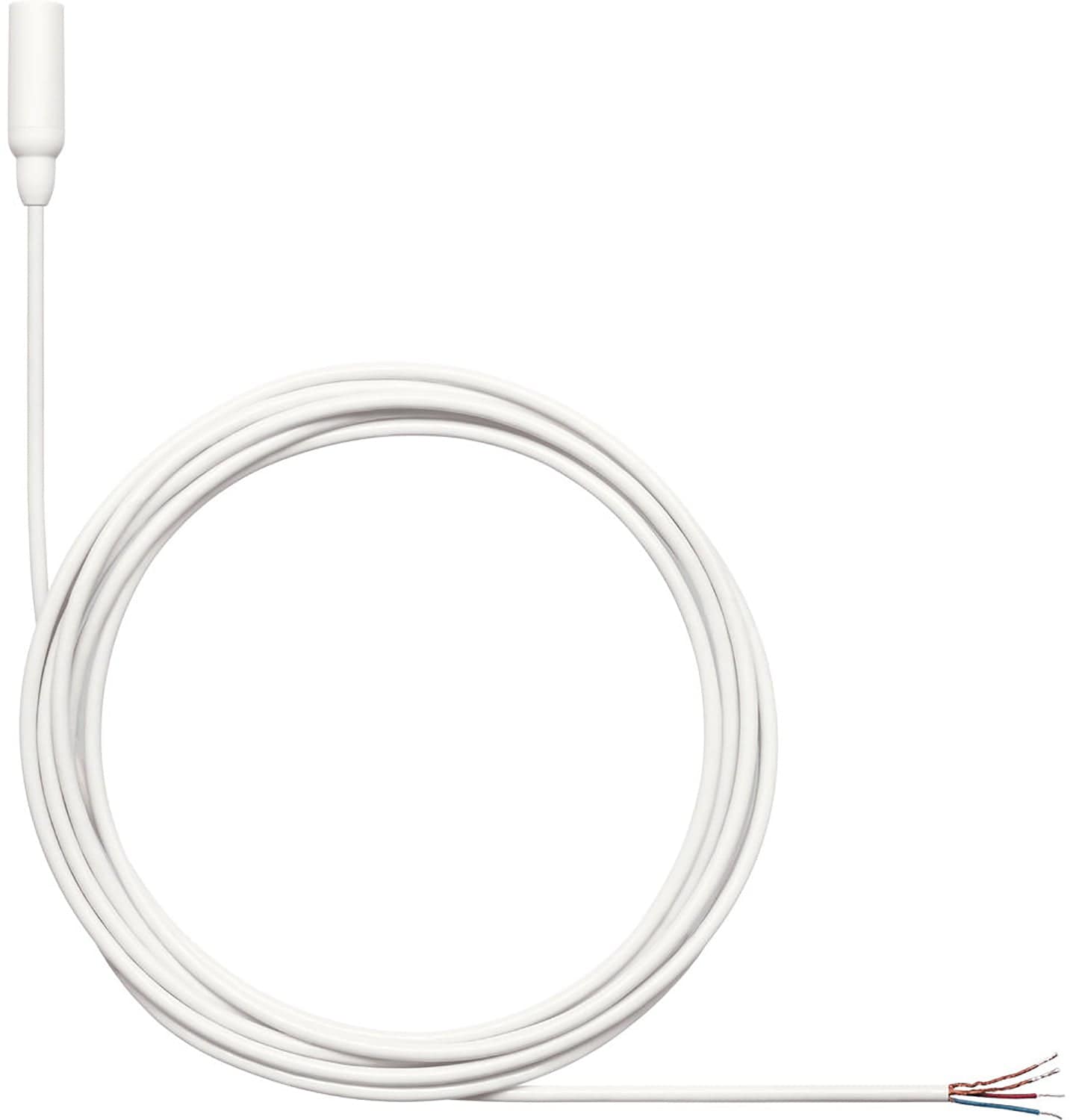

NC means the cable ends in bare wire with no connector fitted, so it needs to be terminated with the connector your wireless transmitter uses. Confirm the wiring and termination with Trianze Tech before ordering.
The TL48 has a 20 Hz to 20 kHz frequency response and a sensitivity of -45.0 dBV (5.62 mV) at 1 kHz, listed as low sensitivity. Maximum SPL is 142.0 dB SPL at 1 kHz and 1% THD.
The fixed frequency cap has an internal hydrophobic woven lining that resists sweat and moisture. The paintable 1.6 mm cable is immune to memory effect and kinks, and a dual redundant ground in the cable serves as a secondary shield for longevity.
The TL48 is tailored for dialogue, with a 6 dB mid-band boost at about 7 kHz. Its dual-diaphragm design improves off-axis consistency so the voice is reproduced accurately whatever the source position or movement.
Trianze Tech stocks the Shure TL48W/O-NC-A in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
