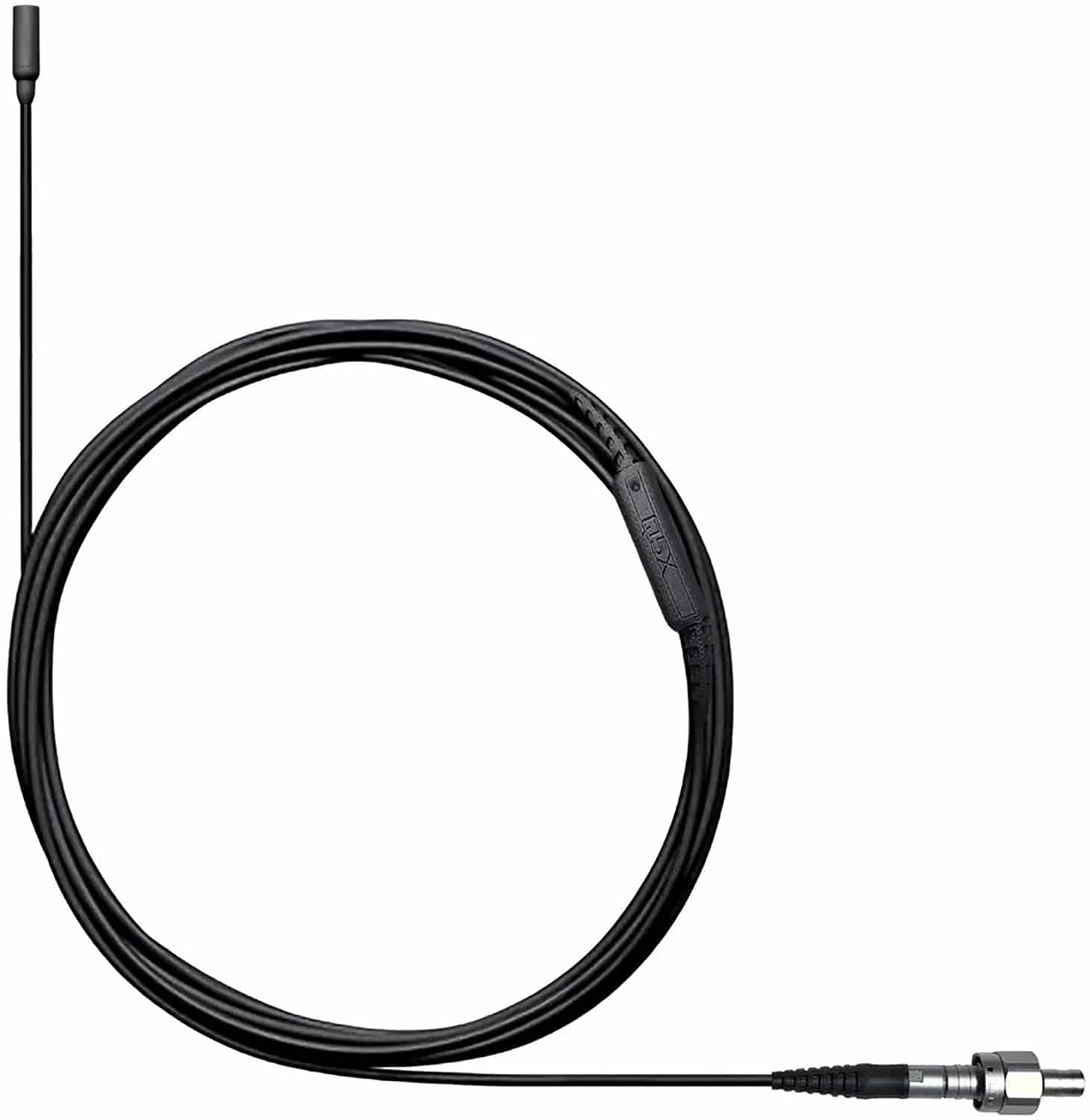

Shure TL48B/O-LEMO6-A: TwinPlex Omnidirectional Lavalier Microphone Tuned for Film and TV Dialogue, 6-Pin LEMO Connector, Black
Model
:
TL48B-O-LEMO6-A
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure TL48B/O-LEMO6-A: TwinPlex Omnidirectional Lavalier Microphone Tuned for Film and TV Dialogue, 6-Pin LEMO Connector, Black
The Shure TwinPlex TL48 is a subminiature omnidirectional lavalier with a tailored response and a mid-range rise that suits speech and dialogue in film and TV. It hides easily in a costume or directly against the skin under wardrobe, and Shure offers extensive accessories for quick, secure mounting without affecting sound quality. This listing is the black version with a 6-pin LEMO connector, available in Dubai, Abu Dhabi and across the UAE.
Key Features
- Dialogue-tuned response with a 6 dB mid-band boost at about 7 kHz
- Dual-diaphragm capsule for consistent off-axis reproduction
- Low self noise and wide dynamic range for cleaner audio
- Fixed frequency cap with internal hydrophobic woven lining resists sweat and moisture
- Paintable 1.6 mm cable, immune to memory effect and kinks
- Dual redundant ground in the cable acts as a secondary shield
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | TL48B-O-LEMO6-A |
| Capsule | Dual-diaphragm, prepolarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | -45.0 dBV (5.62 mV) at 1 kHz |
| Self Noise / SNR | 24.5 dB SPL-A / 69.5 dB |
| Maximum SPL | 142 dB SPL at 1 kHz, 1% THD, typical |
| Dynamic Range | 117.5 dB typical |
| Bias Voltage | 5 VDC recommended, 120 to 240 microamps typical |
| Connector | 6-pin LEMO |
| Cable | 1.6 mm diameter, 66 in (1.67 m) |
| Size / Weight | 19 mm long, 5.6 mm diameter / 12.0 g with cable |
| Housing / Colour | Molded ABS / Black |
Why Buy the Shure TL48B/O-LEMO6-A from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for broadcast lavalier microphones.
- Genuine Shure stock sourced through authorized distribution channels
- Connector matching against your transmitter before you order
- Lavalier and wireless advice across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for production houses and broadcasters
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The TL48 is tuned for dialogue, with a 6 dB mid-band boost at about 7 kHz that accentuates speech. This makes it well suited to film and TV work. Its fixed frequency cap and dual-diaphragm omnidirectional capsule keep off-axis pickup consistent as talent moves.
It has a 6-pin LEMO connector, as stated in the product title. Check that your wireless transmitter accepts a 6-pin LEMO input before ordering, since the same TL48 is also sold with a 1-pin LEMO connector.
Maximum SPL is 142 dB at 1 kHz and 1% THD (typical), with a dynamic range of 117.5 dB typical. Sensitivity is -45.0 dBV (5.62 mV) at 1 kHz, self noise is 24.5 dB SPL-A and signal to noise ratio is 69.5 dB, so it is a low-sensitivity design that copes with loud sources.
Yes. The capsule is 19 mm long and 5.6 mm in diameter, and the whole microphone with cable weighs 12.0 g. The fixed frequency cap has an internal hydrophobic woven lining that resists sweat and moisture, and the 1.6 mm cable is paintable, kink resistant and 66 in (1.67 m) long.
Shure recommends 5 VDC bias. Typical microphone current draw is 120 to 240 microamps. Use a transmitter that supplies suitable bias on its LEMO input.
Trianze Tech stocks the Shure TL48B/O-LEMO6-A in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
