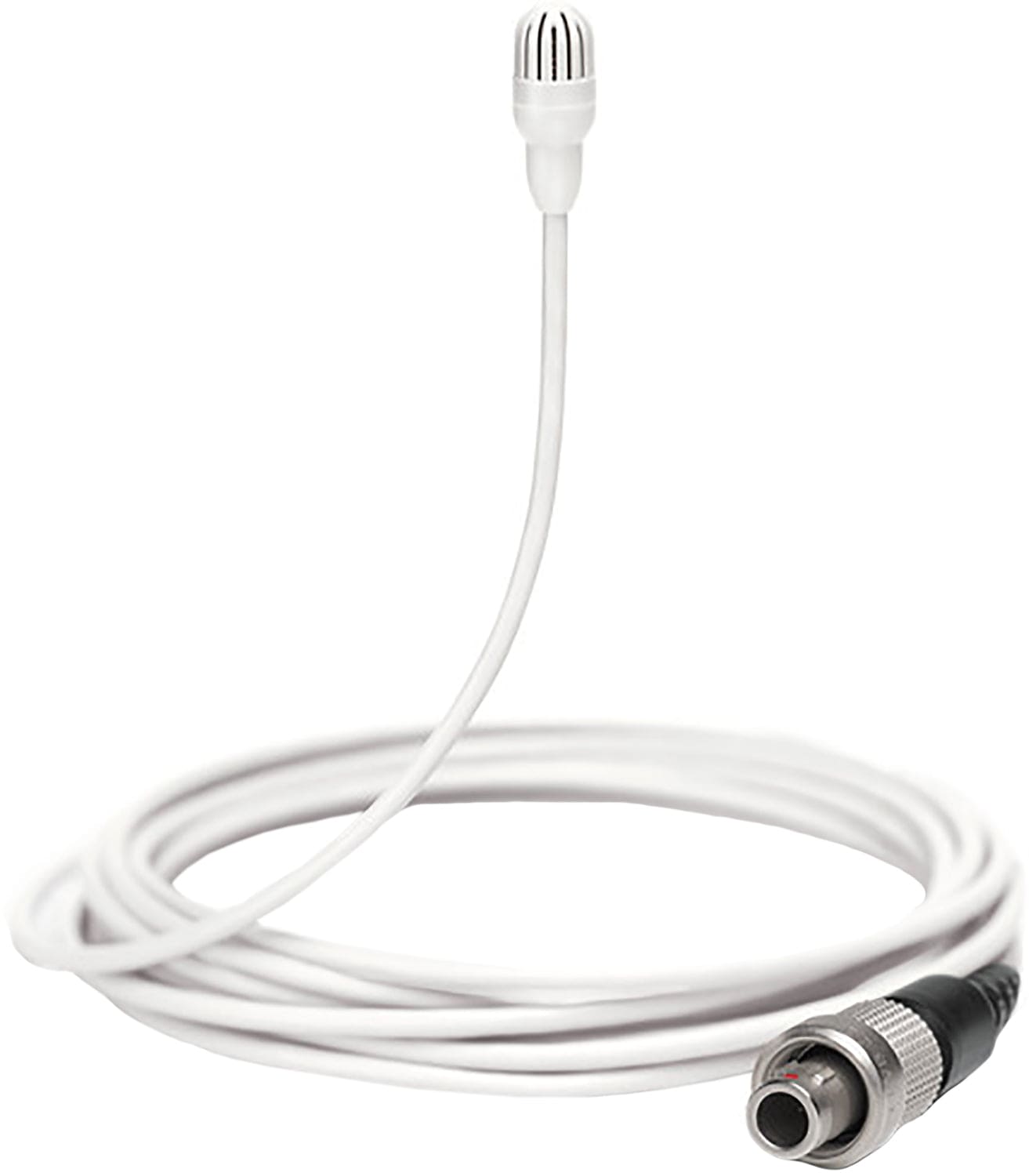

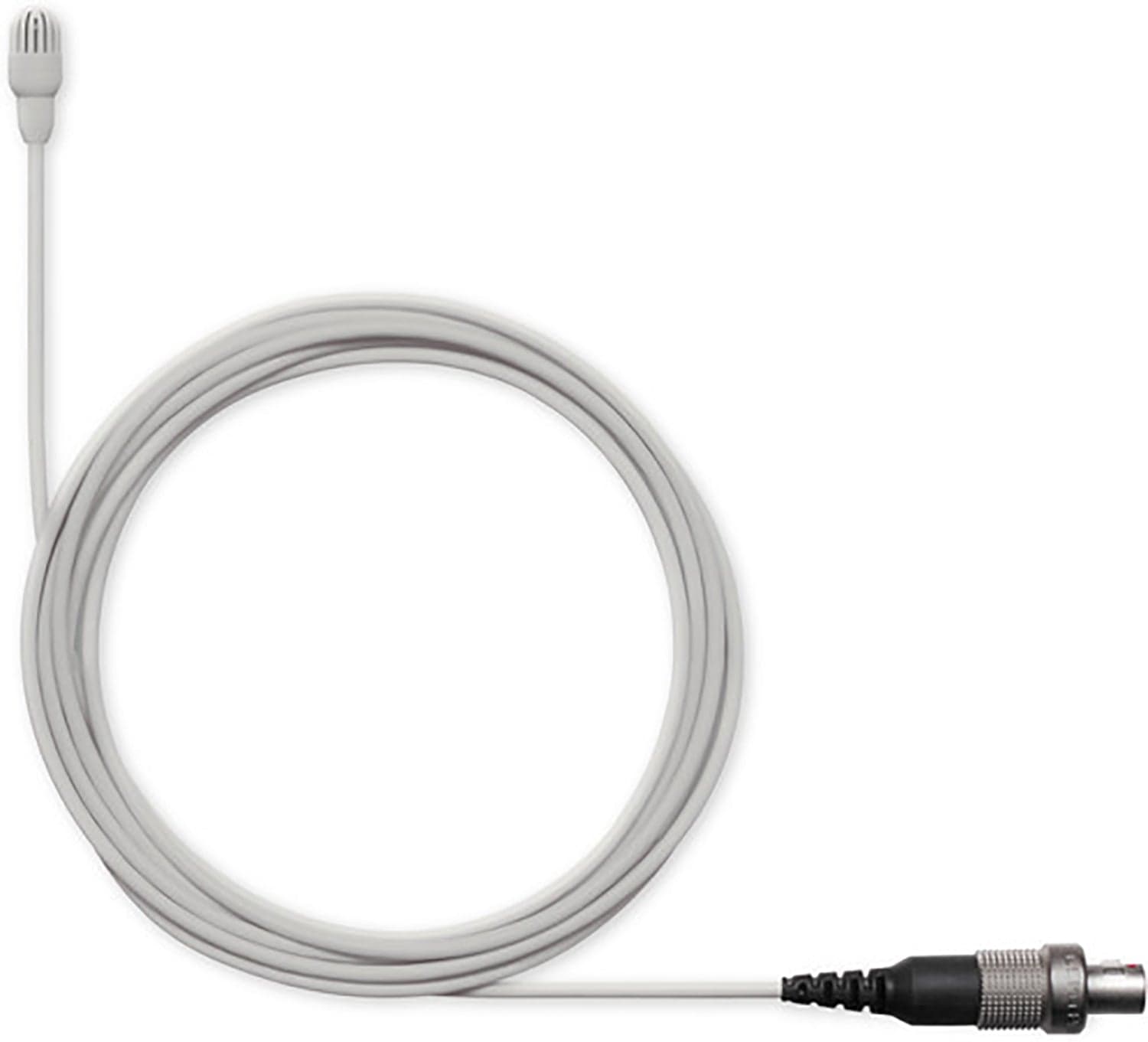

Shure TL47W/O-LEMO: TwinPlex Subminiature Omnidirectional Lavalier Microphone with LEMO3 Plug, Natural Sound, Low Sensitivity, White
Model
:
TL47W-O-LEMO
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Shure TL47W/O-LEMO: TwinPlex Subminiature Omnidirectional Lavalier Microphone with LEMO3 Plug, Natural Sound, Low Sensitivity, White
The expressively natural sounding Shure TwinPlex TL47 is available with connector options for most bodypack transmitters, colour options for numerous situations and mounting choices for professional applications. Its low sensitivity can handle critical acoustic environments without distortion and the 1.6 mm paintable cable stands up to demanding use, for production and broadcast teams across Dubai, Abu Dhabi and the UAE. This listing is the white version with a LEMO3 plug.
Key Features
- Wide range of colours and connectors for nearly any application
- Twice the surface area of other subminiature microphones for a natural response and robust low-frequency response, thanks to the patent pending dual-diaphragm design
- Improved off-axis consistency for accurate reproduction regardless of source position or movement
- Best-in-class low self-noise and dynamic range
- Interchangeable sweat- and moisture-resistant frequency caps with a hydrophobic nanoscopic coating
- Paintable 1.6 mm cable immune to memory effect and kinks
- Dual redundant ground in the cable serves as a secondary shield
- Natural sound signature, low sensitivity, white finish, LEMO3 connector
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | TL47W-O-LEMO |
| Capsule / Pattern | Dual-diaphragm prepolarized condenser / omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | -45.0 dBV (5.62 mV) at 1 kHz |
| Self-Noise / SNR | 24.5 dB SPL-A / 69.5 dB |
| Max SPL / Dynamic Range | 142.0 dB SPL at 1 kHz, 1% THD / 117.5 dB typical |
| Output Clipping Level | 3.0 dBV at 1 kHz, 1% THD, typical |
| Bias Voltage / Current Draw | 5 VDC recommended / 120 to 240 microamps typical |
| Microphone Size / Cable | 13.5 mm long x 5.6 mm diameter / 1.6 mm diameter, 66 in (1.67 m) |
| Housing | Molded ABS |
| Connector / Finish | LEMO3 / white |
Why Buy the Shure TL47W/O-LEMO from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for professional audio.
- Genuine Shure stock sourced through authorized distribution channels
- Lavalier and wireless transmitter matching advice across Dubai, Abu Dhabi and the GCC
- Connector compatibility checking before you order
- Local UAE warranty backing and after-sales support
- Volume pricing available for production and broadcast teams
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure TL47W/O-LEMO is a white TwinPlex subminiature omnidirectional lavalier microphone with a LEMO3 plug. It has an expressively natural sound signature and low sensitivity.
LEMO3 is the 3-pin LEMO connector fitted to this TL47 variant. Confirm that your wireless transmitter has a matching LEMO3 microphone input before ordering.
This part number has no A suffix, while the TL47W/O-LEMO-A is the version listed with accessories. Confirm what is supplied with Trianze Tech before ordering.
The TL47 covers 20 Hz to 20 kHz and handles up to 142.0 dB SPL at 1 kHz and 1% THD, with a typical output clipping level of 3.0 dBV.
Yes. Shure states the 1.6 mm cable is paintable, and the interchangeable frequency caps are moisture resistant. The white finish can be adjusted to suit the wardrobe.
Trianze Tech stocks the Shure TL47W/O-LEMO in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
