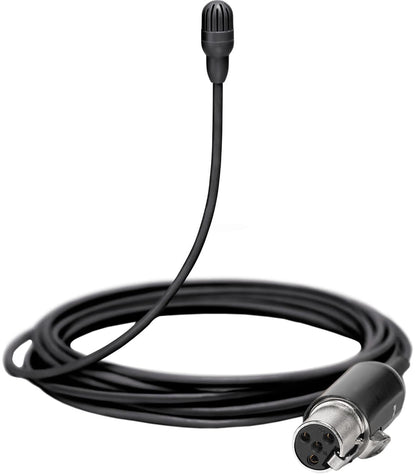

Shure TL47B/O-MTQG: TwinPlex Subminiature Omnidirectional Lavalier Microphone with MTQG TA4F Plug, Natural Sound, Low Sensitivity, Black
Model
:
TL47B-O-MTQG
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure TL47B/O-MTQG: TwinPlex Subminiature Omnidirectional Lavalier Microphone with MTQG TA4F Plug, Natural Sound, Low Sensitivity, Black
The expressively natural sounding Shure TwinPlex TL47 is available with connector options for most bodypack transmitters, colour options for numerous situations and mounting choices for professional applications. Its low sensitivity can handle critical acoustic environments without distortion and the 1.6 mm paintable cable stands up to demanding use, for production and broadcast teams across Dubai, Abu Dhabi and the UAE. This listing is the black version with an MTQG (TA4F) plug.
Key Features
- Wide range of colours and connectors for nearly any application
- Twice the surface area of other subminiature microphones for a natural response and robust low-frequency response, thanks to the patent pending dual-diaphragm design
- Improved off-axis consistency for accurate reproduction regardless of source position or movement
- Best-in-class low self-noise and dynamic range
- Interchangeable sweat- and moisture-resistant frequency caps with a hydrophobic nanoscopic coating
- Paintable 1.6 mm cable immune to memory effect and kinks
- Dual redundant ground in the cable serves as a secondary shield
- Natural sound signature, low sensitivity, black finish, MTQG/TA4F connector
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | TL47B-O-MTQG |
| Capsule / Pattern | Dual-diaphragm prepolarized condenser / omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | -45.0 dBV (5.62 mV) at 1 kHz |
| Self-Noise / SNR | 24.5 dB SPL-A / 69.5 dB |
| Max SPL / Dynamic Range | 142.0 dB SPL at 1 kHz, 1% THD / 117.5 dB typical |
| Output Clipping Level | 3.0 dBV at 1 kHz, 1% THD, typical |
| Bias Voltage / Current Draw | 5 VDC recommended / 120 to 240 microamps typical |
| Microphone Size / Cable | 13.5 mm long x 5.6 mm diameter / 1.6 mm diameter, 66 in (1.67 m) |
| Housing | Molded ABS |
| Connector / Finish | MTQG/TA4F / black |
Why Buy the Shure TL47B/O-MTQG from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for professional audio.
- Genuine Shure stock sourced through authorized distribution channels
- Lavalier and wireless transmitter matching advice across Dubai, Abu Dhabi and the GCC
- Connector compatibility checking before you order
- Local UAE warranty backing and after-sales support
- Volume pricing available for production and broadcast teams
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure TL47B/O-MTQG is a black TwinPlex subminiature omnidirectional lavalier microphone with an MTQG (TA4F) plug. It has an expressively natural sound signature and low sensitivity.
Shure offers the TL47 with or without accessories, and the -A part number is the version listed with accessories. This TL47B/O-MTQG has no A suffix, so confirm with Trianze Tech what is supplied.
The listing names the connector as MTQG/TA4F, used on many Shure wireless bodypack transmitters. Confirm your transmitter's input connector with Trianze Tech before ordering.
The microphone is 13.5 mm long and 5.6 mm in diameter, with a paintable 1.6 mm cable 66 inches (1.67 m) long and a molded ABS housing.
It has twice the surface area of other subminiature microphones, giving a pristine, natural response and robust low-frequency response from the patent pending dual-diaphragm design.
Trianze Tech stocks the Shure TL47B/O-MTQG in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
