Shure TL47: TwinPlex Subminiature Lavalier Microphone with Low Sensitivity and MicroDot Connector, Tan
Model
:
TL47T-O-MDOT-A
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure TL47: TwinPlex Subminiature Lavalier Microphone with Low Sensitivity and MicroDot Connector, Tan

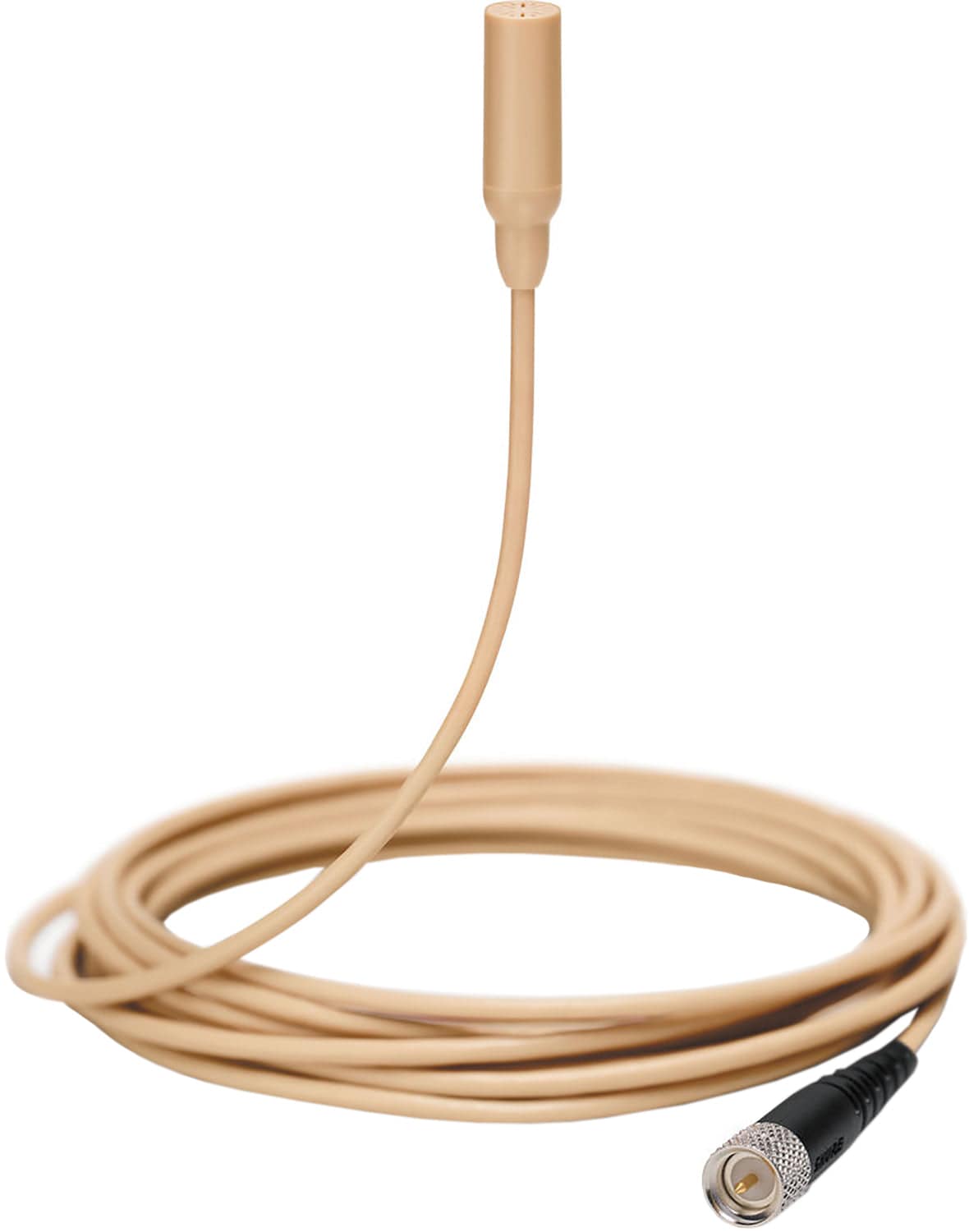

The Shure TwinPlex TL47 is an expressively natural-sounding subminiature lavalier with color and connector choices for professional applications. Its low sensitivity handles critical acoustic environments without distortion, and its 1.6 mm paintable cable withstands demanding use. It is the flexible choice in the TwinPlex lavalier line for theaters, broadcasters and productions across Dubai, Abu Dhabi and the wider UAE.
Key Features
- Wide choice of colors and connectors for nearly any application
- Dual-diaphragm design with twice the surface area of other subminiature microphones
- Improved off-axis consistency and low self-noise with wide dynamic range

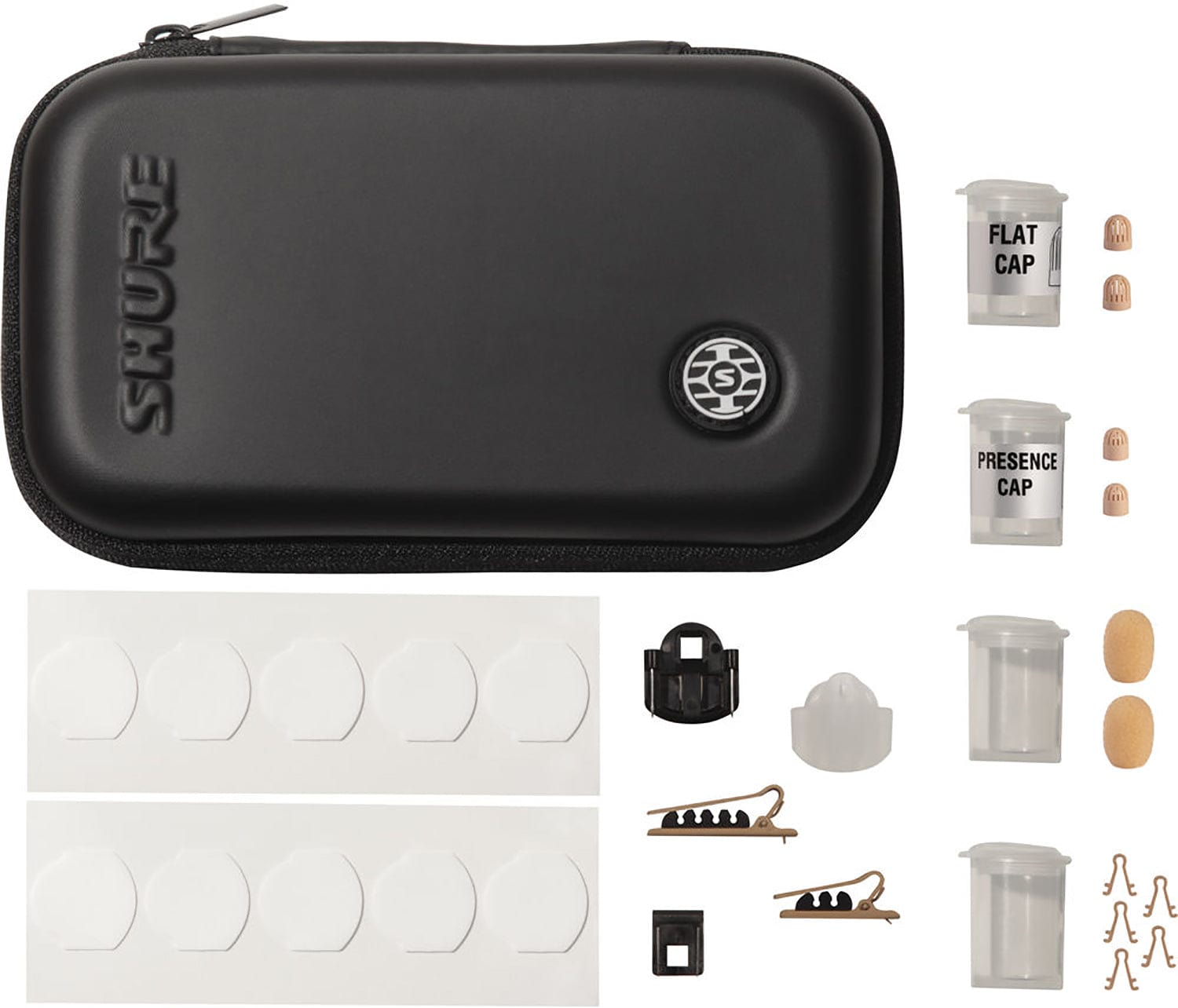

- Interchangeable sweat- and moisture-resistant frequency caps
- Paintable 1.6 mm cable with dual redundant ground
- Available with MDOT, MTQG, bare wire, LEMO3 or XLR plugs in tan, black, white or cocoa
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | TL47T-O-MDOT-A |
| Capsule | Dual-diaphragm, prepolarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | -45.0 dBV (5.62 mV) at 1 kHz |
| Self-Noise | 24.5 dB SPL-A |
| Signal-to-Noise Ratio | 69.5 dB |
| Maximum SPL | 142.0 dB at 1% THD |
| Dynamic Range | 117.5 dB typical |
| Bias Voltage | 5 VDC, 120 to 240 uA |
| Cable | 1.6 mm diameter, 66 in (1.67 m) |
| Microphone Size | 13.5 mm long, 5.6 mm diameter |
| Connector / Color | MicroDot / Tan |
Why Buy the Shure TL47 from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for theater and broadcast audio.
- Genuine Shure stock sourced through authorized distribution channels
- Connector matching against your wireless transmitters before you order
- Wireless microphone setup advice across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for theaters and broadcasters
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure TL47 is available with MDOT, MTQG, bare wire, LEMO3 or XLR plugs, and each is offered in tan, black, white or cocoa.
This listing is the tan Shure TL47 with a MicroDot connector (SKU TL47T-O-MDOT-A). Confirm the plug type and whether accessories are included with Trianze Tech before ordering.
The Shure TL47 has a low sensitivity of -45.0 dBV (5.62 mV) at 1 kHz and handles up to 142.0 dB SPL at 1% THD, so it copes with loud acoustic environments without distortion.
The Shure TL47 has a 1.6 mm paintable cable, 66 in (1.67 m) long, that is immune to memory effect and kinks, with a dual redundant ground that acts as a secondary shield.
The Shure TL47 is omnidirectional with a dual-diaphragm prepolarized condenser capsule and a 20 Hz to 20 kHz frequency response. The housing is 13.5 mm long and 5.6 mm in diameter.
Trianze Tech stocks the Shure TL47 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
