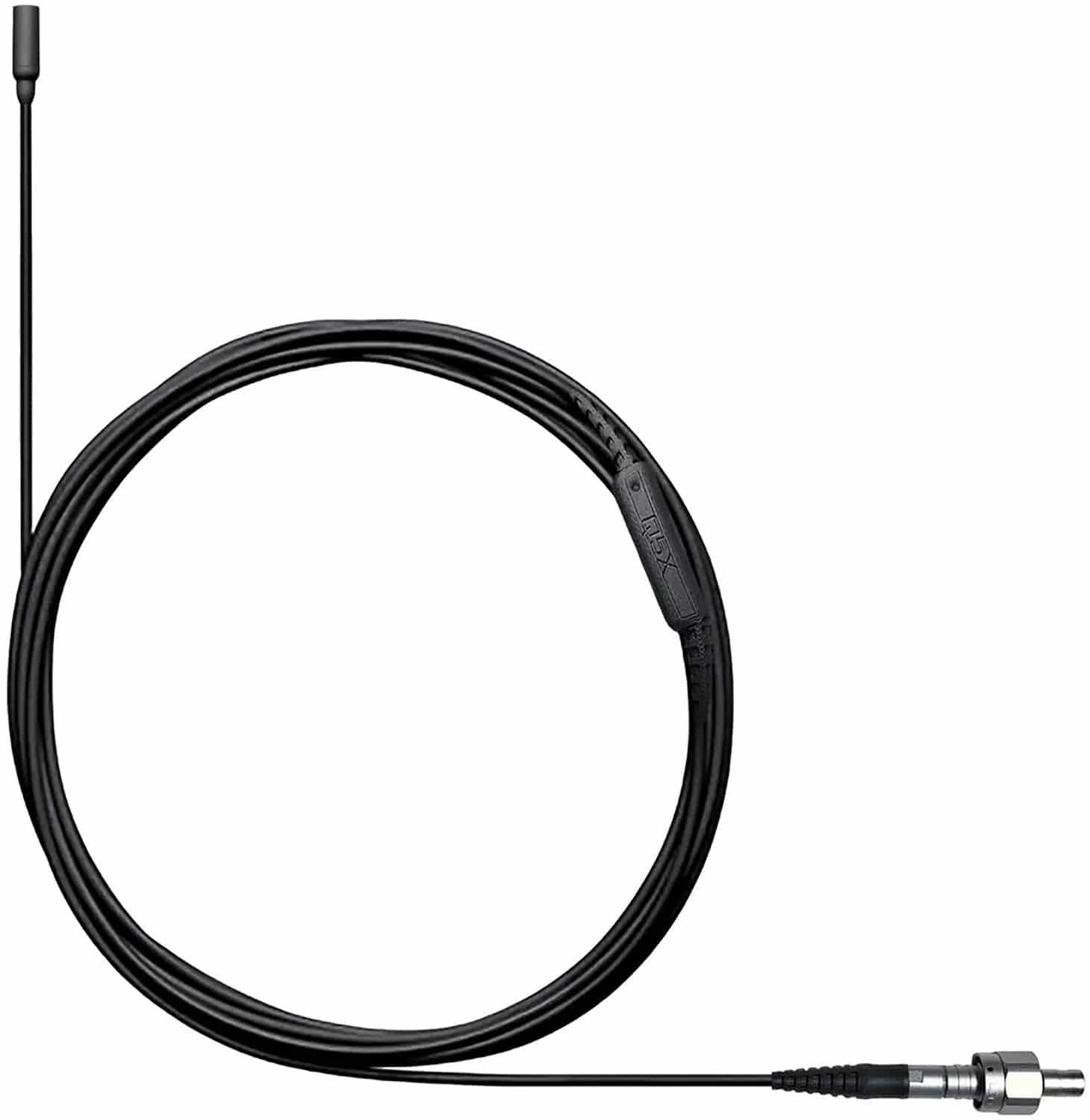

Shure TL46B/O-LEMO6-A: TwinPlex High Sensitivity Omnidirectional Subminiature Lavalier Microphone, 6-Pin LEMO Connector, Black
Model
:
TL46B-O-LEMO6-A
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure TL46B/O-LEMO6-A: TwinPlex High Sensitivity Omnidirectional Subminiature Lavalier Microphone, 6-Pin LEMO Connector, Black
The Shure TwinPlex TL46 is the high sensitivity model in the TwinPlex lavalier range, with a dual-diaphragm omnidirectional capsule that gives a full, natural tone, consistent off-axis response, low self noise and wide dynamic range. Its extra output level suits quieter speakers and low-gain situations. This listing is the black version with a 6-pin LEMO connector, available in Dubai, Abu Dhabi and across the UAE.
Key Features
- High sensitivity, with 8 to 10 dB more output than the low-sensitivity TwinPlex models
- Dual-diaphragm omnidirectional capsule for a natural tone and consistent off-axis response
- Low self noise and wide dynamic range
- Swappable frequency caps with a superhydrophobic coating resist sweat-outs
- Paintable, kink-resistant cable with a redundant ground for shielding
- 6-pin LEMO connector for compatible wireless transmitters
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | TL46B-O-LEMO6-A |
| Capsule | Dual-diaphragm, prepolarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | -37.0 dBV (14.1 mV) at 1 kHz (high) |
| Self Noise / SNR | 24.5 dB SPL-A / 69.5 dB |
| Maximum SPL | 142 dB SPL at 1 kHz, 1% THD, typical |
| Dynamic Range | 117.5 dB typical |
| Bias Voltage | 5 VDC recommended, 120 to 240 microamps typical |
| Connector | 6-pin LEMO |
| Cable Length | 66 in (1.67 m) |
| Size / Weight | 13.5 mm long, 5.6 mm diameter / 12.0 g with cable |
| Housing / Colour | Molded ABS / Black |
Why Buy the Shure TL46B/O-LEMO6-A from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for broadcast lavalier microphones.
- Genuine Shure stock sourced through authorized distribution channels
- Connector matching against your transmitter before you order
- Lavalier and wireless advice across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for production houses and broadcasters
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The TL46 is the high sensitivity model in the TwinPlex range. Shure and retailer listings state it gives 8 to 10 dB of additional output level compared with the low-sensitivity TL47 and TL48, which raises signal to noise ratio in quiet or low-gain situations.
It has a 6-pin LEMO connector for compatibility with a range of wireless transmitters. Check that your transmitter accepts a 6-pin LEMO input before ordering.
It has a dual-diaphragm prepolarized condenser capsule with an omnidirectional polar pattern, giving a full, natural tone, consistent off-axis response, low self noise and wide dynamic range. Frequency response is 20 Hz to 20 kHz.
Yes. The TwinPlex range uses swappable frequency caps with a superhydrophobic nanoscopic coating that helps prevent sweat-outs. The 1.6 mm medical-grade cable is paintable, kink resistant and has a redundant ground for extra shielding. Cable length is 66 in (1.67 m).
Shure recommends a 5 VDC bias voltage for the TwinPlex range. Use a transmitter that supplies suitable bias on its LEMO input, and confirm compatibility with Trianze Tech if unsure.
Trianze Tech stocks the Shure TL46B/O-LEMO6-A in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
