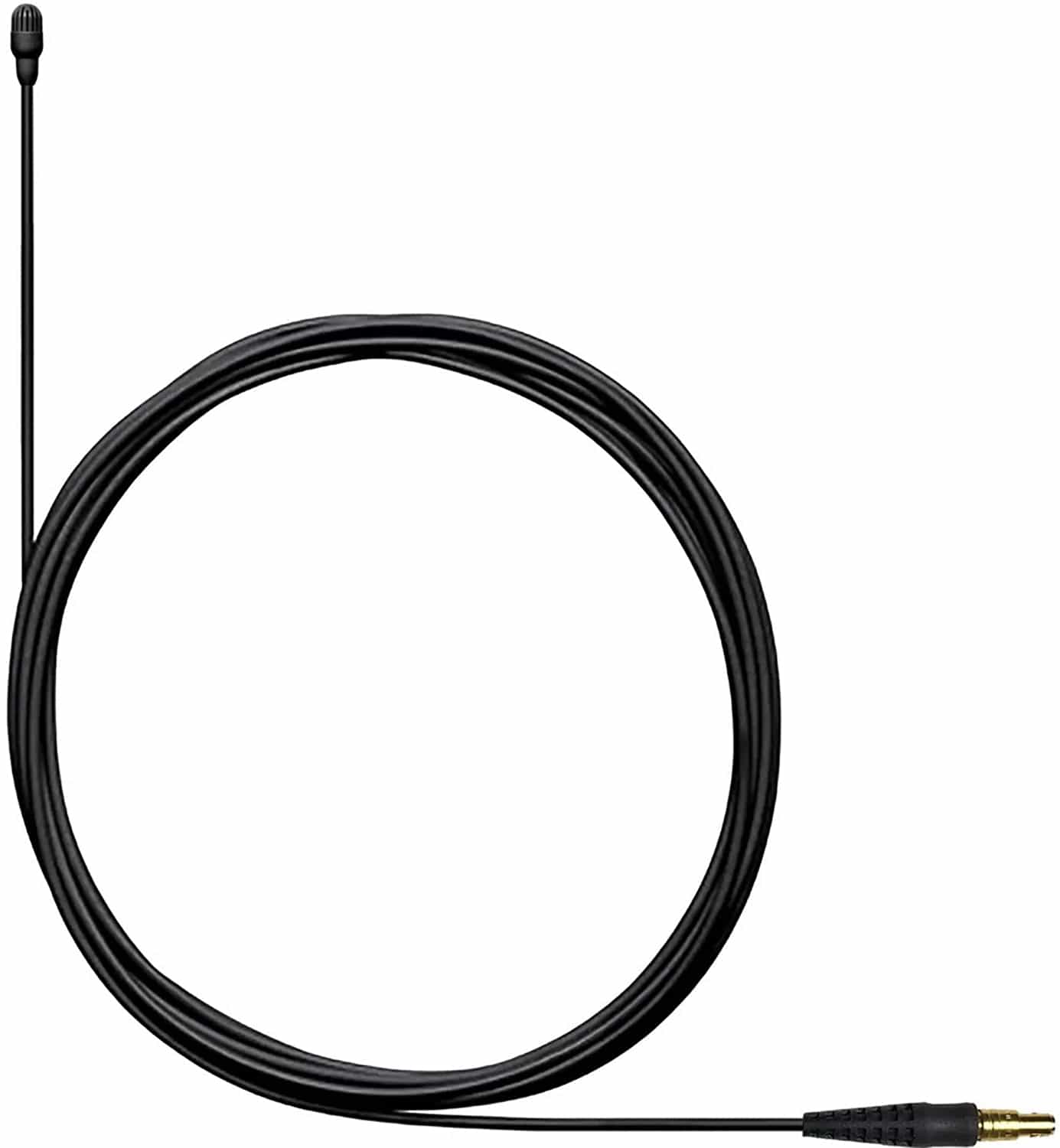

Shure TL46B/O-LEMO1-A: TwinPlex High Sensitivity Omnidirectional Subminiature Lavalier Microphone, 1-Pin LEMO Connector, Black
Model
:
TL46B-O-LEMO1-A
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure TL46B/O-LEMO1-A: TwinPlex High Sensitivity Omnidirectional Subminiature Lavalier Microphone, 1-Pin LEMO Connector, Black
The Shure TwinPlex TL46 offers a high sensitivity output, natural sound and very low noise, making it a strong choice for dialogue and medium SPL applications in theatre, film, broadcast and live TV. Its interchangeable moisture-resistant frequency caps and ultra-durable paintable cable suit demanding productions. This listing is the black version with a 1-pin LEMO connector, available in Dubai, Abu Dhabi and across the UAE.
Key Features
- High sensitivity with 8 to 10 dB more output than the low-sensitivity TwinPlex models
- Dual-diaphragm capsule with twice the surface area of other subminiature microphones for natural, robust low-frequency response
- Improved off-axis consistency and best-in-class low self noise
- Interchangeable frequency caps with a superhydrophobic coating resist sweat-outs
- Paintable, kink-resistant cable with dual redundant ground
- 1-pin LEMO connector; accessories available separately
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | TL46B-O-LEMO1-A |
| Capsule | Dual-diaphragm, prepolarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | -37.0 dBV (14.1 mV) at 1 kHz |
| Self Noise / SNR | 24.5 dB SPL-A / 69.5 dB |
| Maximum SPL | 142 dB SPL at 1 kHz, 1% THD, typical |
| Dynamic Range | 117.5 dB typical |
| Bias Voltage | 5 VDC recommended, 120 to 240 microamps typical |
| Connector | 1-pin LEMO |
| Cable Length | 66 in (1.67 m) |
| Size / Weight | 13.5 mm long, 5.6 mm diameter / 12.0 g with cable |
| Housing / Colour | Molded ABS / Black |
Why Buy the Shure TL46B/O-LEMO1-A from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for broadcast lavalier microphones.
- Genuine Shure stock sourced through authorized distribution channels
- Connector matching against your transmitter before you order
- Lavalier and wireless advice across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for production houses and broadcasters
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
It has a 1-pin LEMO connector (LEMO1 in the part number). Confirm that your wireless transmitter accepts a 1-pin LEMO input, since the same TL46 is also sold with a 6-pin LEMO6 connector.
It is the high sensitivity TwinPlex model, rated at -37.0 dBV (14.1 mV) at 1 kHz. That gives 8 to 10 dB more output than the low-sensitivity TL47 and TL48, which helps with quieter speakers and medium SPL dialogue in theatre, film, broadcast and live TV.
Self noise is 24.5 dB SPL-A, signal to noise ratio is 69.5 dB, dynamic range is 117.5 dB typical and maximum SPL is 142 dB at 1 kHz and 1% THD. Frequency response is 20 Hz to 20 kHz, with a recommended 5 VDC bias.
Yes, its interchangeable frequency caps use an invisible superhydrophobic nanoscopic coating that helps prevent sweat-outs. Accessories are available separately, so confirm any clips or spare caps you need when ordering.
The microphone is 13.5 mm long and 5.6 mm in diameter, and the net weight with cable is 12.0 g (0.42 oz). The paintable cable is 66 in (1.67 m) long, kink resistant and immune to memory effect, with a dual redundant ground acting as a secondary shield.
Trianze Tech stocks the Shure TL46B/O-LEMO1-A in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
