Shure TH53B/O-NC: TwinPlex TH53 Subminiature Omnidirectional Headset Microphone, Bare Wire, Black
Model
:
TH53B/O-NC
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

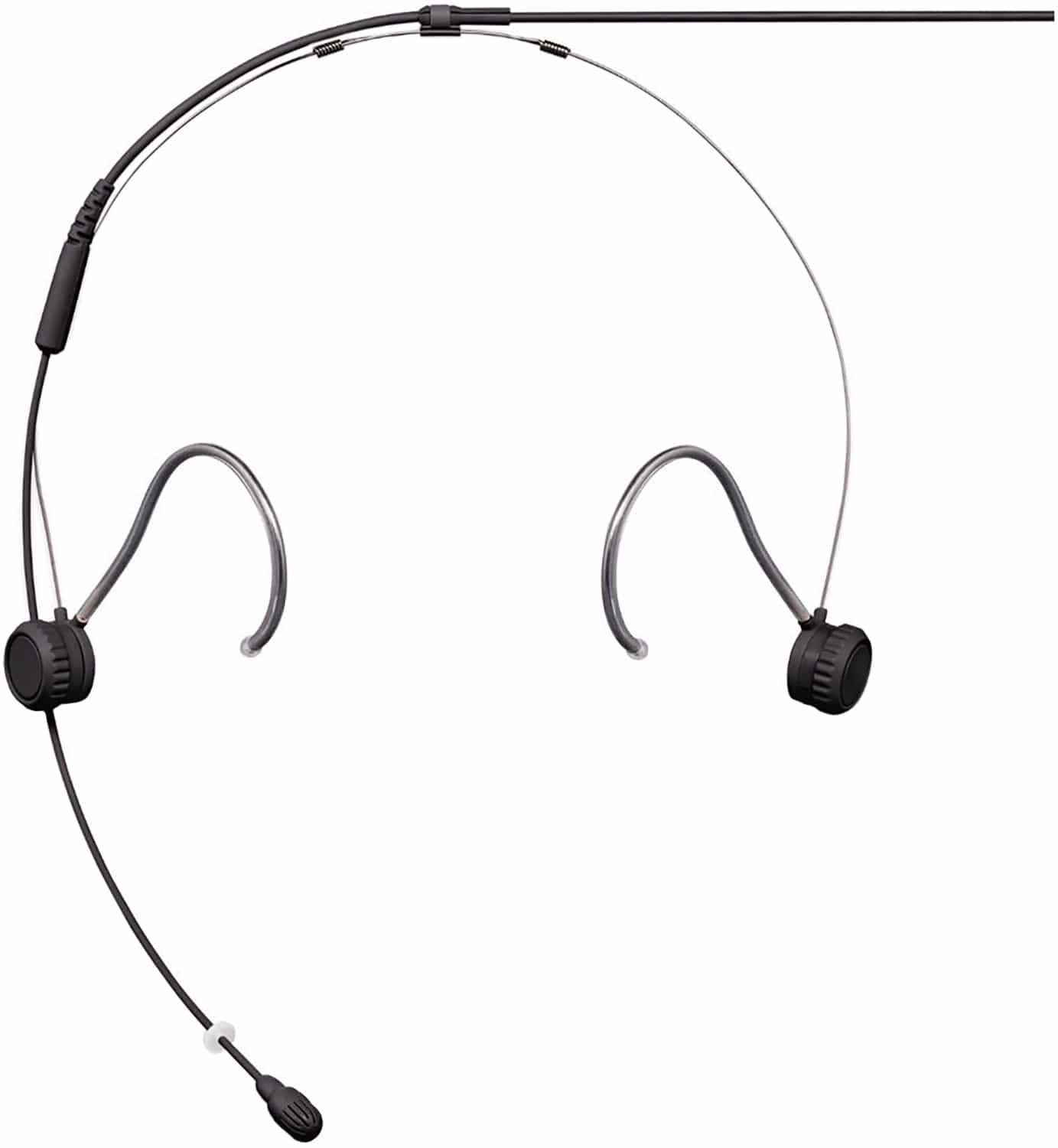

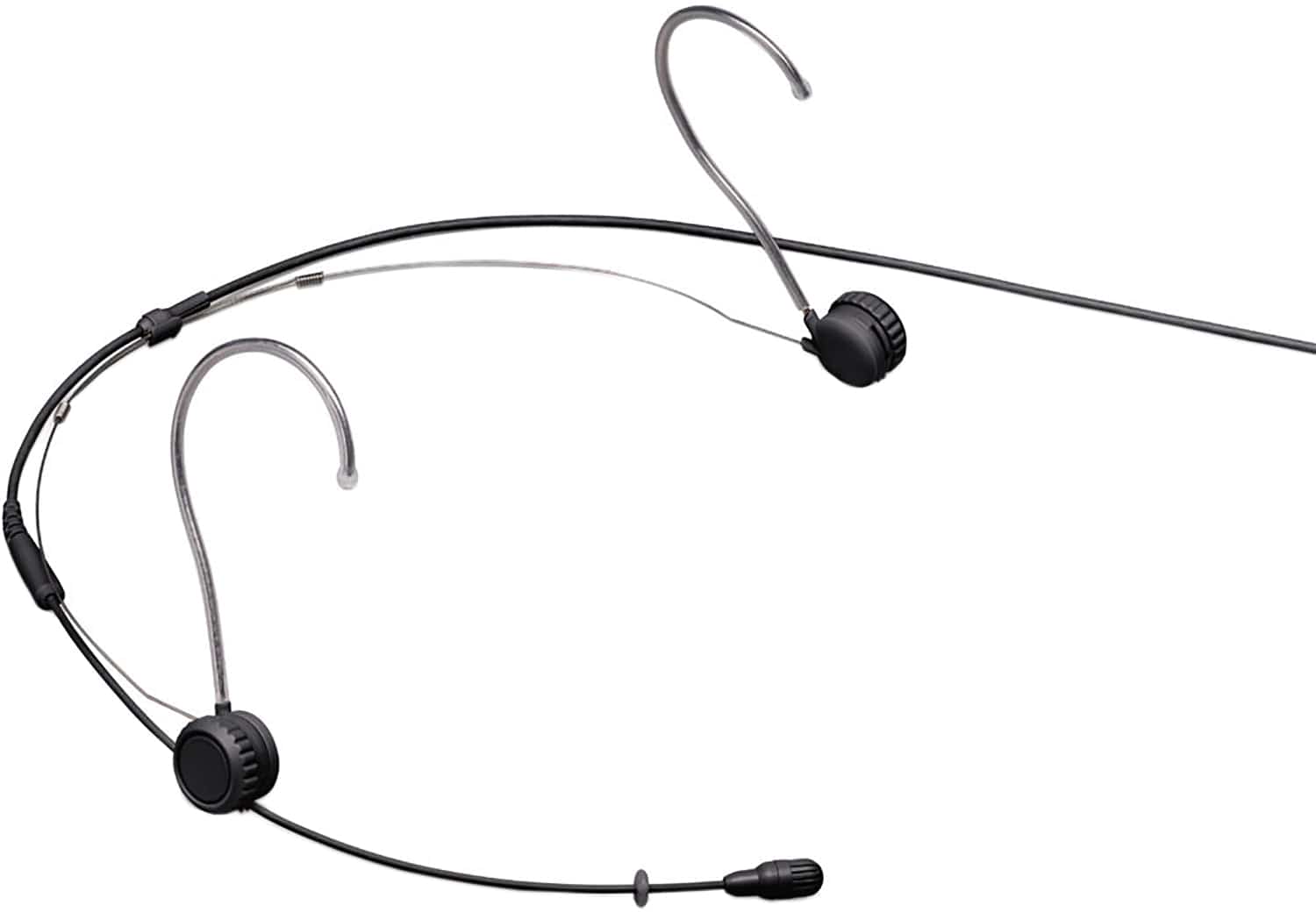

Shure TH53B/O-NC TwinPlex Omnidirectional Headset Microphone, Bare Wire, Black
The Shure TH53B/O-NC TwinPlex headset delivers the natural sound of Shure's dual diaphragm TwinPlex element in an ultra light, fully adjustable frame. Supplied as bare wire with no connector fitted, integrators across Dubai, Abu Dhabi, and the UAE and GCC can terminate this headset with the exact connector their wireless bodypack or wired mixer requires, using the longer 96 inch cable for extra routing flexibility.
Key Features
- Omnidirectional dual diaphragm prepolarized condenser capsule for natural, consistent pickup
- Innovative clutch system for fast boom arm length and pitch adjustment
- Interchangeable sweat and moisture resistant frequency caps with superhydrophobic nanoscopic coating
- Longer 96 inch paintable 1.6 mm cable, supplied bare wire (no connector fitted) for custom termination
- Dual redundant ground in cable for long term reliability
Technical Specifications
| Capsule | Dual-Diaphragm, Prepolarized Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | -45.0 dBV/Pa (5.62 mV) at 1 kHz |
| Self Noise (A-Weighted) | 24.5 dB SPL-A |
| Signal to Noise Ratio | 69.5 dB |
| Maximum SPL | 142.0 dB SPL at 1 kHz, 1% THD |
| Dynamic Range | 117.5 dB typical |
| Bias Voltage | 5 VDC recommended |
| Cable Diameter / Length | 1.6 mm / 96 in (2.43 m) |
| Microphone Dimensions | 19 mm length, 5.6 mm diameter |
| Net Weight | Boom arm with cable 12.0 g, headset frame 6.0 g |
| Connector | None (bare wire) |
| Color | Black |
Why Buy the Shure TH53B/O-NC from Trianze Tech?
- Genuine Shure TwinPlex microphones sourced through authorized channels
- Fast delivery across Dubai, Abu Dhabi, and the wider UAE and GCC
- Expert termination and connector guidance for custom integration projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure TH53B/O-NC uses an omnidirectional, dual-diaphragm prepolarized condenser capsule with a frequency response of 20 Hz to 20 kHz, sensitivity of -45.0 dBV per Pascal at 1 kHz, and a dynamic range of 117.5 dB typical.
NC means no connector is fitted to the cable end, so the TH53B/O-NC is supplied as bare wire for a technician to terminate with the connector required by your specific wireless bodypack or wired mixer input. Confirm termination requirements with Trianze Tech before ordering.
The TH53 headset assembly weighs just 6.0 g for the frame plus 12.0 g for the boom arm with cable, making it one of the lightest professional headset microphones available.
The TH53B/O-NC ships with a longer 96 inch (2.43 m) paintable 1.6 mm cable, longer than the connectorized TH53 versions since the extra length accommodates custom termination and routing.
Yes. The TH53 uses interchangeable frequency caps with an invisible superhydrophobic nanoscopic coating that resists sweat and moisture, preventing sweat outs during demanding stage or broadcast use.
Trianze Tech stocks the Shure TH53B/O-NC TwinPlex headset microphone in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
