Shure SCM810: 8-Channel Automatic Microphone Mixer with NOMA Gain Sharing
Model
:
SCM810
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

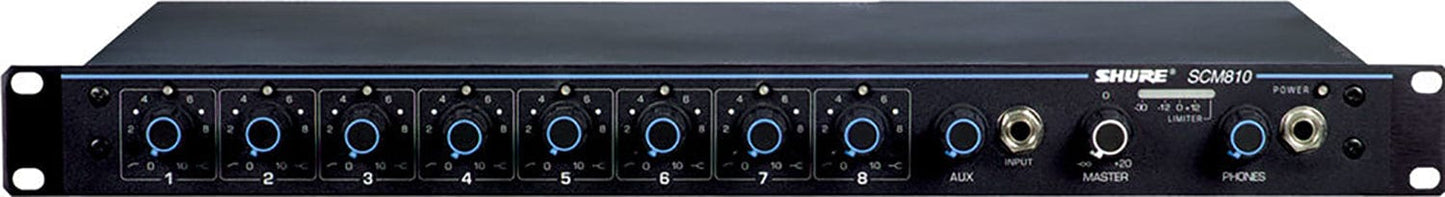

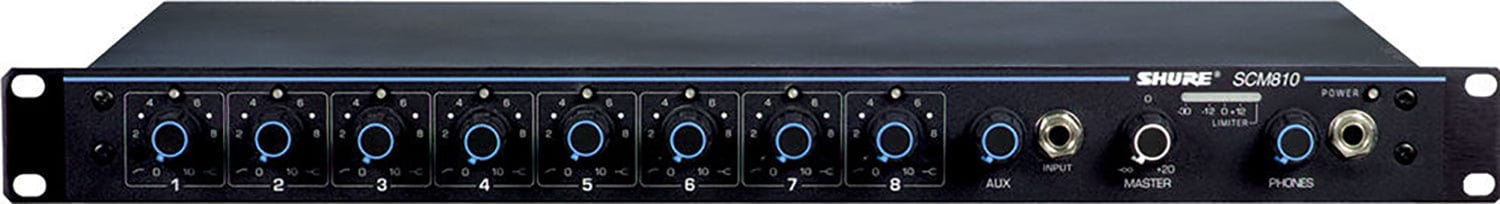

Shure SCM810 8-Channel Automatic Microphone Mixer
The Shure SCM810 automatically manages up to 8 microphones in real time, keeping only active talkers open and background noise low. Boardrooms, courtrooms, and auditoriums across Dubai, Abu Dhabi, and the UAE and GCC rely on its NOMA gain sharing and Last Mic Lock-On circuitry for clean, noise free audio without a dedicated mix engineer.
Key Features
- Fast, noise free automatic microphone selection
- NOMA (Number of Open Microphones Attenuated) automatic gain adjustment
- Last Mic Lock-On circuit preserves ambient sound
- Adjustable low frequency rolloff and high frequency shelving per channel
- Peak responding output limiter with selectable thresholds
- Linking capability for up to 400 microphones
Technical Specifications

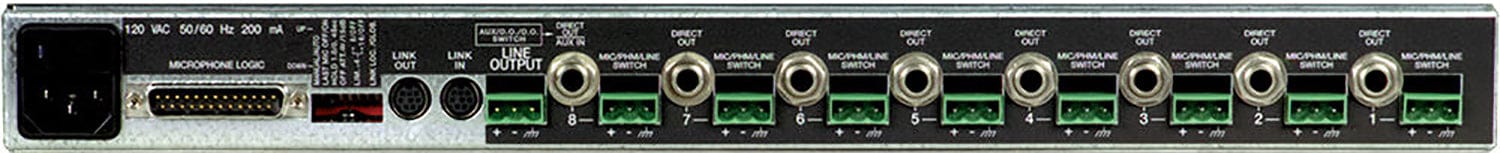

| Inputs | 8 balanced microphone level XLR |
| Output | 1 balanced Mic/Line level XLR |
| Phantom Power | 46 VDC via 6.8 kohm series resistance (DIN 45596) |
| Headphone Output | 1/4 inch TRS, front panel |
| Linking | Up to 400 microphones |
| Power | 120 VAC, 50/60 Hz, 200 mA |
| Dimensions (H x W x D) | 44.5 x 483 x 317 mm |
| Weight | 4.3 kg (9.57 lbs) |
Why Buy the Shure SCM810 from Trianze Tech?
- Genuine Shure automatic mixers sourced through authorized channels
- Fast delivery and rack integration support across Dubai, Abu Dhabi, and the UAE and GCC
- Expert system design for boardroom, courtroom, and auditorium microphone installations
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
A single SCM810 handles 8 microphone or line level inputs, and its linking capability lets multiple units be combined to automatically mix up to 400 microphones across a large installation.
NOMA (Number of Open Microphones Attenuated) automatically adjusts overall gain as more microphones activate to prevent feedback and noise buildup, while Last Mic Lock-On keeps one channel open to preserve natural ambient sound when no one is speaking.
Yes. The SCM810 supplies 46 VDC open circuit phantom power through 6.8 kilohm series resistance per DIN 45596 on its balanced microphone level XLR inputs, suitable for condenser microphones.
The SCM810 measures 44.5 x 483 x 317 mm (1.75 x 19.13 x 12.4 in), a standard 1U rack width, and weighs 4.3 kg (9.57 lbs).
Yes. The SCM810 is a full 1U, 19 inch rack width automatic mixer designed for permanent installation in equipment racks serving boardrooms, auditoriums, and houses of worship across the UAE and GCC.
