Shure SCM800: 8-Channel Microphone Mixer with Selectable Phantom Power
Model
:
SCM800
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

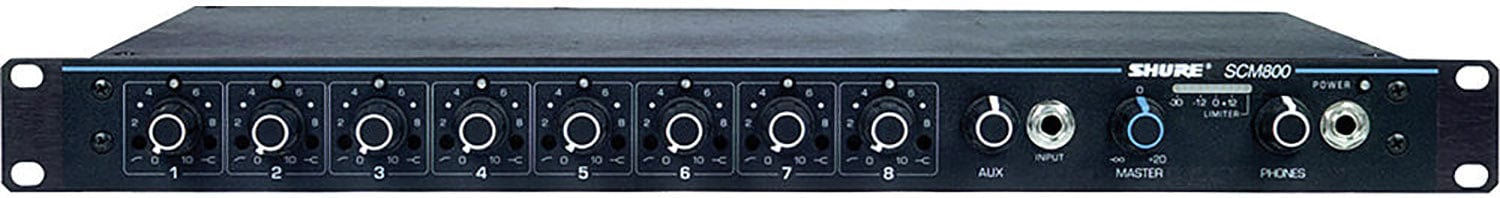

Shure SCM800 8-Channel Microphone Mixer
The Shure SCM800 accepts up to 8 microphone or line level inputs plus 1 aux level input, and up to 4 units link together for 32 input channels. Integrators across Dubai, Abu Dhabi, and the UAE and GCC use it as a manual mixing companion to Shure's SCM410 and SCM810 automatic mixers in permanent installations.
Key Features
- Compatible with Shure SCM410 and SCM810 automatic microphone mixers
- Adjustable EQ per channel: low frequency rolloff and high frequency shelving
- 48 V phantom power individually selectable per input
- Active balanced microphone and line level inputs with insert jack per channel
- Peak responding output limiter with selectable thresholds
- Linking capability for systems up to 32 microphones
Technical Specifications
| Inputs | 8 mic/line level, 1 aux level |
| Linking | Up to 4 units, 32 channels total |
| Phantom Power | 48 V, selectable per channel |
| Common Mode Rejection | >70 dB at 1 kHz |
| Equalization | Low freq 6 dB/oct cut 25 to 320 Hz, high freq shelving at 5/10 kHz |
| Limiter | Peak, switchable off/+4/+8/+16 dBm, 2 ms attack |
| Power | 120 VAC, 50/60 Hz, 200 mA |
| Dimensions (H x W x D) | 44.5 x 483 x 317 mm |
| Weight | 4.3 kg (9 lb 9 oz) |
Why Buy the Shure SCM800 from Trianze Tech?
- Genuine Shure mixers sourced through authorized channels
- Fast delivery and rack integration support across Dubai, Abu Dhabi, and the UAE and GCC
- Expert pairing advice with the RKC800 XLR panel adapter and SCM410/SCM810 automatic mixers
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The SCM800 provides 8 microphone or line level inputs plus 1 aux level input per unit, and up to 4 SCM800 mixers can be linked together for a combined 32 input channels.
The SCM800 is a manual microphone mixer, distinct from Shure's automatic SCM410 and SCM810 mixers, and is fully compatible with those automatic mixers for combined installations.
Yes. Each of the SCM800's 8 input channels has individually selectable 48 V phantom power, switchable microphone or line level operation, and a two band equalizer with low frequency rolloff and high frequency shelving.

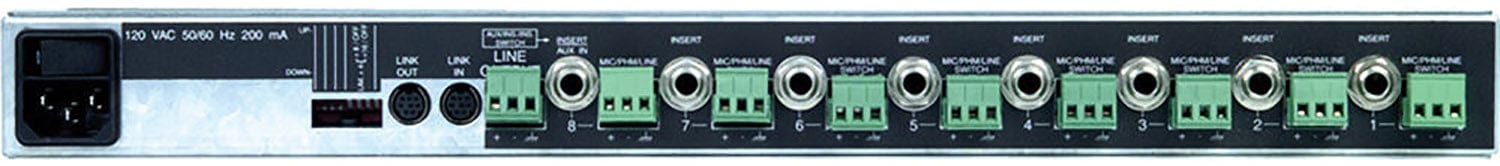

The SCM800 ships with removable block terminal connectors; the separately available Shure RKC800 rack panel adapter converts these to XLR connectors for inputs and outputs and phono jacks for the aux connections.
Trianze Tech stocks the Shure SCM800 8-channel microphone mixer in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
The SCM800 has an equivalent input noise of -125 dBV measured with a 150 ohm source through a 400 Hz to 20 kHz filter, and equivalent input hum and noise of -123 dBV through a 20 Hz to 20 kHz filter, keeping the noise floor low even with multiple channels open.
