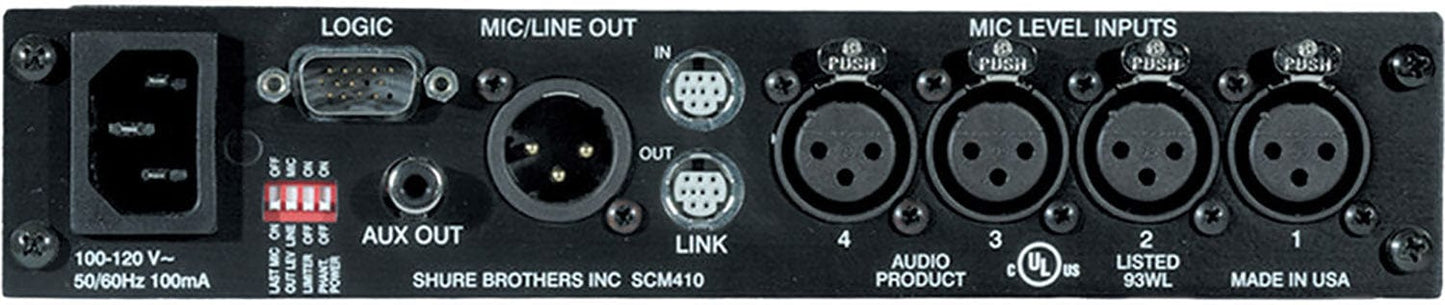

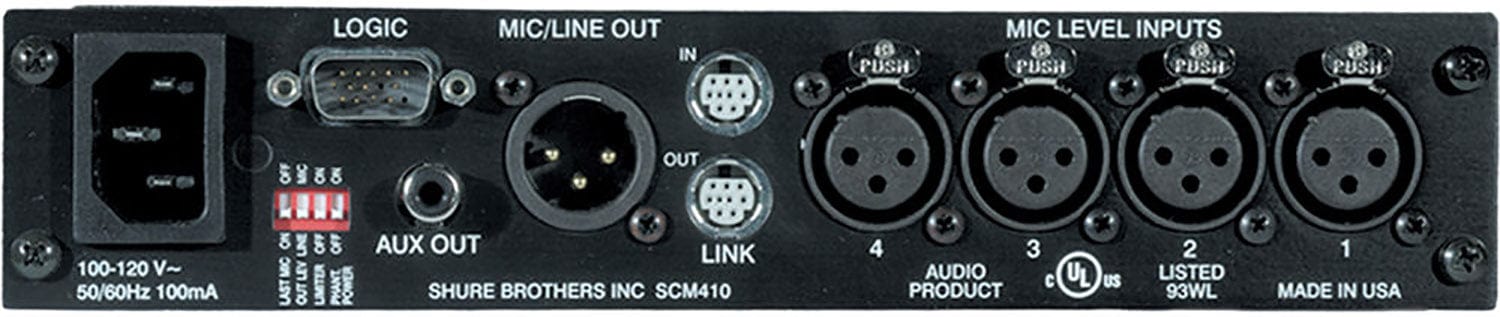

Shure SCM410: 4-Channel Automatic Microphone Mixer, Half-Rack
Model
:
SCM410
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

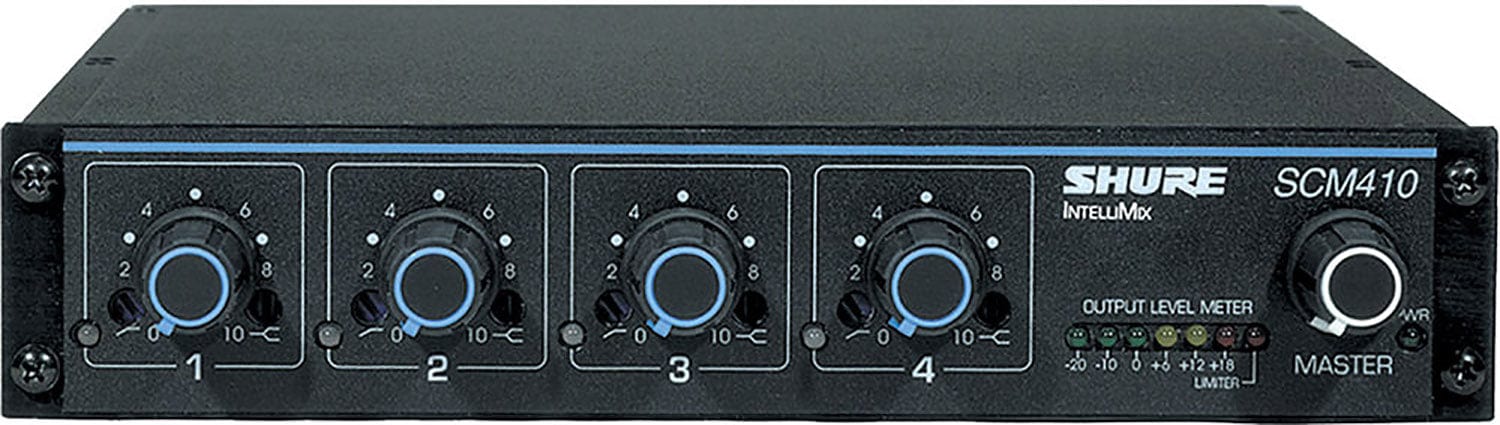

Shure SCM410 4-Channel Automatic Microphone Mixer
The Shure SCM410 dramatically improves audio quality anywhere multiple microphones are used, fitting in half a rack space. Small to mid size boardrooms, courtrooms, and lecture halls across Dubai, Abu Dhabi, and the UAE and GCC use its NOMA gain sharing and Last Mic Lock-On circuitry for clean, automatic audio.
Key Features
- Fast, noise free automatic microphone selection
- NOMA automatic gain adjustment as microphones activate
- Last Mic Lock-On circuit preserves ambient sound
- Fits in half a standard rack space
- Adjustable EQ for each of the 4 channels
- Bi-color channel activation and clipping LEDs
- Peak responding output limiter with LED indicator
Technical Specifications
| Channels | 4 balanced microphone level XLR |
| Frequency Response | 50 Hz to 20 kHz +2 dB, -3 dB at 25 Hz |
| THD | <0.1% at +4 dBu, 50 Hz to 20 kHz |
| Limiter Threshold | +16 dBu at output, 2 ms attack, 300 ms recovery |
| Phantom Power | 12 VDC open circuit via 680 ohm resistors |
| Power | 100-120 VAC, 50/60 Hz, 100 mA |
| Dimensions (H x W x D) | 44 x 219 x 267 mm |
| Weight | 1.75 kg (3.86 lbs) |
Why Buy the Shure SCM410 from Trianze Tech?
- Genuine Shure automatic mixers sourced through authorized channels
- Fast delivery and rack integration support across Dubai, Abu Dhabi, and the UAE and GCC
- Ideal compact choice for small boardrooms and meeting spaces needing automatic mic mixing
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The SCM410 is a 4-channel automatic mixer that fits in half a rack space, and can be linked with additional SCM410 or SCM810 units for larger multi-microphone installations.
The SCM410 includes NOMA automatic gain adjustment as microphones activate, a Last Mic Lock-On circuit to preserve ambient sound, bi-color channel activation and clipping LEDs, and a peak-responding output limiter.
The SCM410 measures 44 x 219 x 267 mm (1.75 x 8.625 x 10.5 in), fitting in half a standard rack space, and weighs 1.75 kg (3.86 lbs).
The SCM410 has a frequency response of 50 Hz to 20 kHz plus 2 dB, with a minus 3 dB corner at 25 Hz, and total harmonic distortion below 0.1 percent at plus 4 dBu output level across 50 Hz to 20 kHz.
Yes. The compact half rack SCM410 is well suited to small to mid size boardrooms, meeting rooms, and courtrooms in Dubai, Abu Dhabi, and across the UAE and GCC where up to 4 microphones need clean, automatic mixing.
Trianze Tech stocks the Shure SCM410 4-channel automatic mixer in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
Yes. The SCM410 has a peak-responding output limiter with a 2 ms attack time and 300 ms recovery time, fixed at a 16 dBu output threshold, with an LED indicator that lights red when limiting occurs.
