Shure QLXD4-J50A: QLX-D Digital Wireless Half-Rack Receiver
Model
:
QLXD4-J50A
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

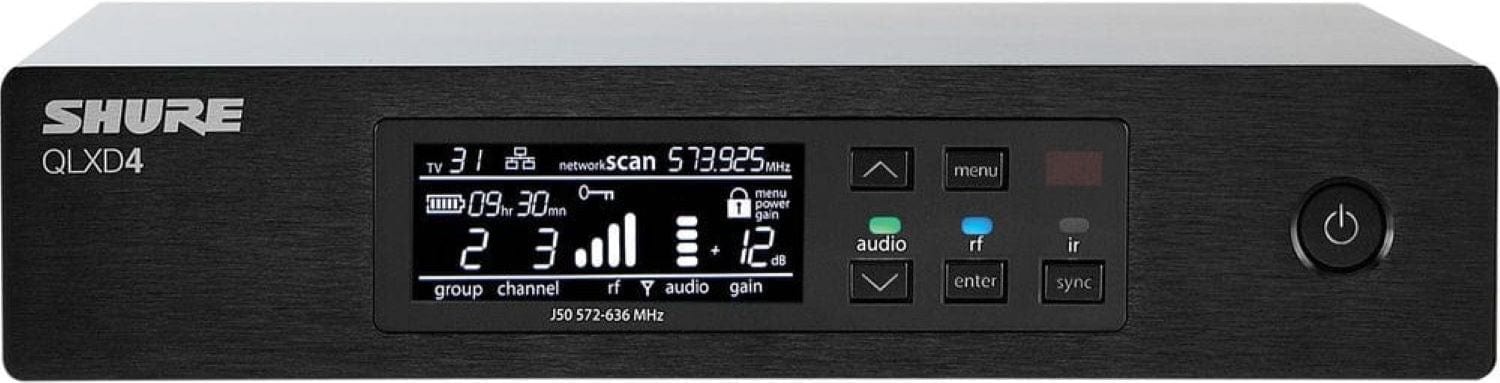

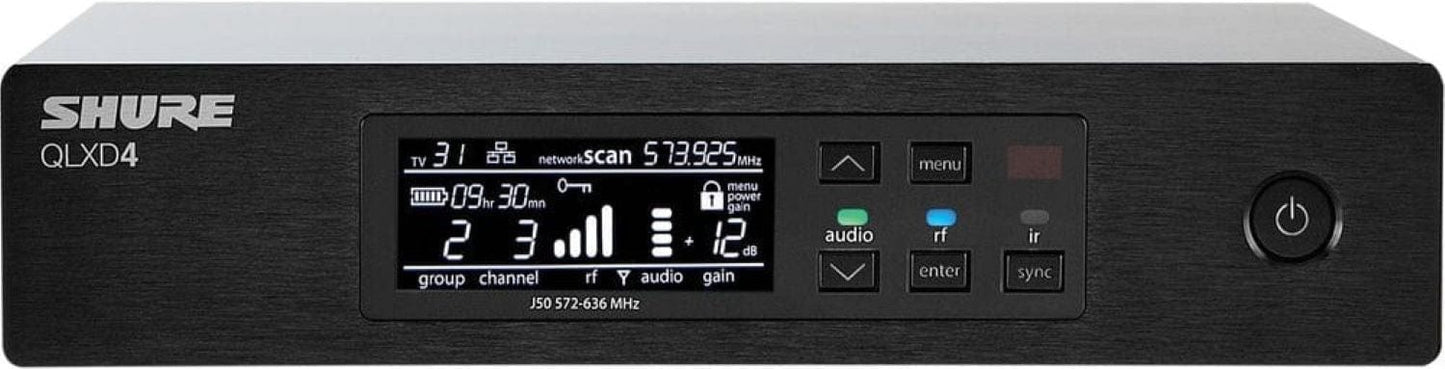

Shure QLXD4-J50A Digital Wireless Receiver
The Shure QLXD4-J50A is a half-rack digital wireless receiver for QLX-D systems, giving presentation spaces, venues and houses of worship across Dubai, Abu Dhabi and the UAE and GCC transparent 24-bit digital audio with efficient RF spectrum use and streamlined networked setup. This listing is the J50A band.
Key Features:
- Automatic channel scan and one-touch IR sync to transmitters
- Ethernet networking for networked channel scan across multiple receivers
- AES 256-bit encryption for secure wireless transmission

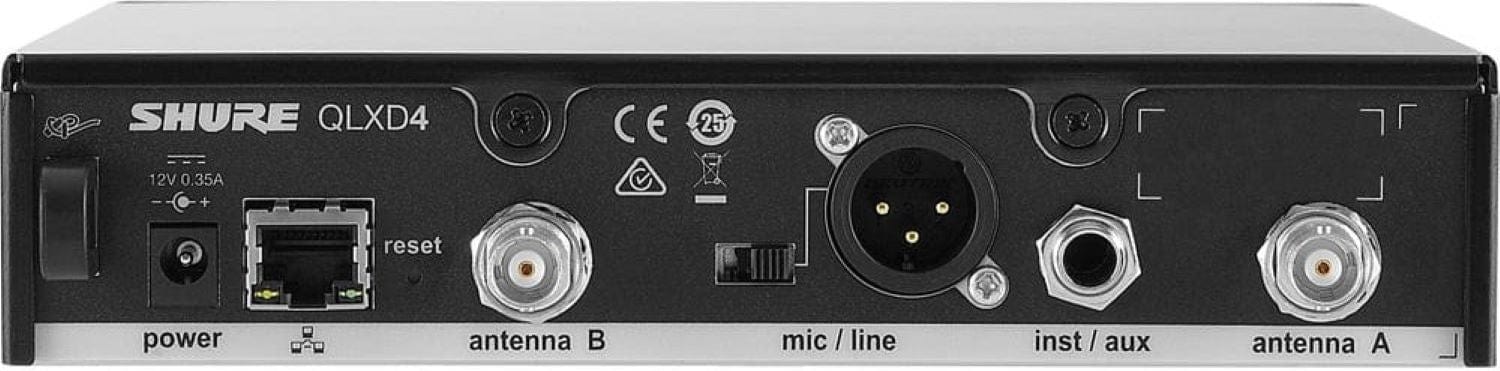

- Switchable mic/line XLR output plus 1/4 inch instrument output
- Compatible with Shure Wireless Workbench 6 and the ShurePlus Channels iOS app
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Band | J50A, up to 72 MHz tuning bandwidth, up to 168 channels |
| Dimensions | 41 x 197 x 151 mm (H x W x D) |
| Weight | 777 g, without antennas |
| RF Input | BNC, 50 ohm, greater than 80 dB spurious rejection |
| Audio Gain Range | -18 to +42 dB in 1 dB steps |
| Power | 12 VDC, 0.4 A external supply |
| Network Interface | 10/100 Mbps Ethernet, DHCP or manual IP |
Why Buy the Shure QLXD4-J50A from Trianze Tech?
- Genuine Shure QLX-D receiver backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on band matching with your QLXD2 transmitters
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The QLXD4-J50A operates on the J50A band with up to 72 MHz of tuning bandwidth, matched to QLXD2 transmitters on the same J50A band.
Yes. QLXD4-J50A receivers can be linked over Ethernet for networked channel scanning, automatically configuring open frequencies across all connected receivers to avoid interference.
The QLXD4-J50A offers audio gain adjustment from -18 to +42 dB in 1 dB steps, giving fine control for matching downstream mixer or recorder input levels.
The QLXD4-J50A uses detachable half-wave antennas, which can be replaced or upgraded for extended range as needed.
Yes. The QLXD4-J50A supports AES 256-bit encryption for secure wireless audio transmission when paired with a compatible QLXD2 transmitter.
Trianze Tech stocks the Shure QLXD4-J50A in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
