Shure QLXD2/SM86-X52: Handheld Transmitter with SM86 Cardioid Condenser Capsule
Model
:
QLXD2-SM86-X52
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

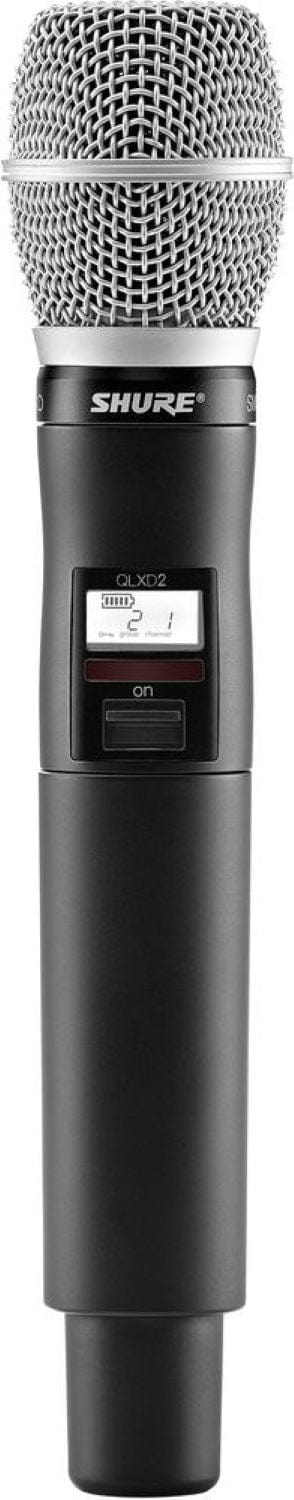

Shure QLXD2/SM86-X52 Digital Handheld Transmitter
The Shure QLXD2/SM86-X52 is a QLX-D digital handheld transmitter fitted with the SM86 cardioid condenser capsule, giving vocalists and presenters across Dubai, Abu Dhabi and the UAE and GCC clear vocal reproduction with strong isolation from background noise. This listing is the X52 band.
Key Features:
- SM86 cardioid condenser capsule, interchangeable
- Cardioid pattern isolates the main sound source and minimizes background noise
- 1040 selectable frequencies, 1 or 10 mW RF output
- AES 256-bit encryption, backlit LCD, adjustable gain control
- Networked intelligent charging with the optional SB900A battery
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Band | X52 (902 to 928 MHz), 26 MHz bandwidth |
| Capsule | SM86, condenser, cardioid |
| Capsule Frequency Range | 50 Hz to 20 kHz |
| Maximum SPL | 147 dB SPL |
| Sensitivity | -54.5 dBV/Pa |
| Dynamic Range | 124 dB |
| Battery Life | 9 hours on 2 AA alkaline batteries |
| Dimensions / Weight | 51 x 256 mm / 347 g, without batteries |
Why Buy the Shure QLXD2/SM86-X52 from Trianze Tech?
- Genuine Shure QLX-D transmitter backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on band matching with your QLX-D receiver
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The QLXD2/SM86-X52 uses the SM86 cardioid condenser capsule, tailored for clear vocal reproduction with a frequency response tuned to isolate the main sound source.
The SM86 capsule on the QLXD2/SM86-X52 handles up to 147 dB SPL with a sensitivity of -54.5 dBV/Pa and a dynamic range of 124 dB.
The QLXD2/SM86-X52 operates on the X52 band, 902 to 928 MHz, with a 26 MHz tuning bandwidth, and must be paired with a QLXD4 receiver on the same band.
The SM86 is a cardioid condenser capsule, while the SM87A is supercardioid; the SM86's narrower rejection angle at the rear differs from the SM87A's broader off-axis rejection, and the SM86 handles higher maximum SPL (147 dB vs 140.5 dB).
The QLXD2/SM86-X52 runs for about 9 hours on 2 included AA alkaline batteries, and also accepts the optional Shure SB900A rechargeable battery.
