Shure QLXD2/SM86-J50A: Handheld Transmitter with SM86 Cardioid Condenser Capsule
Model
:
QLXD2-SM86-J50A
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

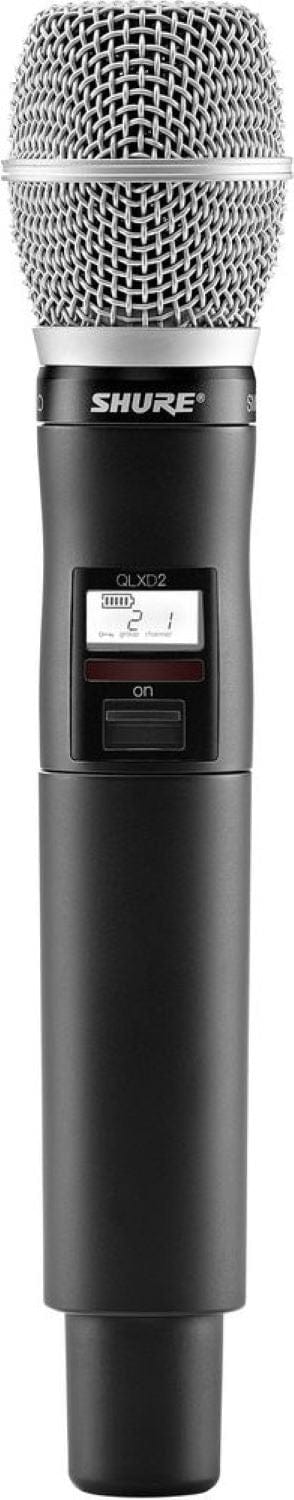

Shure QLXD2/SM86-J50A Digital Handheld Transmitter
The Shure QLXD2/SM86-J50A is a QLX-D digital handheld transmitter fitted with the SM86 cardioid condenser capsule, giving vocalists and presenters across Dubai, Abu Dhabi and the UAE and GCC clear vocal reproduction with strong isolation from background noise. This listing is the J50A band.
Key Features:
- SM86 cardioid condenser capsule, interchangeable
- 147 dB maximum SPL handling for very loud stage sources
- 1040 selectable frequencies, 1 or 10 mW RF output
- AES 256-bit encryption, backlit LCD, adjustable gain control
- Networked intelligent charging with the optional SB900A battery
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Band | J50A (572 to 608 MHz, 614 to 616 MHz) |
| Capsule | SM86, condenser, cardioid |
| Capsule Frequency Range | 50 Hz to 20 kHz |
| Maximum SPL | 147 dB SPL |
| Operating Range | 100.6 m (330 ft) |
| Battery Life | 9 hours on 2 AA alkaline batteries |
Why Buy the Shure QLXD2/SM86-J50A from Trianze Tech?
- Genuine Shure QLX-D transmitter backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on band matching with your QLX-D receiver
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The QLXD2/SM86-J50A operates on the J50A band, 572 to 608 MHz and 614 to 616 MHz, and must be paired with a QLXD4 receiver on the same band.
The SM86 capsule on the QLXD2/SM86-J50A handles up to 147 dB SPL, higher than the SM87A's 140.5 dB rating, making it well suited to very loud stage sources.
The QLXD2/SM86-J50A offers switchable 1 mW or 10 mW RF output power, selectable to balance range against battery life and RF spectrum use.
Yes. The SM86 capsule on the QLXD2/SM86-J50A uses Shure's interchangeable capsule system, so the transmitter body can be fitted with a different QLXD2-compatible capsule if needed.
The QLXD2/SM86-J50A has a maximum operating range of about 100.6 m (330 ft) line of sight from its paired QLXD4 receiver.
Trianze Tech stocks the Shure QLXD2/SM86-J50A in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
