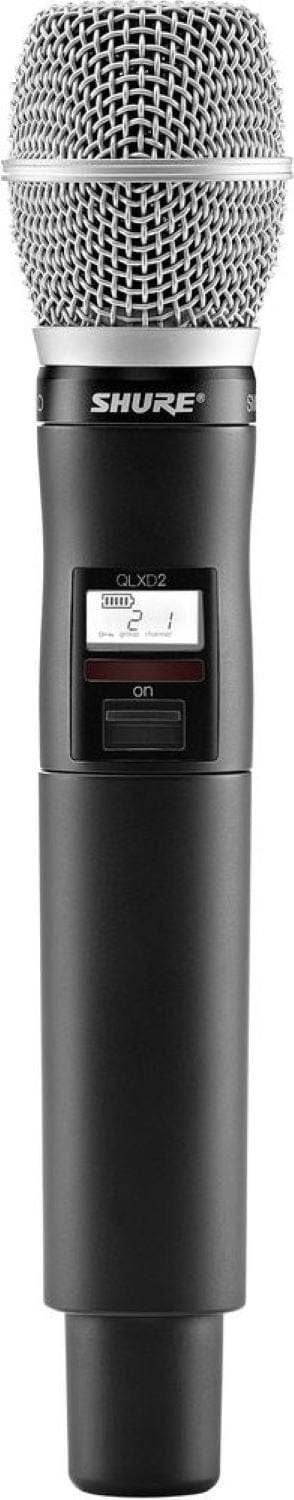

Shure QLXD2/SM86-G50: QLX-D Digital Handheld Transmitter with SM86 Cardioid Condenser Capsule, G50 Band
Model
:
QLXD2-SM86-G50
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure QLXD2/SM86-G50: QLX-D Digital Handheld Transmitter with SM86 Cardioid Condenser Capsule, G50 Band
The Shure QLXD2/SM86 is a digital handheld wireless transmitter for QLX-D receivers, fitted with the SM86 cardioid condenser capsule. Its frequency response is tailored for clear vocal reproduction, and the cardioid pattern isolates the main sound source while minimizing unwanted background noise, which suits vocalists, presenters and worship teams across Dubai, Abu Dhabi and the wider UAE. This listing is the G50 band, 470 to 534 MHz.
Key Features
- SM86 cardioid condenser capsule, interchangeable
- 2560 selectable frequencies, 1 or 10 mW RF output power
- AES 256-bit encryption, 48 kHz / 24-bit audio, latency under 2.9 ms
- Backlit LCD and adjustable gain control
- 2 AA batteries included, about 9 hours alkaline
- Networked intelligent charging with the optional SB900A battery
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | QLXD2-SM86-G50 |
| Frequency Band | G50, 470 to 534 MHz |
| RF Bandwidth / Step | 64 MHz / 25 kHz |
| Capsule | SM86, condenser, cardioid |
| Capsule Frequency Range | 50 Hz to 18 kHz |
| Sensitivity | -50 dBV/Pa |
| Maximum SPL | 147 dB SPL |
| Dynamic Range | 124 dB |
| Operating Range | 100.6 m (330 ft) |
| Dimensions / Weight | 51 x 256 mm / 347 g (12.2 oz), without batteries |
Why Buy the Shure QLXD2/SM86 from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for wireless microphone projects.
- Genuine Shure stock sourced through authorized distribution channels
- Band matching against your QLX-D receiver before you order
- 147 dB SPL capsule handles loud vocalists with wide dynamic range
- Local UAE warranty backing and after-sales support across Dubai, Abu Dhabi and the GCC
- Volume pricing available for multi-channel rollouts
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The SM86 is a cardioid condenser capsule covering 50 Hz to 18 kHz, with a sensitivity of -50 dBV/Pa, a maximum SPL of 147 dB and a dynamic range of 124 dB. Its response is tailored for clear vocal reproduction.
This listing is the QLXD2-SM86-G50, in the G50 band covering 470 to 534 MHz with 2560 selectable frequencies. H50, V50 and X52 versions are separate part numbers, and the receiver must be on the same band.
Two included AA batteries last about 9 hours in alkaline use, or use the optional Shure SB900A lithium-ion rechargeable battery, sold separately, with networked intelligent charging.
It uses AES 256-bit encryption with 48 kHz / 24-bit audio and latency below 2.9 ms. RF power is selectable at 1 or 10 mW and the maximum operating range is about 100.6 m (330 ft).
The aluminum handheld measures 51 x 256 mm (2 x 10.1 in) and weighs 347 g (12.2 oz) without batteries, with a backlit LCD showing channel, group and RF power.
Trianze Tech stocks the Shure QLXD2/SM86 Handheld Transmitter in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
