Shure QLXD4-H50: QLX-D Digital Wireless Half-Rack Receiver with Ethernet, H50 Band
Model
:
QLXD4-H50
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

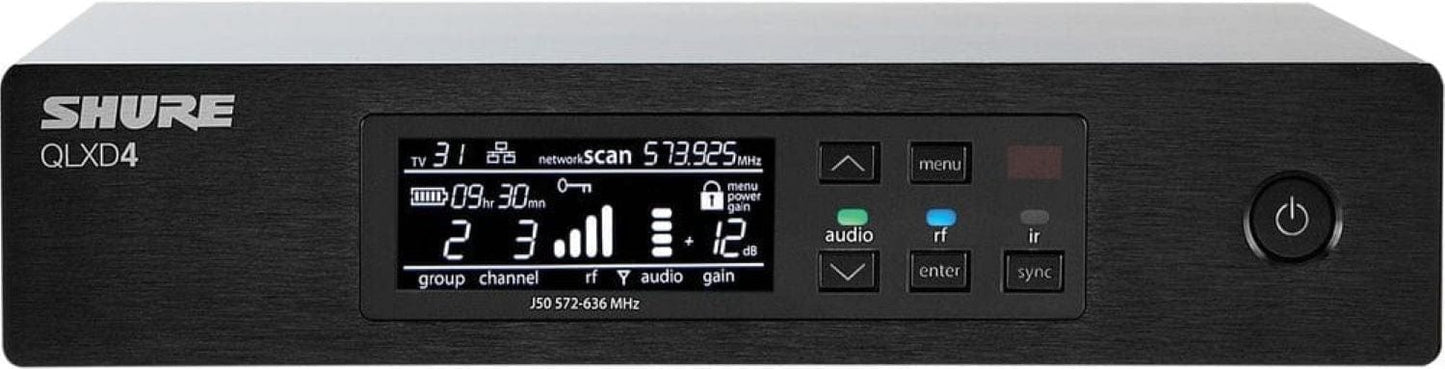

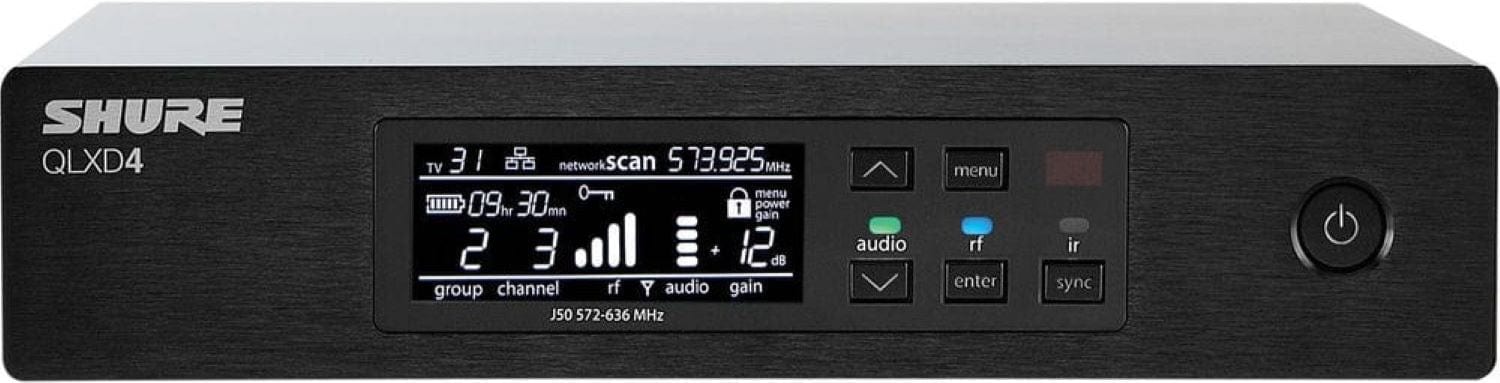

Shure QLXD4-H50 QLX-D Digital Wireless Receiver
The Shure QLXD4-H50 is a half-rack QLX-D digital wireless receiver on the H50 band, 534 to 598 MHz, with transparent 24-bit audio and AES 256-bit encryption. Automatic scanning, one-touch IR sync and Ethernet networking with Wireless Workbench control make it a practical receiver for presentation spaces, music venues and houses of worship across Dubai, Abu Dhabi and the UAE and GCC.
Key Features:
- Transparent 24-bit digital audio with AES 256-bit encryption
- Digital predictive switching diversity for a solid RF link
- Automatic channel scan and IR sync to transmitters
- Ethernet networking with networked scan, Wireless Workbench 6 and ShurePlus Channels
- Mic/line switchable XLR output plus 1/4 inch instrument output
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Band | H50 (534 to 598 MHz) |
| Audio Gain | -18 to +42 dB in 1 dB steps |

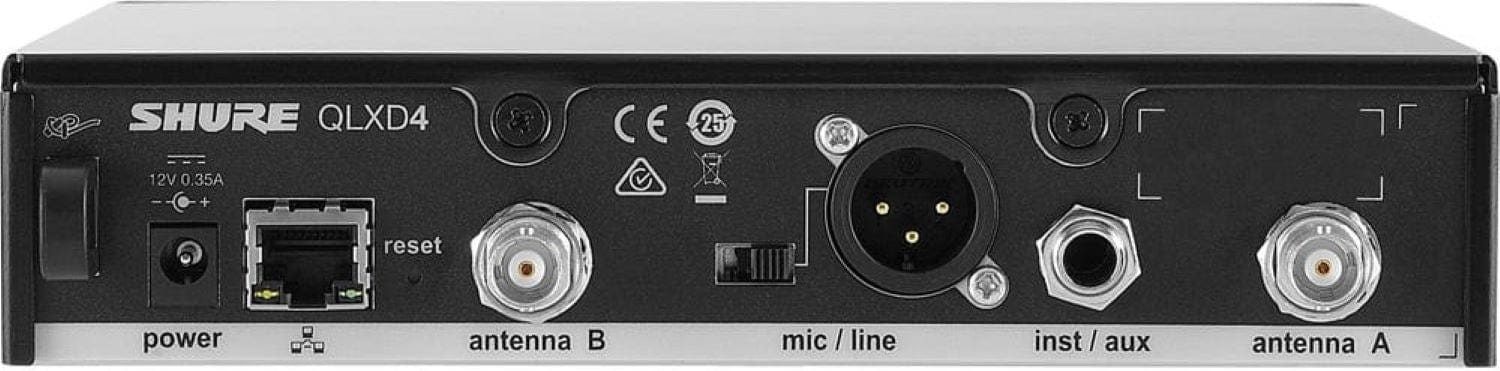

| Outputs | XLR balanced (mic/line, 30 dB pad), 1/4 inch impedance balanced |
| Full Scale Output | XLR line +18 dBV, mic -12 dBV; 1/4 inch +12 dBV |
| RF Input | BNC, 50 Ohm, detachable 1/2 wave antennas, over 80 dB spurious rejection |
| Networking | Ethernet 10/100 Mbps, DHCP or manual IP, up to 100 m cable |
| Power | 12 V DC at 0.4 A, external supply |
| Dimensions / Weight | 41 x 197 x 151 mm, 777 g without antennas, steel housing |
Why Buy the Shure QLXD4-H50 from Trianze Tech?
- Genuine Shure QLX-D receiver with manufacturer warranty support
- Delivery across Dubai, Abu Dhabi and the UAE and GCC
- Frequency coordination help for the H50 band
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure QLXD4-H50 receiver covers the H50 band, 534 to 598 MHz. It pairs with QLX-D transmitters on the same H50 band, and wireless use is subject to local regulation.
Yes. The QLXD4-H50 has a 10/100 Mbps Ethernet port and works with Shure Wireless Workbench 6 for remote setup and monitoring, plus the ShurePlus Channels app on iOS devices.
The QLXD4-H50 has a balanced XLR output switchable between mic and line level (30 dB pad) and a 1/4 inch instrument output, with gain adjustable from -18 to +42 dB in 1 dB steps.
The QLXD4-H50 runs an automatic channel scan to find the cleanest frequency, then sends it to the transmitter by IR sync. Networked scan can set up every connected receiver at once.
Yes. The QLXD4-H50 is a half-rack receiver measuring 41 x 197 x 151 mm and weighing 777 g, and professional rack hardware is included.
Trianze Tech offers the Shure QLXD4-H50 in Dubai with delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
