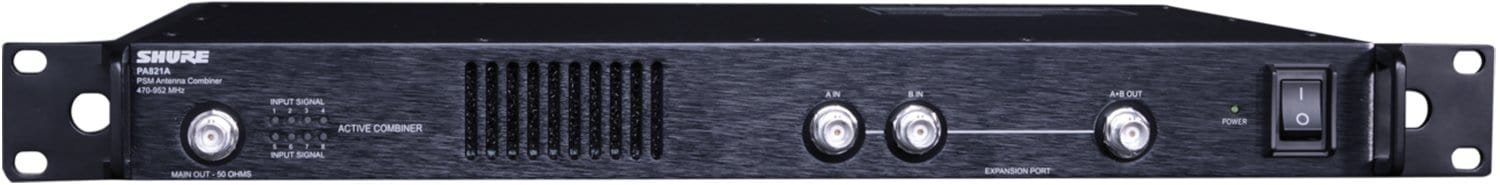

Shure PA821A PSM Antenna Combiner
The Shure PA821A combines up to eight PSM personal monitor transmitters into a single antenna across 470 to 870 MHz, optimising RF when systems are racked together and cutting rack clutter. It ships with UA802 coaxial cable and replaces the PA821SWB, for in-ear monitor rigs across Dubai, Abu Dhabi and the UAE and GCC.
Key Features:
- Combines up to 8 PSM transmitters
- 470 to 870 MHz range
- Expansion port with 2 inputs
- Ships with UA802 coaxial cable
- Replaces the PA821SWB
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Range | 470 to 870 MHz |

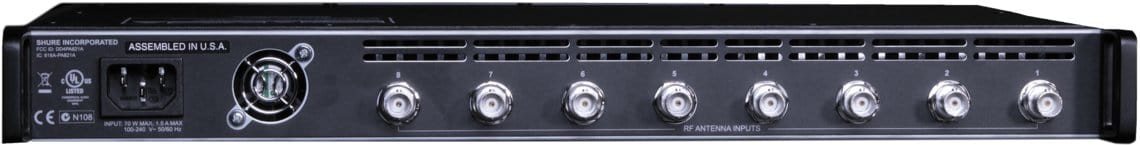

| Inputs | 8 BNC active, plus 2 input expansion port |
| Output | 1 BNC |
| System Gain | +0/-5 dB |
| Max RF Input | 24 dBm (250 mW) per channel |
| Impedance | 50 ohm |
| Power | 100 to 240 V AC, 100 VA max |
| Dimensions | 43.4 x 398.8 x 331.5 mm |
| Weight | 4.53 kg |
Why Buy the Shure PA821A from Trianze Tech?
- Shure PSM combiner with local support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- In-ear monitor system planning help
- Dedicated AV support team
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The PA821A combines up to eight PSM in-ear monitor transmitters into a single antenna, improving RF management and reducing rack clutter.
Shure states the PA821A replaces the earlier PA821SWB antenna combiner.
The PA821A works from 470 to 870 MHz, with up to 24 dBm (250 mW) input per channel.
The PA821A ships with UA802 coaxial cable.
It measures 43.4 x 398.8 x 331.5 mm and weighs 4.53 kg without cables.
