Shure PA821: 8 Channel Active RF Antenna Combiner for PSM In-Ear Monitor Transmitters, 470 to 870 MHz
Model
:
PA821
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

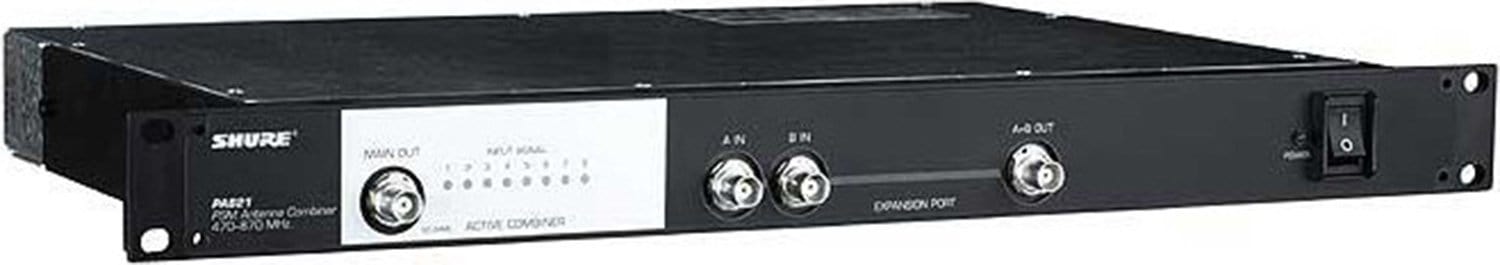

Shure PA821 PSM Antenna Combiner
The Shure PA821 actively combines the antenna outputs of up to eight PSM wireless in-ear monitor transmitters into a single antenna across 470 to 870 MHz, improving RF performance and reducing rack clutter. It suits touring rigs, theatres and houses of worship running several PSM mixes across Dubai, Abu Dhabi and the UAE and GCC.
Key Features:
- Combines up to 8 PSM transmitters to one antenna
- 470 to 870 MHz range
- Two input expansion port for larger systems
- Input signal indicators per channel
- Rack mount chassis
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Range | 470 to 870 MHz |
| Inputs | 8 BNC active, plus 2 input expansion port |
| Output | 1 BNC |
| System Gain | +0/-5 dB |
| Max RF Input | 24 dBm (250 mW) per channel |
| Impedance | 50 ohm |
| Power | 100 to 240 V AC, 50/60 Hz, 100 VA max |
| Operating Temperature | -18 to 57 C |
| Dimensions | 43.4 x 398.8 x 331.5 mm |
| Weight | 4.53 kg |
Why Buy the Shure PA821 from Trianze Tech?
- Shure PSM combiner with local support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- In-ear monitor system planning help
- Dedicated AV support team
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The PA821 combines the RF outputs of up to eight PSM in-ear monitor transmitters into one antenna, which improves RF performance and cuts down on antennas and rack clutter.
The PA821 works from 470 to 870 MHz.
Each PA821 input accepts up to 24 dBm (250 mW).
Yes. It has a two input expansion port, so a second combiner can be linked in for larger systems.
The PA821 measures 43.4 x 398.8 x 331.5 mm and weighs 4.53 kg without cables, and runs on 100 to 240 V AC.
Trianze Tech stocks the Shure PA821 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
