Shure PA805SWB: Passive Directional Antenna with 10 Foot BNC Cable, 470-952 MHz
Model
:
PA805SWB
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

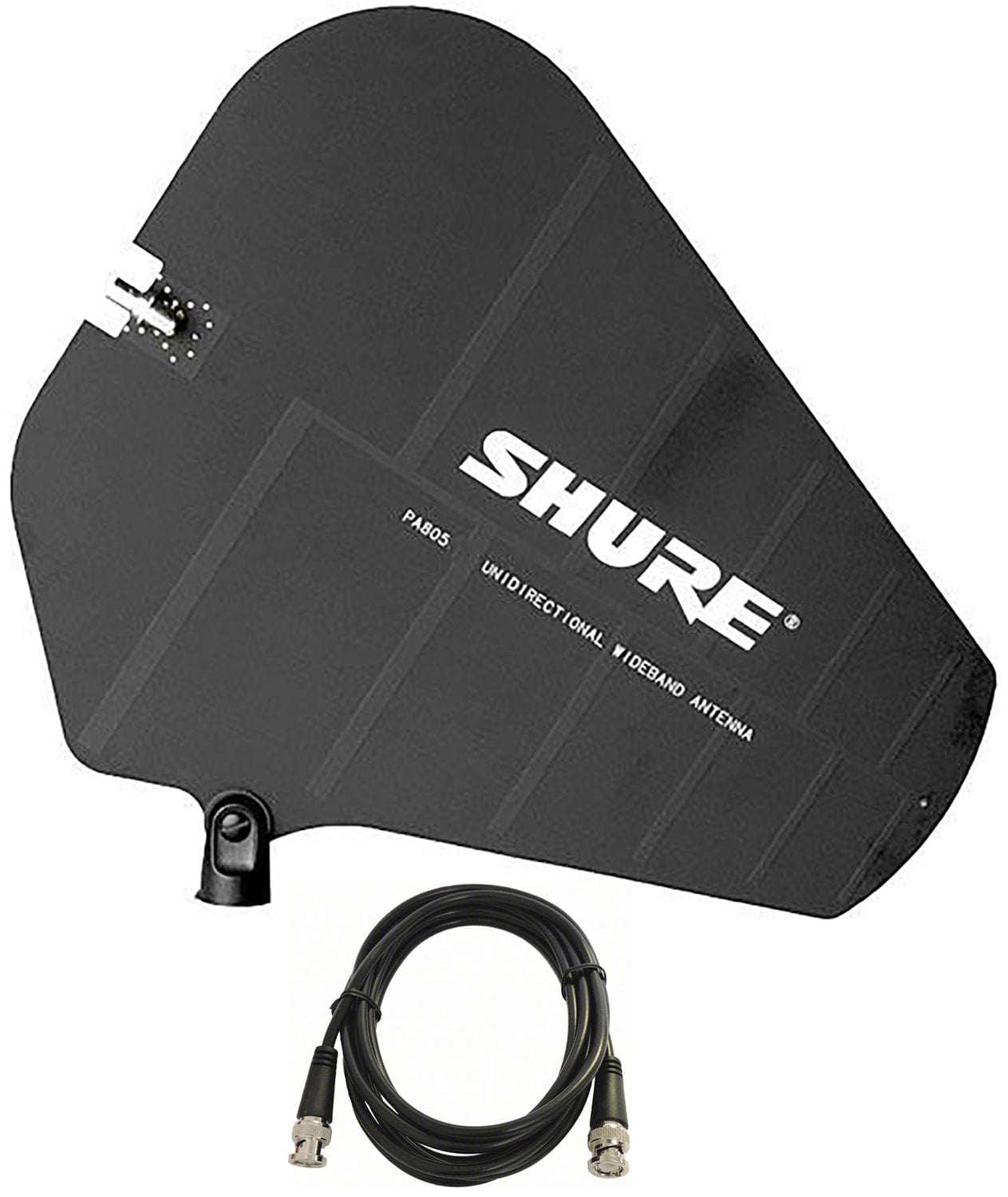

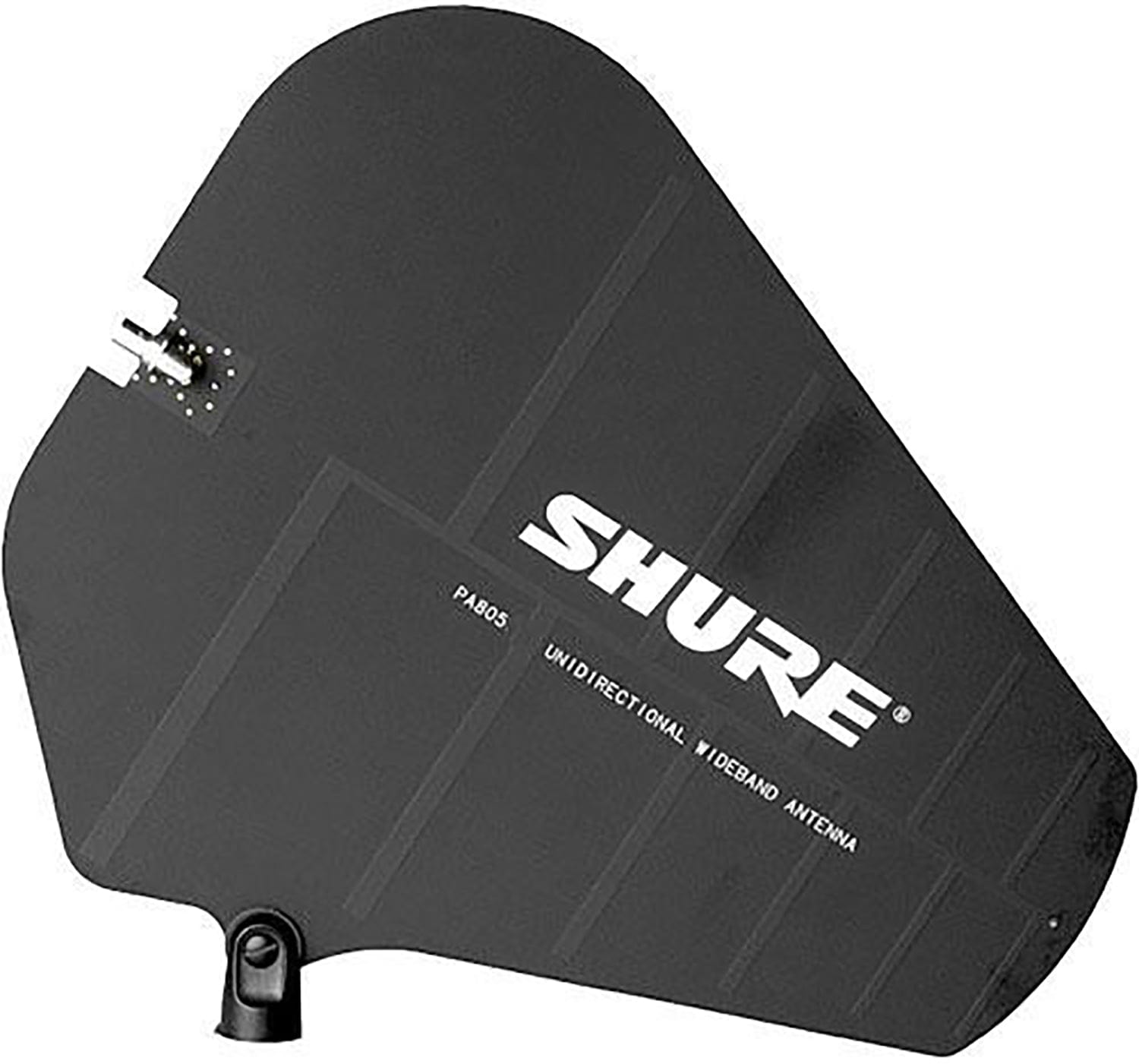

Shure PA805SWB Passive Directional Antenna
The Shure PA805SWB directional antenna extends range and reduces interference for PSM wireless systems compared to a standard omnidirectional half wave antenna. Touring and installed venues across Dubai, Abu Dhabi, and the UAE and GCC mount it on a mic stand or wall using its integral swivel bracket.
Key Features
- Directional, cardioid radiation pattern for extended range
- Integral break resistant bracket with 90 degrees of swivel
- Mounts easily to a mic stand or a wall
- 50 ohm female BNC connector
- Includes 10 foot BNC cable
Technical Specifications
| RF Frequency Range | 470-952 MHz |
| Antenna Gain | 6.5 dBi typical |
| Radiation Pattern | Directional, cardioid |
| Connector | 50 ohm female BNC |
| Dimensions | 13.15 x 14.88 x 1.1 in (with mounting accessories) |
| Weight | 11.3 oz (319 g, with mounting accessories) |
Why Buy the Shure PA805SWB from Trianze Tech?
- Genuine Shure RF antennas sourced through authorized channels
- Fast delivery and RF coverage planning support across Dubai, Abu Dhabi, and the UAE and GCC
- Expert advice on directional antenna placement for maximum range
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The PA805SWB delivers a typical antenna gain of 6.5 dBi with a directional, cardioid radiation pattern, extending range and reducing interference compared to a standard omnidirectional half wave antenna.
Yes. The PA805SWB includes an integral break resistant bracket with 90 degrees of swivel, mounting easily to a microphone stand or directly to a wall.
The PA805SWB covers 470 to 952 MHz, a wide RF range compatible with Shure PSM wireless personal monitor transmitters, and connects via a 50 ohm female BNC connector.

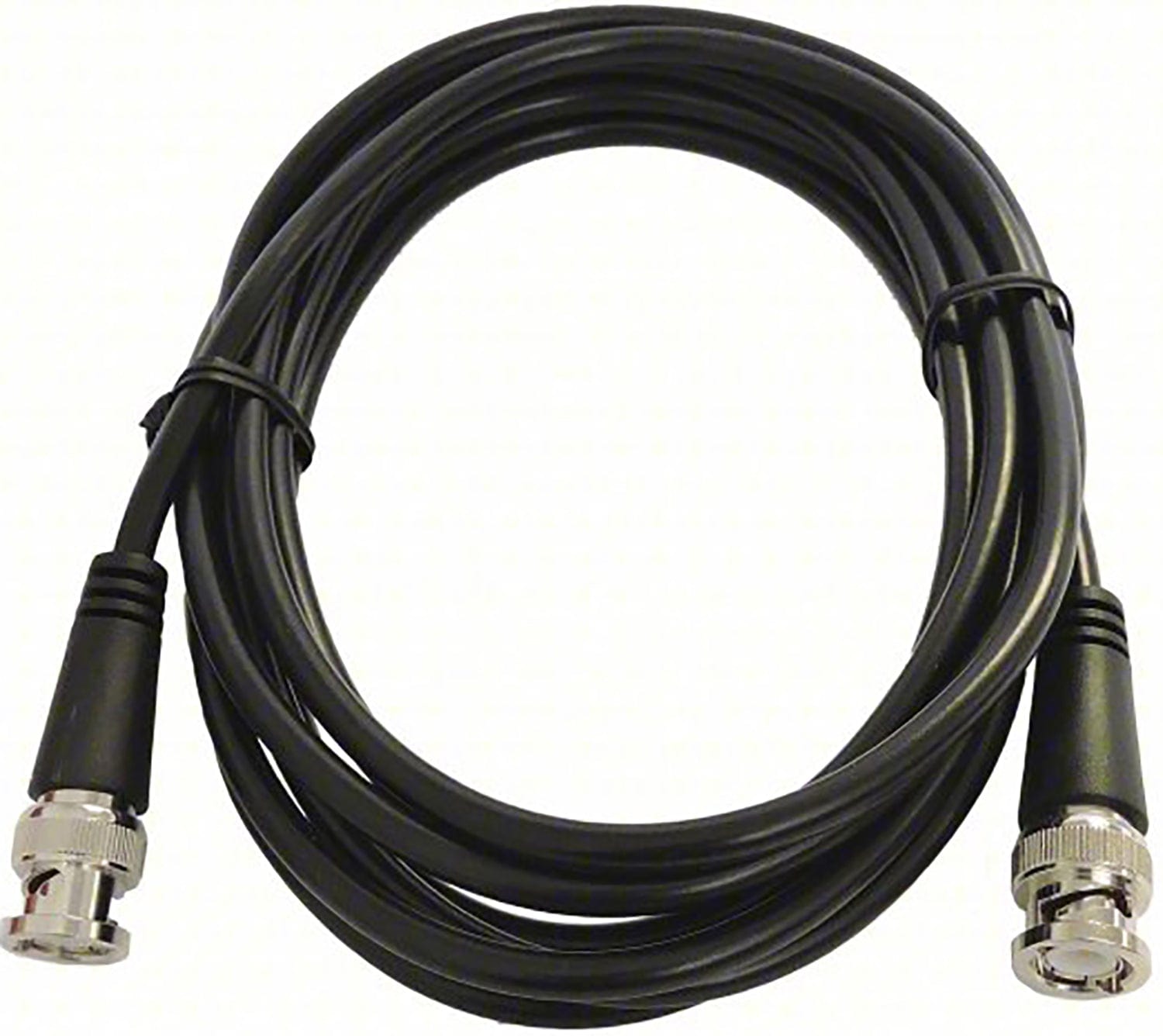

The PA805SWB ships with a 10 foot BNC cable, giving flexibility to position the directional antenna away from the transmitter rack for better line of sight.
The PA805SWB measures 13.15 x 14.88 x 1.1 in (334 x 378 x 27.9 mm) with mounting accessories and weighs 11.3 oz (319 g) with mounting accessories.
A directional antenna like the PA805SWB focuses RF pickup toward the stage or performance area, increasing usable range and reducing interference compared to an omnidirectional half wave antenna covering all directions equally.
