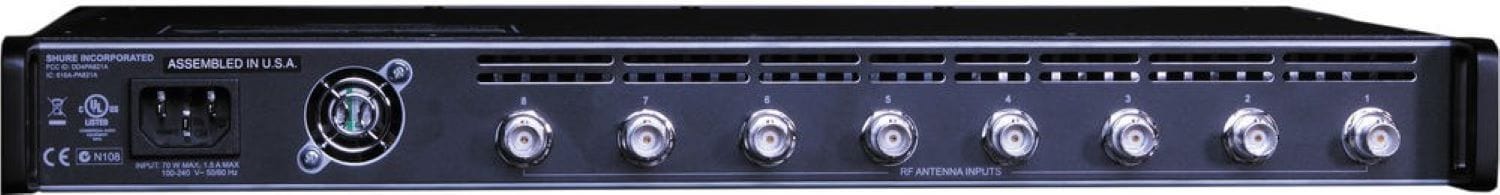

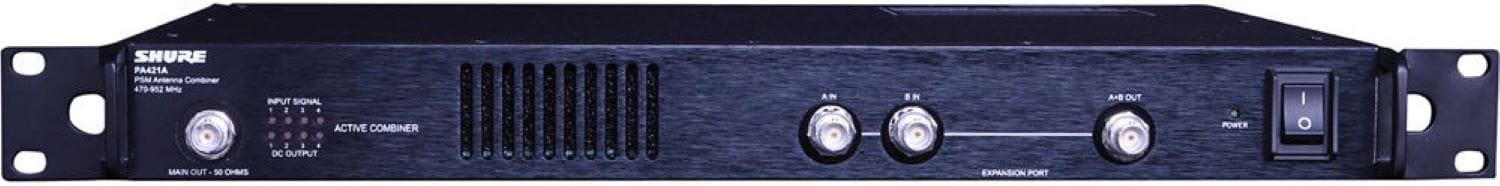

Shure PA421A: 4-Channel Wideband IEM Antenna Combiner with Power Distribution, 470 to 952 MHz
Model
:
PA421A
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure PA421A 4-Channel IEM Antenna Combiner
The Shure PA421A combines the RF outputs of up to four Shure PSM in-ear monitor transmitters into a single antenna and distributes DC power to them, across a wideband 470 to 952 MHz range. It improves RF performance and cuts rack clutter from extra antennas and power supplies, for touring rigs, worship venues and broadcast stages across Dubai, Abu Dhabi and the UAE and GCC.
Key Features:
- Combines up to four PSM transmitters to one antenna
- Wideband 470 to 952 MHz operation
- Distributes DC power to connected transmitters
- Active-channel amplifier power and temperature-controlled quiet fan
- Input and DC power status LEDs for each channel
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Range | 470 to 952 MHz |
| Inputs | 4x BNC, 50 Ohm |
| Max RF Input | 24 dBm |
| System Gain | 0 / -5 dB |
| Output Intercept Point | Over 30 dBm, typical |
| Power | 100 to 240 V AC, 50/60 Hz, 80 W max |
| Expansion Insertion Loss | Under 4 dB (passive) |
| Dimensions / Weight | 43 x 401 x 365 mm, 4.3 kg |
Why Buy the Shure PA421A from Trianze Tech?
- Genuine Shure PSM accessory with manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- RF planning help for multi-mix IEM systems
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure PA421A combines the RF signals of up to four Shure PSM in-ear monitor transmitters into one antenna and distributes DC power to them, improving RF performance and reducing rack clutter.
The PA421A is a wideband combiner covering 470 to 952 MHz, so it works across many PSM transmitter bands.
The PA421A only powers the amplifier for each active channel, while the older PA421SWB ran all amplifiers regardless of use. The PA421A also has a quieter, temperature-controlled fan.
The PA421A runs on 100 to 240 V AC at 50/60 Hz and draws up to 80 W, so it works on UAE mains power with the correct cable.
The PA421A measures 43 x 401 x 365 mm (1 rack unit high) and weighs 4.3 kg.
Trianze Tech stocks the Shure PA421A in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
