Shure P9T-X55: Half-Rack Wireless Transmitter for PSM 900 Personal Monitor System, X55 Band, 941 to 960 MHz
Model
:
P9T-X55
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure P9T-X55: Half-Rack Wireless Transmitter for PSM 900 Personal Monitor System, X55 Band, 941 to 960 MHz

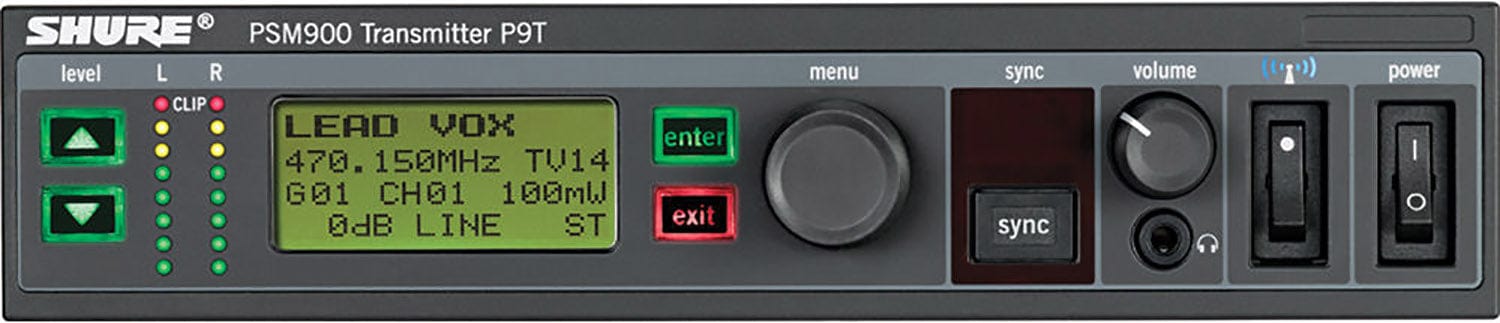

The Shure P9T is a half-rack wireless transmitter used with the P9RA+ bodypack receiver in the PSM 900 personal monitor system, for professional IEM and IFB applications. It offers an RF mute switch for interference-free setup, Scan and Sync to link bodypacks quickly, and front-panel input gain with an LED level meter. It is available in Dubai, Abu Dhabi and across the UAE. This listing is the X55 band, 941 to 960 MHz.
Key Features
- Half-rack wireless transmitter for PSM 900 with P9RA+ bodypacks
- RF mute switch allows setup without interference
- Scan and Sync links bodypacks quickly
- Front-panel input gain adjustment and LED level meter
- Front- or back-mountable antennas
- Compatible with PA421A and PA821A antenna combiners
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | P9T-X55 |
| Frequency Band | X55, 941 to 960 MHz |
| RF Output Power | 10 / 50 / 100 mW selectable (regionally dependent) |
| RF Output Impedance | 50 ohms, typical |
| Input Level | +4 dBu or -10 dBV, switchable |
| Inputs / Outputs | 2 x XLR/TRS combo in, 2 x 1/4 inch loop out, 3.5 mm headphone jack |
| Power | DC input, 415 mA typical (RF on, 100 mW, no audio) |
| Dimensions | 197 x 166 x 42 mm |
| Weight | 850 g (1.9 lb) |
Why Buy the Shure P9T-X55 from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for personal monitor systems.
- Genuine Shure stock sourced through authorized distribution channels
- Band matching against your P9RA+ bodypacks before you order
- IEM system advice across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for touring and venue teams
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The P9T is a half-rack wireless transmitter for the PSM 900 personal monitor system, used with P9RA+ bodypack receivers for IEM and IFB applications. This listing is the X55 band, 941 to 960 MHz.

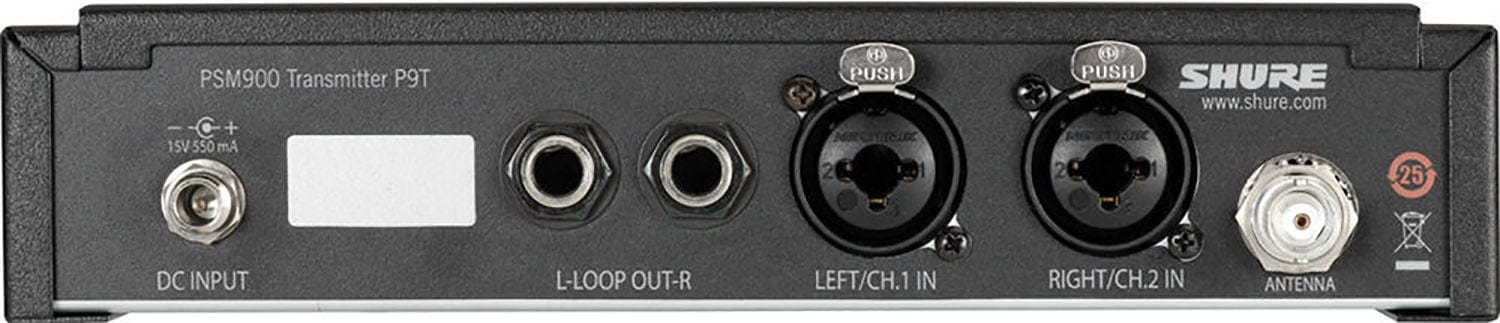

Two XLR/TRS combo inputs, two 1/4 inch loop outputs, a 3.5 mm headphone jack, a DC power input and an antenna connector. Input level is switchable between +4 dBu and -10 dBV.
Selectable 10, 50 or 100 mW output, depending on region, into a 50 ohm RF output. Wireless frequency use is subject to local regulation, so Trianze Tech confirms the correct band for your project.
It pairs with P9RA+ bodypack receivers, and Shure lists it as compatible with the PA421A and PA821A antenna combiners. Antennas can be mounted at the front or back.
It measures 197 x 166 x 42 mm (7.75 x 6.5 x 1.6 in) and weighs 850 g (1.9 lb). Typical current draw is 415 mA with RF on at 100 mW and no audio.
Trianze Tech stocks the Shure P9T X55 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
