Shure P3T-G20: PSM300 Wireless Half-Rack Transmitter, G20 Band
Model
:
P3T-G20
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

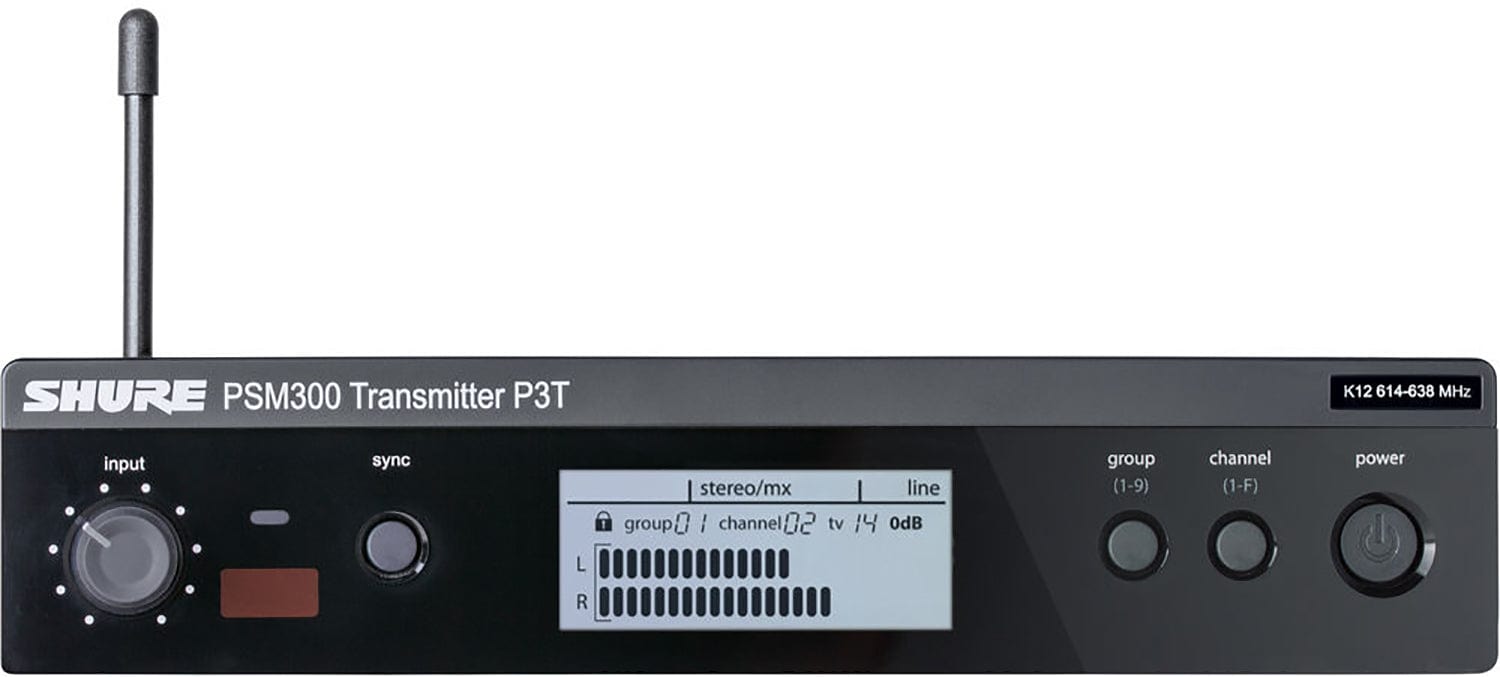

Shure P3T-G20 PSM300 Wireless Half-Rack Transmitter
The Shure P3T-G20 is the wireless transmitter for the PSM300 Personal Monitor System, delivering dependable 24-bit digital audio to performers across stages, worship venues and corporate AV setups in Dubai, Abu Dhabi and the UAE and GCC. It ships tuned to the G20 band (488 to 512 MHz) and must be paired with a Shure P3R or P3RA bodypack receiver on the same band.
Key Features:
- Single channel, half-rack transmitter with included rack mount kit
- Sends a stereo or mono mix wirelessly to a bodypack receiver up to 90 meters away
- One-touch IR sync instantly links the transmitter to a paired receiver
- Patented Shure Audio Reference Companding for transparent, artifact-free sound

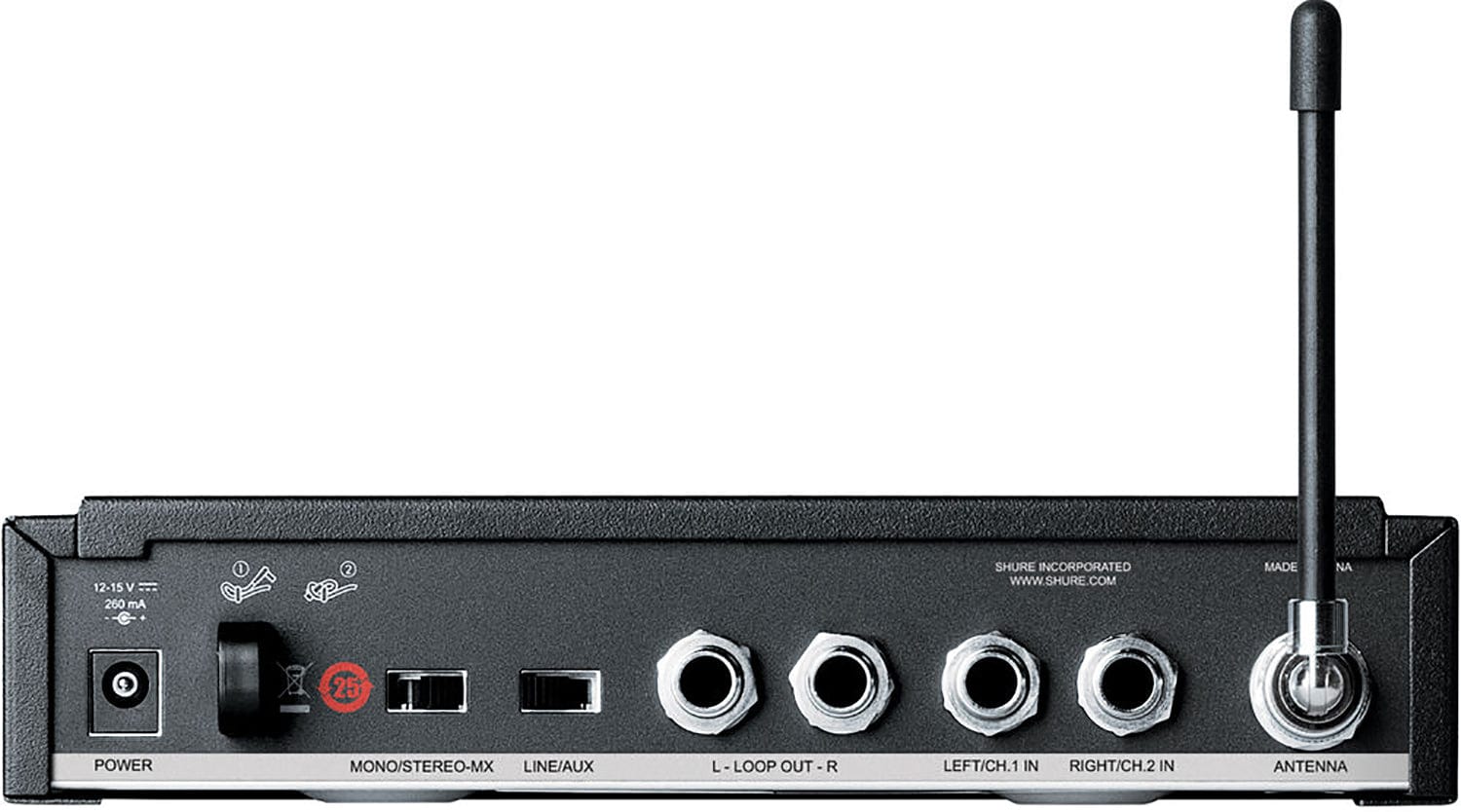

- 1/4 inch (6.35 mm) TRS balanced inputs and loop outputs for connecting to a mixer aux send and looping to additional P3T units
- High-contrast LCD screen with left/right audio output meters and detachable 1/4 wave antenna
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Band | G20 (488 to 512 MHz) |
| RF Output Power | 10, 20 or 30 mW (region dependent) |
| RF Output Impedance | 50 ohm (typical) |
| Net Weight | 783 g (27.6 oz) |
| Dimensions | 43 x 198 x 172 mm (H x W x D) |
| Power Requirements | 12 to 15 V DC, 260 mA maximum |
| Audio Input | 6.35 mm (1/4 inch) TRS, electronically balanced, 40 kOhm impedance |
| Audio Output | 6.35 mm (1/4 inch) TRS, electronically balanced loop output |
Why Buy the Shure P3T-G20 from Trianze Tech?
- Genuine Shure PSM300 transmitters backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on matching transmitter and receiver bands for multi-channel setups
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure P3T-G20 operates on the G20 band, tuned across 488 to 512 MHz with up to 24 MHz of switchable bandwidth (region dependent).
The P3T is a half-rack, single-channel PSM300 transmitter with 1/4 inch (6.35 mm) TRS balanced inputs and loop outputs, so it can be fed from a mixer aux send and looped to additional P3T units.
The P3T outputs 10, 20 or 30 mW of RF power (region dependent) over a rock-solid connection up to 90 meters (300 feet) to a paired P3R or P3RA bodypack receiver.
The P3T weighs 783 grams, measures 43 x 198 x 172 mm (H x W x D), and runs on 12 to 15V DC at up to 260 mA, with a rack mount kit included.
No, the P3T-G20 is the transmitter only; it must be paired with a Shure P3R or P3RA bodypack receiver on the same G20 band, sold separately.
Trianze Tech stocks the Shure P3T-G20 PSM300 Wireless Transmitter in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
