Shure P3RA-H20: PSM300 Premium Wireless Bodypack Receiver, H20 Band
Model
:
P3RA-H20
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

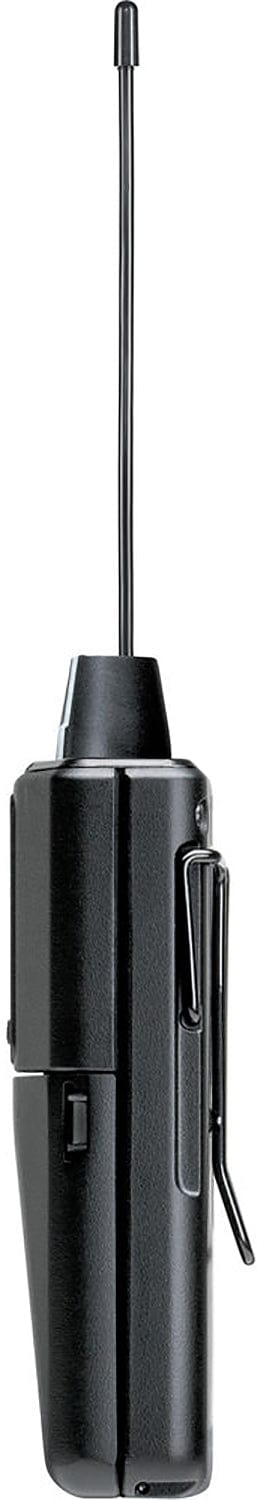

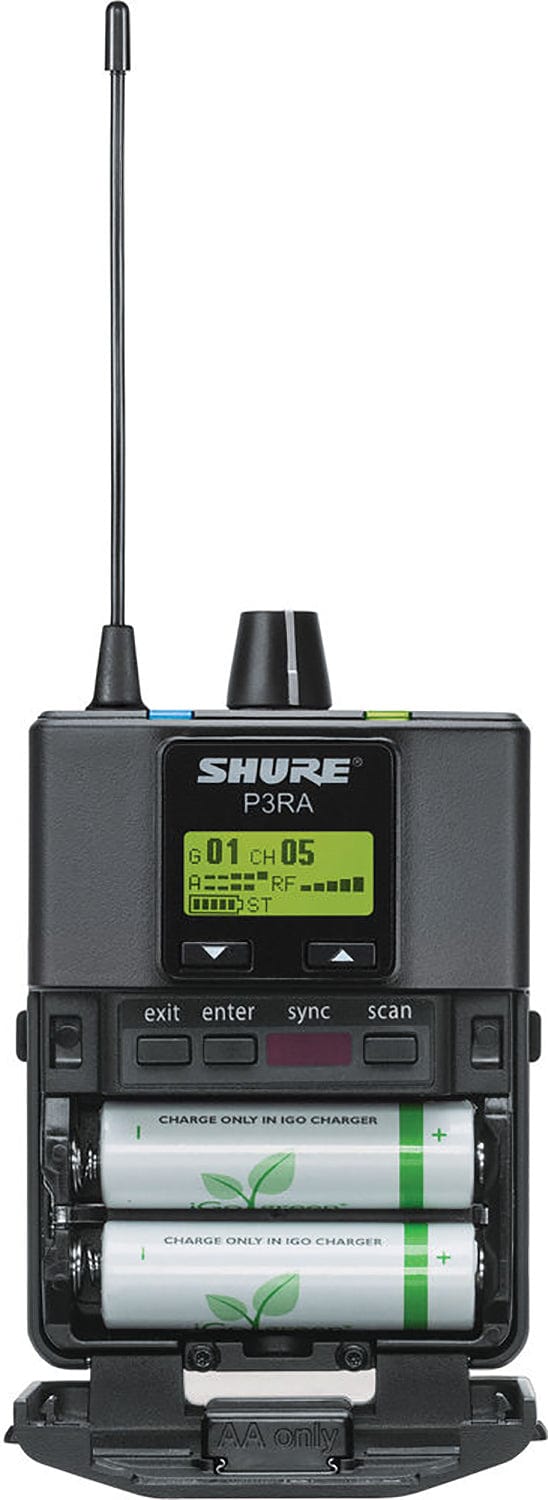

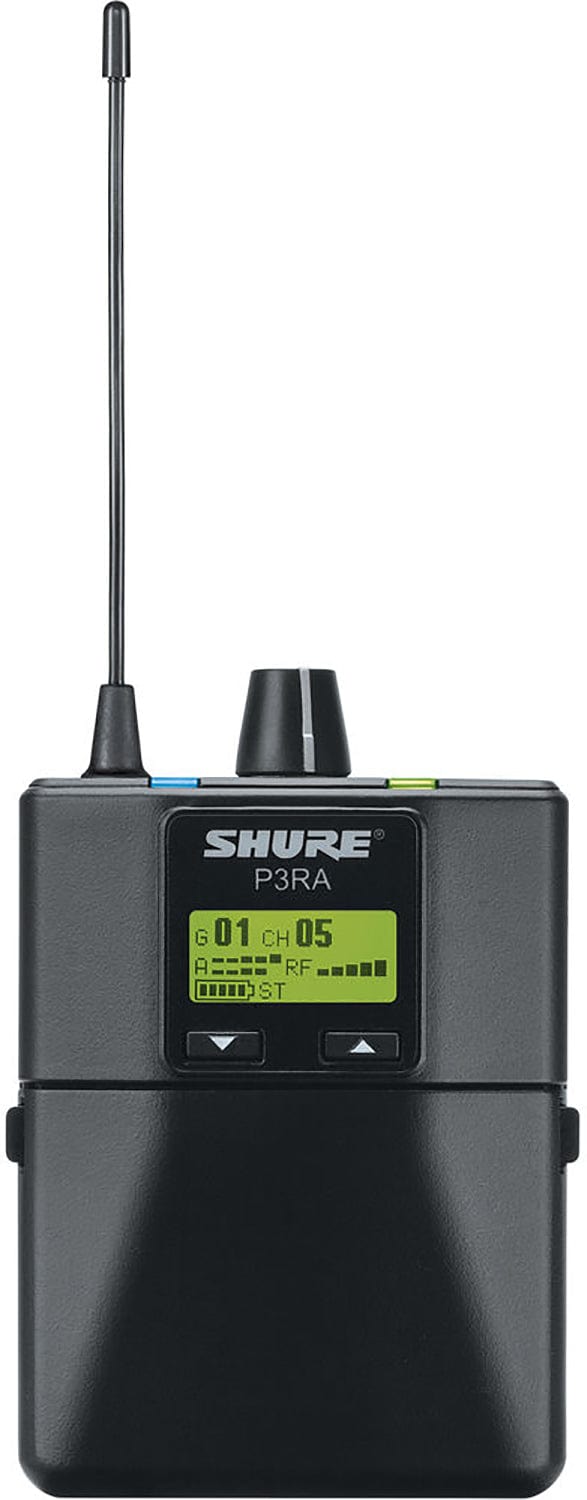

Shure P3RA-H20 PSM300 Premium Wireless Bodypack Receiver
The Shure P3RA-H20 is a premium wireless stereo bodypack receiver for the PSM300 Personal Monitor System, built for touring engineers and AV integrators across Dubai, Abu Dhabi and the UAE and GCC who need reliable in-ear monitoring with full mix control at the bodypack. It is tuned to the H20 band (approximately 518 to 542 MHz) and must be paired with a Shure P3T transmitter on the same band.
Key Features:
- Rugged, all-metal construction for long service life on the road
- High-contrast LCD screen with menu-based navigation
- 2-band shelving EQ with high and low boost
- Volume limiter sets the maximum gain range for the volume knob
- MixMode technology or stereo mode for a personal 2-channel mix
- 5-segment battery life meter plus power and battery status LED
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Band | H20 (approximately 518 to 542 MHz) |
| Active RF Sensitivity | 2.2 microvolts at 20 dB SINAD |
| Image Rejection | Greater than 90 dB |
| Adjacent Channel Rejection | Greater than 60 dB |

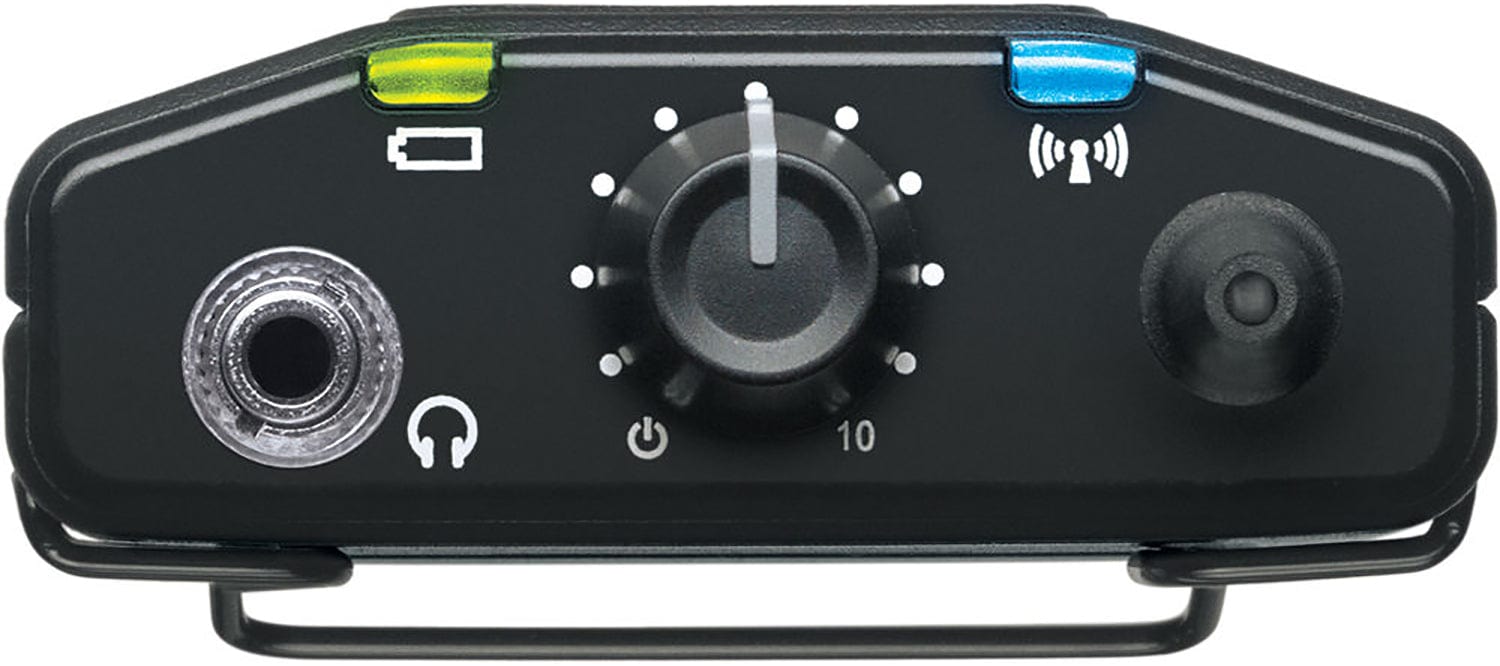

| Audio Output | 3.5 mm stereo headphone, 80 mW per channel into 32 ohms |
| Net Weight | 196 g (6.9 oz) with batteries |
| Dimensions | 99 x 66 x 23 mm (H x W x D) |
| Battery Life | 4 to 5.5 h (AA), 5.5 to 7 h (optional SB900A) |
Why Buy the Shure P3RA-H20 from Trianze Tech?
- Genuine Shure PSM300 premium bodypack receivers backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on matching transmitter and receiver bands
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure P3RA-H20 operates on the H20 band, approximately 518 to 542 MHz. It must be paired with a Shure P3T transmitter tuned to the same H20 band; receivers and transmitters on different bands will not communicate.
On two standard AA batteries the Shure P3RA-H20 runs for approximately 4 to 5.5 hours of continuous use. Using the optional Shure SB900A rechargeable lithium ion battery (sold separately) extends runtime to approximately 5.5 to 7 hours, with in-unit charging.
No. The Shure P3RA-H20 is the bodypack receiver only. A compatible Shure P3T transmitter on the H20 band and a pair of earphones (such as the Shure SE112 or SE215) must be purchased separately to complete a working personal monitor system.
MixMode is a Shure feature on the P3RA-H20 that lets a performer independently adjust the blend of two incoming audio channels from the mixing console, creating a personal in-ear monitor mix. The receiver can also be switched to stereo mode to adjust left and right balance instead.
The Shure P3RA-H20 measures 99 x 66 x 23 mm (H x W x D) and weighs 196 g (6.9 oz) with batteries installed, in a rugged all-metal bodypack housing designed to clip onto a belt or guitar strap.
Trianze Tech stocks the Shure P3RA-H20 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
