Shure P10TR+425CL-H22: PSM1000 Dual-Channel Personal Monitor System with P10T Transmitter, 2 P10R+ Bodypacks and SE425 Earphones, H22 Band, 518 to 584 MHz
Model
:
P10TR-PLUS-425CL-H22
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure P10TR+425CL-H22: PSM1000 Dual-Channel Personal Monitor System with P10T Transmitter, 2 P10R+ Bodypacks and SE425 Earphones, H22 Band, 518 to 584 MHz

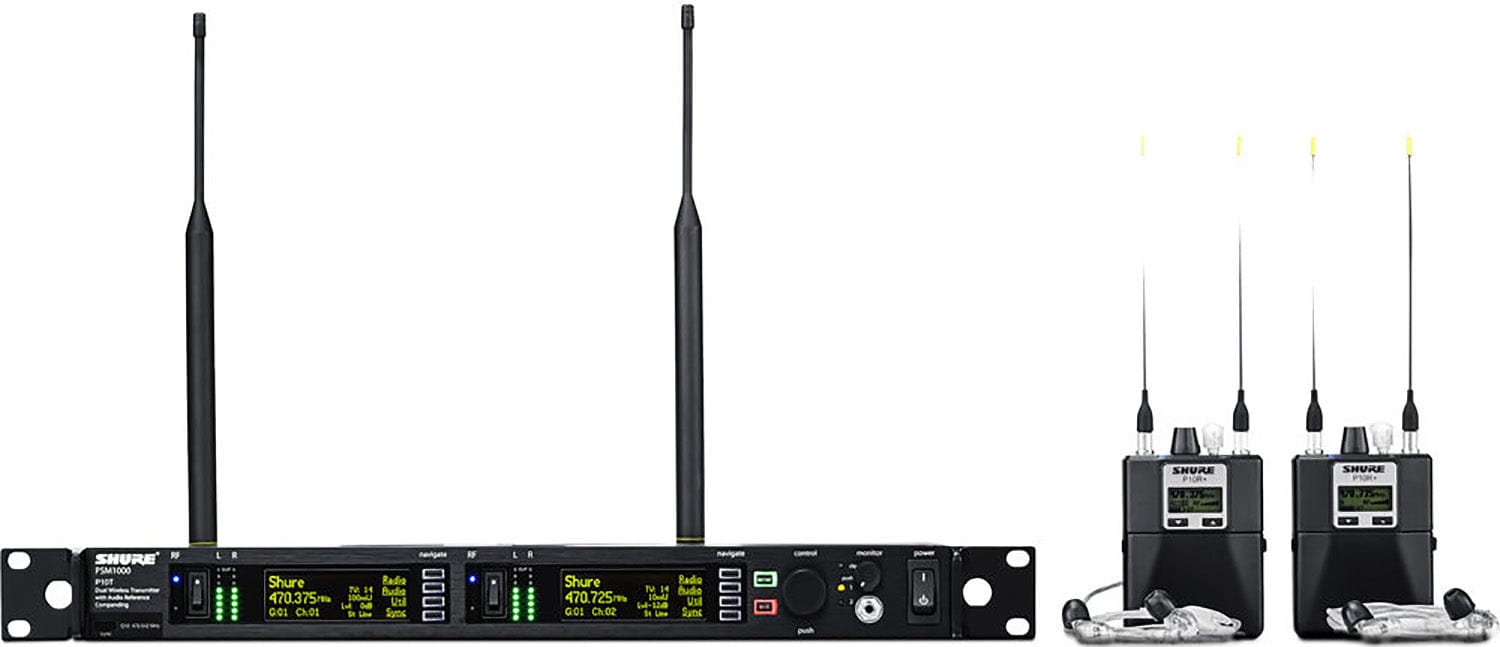

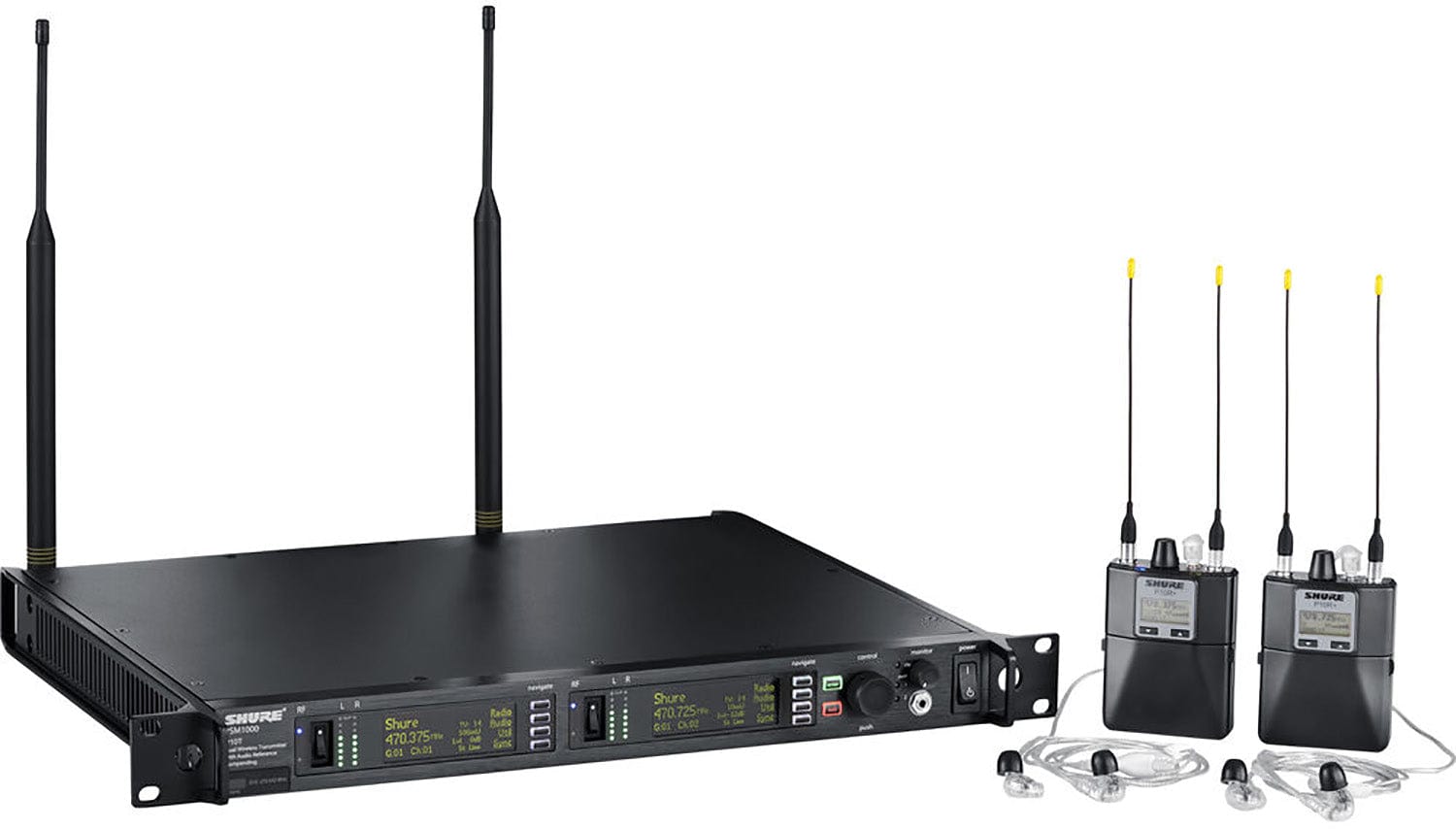

The Shure PSM1000 Dual-Channel Personal Monitor System pairs a P10T full-rack dual-channel wireless transmitter with two P10R+ diversity bodypack receivers and two pairs of SE425 sound isolating earphones. It delivers pristine RF and audio for professional touring, live stage and theatre events and permanent installations, with network control over Ethernet, an internal power supply with IEC in and out ports, and a 72 MHz tuning bandwidth. It is available in Dubai, Abu Dhabi and across the UAE. This listing is the H22 band, 518 to 584 MHz.
Key Features
- P10T full-rack dual-channel transmitter and two P10R+ diversity bodypacks
- Two pairs of SE425 sound isolating earphones
- Networkable via Ethernet, with Wireless Workbench 6 support
- 72 MHz tuning bandwidth; P10R+ full-bandwidth scan with spectrum plot
- Backwards compatible with PSM 900 receivers
- Includes antennas, rackmount kit, link bar, bumper kit, zipper bag and antenna cables
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | P10TR-PLUS-425CL-H22 |
| Frequency Band | H22, 518 to 584 MHz |
| Transmitter RF Output | 10 / 50 / 100 mW selectable, 50 ohms |
| Operating Range | 90 m (300 ft), environment dependent |
| Frequency Response / SNR | 35 Hz to 15 kHz / 90 dB (A-weighted, typical) |
| Transmitter Inputs | XLR / 1/4 inch TRS combo, +4 dBu or -10 dBV switchable |
| Transmitter Size / Weight | 43 x 483 x 343 mm / 4.7 kg |
| Bodypack RF Sensitivity | 2.2 microvolts (20 dB SINAD) |
| Bodypack Battery Life / Weight | 4 to 6 hours on AA / 158 g without batteries |

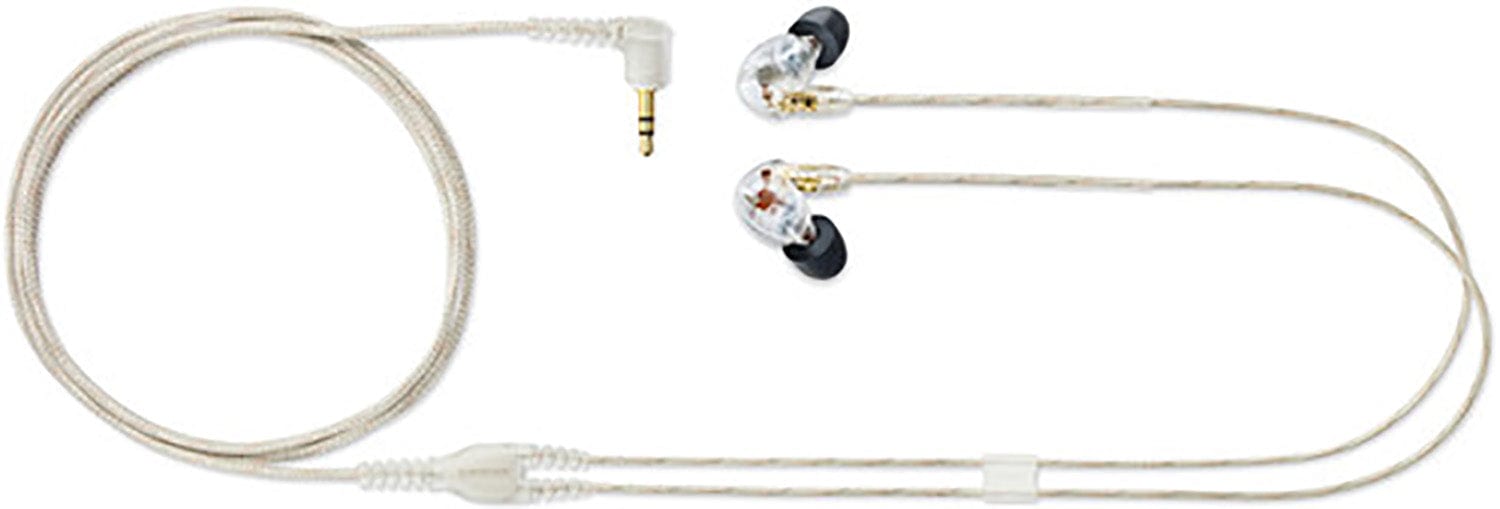

| Earphones | SE425 clear, 22 ohms, MMCX, 5.3 ft cable |
Why Buy the Shure P10TR+425CL-H22 from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for personal monitor systems.
- Genuine Shure stock sourced through authorized distribution channels
- Band matching and system advice before you order
- IEM system advice across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for touring and venue teams
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
A P10T full-rack dual-channel wireless transmitter, two P10R+ diversity bodypack receivers and two pairs of SE425 sound isolating earphones, with two transmitter antennas, four bodypack antennas, a rackmount kit, link bar, zipper bag, bumper kit and front-mount antenna cables. This listing is the H22 band, 518 to 584 MHz.
The tuning bandwidth is 72 MHz within the 518 to 584 MHz H22 band, which gives flexibility in crowded RF environments. The P10R+ bodypack can run a full bandwidth scan to find clean frequencies and show a spectrum plot on its screen.
It has an internal power supply (100 to 240 VAC, 50/60 Hz) with IEC in and out ports for power chaining in a rack, and network control over Ethernet. Wireless Workbench 6 software supports RF coordination and live monitoring of transmitter settings.

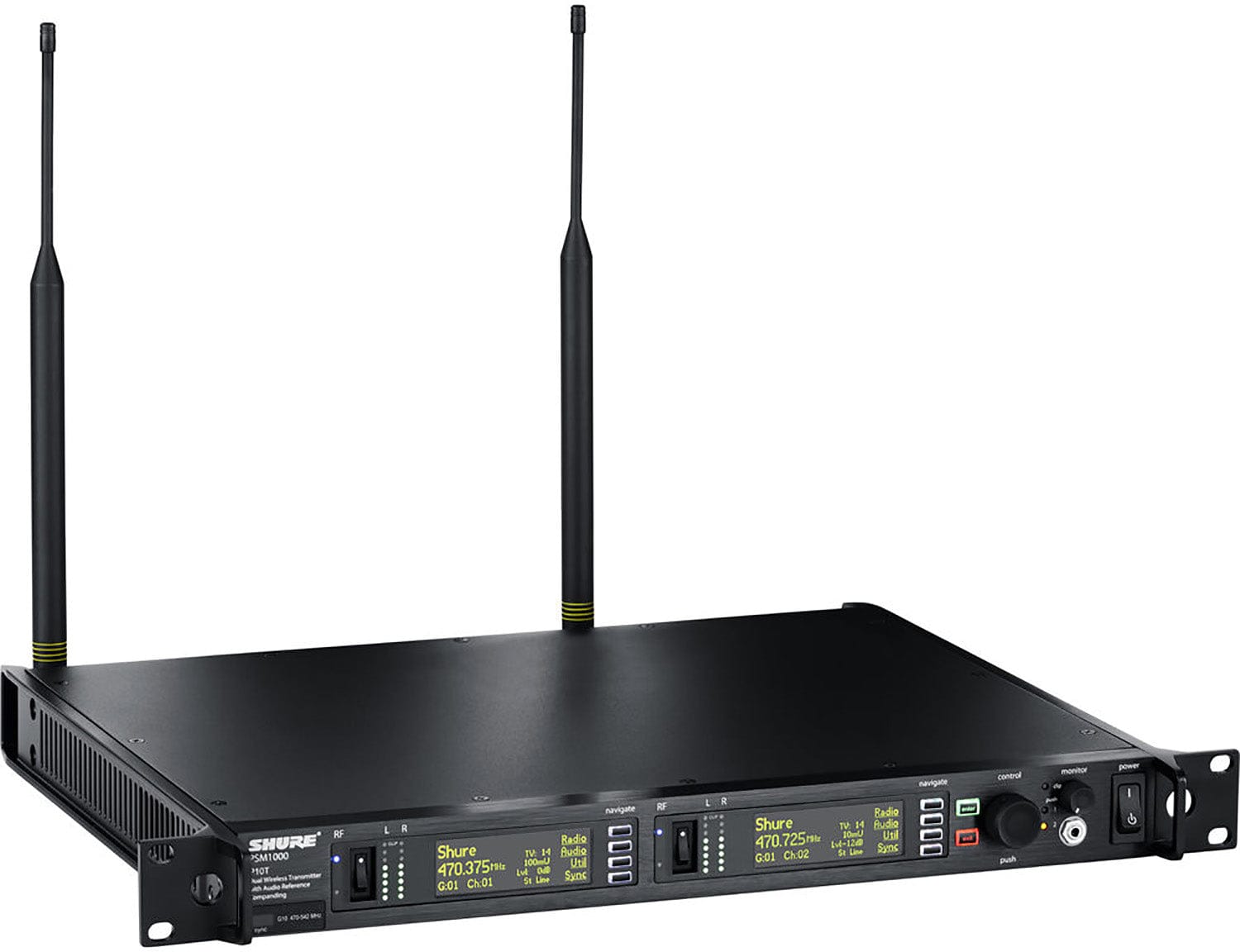

Selectable 10, 50 or 100 mW output into 50 ohms, with a 300 ft (90 m) operating range (environment dependent). It is a full-rack unit measuring 43 x 483 x 343 mm and weighing 4.7 kg (10.4 lb).

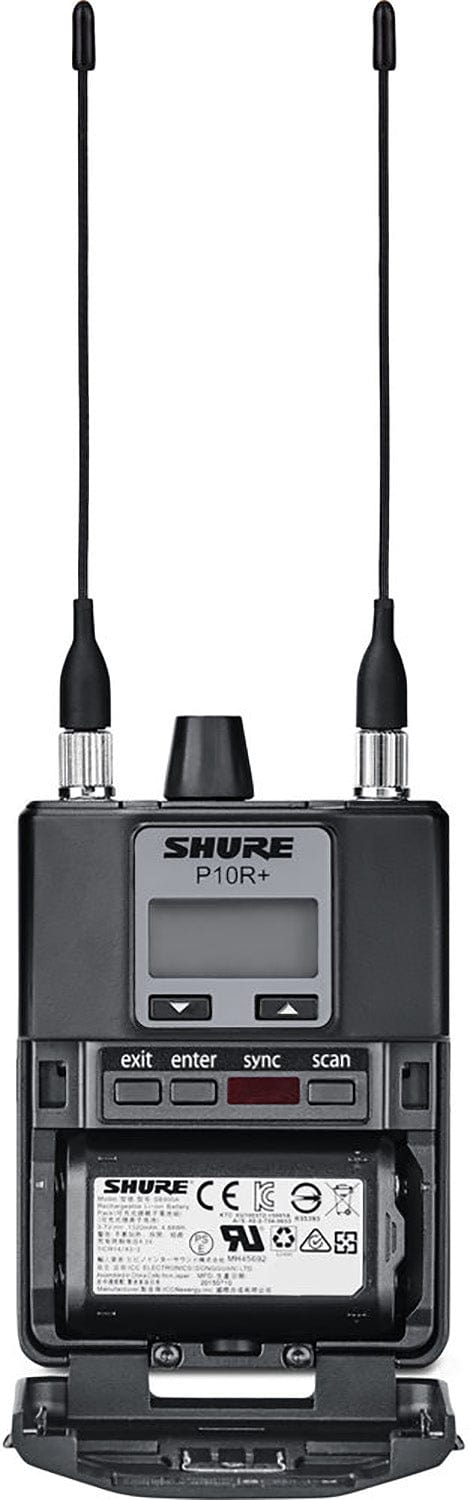

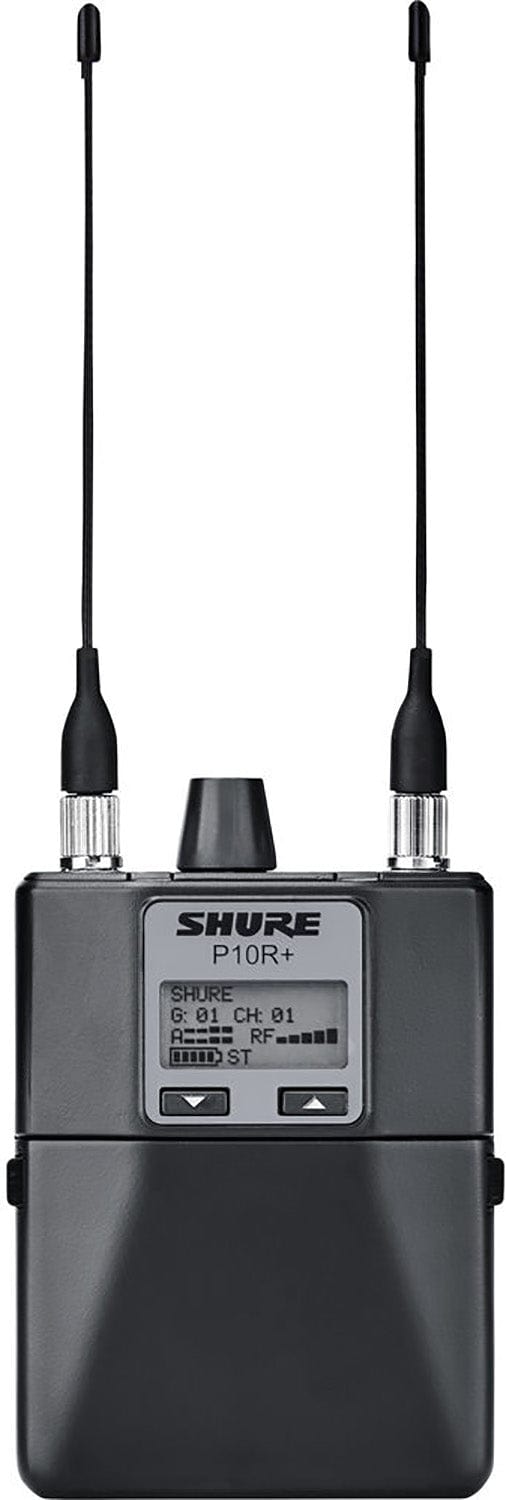

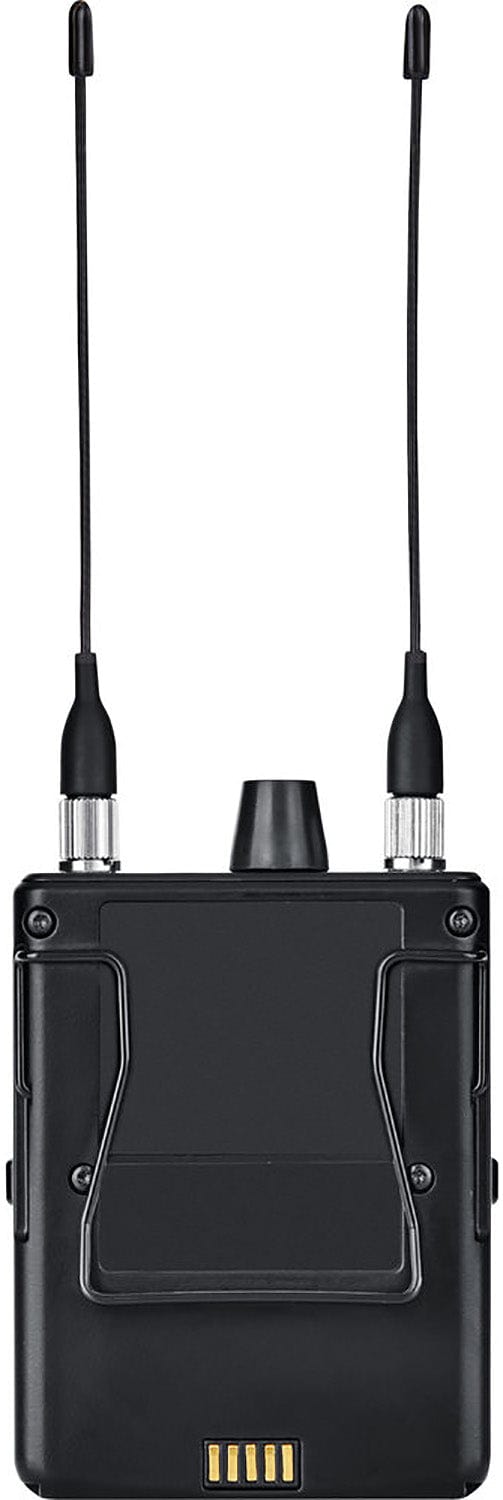

Yes, the system is backwards compatible with PSM 900 receivers. The P10R+ diversity bodypack improves reception and range and runs 4 to 6 hours on AA batteries, weighing 158 g without batteries.
Trianze Tech stocks the Shure P10TR+425CL-H22 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
