Shure P10T-L8: PSM1000 Networked Full-Rack Wireless Transmitter, L8 Band
Model
:
P10T-L8
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

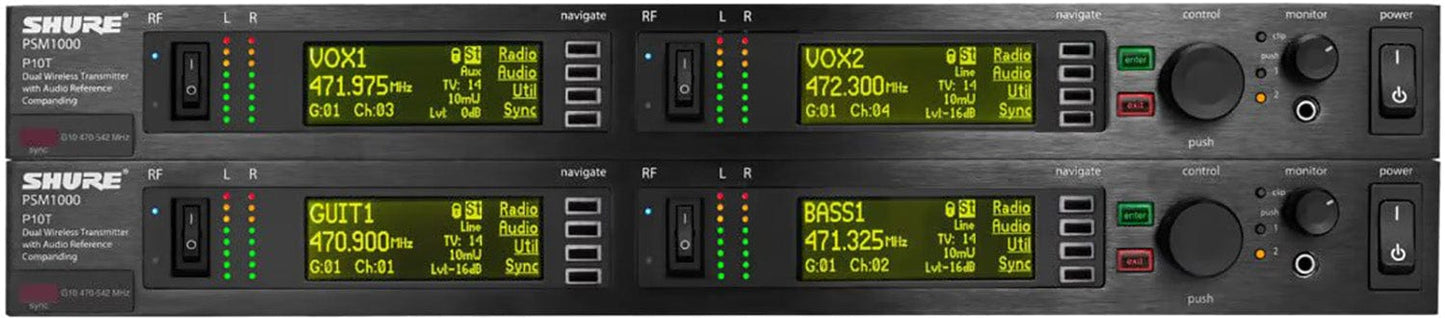

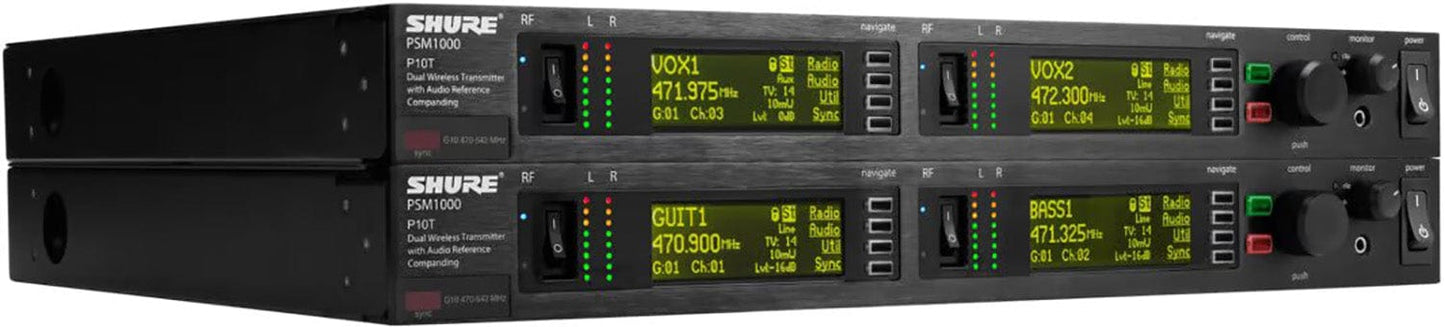

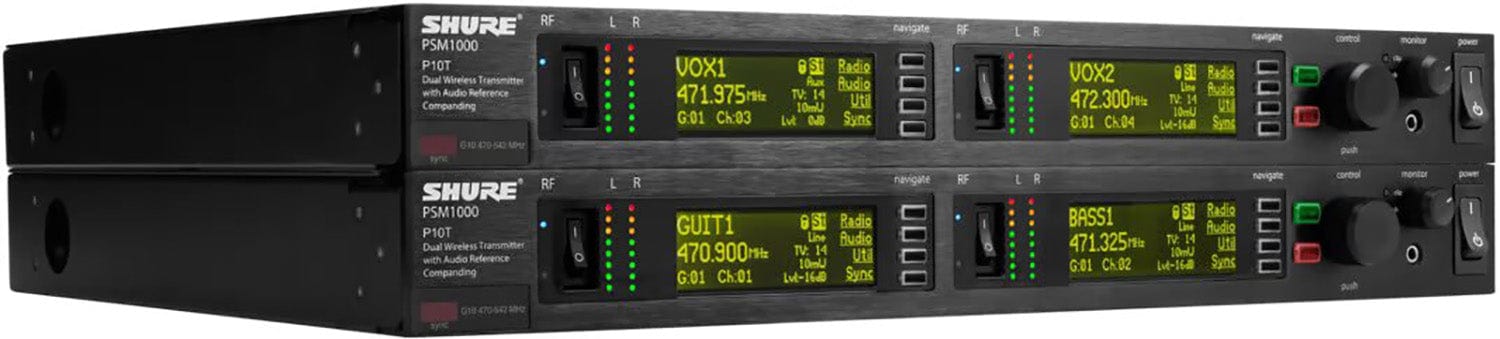

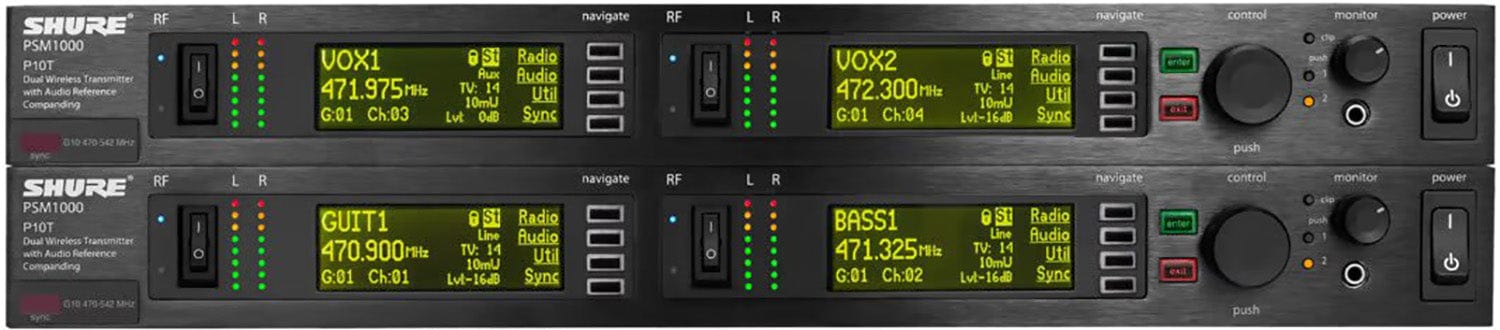

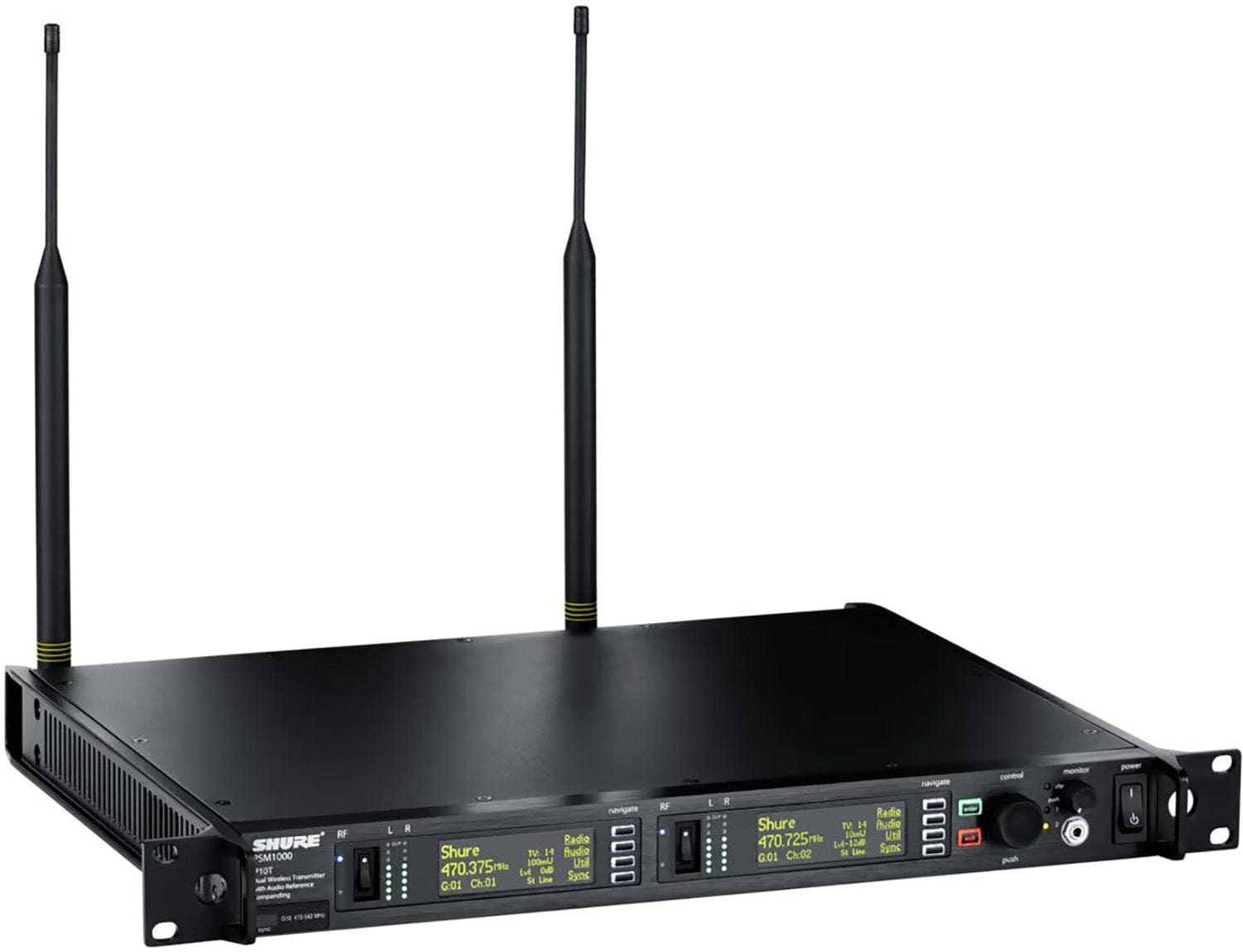

Shure P10T-L8 PSM1000 Networked Full-Rack Wireless Transmitter
The Shure P10T-L8 is a networkable, full-rack, dual-channel wireless transmitter for the PSM1000 Personal Monitor System, built for touring productions, broadcast facilities and large venue installations across Dubai, Abu Dhabi and the UAE and GCC that need touring-grade reliability with zero room for error. It ships tuned to the L8 band within PSM1000's 72 to 80 MHz networked tuning bandwidth.
Key Features:
- Touring-grade, full-rack dual-channel design
- Networked remote control and monitoring via Shure Wireless Workbench software
- PSM900 backwards compatibility for mixed-system installs
- Robust RF performance with selectable output power

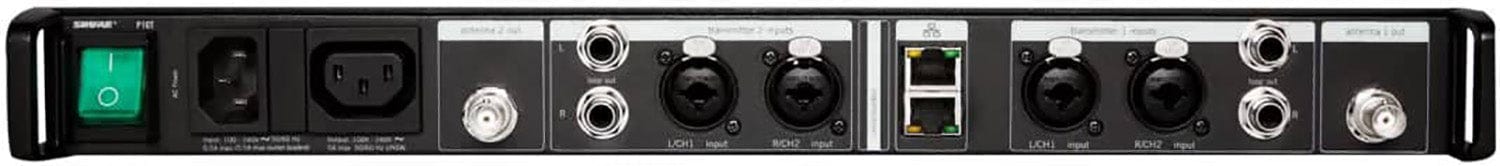

- Combination XLR and 6.35 mm TRS balanced audio inputs
- Rugged metal chassis built for permanent rack installation
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Band | L8 (within 72 to 80 MHz networked tuning bandwidth) |
| RF Output Power | Selectable 10, 50 or 100 mW (region dependent) |
| RF Output Impedance | 50 ohm (typical) |
| Net Weight | 4.7 kg (10.4 lb) |
| Dimensions | 44 x 483 x 343 mm, full rack width |
| Power Requirement | 100 to 240V AC, 50/60 Hz, 0.5A max |
| Audio Input | Combination XLR / 6.35 mm TRS, electronically balanced, switchable +4 dBu / -10 dBV |
| Audio Output | 6.35 mm TRS, electronically balanced |
Why Buy the Shure P10T-L8 from Trianze Tech?
- Genuine Shure PSM1000 transmitters backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on networked wireless design for large touring and broadcast rigs
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure P10T-L8 is tuned within the L8 portion of the PSM1000 platform's 72 to 80 MHz networked tuning bandwidth. The exact operating channel is confirmed and assigned at setup using Shure Wireless Workbench software.
The P10T-L8 offers selectable RF output of 10, 50 or 100 mW (region dependent) into a 50 ohm output impedance, giving touring engineers headroom to balance range against RF congestion.
The P10T-L8 is a full-rack, dual-channel transmitter weighing 4.7 kg (10.4 lb) and measuring 44 x 483 x 343 mm, built for permanent installation in a touring or house rack.
Yes, the P10T-L8 is networkable and can be remotely controlled and monitored using Shure Wireless Workbench software, and it retains PSM900 backwards compatibility for mixed-system installs.
The P10T-L8 has combination XLR and 6.35 mm (1/4 inch) TRS balanced inputs with switchable nominal level (+4 dBu or -10 dBV) and phantom power protection up to 60V DC.
Trianze Tech stocks the Shure P10T-L8 PSM1000 wireless transmitter in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
