Shure P10T-J8A: Networkable Full-Rack Dual-Channel Wireless Transmitter for PSM1000 Personal Monitor System, J8A Band, 554 to 608 MHz and 614 to 616 MHz

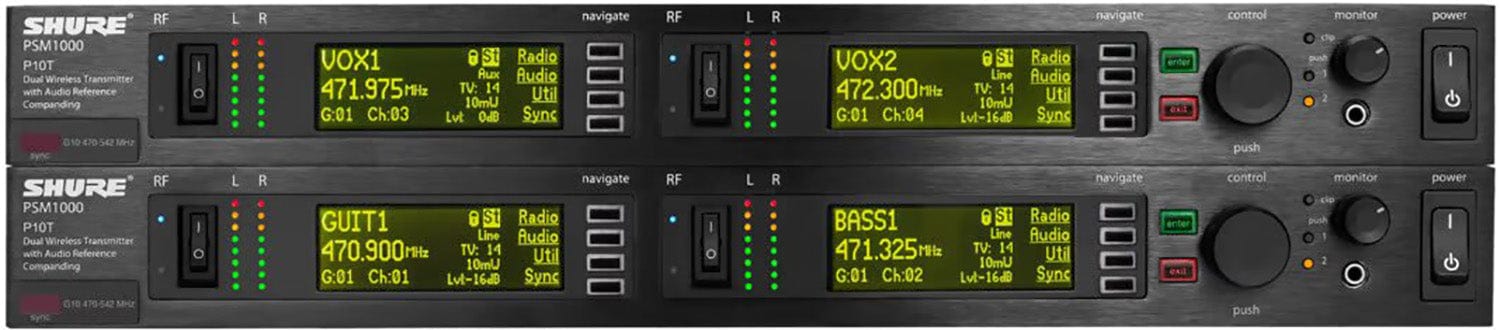

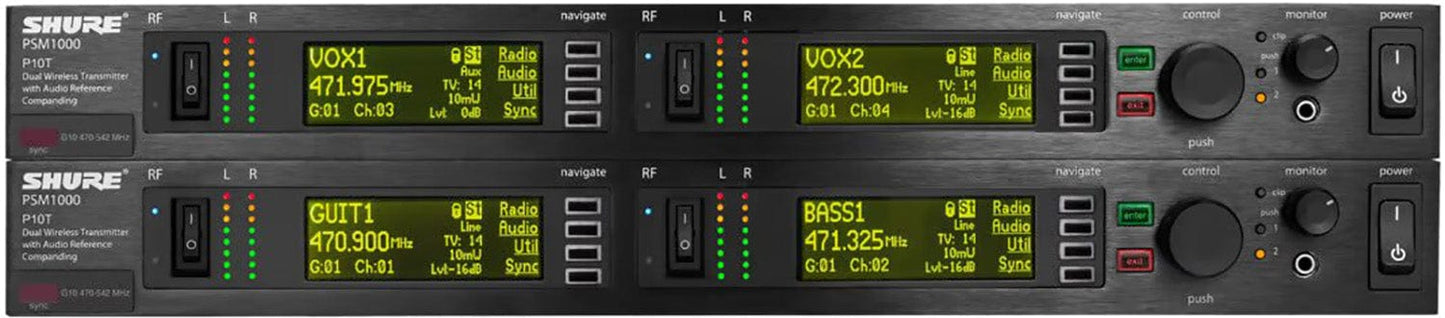

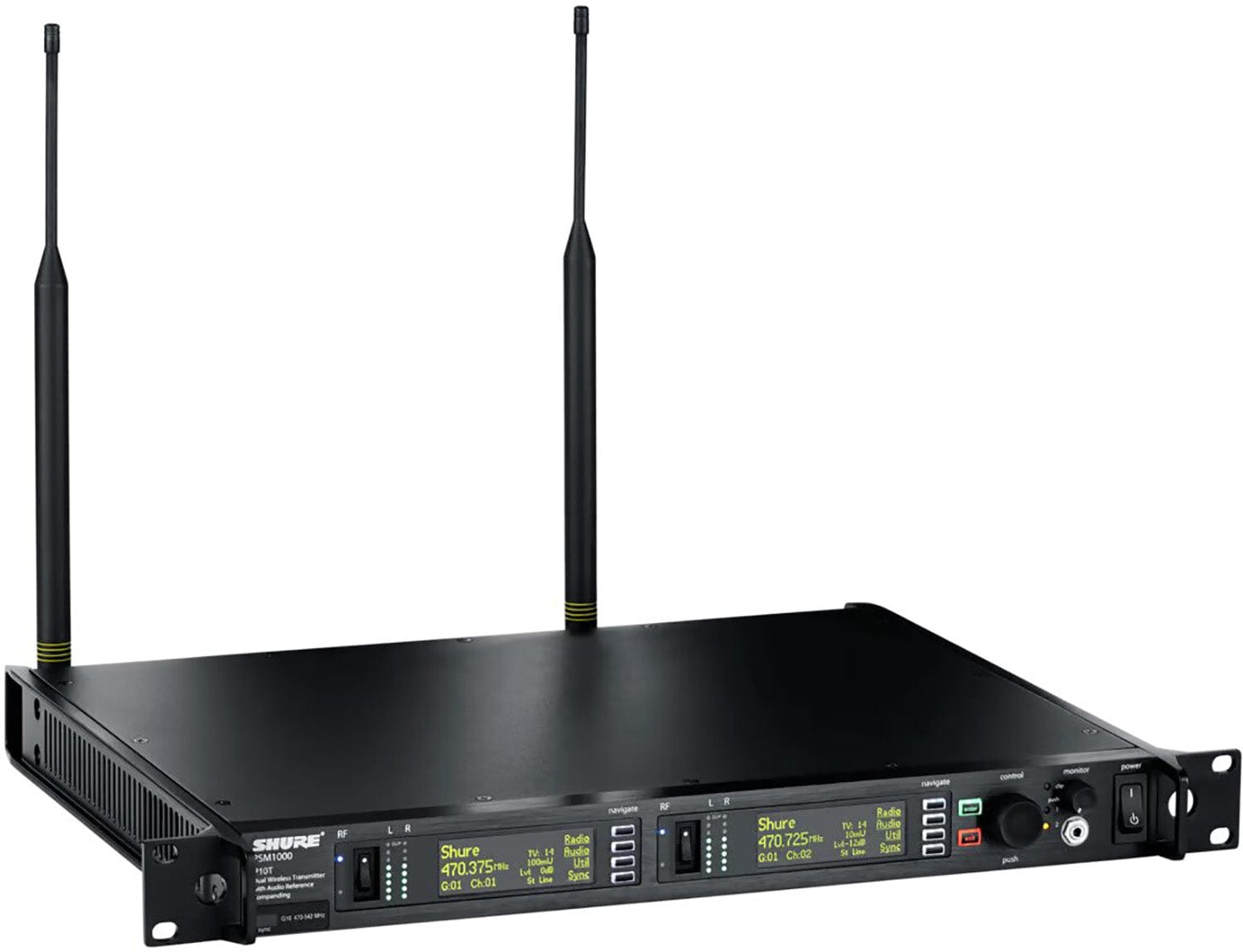

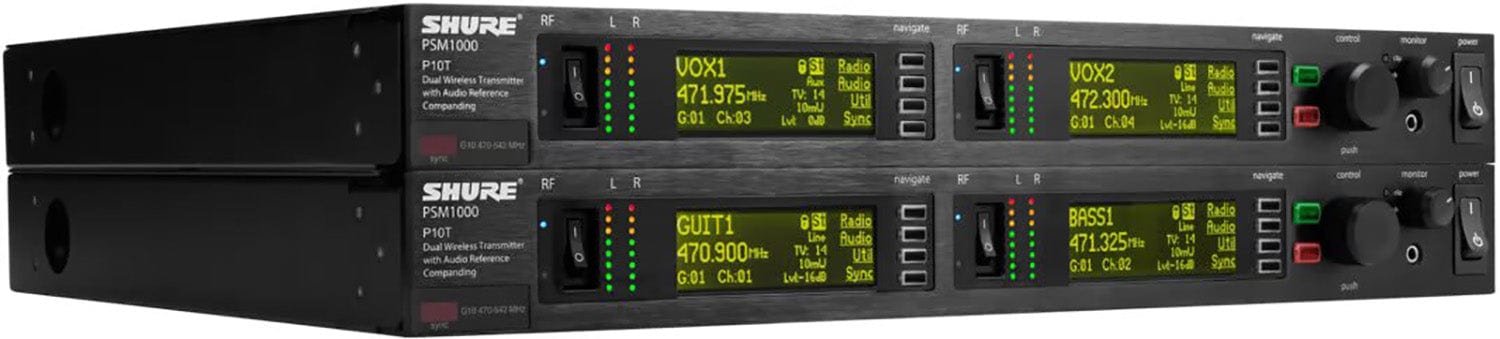

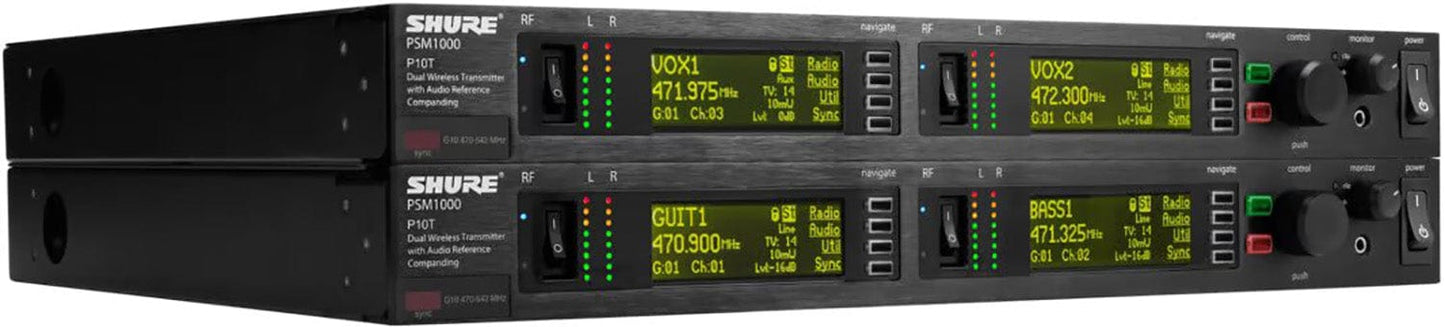

The Shure P10T is a networkable, full-rack, dual-channel wireless transmitter for the PSM1000 personal monitor system, used with P10R bodypack receivers. It offers a 72 MHz wide tuning bandwidth, networked remote control through Wireless Workbench software, advanced rechargeability options and PSM900 backwards compatibility. It is available in Dubai, Abu Dhabi and across the UAE. This listing is the J8A band, 554 to 608 MHz plus 614 to 616 MHz.
Key Features
- 72 MHz wide tuning range for crowded RF environments
- Networkable over Ethernet via Wireless Workbench software
- Backwards compatible with PSM900 receivers
- RF mute switch for interference-free setup
- Syncs RF scan information from a P10R bodypack over IR
- Balanced 1/4 inch and XLR inputs, loop out, dual Ethernet ports and headphone monitor out
- Front or back mountable antennas, power and Ethernet jumper cables included
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | P10T-J8A |
| Frequency Band | J8A, 554 to 608 MHz plus 614 to 616 MHz |
| Tuning Bandwidth | 72 MHz |
| RF Output Power | 10 / 50 / 100 mW selectable (+20 dBm) |
| RF Output Impedance | 50 ohms, typical |
| Power Requirement | 100 to 240 VAC, 50/60 Hz, 0.5 A maximum |
| Dimensions | 1.7 x 19 x 13.5 in (43 x 483 x 343 mm) |
| Weight | 10.4 lb (4.7 kg) |
Why Buy the Shure P10T-J8A from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for personal monitor systems.
- Genuine Shure stock sourced through authorized distribution channels
- Band matching against your P10R bodypacks before you order
- IEM system advice across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for touring and venue teams
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The P10T is a networkable, full-rack, dual-channel wireless transmitter for the PSM1000 personal monitor system, used with P10R bodypack receivers. This listing is the J8A band, 554 to 608 MHz plus 614 to 616 MHz, with a 72 MHz wide tuning bandwidth.

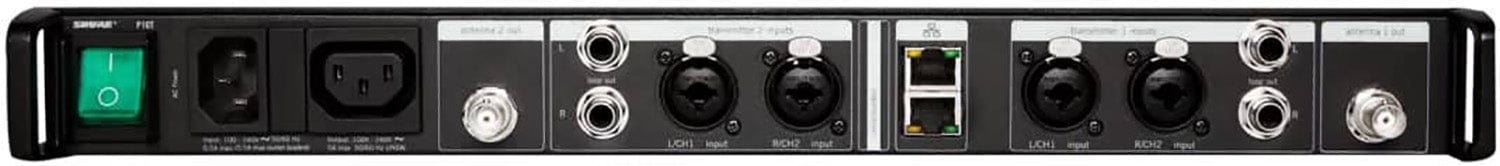

It has balanced 1/4 inch and XLR inputs, loop outputs, a headphone monitor output and dual Ethernet ports, and can be networked and remotely controlled through Wireless Workbench software. Power and Ethernet jumper cables and front or back mountable antennas are included.
Yes, it is backwards compatible with PSM900 receivers. Shure notes that separately bought wireless components must be matched by frequency band for the system to work.
Selectable 10, 50 or 100 mW (+20 dBm) into 50 ohms, an RF mute switch so you can set up without interference, and an IR link that syncs RF scan information from a P10R bodypack quickly.
It is a full-rack unit measuring 1.7 x 19 x 13.5 in (43 x 483 x 343 mm) and weighs 10.4 lb (4.7 kg). Power input is 100 to 240 VAC at 50/60 Hz, 0.5 A maximum.
Trianze Tech stocks the Shure P10T J8A in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
