Shure P10T-H22: Networkable Full-Rack Dual-Channel Wireless Transmitter for PSM1000 Personal Monitor System, H22 Band, 518 to 584 MHz
Model
:
P10T-H22
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure P10T-H22: Networkable Full-Rack Dual-Channel Wireless Transmitter for PSM1000 Personal Monitor System, H22 Band, 518 to 584 MHz

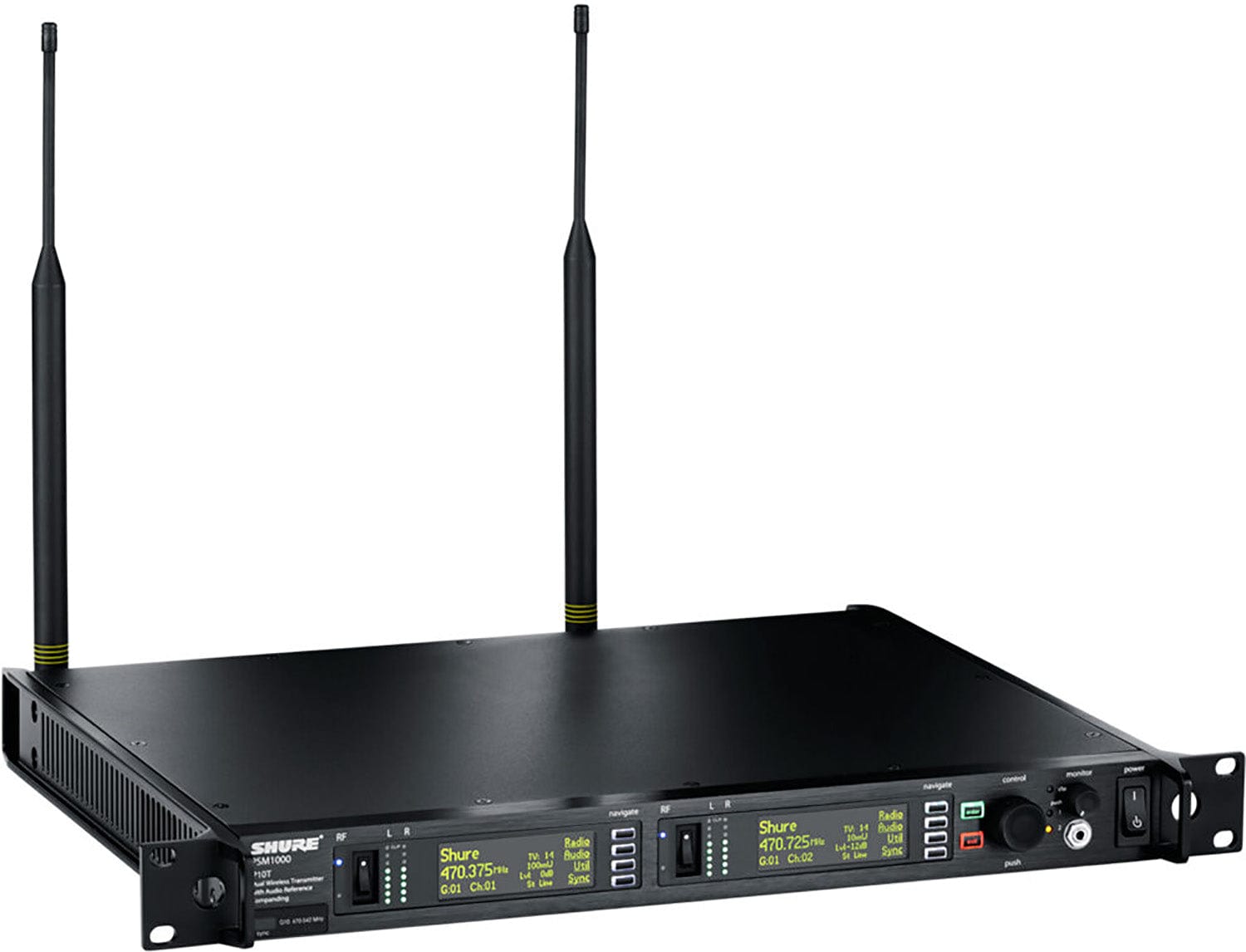

The Shure P10T is a networkable, full-rack, dual-channel wireless transmitter for the PSM1000 personal monitor system, used with P10R bodypack receivers. It offers a 72 MHz wide tuning bandwidth, networked remote control through Wireless Workbench software, advanced rechargeability options and PSM900 backwards compatibility. It is available in Dubai, Abu Dhabi and across the UAE. This listing is the H22 band, 518 to 584 MHz.
Key Features
- 72 MHz wide tuning range for crowded RF environments
- Networkable over Ethernet via Wireless Workbench software
- Backwards compatible with PSM900 receivers
- RF mute switch for interference-free setup
- Syncs RF scan information from a P10R bodypack over IR

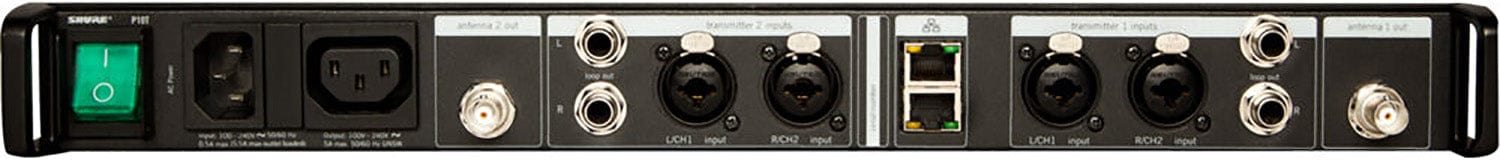

- Balanced 1/4 inch and XLR inputs, loop out, dual Ethernet ports and headphone monitor out
- Front or back mountable antennas, power and Ethernet jumper cables included
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | P10T-H22 |
| Frequency Band | H22, 518 to 584 MHz |
| Tuning Bandwidth | 72 MHz |
| RF Output Power | 10 / 50 / 100 mW selectable (+20 dBm) |
| RF Output Impedance | 50 ohms, typical |
| Power Requirement | 100 to 240 VAC, 50/60 Hz, 0.5 A maximum |
| Dimensions | 1.7 x 19 x 13.5 in (43 x 483 x 343 mm) |
| Weight | 10.4 lb (4.7 kg) |
Why Buy the Shure P10T-H22 from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for personal monitor systems.
- Genuine Shure stock sourced through authorized distribution channels
- Band matching against your P10R bodypacks before you order
- IEM system advice across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for touring and venue teams
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
A networkable full-rack dual-channel wireless transmitter for the PSM1000 personal monitor system, on the H22 band, 518 to 584 MHz, with a 72 MHz wide tuning bandwidth.
P10R and P10R+ bodypack receivers on the same H22 band, and PSM900 receivers thanks to backwards compatibility. Match the frequency band of every component before ordering.
Yes. It has dual Ethernet ports and can be remotely controlled and monitored through Wireless Workbench software, with power and Ethernet jumper cables included for rack daisy-chaining.
Balanced 1/4 inch and XLR inputs, loop outputs and a headphone monitor output. RF output is selectable at 10, 50 or 100 mW.
Wireless frequency use is subject to local regulation. Trianze Tech confirms the correct band and licensing considerations for your project before you order.
Trianze Tech stocks the Shure P10T H22 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
