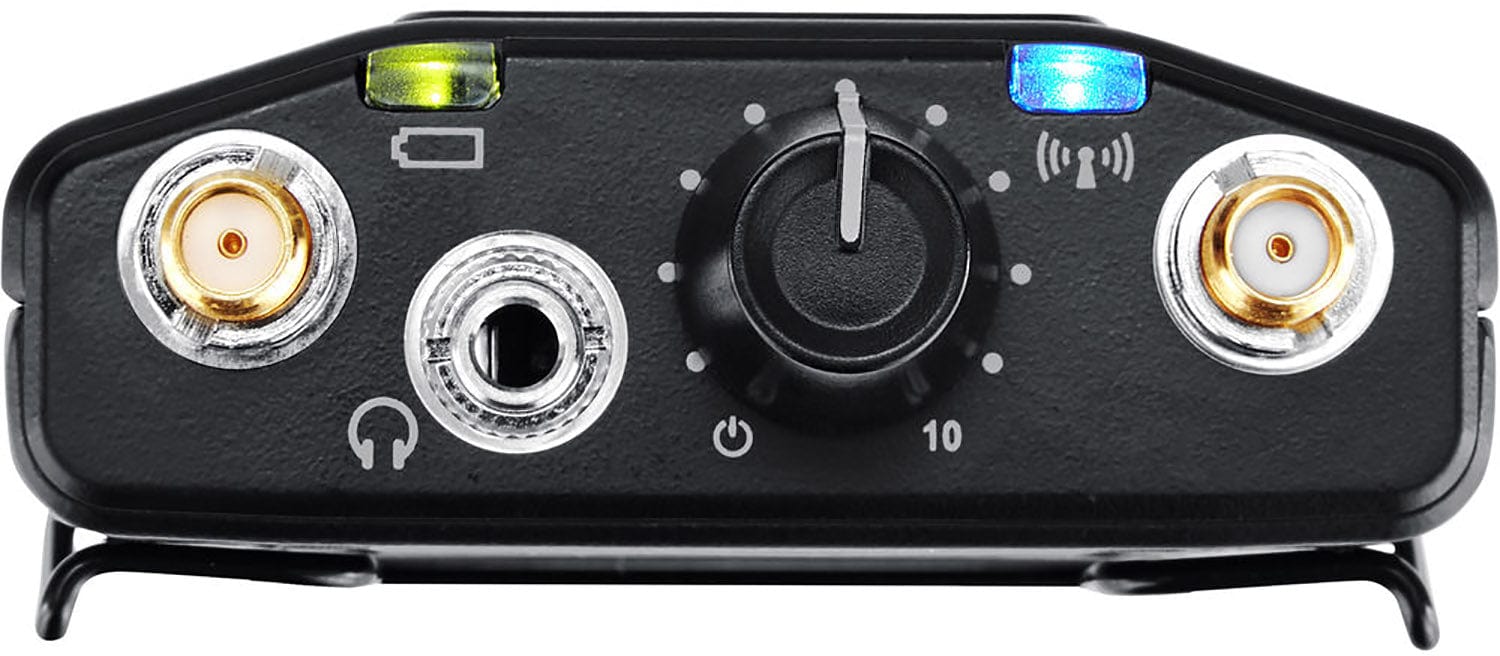

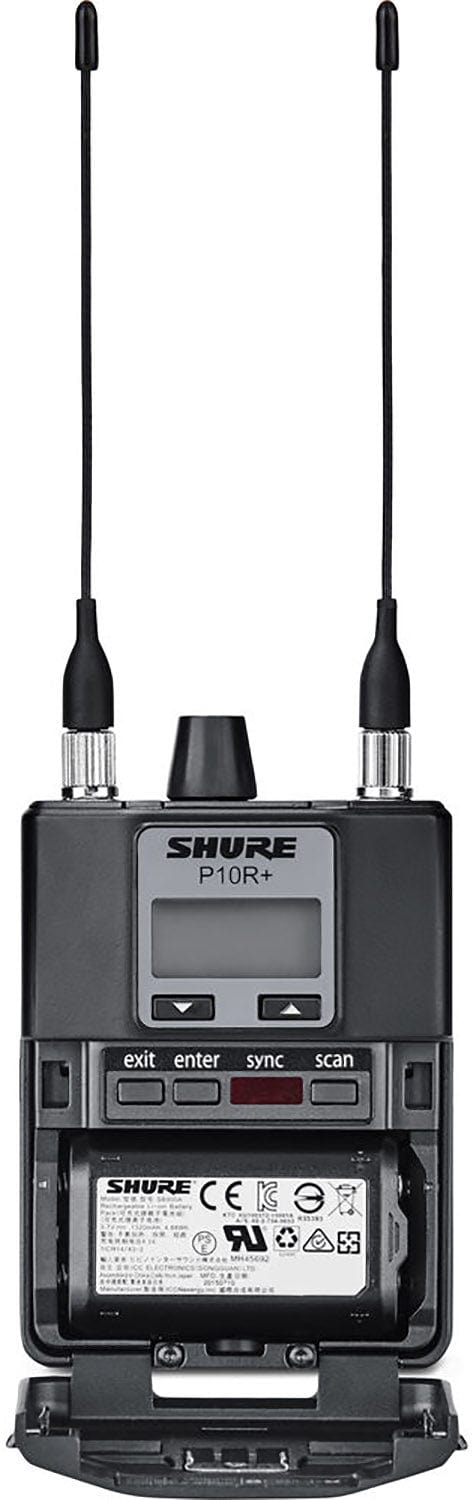

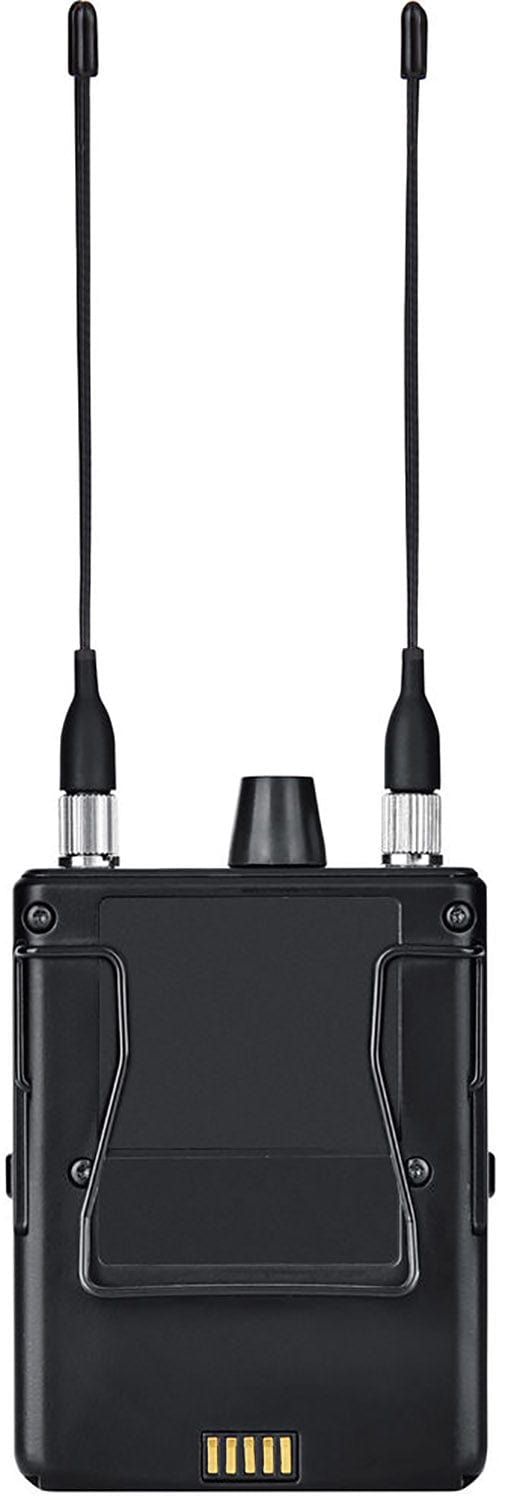

  • Shure P10R+ H22 diversity bodypack receiver for the PSM1000 personal monitor system, main product view
  • Shure P10R+ H22 bodypack receiver, additional product photo 2
  • Shure P10R+ H22 bodypack receiver, additional product photo 3
  • Shure P10R+ H22 bodypack receiver, additional product photo 4
1 4

Shure P10R+-H22: Low-Profile Diversity Bodypack Receiver for PSM1000 Personal Monitor System with CueMode, H22 Band, 518 to 584 MHz

  • PSM1000 low-profile diversity bodypack
  • H22 band, 518 to 584 MHz
  • CueMode, 4-band EQ, Power-Save Mode
  • 158 g, 4 to 6 hours on AA
Brand :Shure
Model : P10R-PLUS-H22

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Applications & Use Cases

  • Touring: reliable in-ear monitoring for artists
  • Multiple Mixes: CueMode with up to 20 stored channels
  • Moving Performers: diversity reception for stable signal
  • Extra Bodypacks: add performers to a PSM1000 system
Shure P10R+ H22 bodypack receiver, additional product photo 2
Shure P10R-PLUS-H22
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Shure P10R+-H22: Low-Profile Diversity Bodypack Receiver for PSM1000 Personal Monitor System with CueMode, H22 Band, 518 to 584 MHz

The Shure P10R+ is a low-profile diversity bodypack receiver for the PSM1000 wireless personal monitor system, with full bandwidth RF scan and Automatic RF Gain Control for signal stability and channel availability in the slimmest form factor available. CueMode stores up to 20 channels for quick stage mix reference, and optional rechargeability gives extended runtime with battery life, cycle count and health metering. It is available in Dubai, Abu Dhabi and across the UAE. This listing is the H22 band, 518 to 584 MHz.

Key Features

  • Full bandwidth RF scan and Automatic RF Gain Control
  • CueMode stores up to 20 channels on one bodypack
  • Improved audio quality and RF performance and reliability
  • Improved alkaline AA battery life
  • 4-band parametric EQ and improved volume limiter
  • Power-Save Mode

Technical Specifications

Spec Detail
Model / Part Number P10R-PLUS-H22
Frequency Band H22, 518 to 584 MHz
RF Sensitivity 2.2 microvolts (20 dB SINAD)
Active RF Gain 31 dB
Rejection Image above 90 dB, adjacent channel and intermodulation above 70 dB, blocking above 80 dB
Audio Output 100 mW per output at 16 ohms
Volume Limiter / Lock 0 to -48 dB in 3 dB steps / 0 to -70 dB
Battery Life 4 to 6 hours on AA batteries
Dimensions / Weight 99 x 66 x 23 mm / 158 g without batteries

Why Buy the Shure P10R+-H22 from Trianze Tech?

Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for personal monitor systems.

  • Genuine Shure stock sourced through authorized distribution channels
  • Band matching against your P10T transmitter before you order
  • IEM system advice across Dubai, Abu Dhabi and the GCC
  • Local UAE warranty backing and after-sales support
  • Volume pricing available for touring and venue teams

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

  • 1x Shure P10R+ H22 bodypack receiver
  • Transmitter, earphones, batteries and chargers are not itemised in the source; confirm at order

Warranty

  • Standard Shure manufacturer warranty, honoured in the UAE through Trianze Tech

Sustainability

  • Optional rechargeability eliminates disposable batteries and reports battery life, cycle count and health

Expandability

  • Pairs with PSM1000 P10T transmitters on the same band

Distribution

  • Stocked and distributed in the UAE by Trianze Tech; wireless frequency use is subject to local regulation, so Trianze Tech confirms the correct band for your project across Dubai, Abu Dhabi and the GCC

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
It is a low-profile diversity bodypack receiver for the PSM1000 personal monitor system on the H22 band, 518 to 584 MHz, with full bandwidth RF scan and Automatic RF Gain Control.
A PSM1000 P10T transmitter on the H22 band, such as the P10T-H22 listed in the store, or a PSM900 transmitter that Shure lists as compatible. Always match the band.
CueMode lets a performer monitor different stage mixes, with up to 20 separate channels stored on one bodypack for quick reference.
RF sensitivity 2.2 microvolts at 20 dB SINAD, active RF gain 31 dB, image rejection above 90 dB, adjacent channel and intermodulation attenuation above 70 dB and blocking above 80 dB, with tri-band RF filtering.
4 to 6 hours on AA batteries, with optional rechargeability that reports battery life, cycle count and health. It weighs 158 g without batteries and measures 99 x 66 x 23 mm.
Trianze Tech stocks the Shure P10R+ H22 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
