Shure MXWAPXD2-Z10: 2-Channel Access Point Transceiver for Microflex Wireless neXt 2 with IntelliMix DSP, Dante and USB-C
Model
:
MXWAPXD2-Z10
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure MXWAPXD2-Z10: 2-Channel Access Point Transceiver for Microflex Wireless neXt 2 with IntelliMix DSP, Dante and USB-C
The Shure MXWAPXD2 is a 2-channel access point for Microflex Wireless neXt 2 systems. It combines Automatic Frequency Management, IntelliMix DSP audio processing, microphone charging and flexible audio and control interfaces in a compact, discreet unit for meeting rooms, boardrooms and hybrid spaces across Dubai, Abu Dhabi and the UAE. This listing is the Z10 (1.9 GHz DECT) version.
Key Features

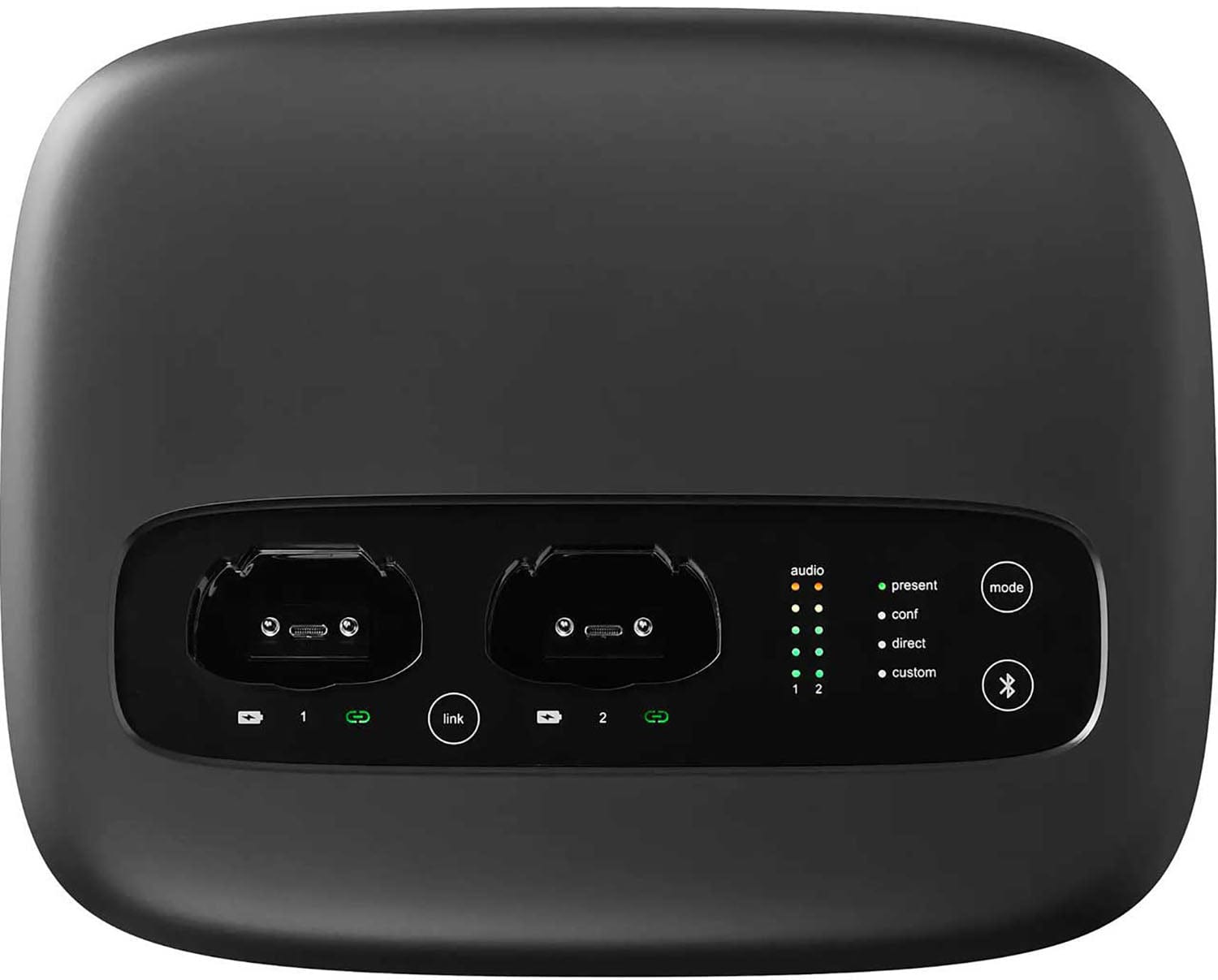

- Built-in charging slots for two MXW1X bodypack, MXW2X handheld or MXW6X boundary transmitters
- Automatic Frequency Management finds open channels in the 1.9 GHz DECT band without interrupting audio
- Onboard IntelliMix DSP with automatic mixing, echo cancellation, noise reduction and automatic gain control
- Presets for presentations or conferences to send mic and program audio to remote participants, room loudspeakers or both
- Analog, Dante and USB-C interfaces for computers, sound systems and videoconferencing codecs
- Dual RJ45 ports separate Dante audio and control for added security
- External USB-C power supply
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | MXWAPXD2-Z10 |
| Compatibility | Shure MXW neXt 2 MXW1X, MXW2X, MXW6X |
| Wireless | DECT, 1.9 GHz |
| Analog I/O | 2 x 3-pin block inputs, 2 x 3-pin block outputs |
| Dante | 2 x RJ45 in (for MXA ceiling arrays), 3 x RJ45 out (external DSP, MXN5, Dante recorder) |
| USB | 1 x USB-C power only, 1 x USB-C input/output |
| Display | Direct view LED, no touchscreen |
| Power / Colour | USB / Black |
Why Buy the Shure MXWAPXD2-Z10 from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for conferencing audio.
- Genuine Shure stock sourced through authorized distribution channels
- Microflex system design advice across Dubai, Abu Dhabi and the GCC
- Band and variant checking before you order
- Local UAE warranty backing and after-sales support
- Volume pricing available for integrators and enterprises
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The MXWAPXD2 is a 2-channel access point for Microflex Wireless neXt 2 systems. It combines Automatic Frequency Management, IntelliMix DSP audio processing, microphone charging and flexible audio and control interfaces in a compact, discreet unit. This is the Z10 (1.9 GHz DECT) version.
It has built-in charging slots for two MXW1X bodypack, MXW2X handheld or MXW6X boundary transmitters, and is compatible with the MXW neXt 2 MXW1X, MXW2X and MXW6X.
It provides automatic mixing, echo cancellation, noise reduction and automatic gain control, and presets configure the system for presentations or conferences to send mic and program audio to remote participants, room loudspeakers or both.

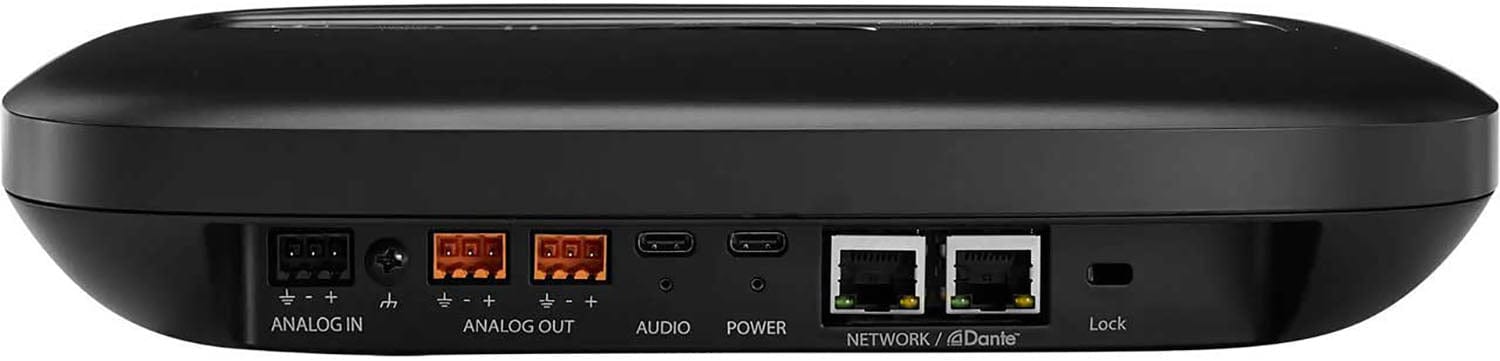

Analog (two 3-pin block inputs and two outputs), Dante and USB-C. Two RJ45 Dante inputs are for MXA ceiling array microphones and three RJ45 Dante outputs go to external DSP, an MXN5 or a Dante recorder. Dual RJ45 ports let Dante audio and control be separated for security.
Automatic Frequency Management finds open channels in the 1.9 GHz DECT band and avoids interference without interrupting audio. The SKU ends Z10, a 1.9 GHz variant, so confirm it is suitable for UAE use with Trianze Tech.
Trianze Tech stocks the Shure MXWAPXD2 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
