Shure MXCWAPT-B: Wireless Access Point Transceiver for Microflex Complete Wireless Conference System with Dante and PoE, Canada and Mexico Version
Model
:
MXCWAPT-B
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure MXCWAPT-B: Wireless Access Point Transceiver for Microflex Complete Wireless Conference System with Dante and PoE, Canada and Mexico Version
The Shure MXCWAPT-B is the hub of the Microflex Complete Wireless conference system, designed to operate in Canada and Mexico. It manages audio routing, frequency coordination and system control for up to 125 wireless conference units, scanning the 2.4 GHz and 5 GHz bands to find the clearest channel. Trianze Tech supplies it to conference projects across Dubai, Abu Dhabi and the UAE, and confirms regional version suitability before ordering.
Key Features
- Controls up to 125 MXCW640 wireless conference units
- Bi-directional wireless with real-time control of all settings
- 2.4 GHz and 5 GHz operation including DFS spectrum, with automatic frequency coordination and interference avoidance
- Dante digital audio, 10 inputs and 10 outputs
- Analog XLR audio input and output
- One Ethernet cable carries audio, control and PoE power
- AES-128 encryption for enhanced privacy
- Display for basic configuration without a laptop, with LEDs for power, wireless and network status
- Wall or ceiling mounting plate and paintable cover included
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | MXCWAPT-B |
| Region | Canada and Mexico |
| Wireless Standard / Bands | IEEE 802.11 a, g / 2.4 GHz ISM and 5 GHz UNII |
| RF Output Power | 1 mW, 5 mW, 13 mW or 25 mW |
| Sensitivity | -80 dBm at 10% PER |
| Analog Input | Balanced XLR 3-pin female, line or aux level, max input 24.9 dBV (line) |
| Analog Output | XLR 3-pin male, max output 4.3 dBV, load above 600 ohms |
| Frequency Response (analog in) | 22 Hz to 20 kHz (+0.5 dB / -3 dB) |
| Network | Gigabit Ethernet and Dante, Cat 5e or higher up to 100 m |
| Power | PoE, 37 to 57 V, 6.5 W typical, 12.95 W maximum |
| Display | Monochrome LCD, 152 x 78 |
| Operating Temperature | 7 to 49 degrees C |
| Dimensions / Weight | 47.8 x 242.5 x 241.8 mm / 1.15 kg |
Why Buy the Shure MXCWAPT-B from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with regional presence in Dubai, helping projects avoid the delays of international sourcing for conference systems.
- Genuine Shure product sourced through authorized distribution channels
- Conference system design advice across Dubai, Abu Dhabi and the GCC
- Regional version checking before you order
- Local UAE warranty backing and after-sales support
- Volume pricing available for integrators and government projects
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure MXCWAPT-B is the hub of the Microflex Complete Wireless conference system, designed to operate in Canada and Mexico. It manages audio routing, frequency coordination and system control for up to 125 MXCW640 wireless conference units.

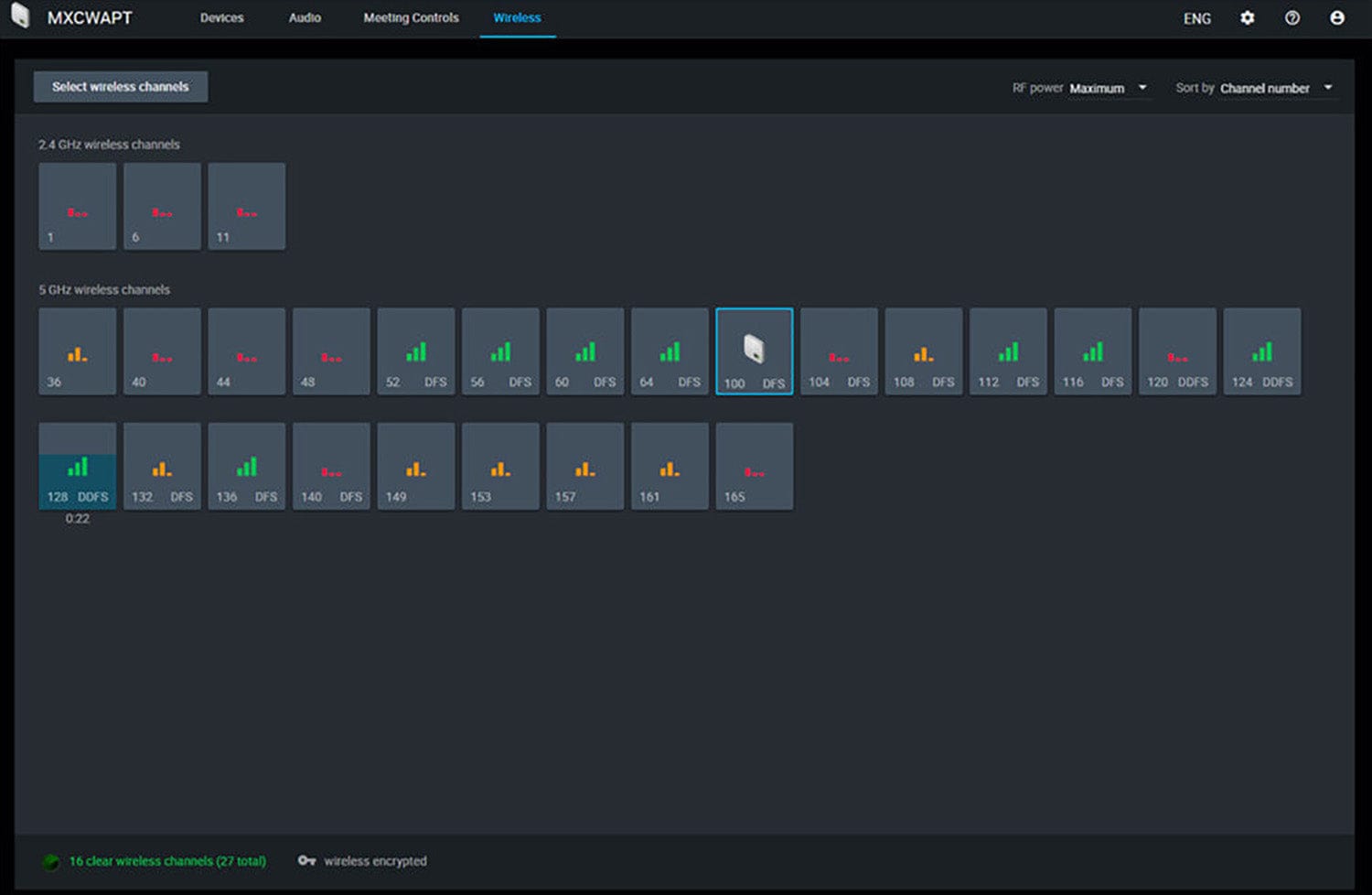

The MXCWAPT-B scans the 2.4 GHz and 5 GHz bands to find the clearest channel and tells the conference units. It uses limited-access DFS spectrum to widen channel choice, and if a conflict appears it instructs all units to change channels. The link uses IEEE 802.11 a/g with AES-128 encryption and RF output of 1, 5, 13 or 25 mW.

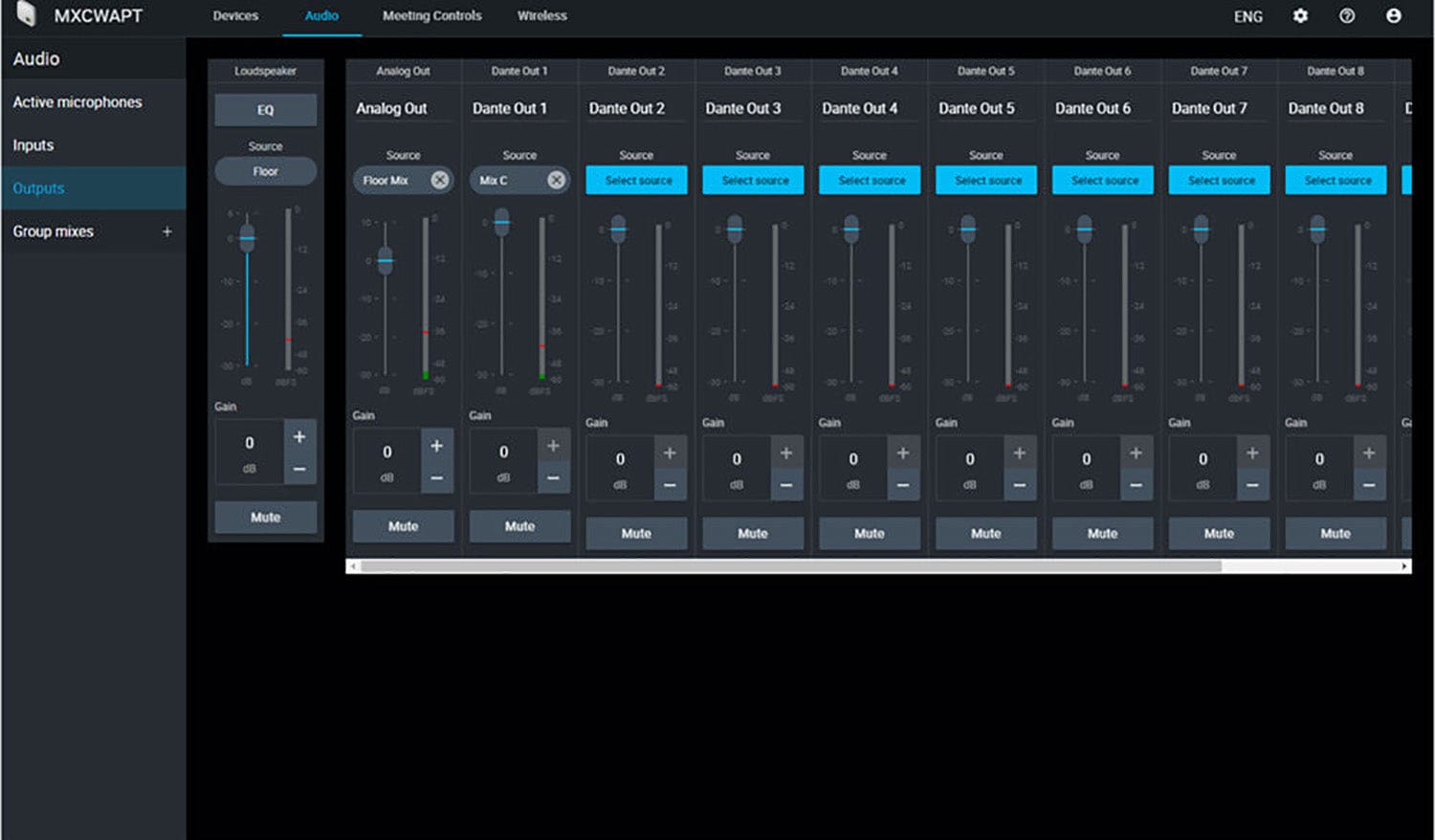

The MXCWAPT-B has a Dante networked audio connection with 10 input and 10 output channels, plus a balanced analog XLR input (3-pin female, line or aux level) and XLR output (3-pin male) with a ground lift switch. The analog ports connect a presenter's wireless microphone or an external sound reinforcement system.
It is powered over Ethernet from a standard PoE switch or power injector (37 to 57 V, 6.5 W typical, 12.95 W maximum) using Cat 5e or better cable up to 100 m. It mounts on a wall or ceiling with the included bracket and paintable cover, or sits on a table, and measures 47.8 x 242.5 x 241.8 mm at 1.15 kg.
The MXCWAPT-B is designed for Canada and Mexico, while Shure sells the MXCWAPT-W for Asia, Europe, India and the rest of the world. Wireless equipment is subject to local regulation, so contact Trianze Tech to confirm the right regional version for your UAE project before ordering.
Trianze Tech offers the Shure MXCWAPT-B in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
