Shure MXA-NMB: PoE Network Mute Button with Microphone Icon for Shure Networked Audio Products
Model
:
MXA-NMB
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

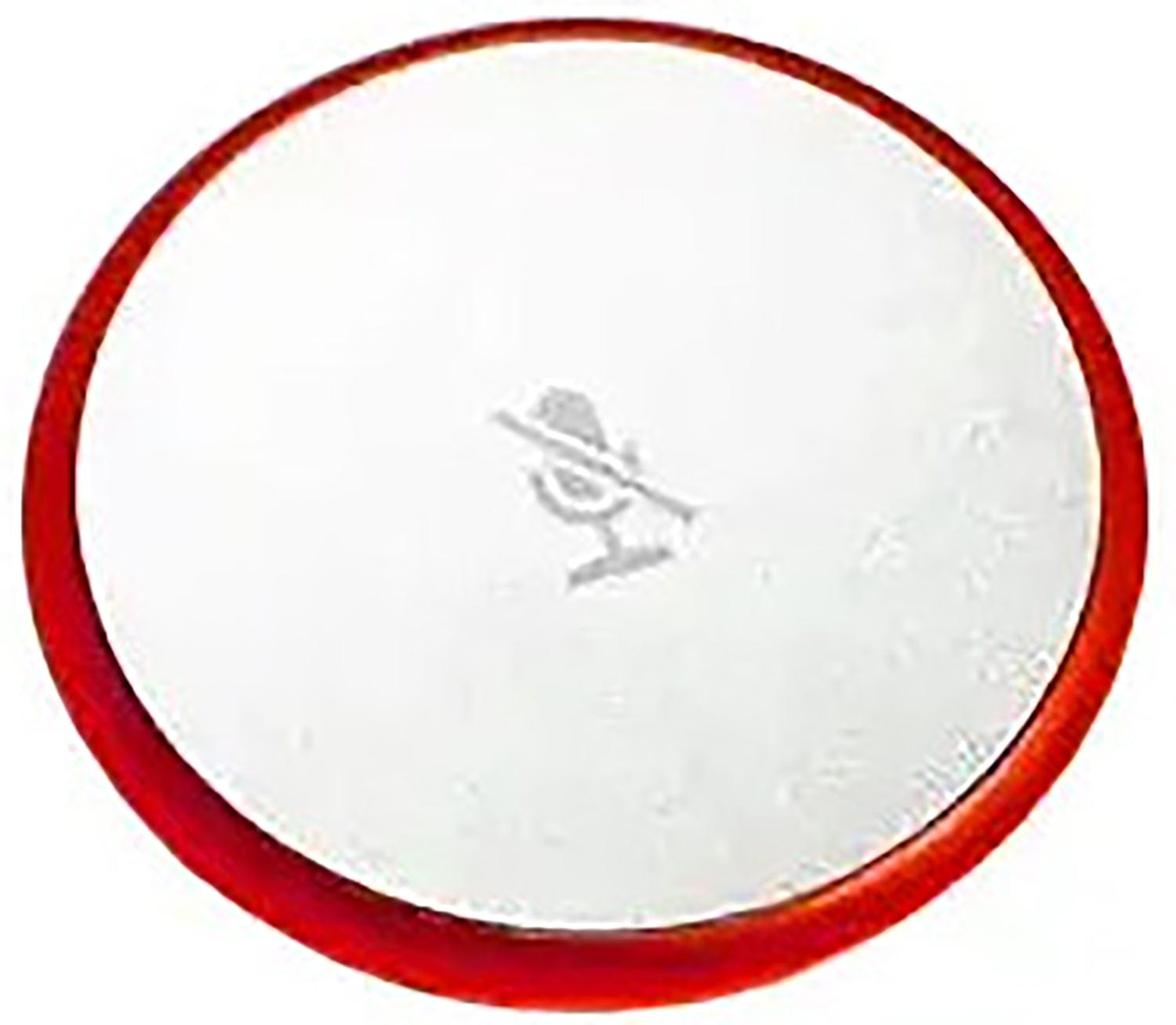

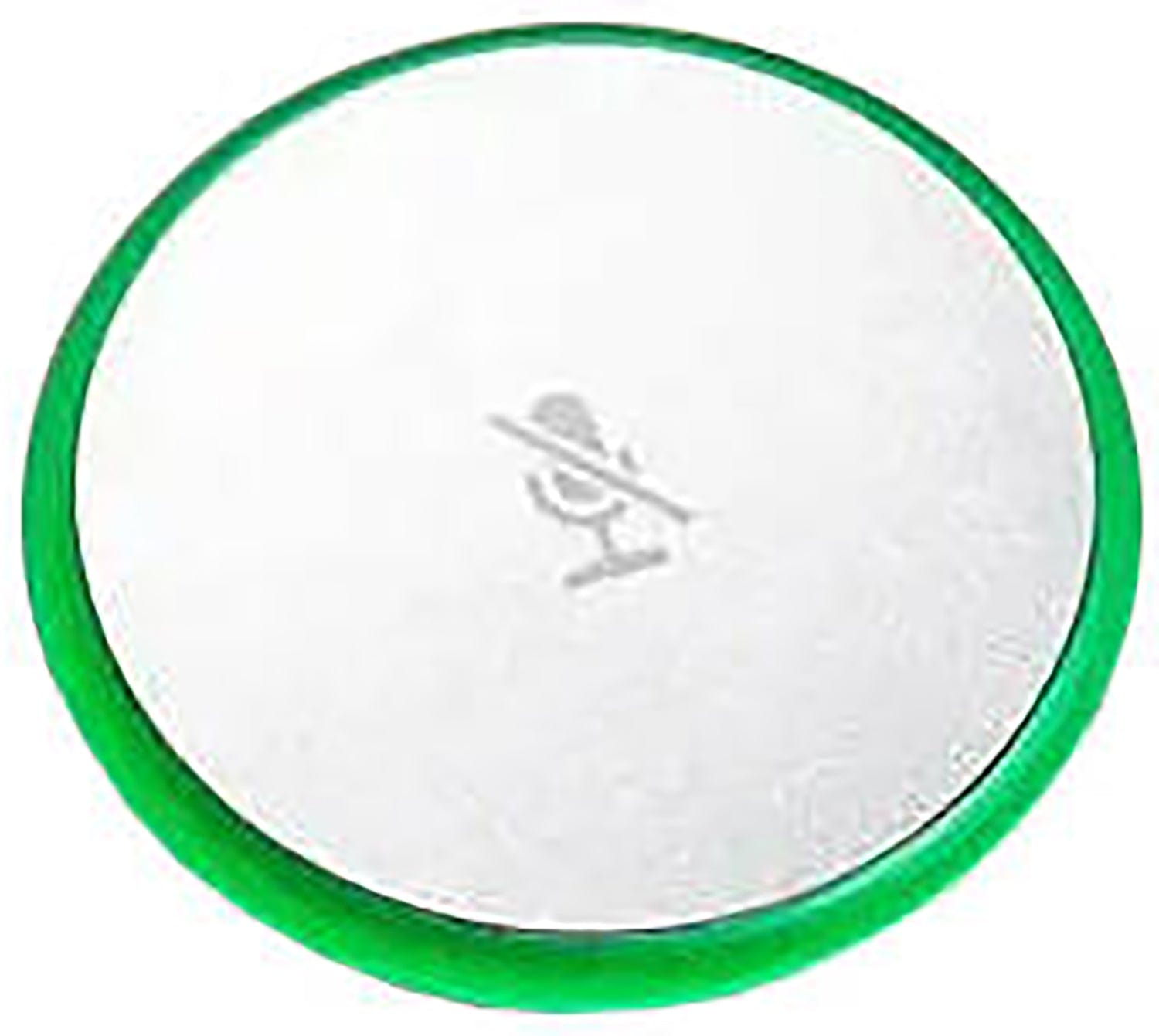

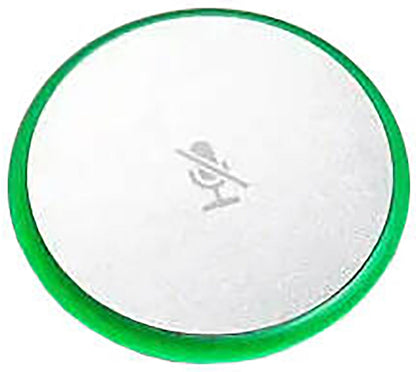

Shure MXA-NMB: PoE Network Mute Button with Microphone Icon for Shure Networked Audio Products
The Shure MXA-NMB is a configurable, PoE-powered mute button accessory for Shure networked audio products, including Microflex Advance array microphones, the IntelliMix P300 and IntelliMix Room DSPs, and the ANIUSB-MATRIX. One or many low-profile, touch-sensitive buttons can mute one or several microphones to suit meeting rooms and boardrooms across Dubai, Abu Dhabi and the UAE. This version carries a microphone icon.
Key Features
- Configured in Shure Designer, with SystemOn asset management for remote management and troubleshooting
- PoE powered over a single Ethernet cable
- Third party control systems supported through programmable control strings
- LED status ring with configurable colors and brightness
- Toggle, push to talk or push to mute behaviour
- IPX1 rated, installs in 1 inch (25 mm) or 7/8 inch (22 mm) table holes
- Microphone icon on the button
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | MXA-NMB |
| Connector | RJ45, Cat 5e or higher (shielded recommended) |
| Power | PoE Class 1, 2 W maximum |
| Control Software | Shure Designer |
| Ingress Protection | IEC 60529 IPX1 |
| Operating / Storage Temperature | -6.7 to 40 degrees C / -29 to 74 degrees C |
| Base | 94.96 x 94.96 x 27.04 mm |
| Mute Button | 39.02 x 39.02 x 5.02 mm |
| Button Tube | 22 x 22 x 76.98 mm |
| Grommet / Spacer | 49.97 x 49.97 x 8 mm / 49 x 49 x 1.2 mm |
Why Buy the Shure MXA-NMB from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for conferencing audio.
- Genuine Shure stock sourced through authorized distribution channels
- Microflex Advance system design advice across Dubai, Abu Dhabi and the GCC
- Compatibility checking against your array or DSP before you order
- Local UAE warranty backing and after-sales support
- Volume pricing available for integrators and enterprises
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure MXA-NMB is a configurable, PoE-powered mute button for Shure networked audio products, including Microflex Advance array microphones, the IntelliMix P300 and IntelliMix Room DSPs, and the ANIUSB-MATRIX. It is a low-profile, touch-sensitive button, and this version carries a microphone icon.
The MXA-NMB can work as a toggle, push to talk or push to mute button, and one or many buttons can mute one or several microphones. It has an LED status ring with configurable colors and brightness, is set up in Shure Designer, and works with third party control systems through programmable control strings.
The MXA-NMB is powered over Ethernet (PoE, Class 1) and draws 2 W maximum through an RJ45 connection. Shure specifies Cat 5e or higher cable, with shielded cable recommended.
It installs in a 1 inch (25 mm) or 7/8 inch (22 mm) table hole. The base measures 94.96 x 94.96 x 27.04 mm, the button 39.02 x 39.02 x 5.02 mm and the button tube 22 x 22 x 76.98 mm, and the unit is IPX1 rated and works from -6.7 to 40 degrees C.
The two buttons share the same electronics, PoE power and features. The MXA-NMB is available with a microphone icon on the button, while the MXA-NMB/BLANK has no icon.
Trianze Tech stocks the Shure MXA-NMB in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
